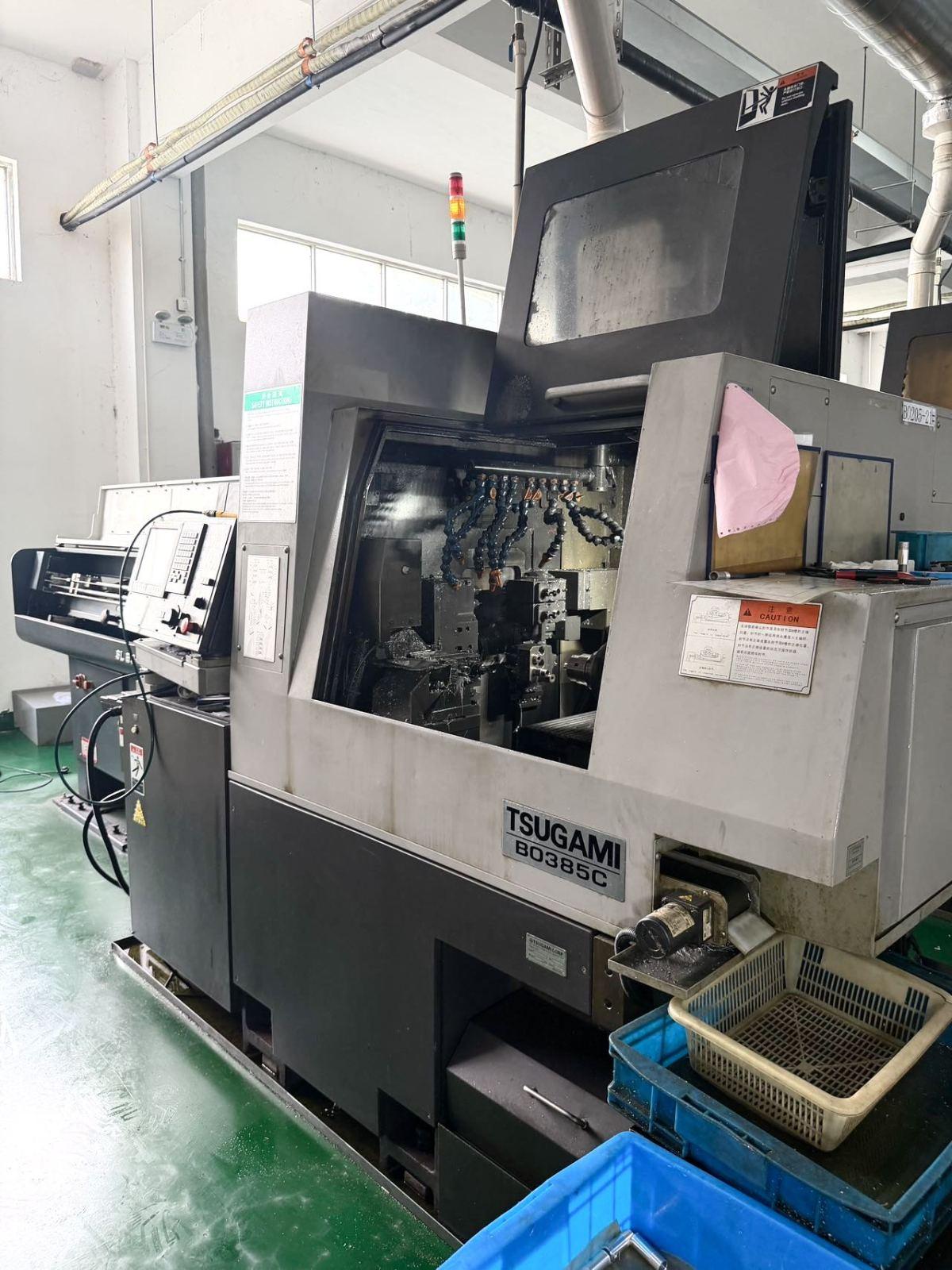

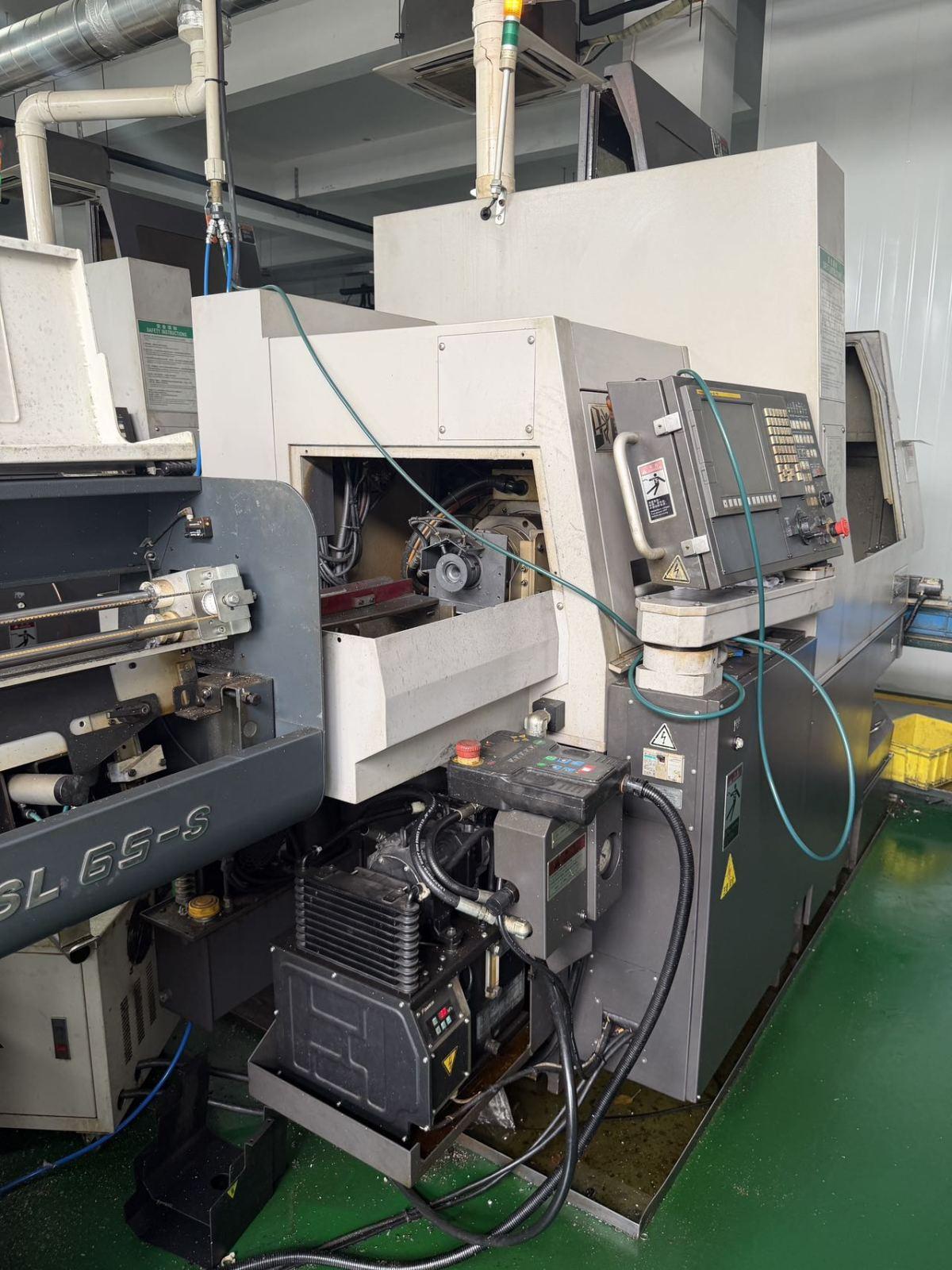

Tsugami BO385C Automatic lathe

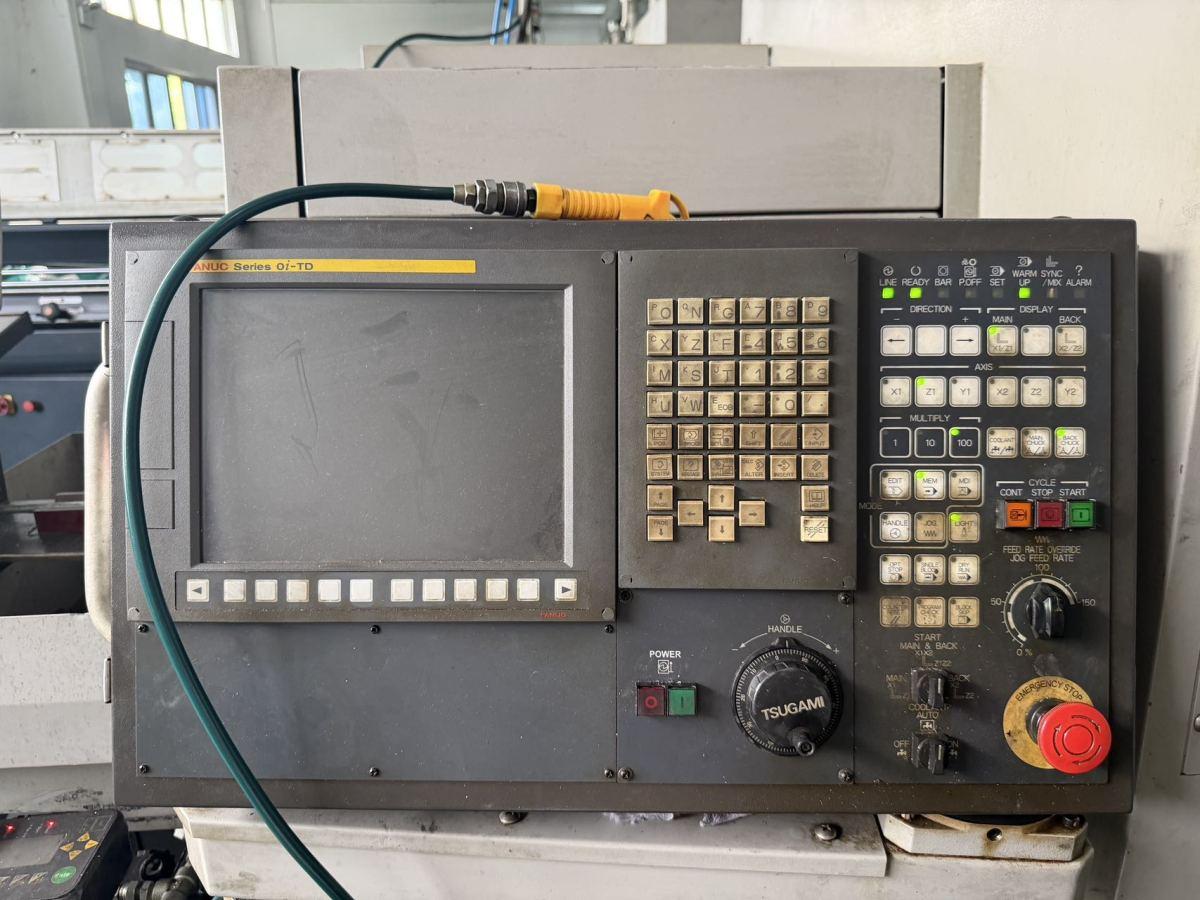

CNC System: FANUC Oi-TD
Maximum machining diameter: 38 mm
Maximum machining length: 60 mm
Spindle speed: 4,500 rpm
Sub spindle speed: 7,000 rpm
Tool magazine capacity: 28
Spindle motor power: 3.7 / 5.5 kW
Sub spindle motor power: 2.2 / 3.7 kW
Dimensions (L × W × H): 2,720 × 1,280 × 1,930 mm
Machine weight: 3,900 kg
Configuration:
Back Spindle
4 Side Milling Live Tools
2 Sets of 1-to-4 Tool Holders

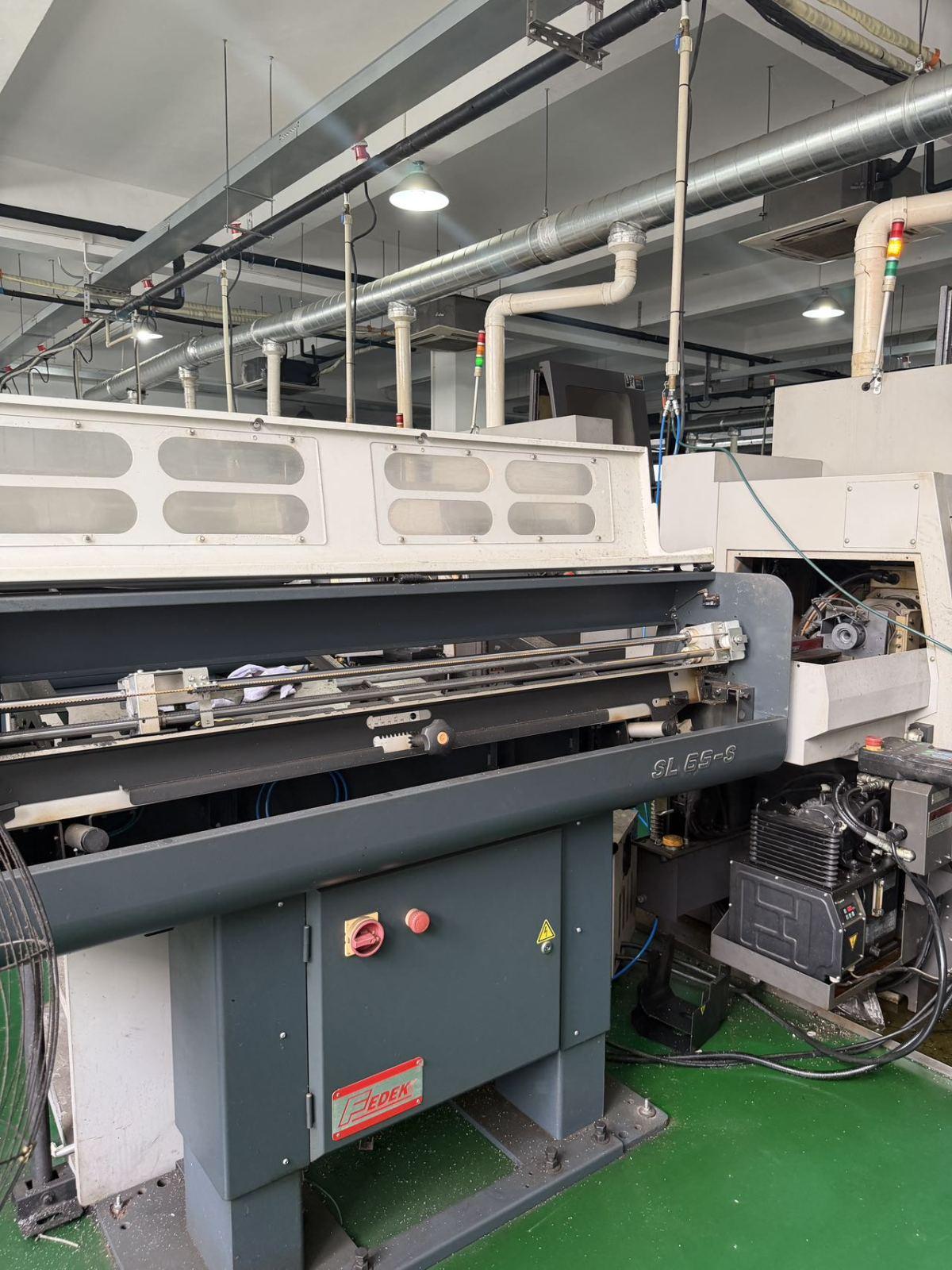

LNS Bar Feeder
Transformer
