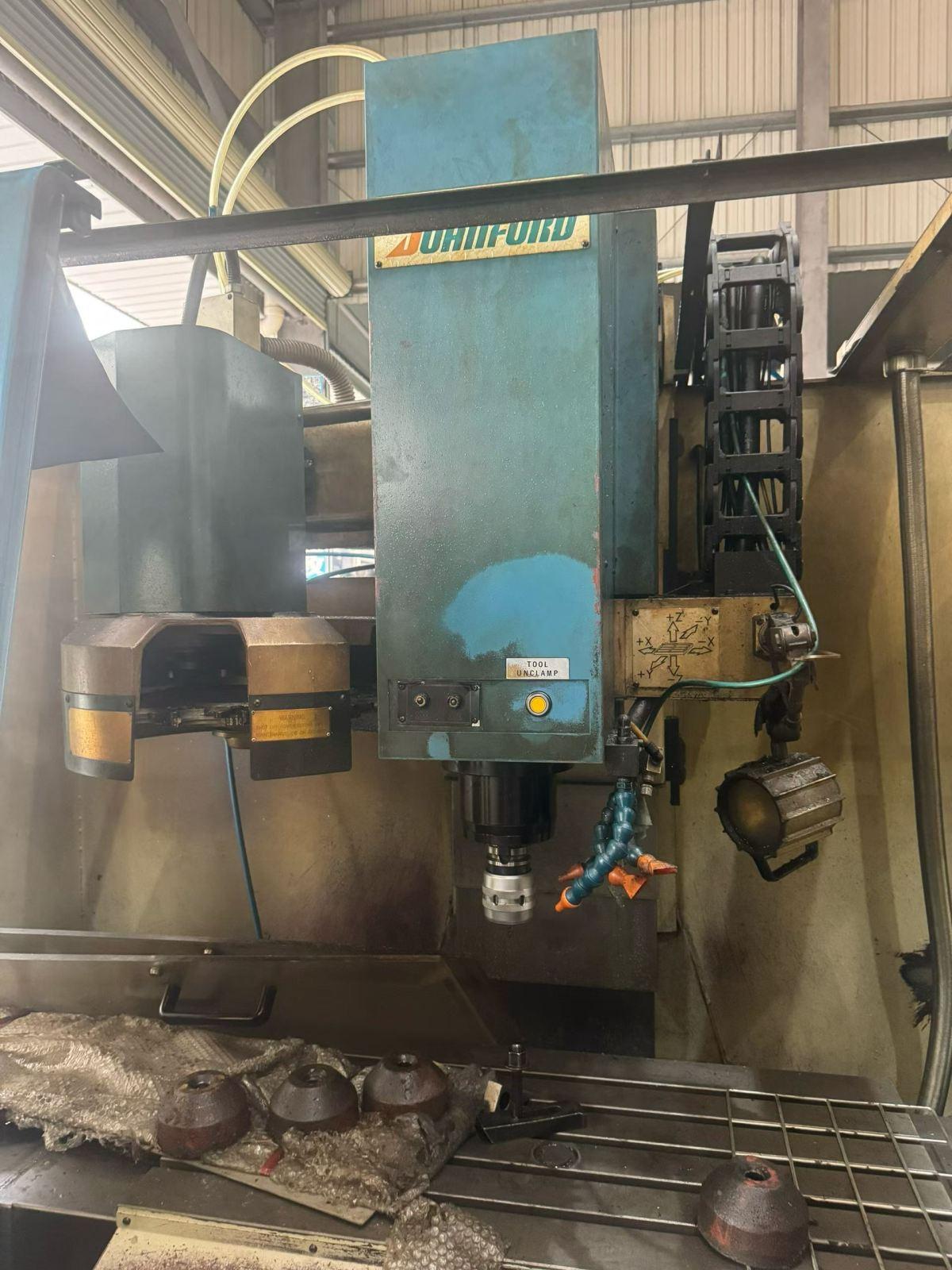

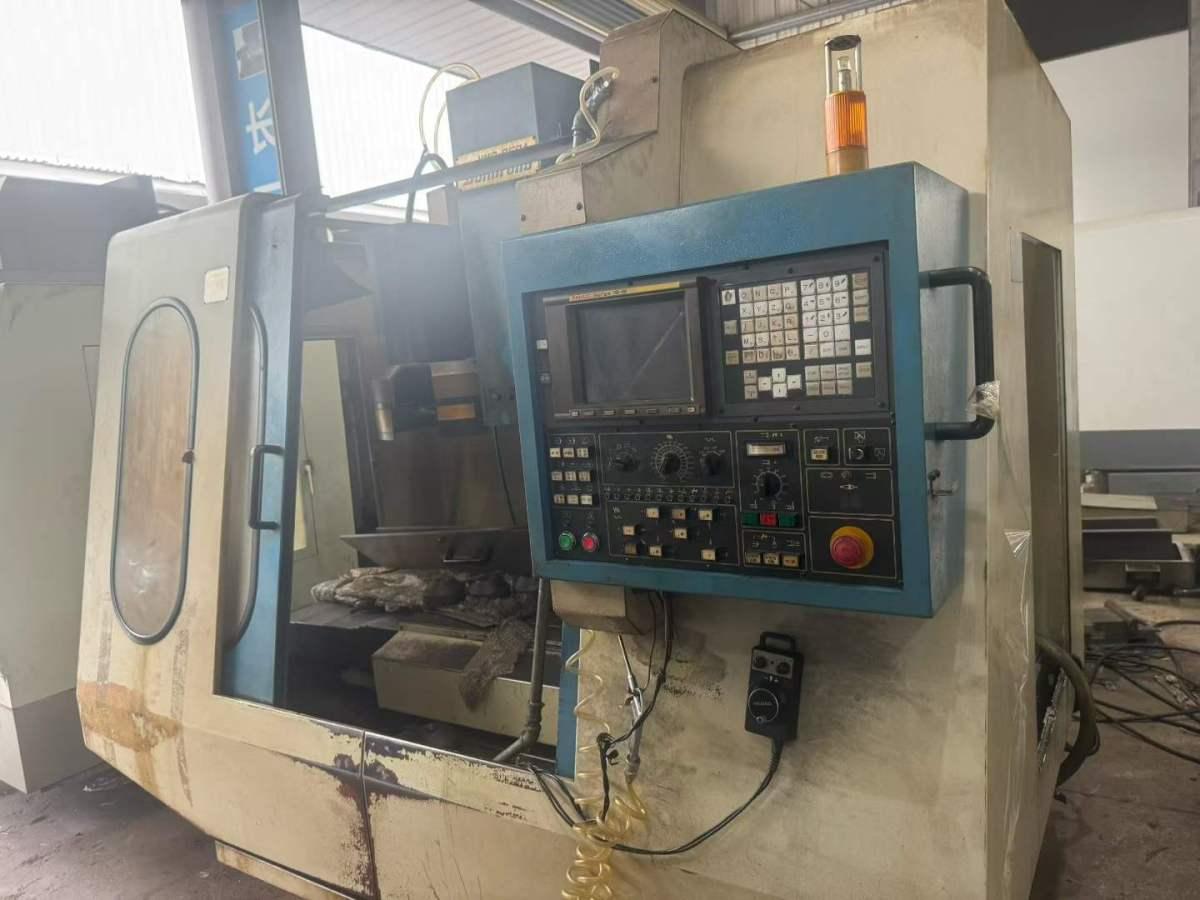

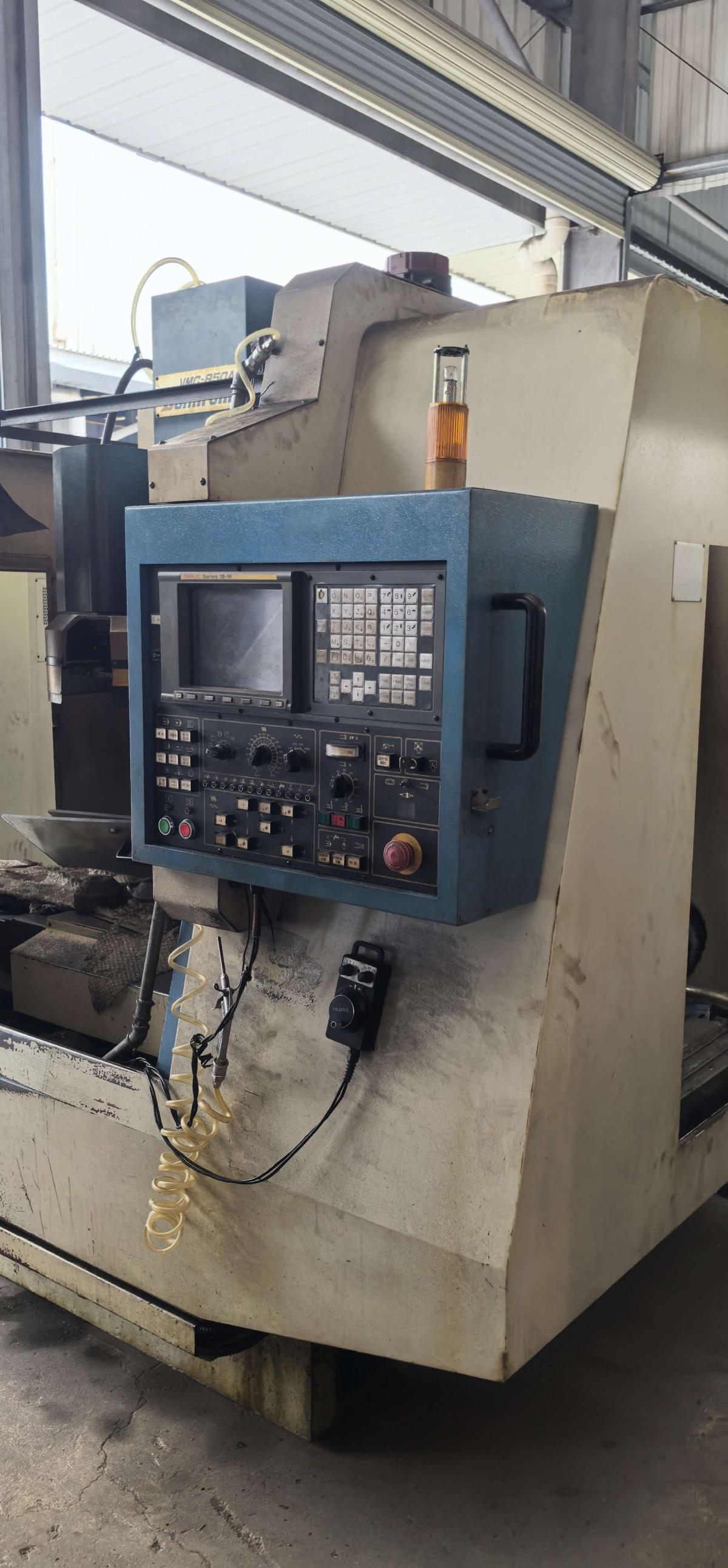

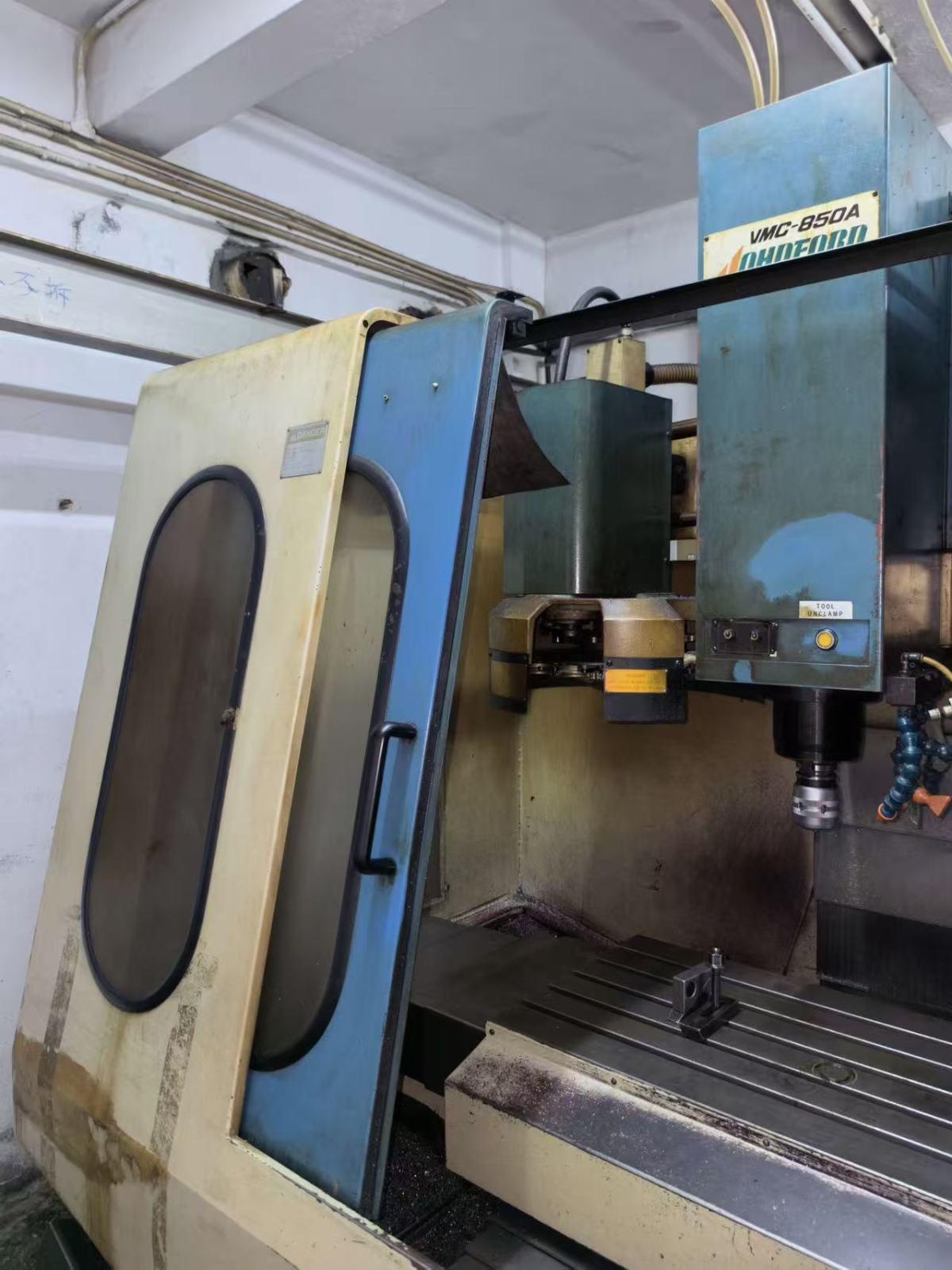

Johnford VMC-850 Vertical Machining centre

X-axis: 800 mm
Y-axis: 500 mm
Z-axis: 610 mm
WorkWorktable size: 1000 × 500 mm
Maximum load of Worktable: 400 kg
spindle taper: BT-40
Spindle speed: 60 to 8000 rpm
spindle motor: 5.5/7.5kW
Distance from spindle nose to Worktable surface: 100 to 710 mm
From spindle center to the slide surface: 550 mm
X/Y/Z rapid feed: 30/30/20 m/min
Cutting feed rate: 1 to 12000 mm/min
Cutting capacity (S45C) : mill 120 cc/min, drilling Ø30 mm, tapping M30 × P3.5
Number of stored Tools: 24 in the form of a conical hat
Adjacent maximum Tool diameter: 75mm
Maximum Tool diameter: 100 mm
Maximum Tool length: 300mm
Maximum Tool weight: 10 kg
Net weight of machine: approximately 5,500 kg
Machine Footage (length × width × height) : approximately 2350 × 2200 × 2698 mm
