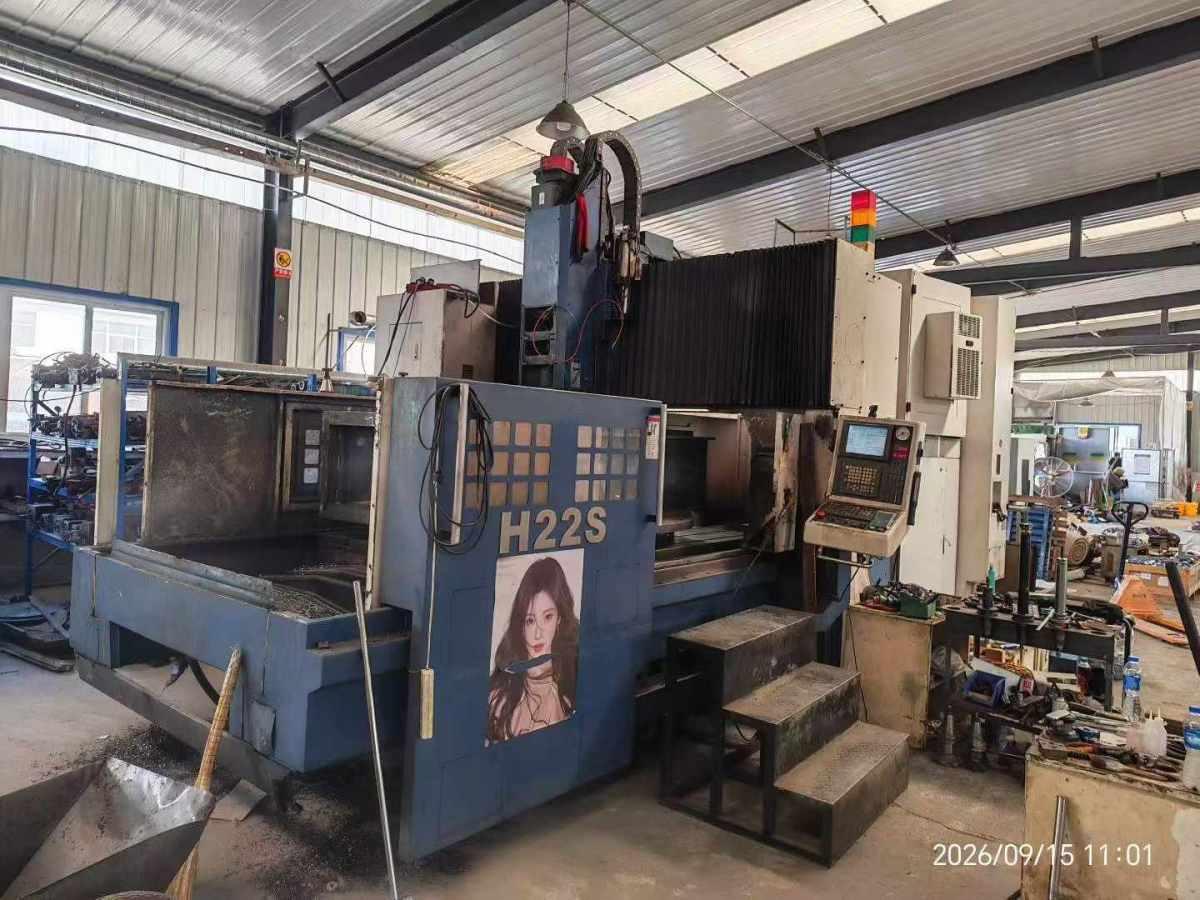

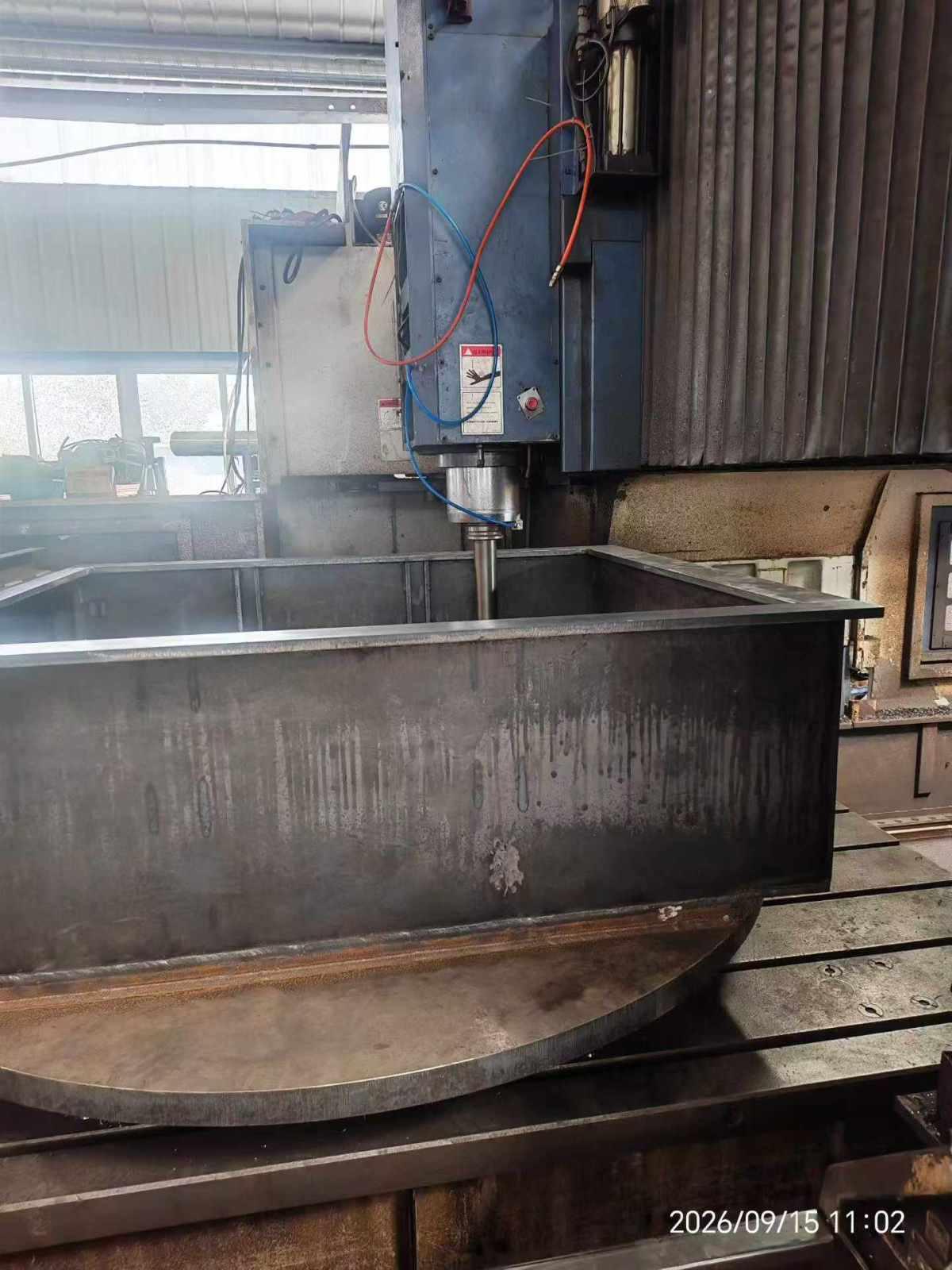

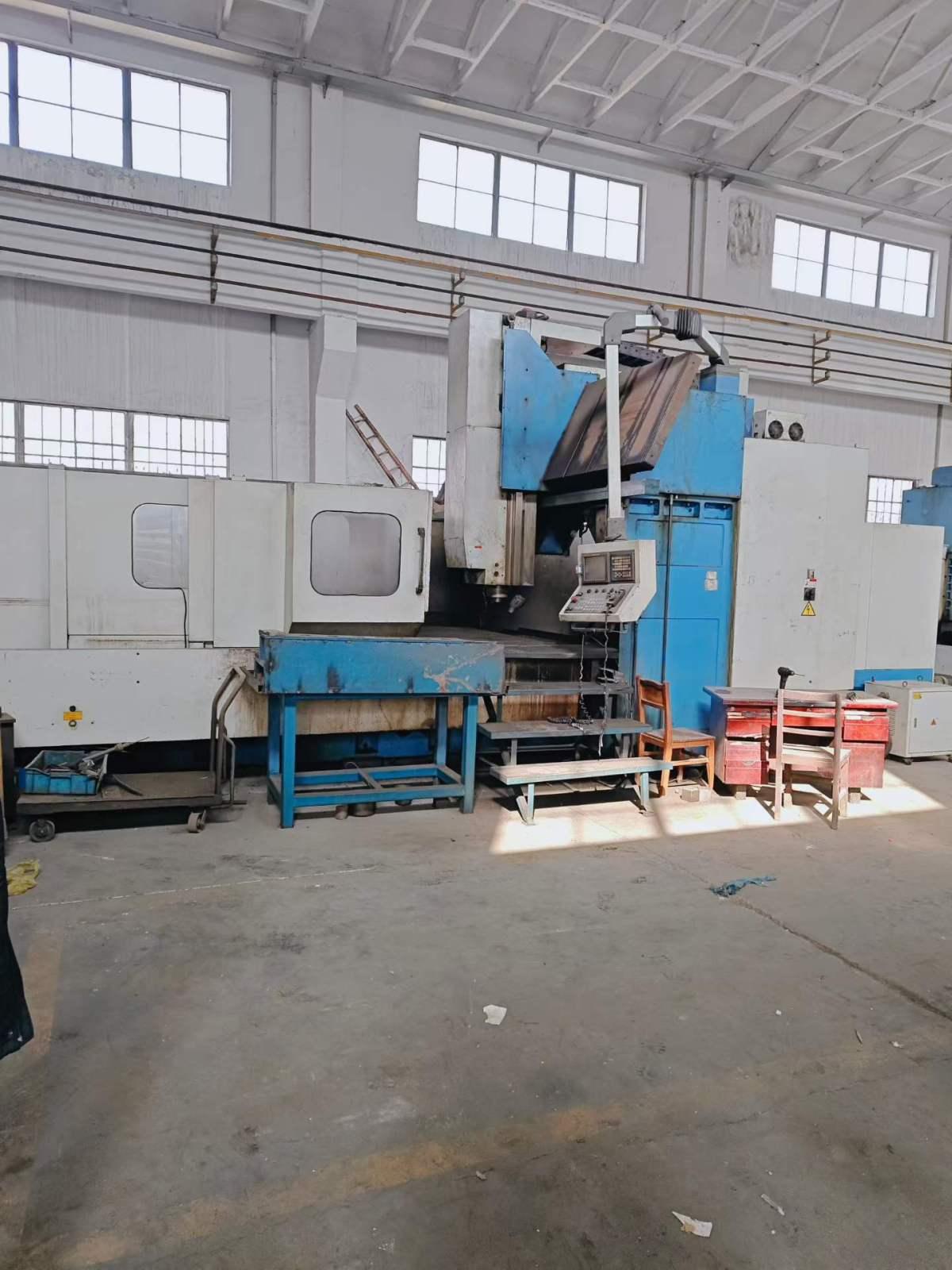

Takumi H22S Gantry machining centre

X-axis: 2200 mm
Y-axis: 1600 mm
Z-axis: 700mm
Worktable size: 2400 mm × 1600 mm
Maximum countertop load-Load: 8000 kg
Distance between columns (width of the gantry) : 1750mm
Distance from spindle nose to Worktable: 150mm to 950mm
spindle taper: BT-50
Maximum spindle speed: 10,000 rpm
Main motor power: 22 kW / 26 kW or 22 kW / 35 kW (continuous / 30-minute rating)
guideway form: 3 axes roller type precision linear slide rail
The weight of machine tool is approximately 27,000 kg
