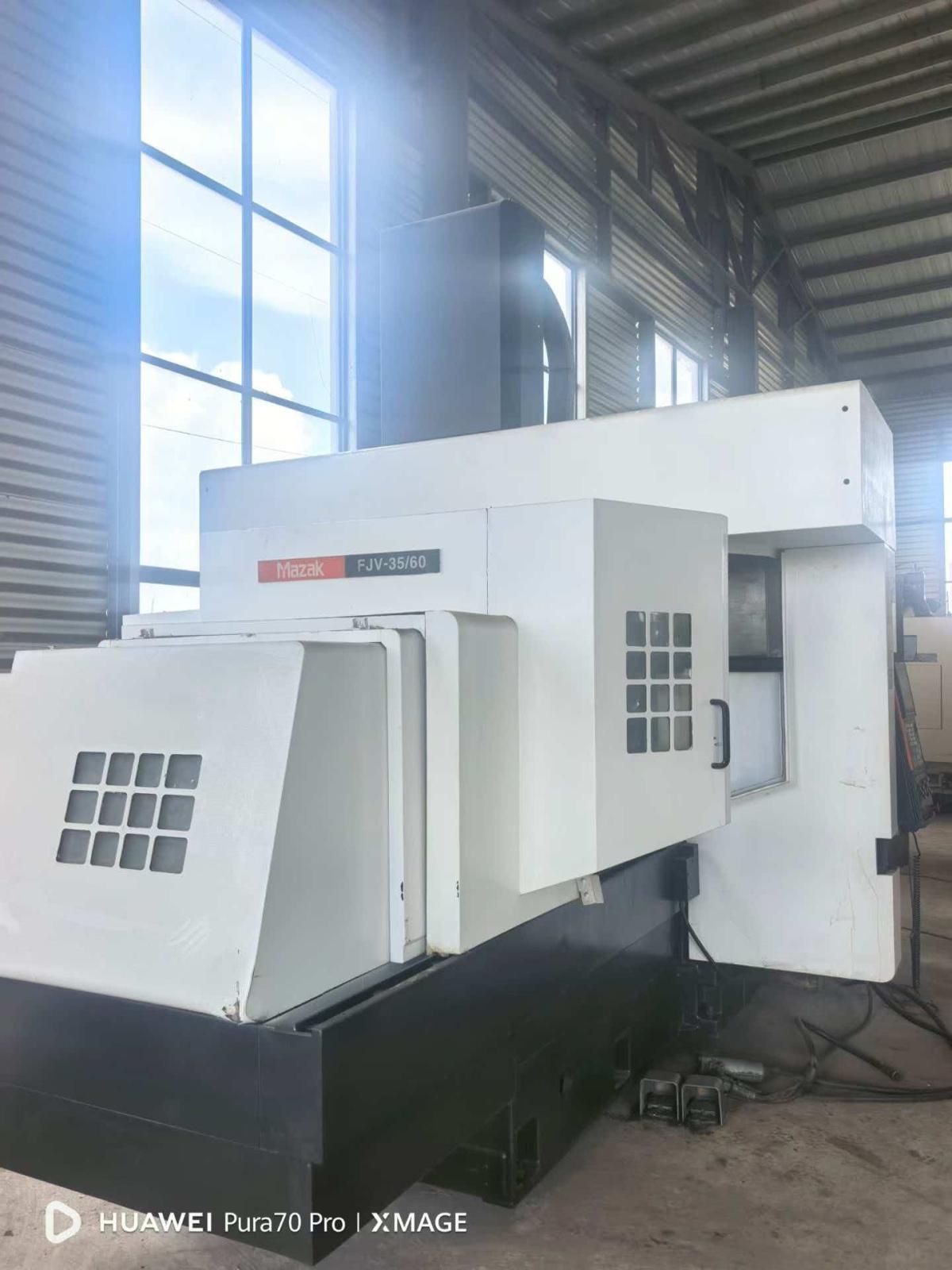

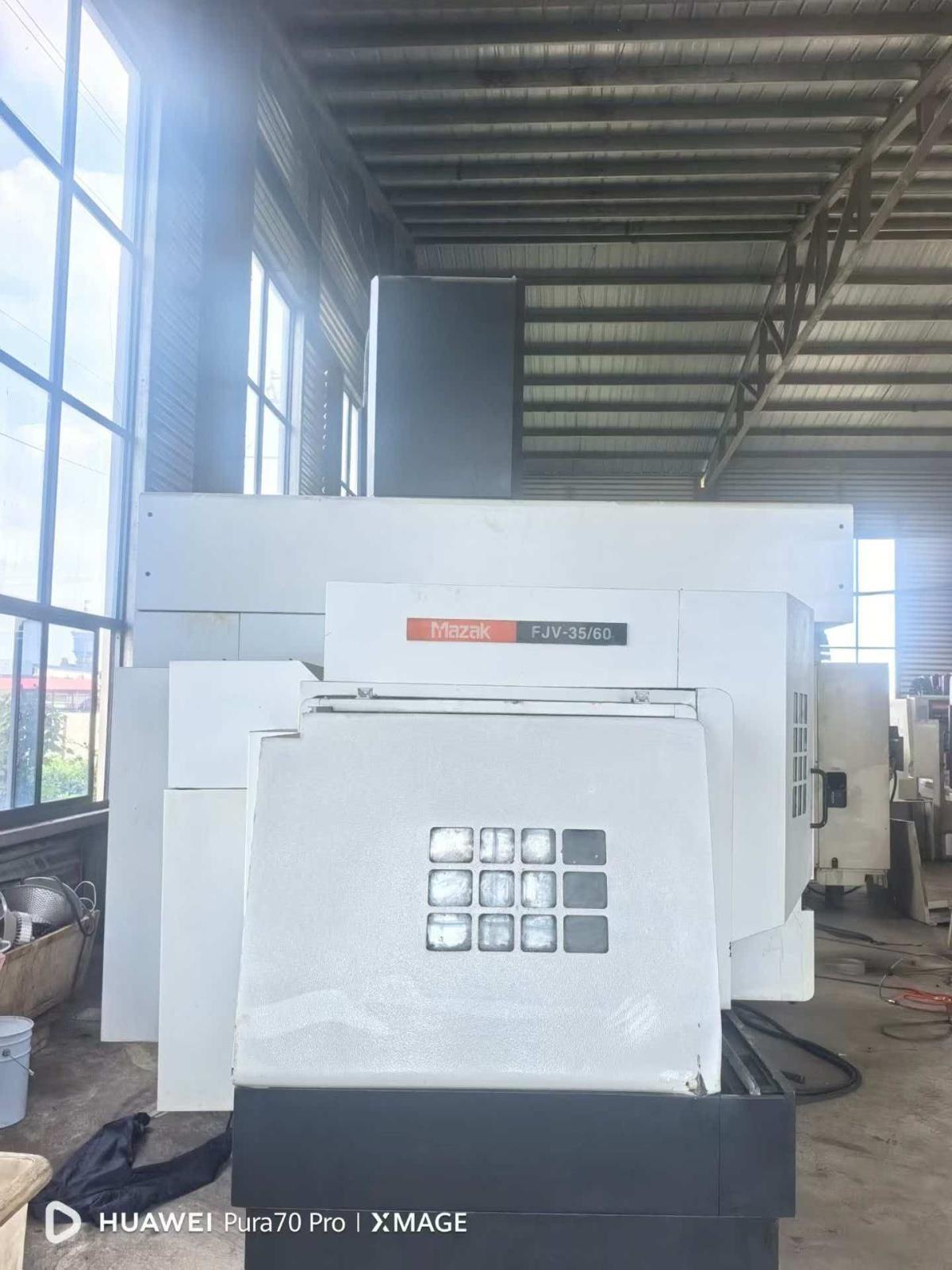

MAZAK FJV35/60 Gantry machining centre

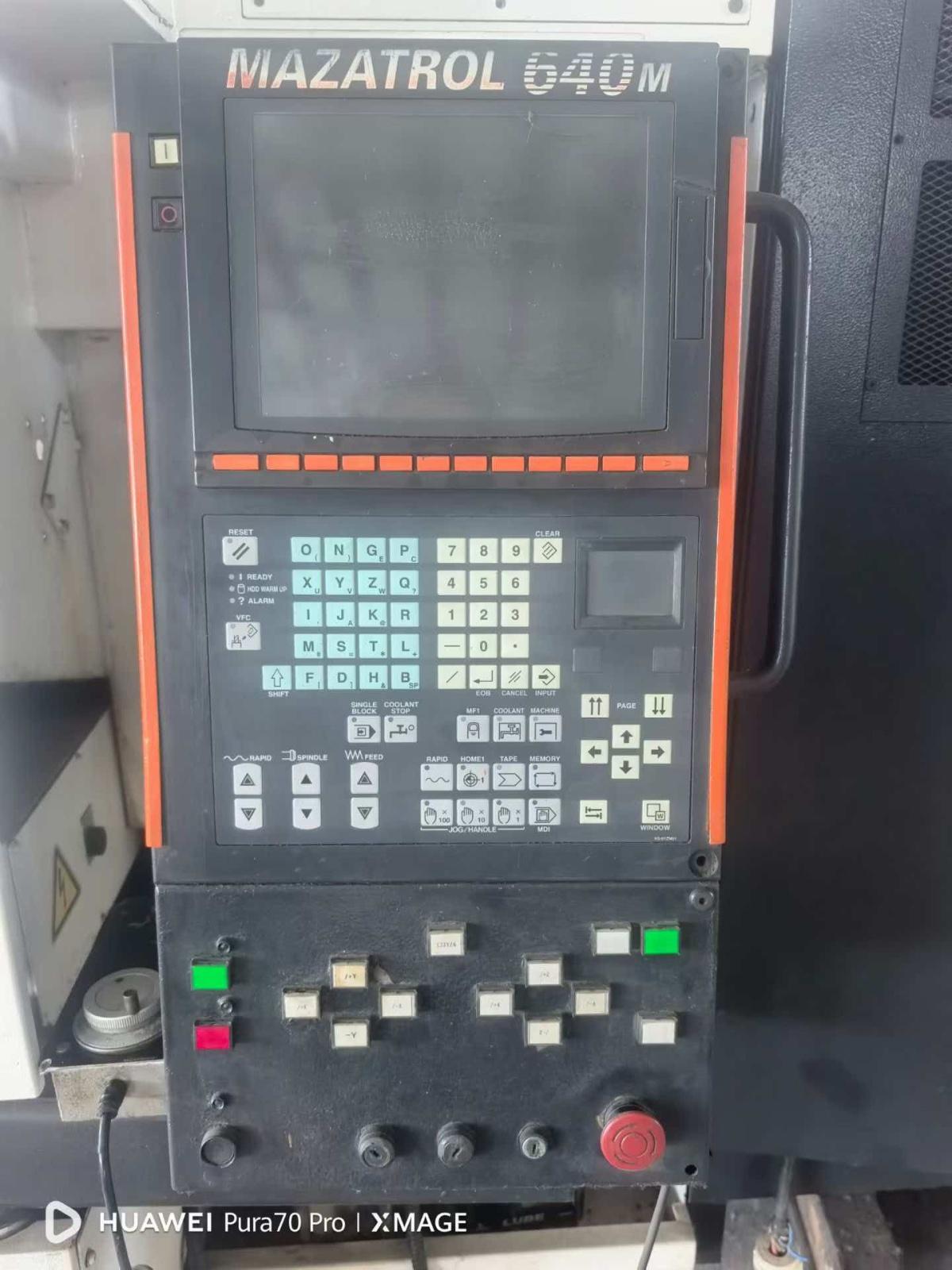

CNC System: MAZATROL 640M
three-axis travel: 1500 × 800 × 660 mm
guideway structure: two lines and one rigid guideway

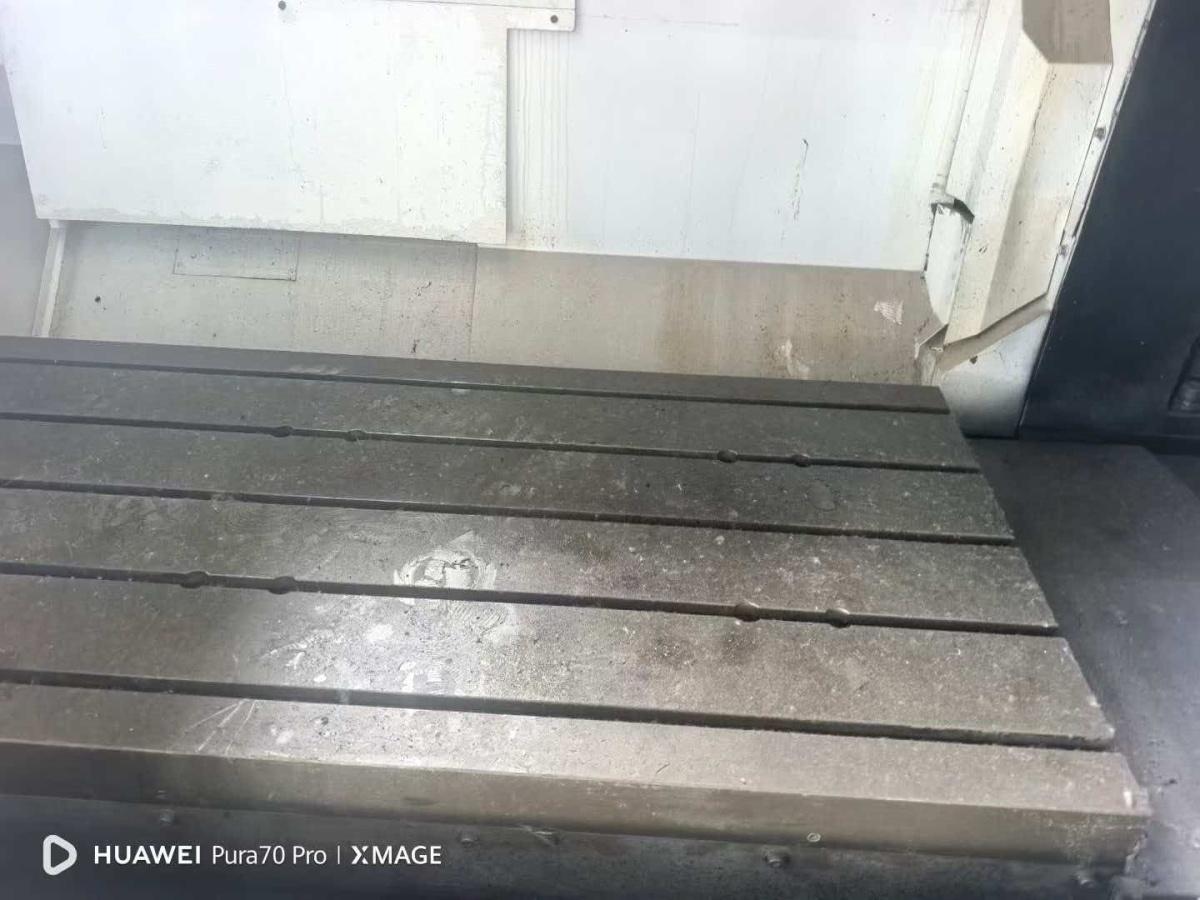

Worktable size: 1740 × 750 mm
Maximum speed: 10,000 rpm
Maximum load: 2500 kg
Cone Tool holder: BT50
Main motor power: 30/37 kW
magazine capacity: 30
Overall weight: 13,000 kg
Distance from spindle nose to Worktable surface: 160 to 820 mm
The maximum Tool diameter of adjacent tool positions: Φ 125mm
The maximum diameter for installing the tool in the empty position is Φ 210mm
Maximum length of Tool: 380 mm
Maximum weight of a single Tool: 20 kg
Fast shift of X/Y axis: 40 m/min
Z-axis fast shift: 30 m/min
The floor space of machine tool is 3595mm × 5637mm
Overall height: 3500 mm
