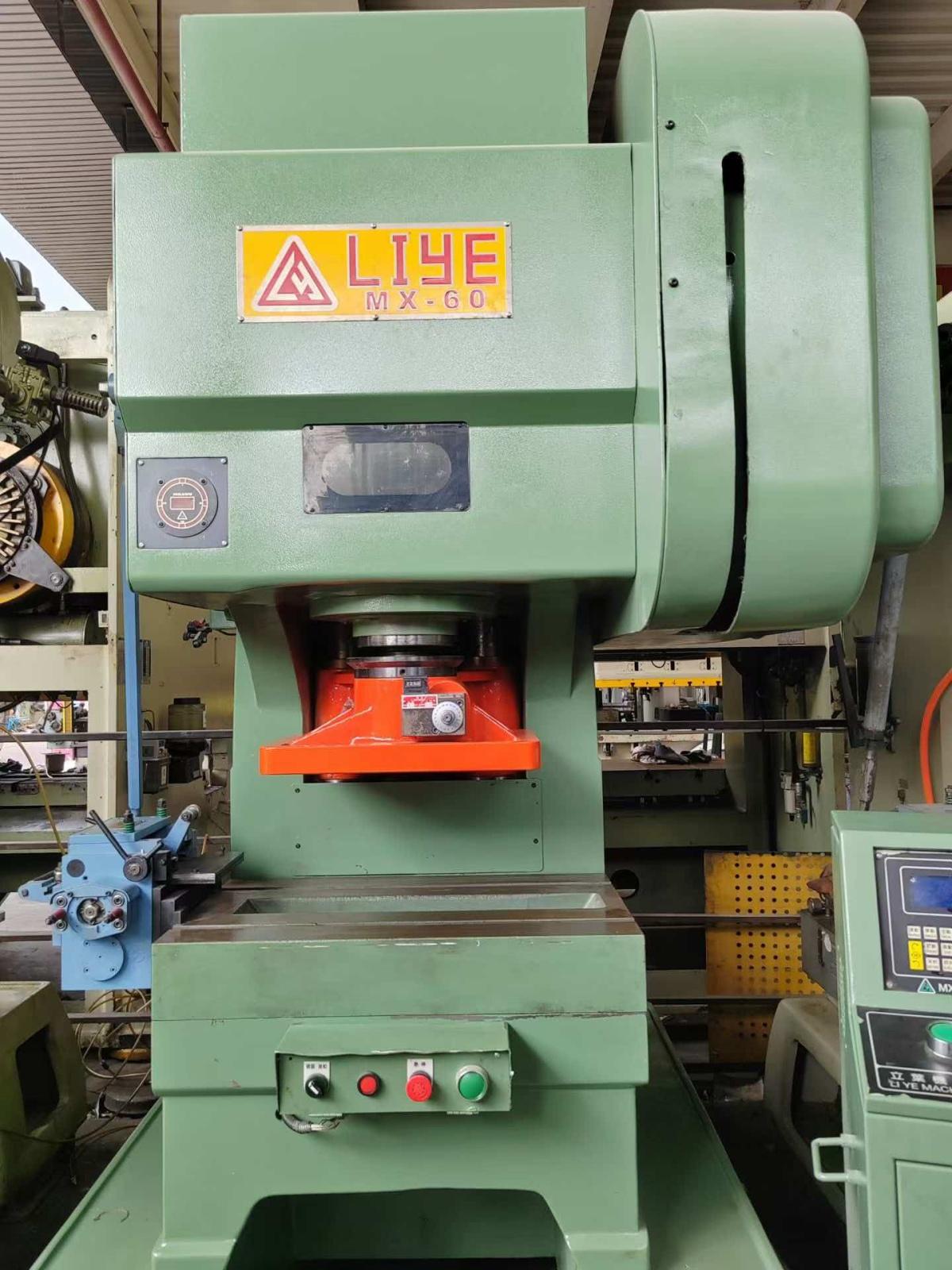

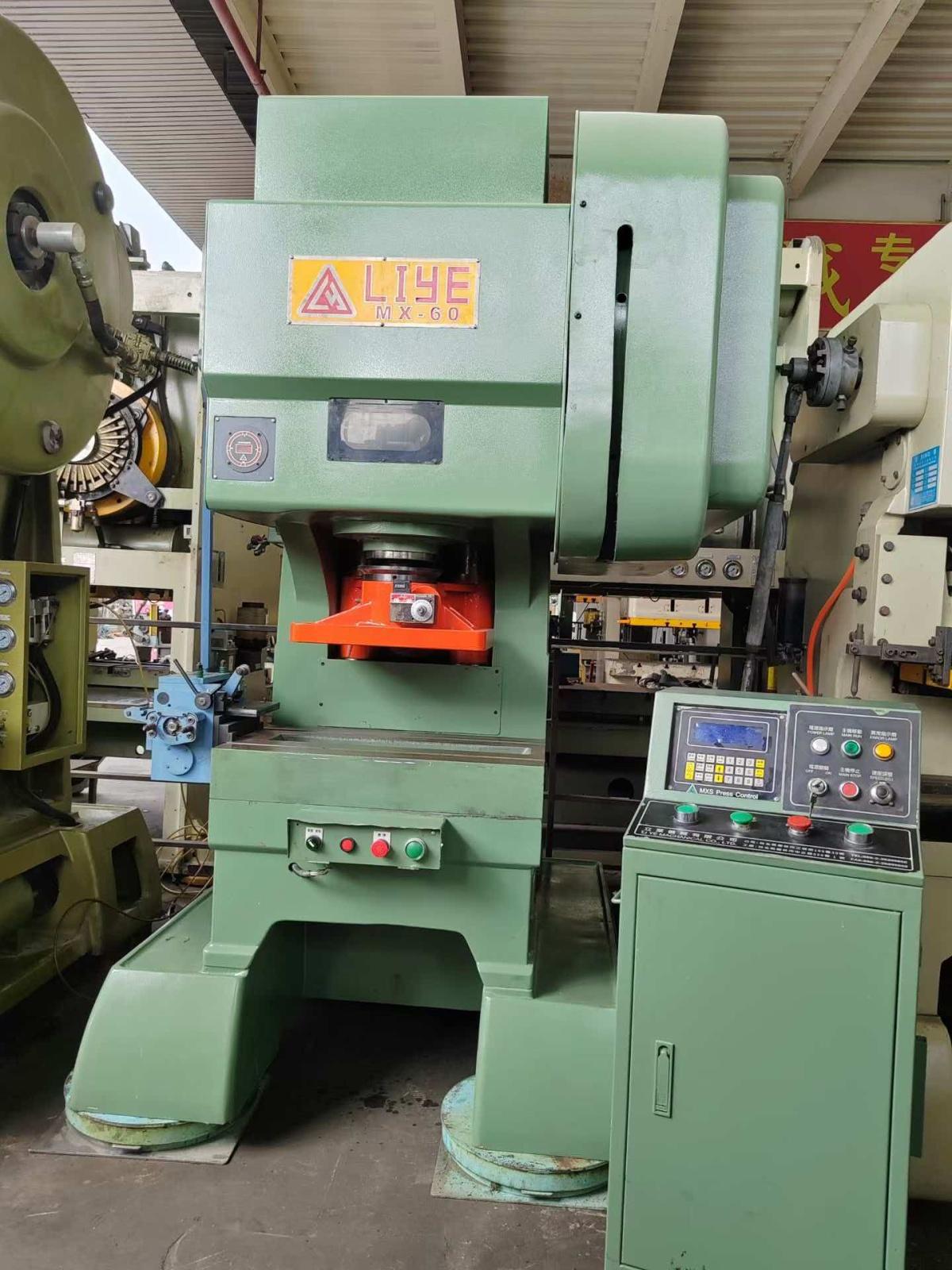

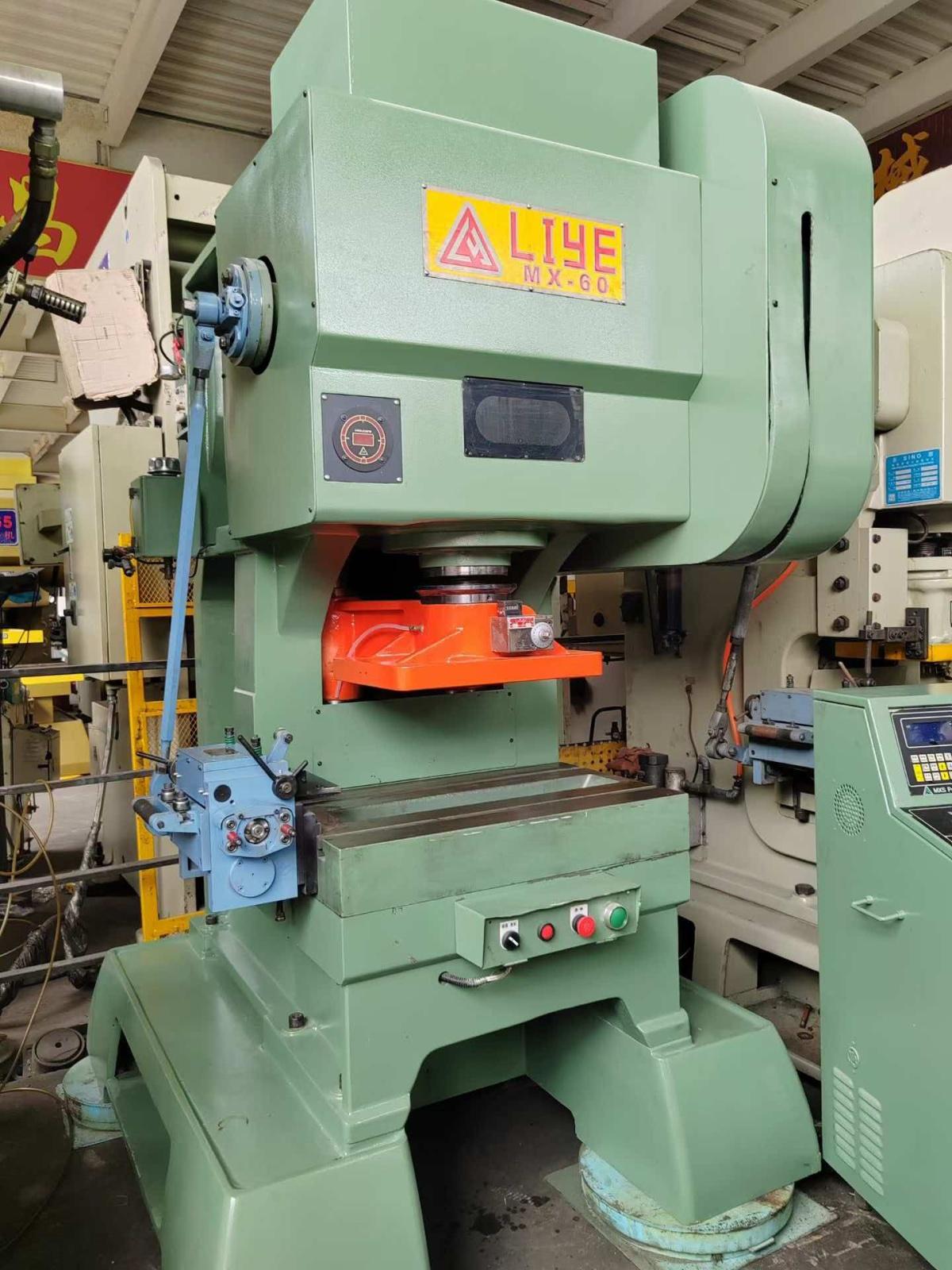

LIYE MX60 High speed punch
[Product Information]:
- Inventory number：69067
- Brand：LIYE
- Model：MX60
- Origin：Taiwan, China
- Location：China
- Year：2023
- Create Time：2026-09-16
Specifications:
Capacity: 60 tons
travel (travel of slide) : 40 mm
travel per minute (spm) : 200-500 travels per minute
Die height: 245 mm
Slide lower area: 360 x 500 mm
Sub-disk area (Bolster area) : 500 x 820 mm (mm)
Secondary plate thickness (Bolster thickness) : 125 mm (mm)
Secondary disc hole diameter (Bolster hole) : 120-850 mm
electromotor (Main motor) : 20 horsepower (hp)
