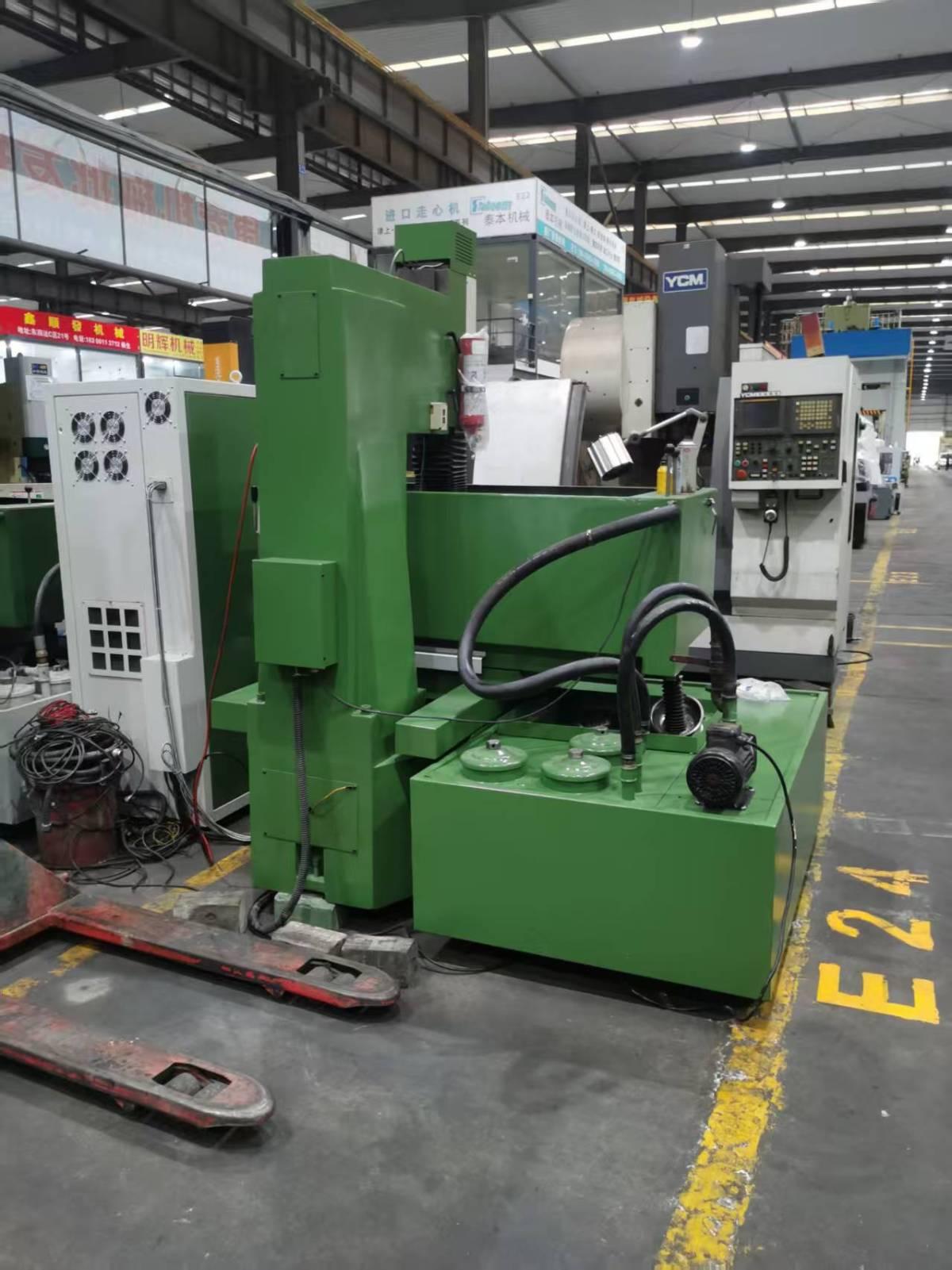

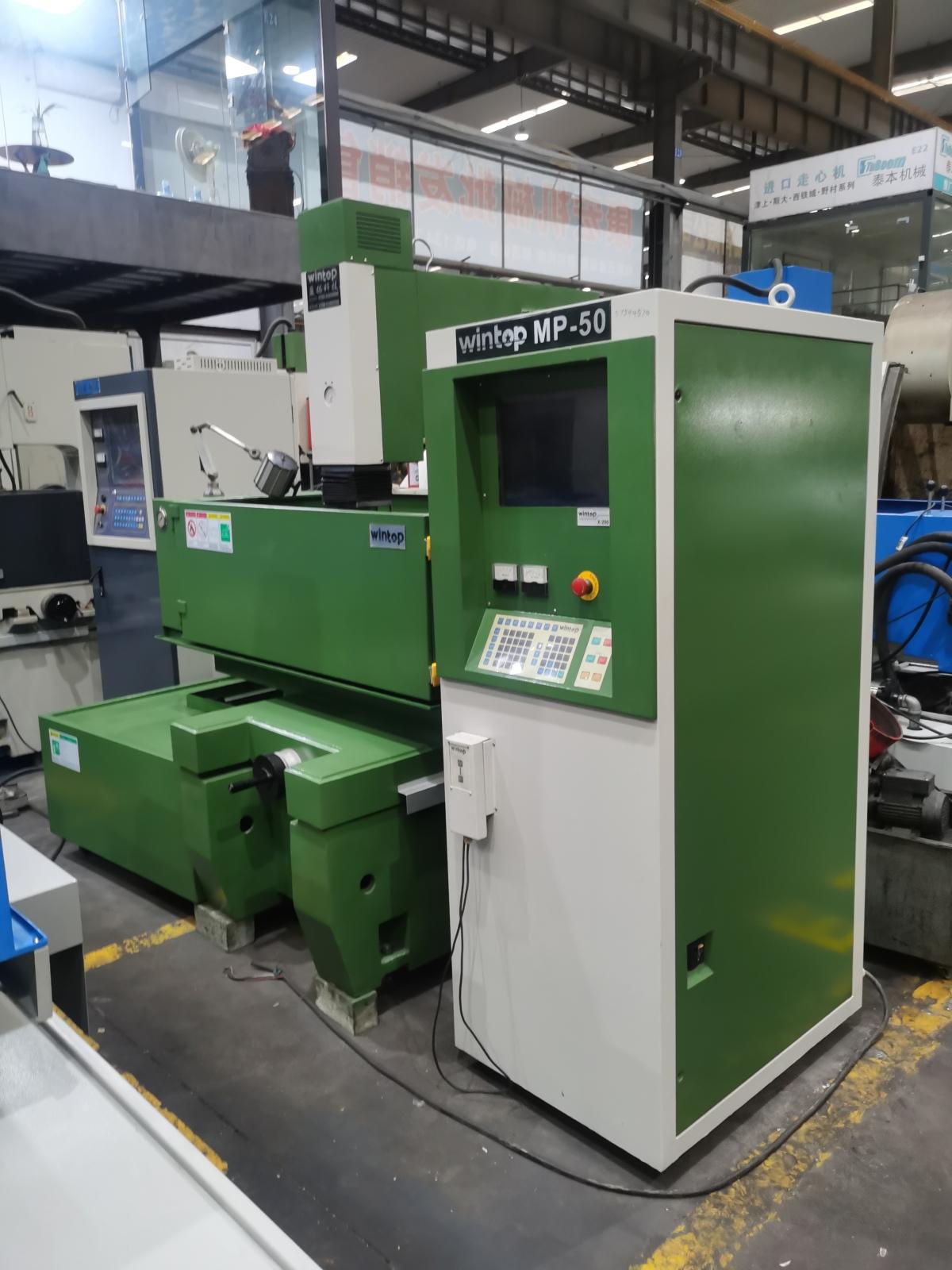

Wintop MP-50 Spark eroder

Three-Axis Travel: 400 × 350 × 200 mm
Machining Tank Dimensions: 1110 × 680 × 415 mm
Worktable Size: 700 × 400 mm
Head Travel: 200 mm
Distance from Electrode Head to Worktable: 70–470 mm
Maximum Electrode Load: 100 kg
Maximum Worktable Load: 900 kg
Machine Net Weight (Including Water Tank): 1,300 kg
Overall Machine Dimensions (L × W × H): 2920 × 1420 × 2100 mm
Filter Box Dimensions (L × W × H): 1200 × 800 × 520 mm
