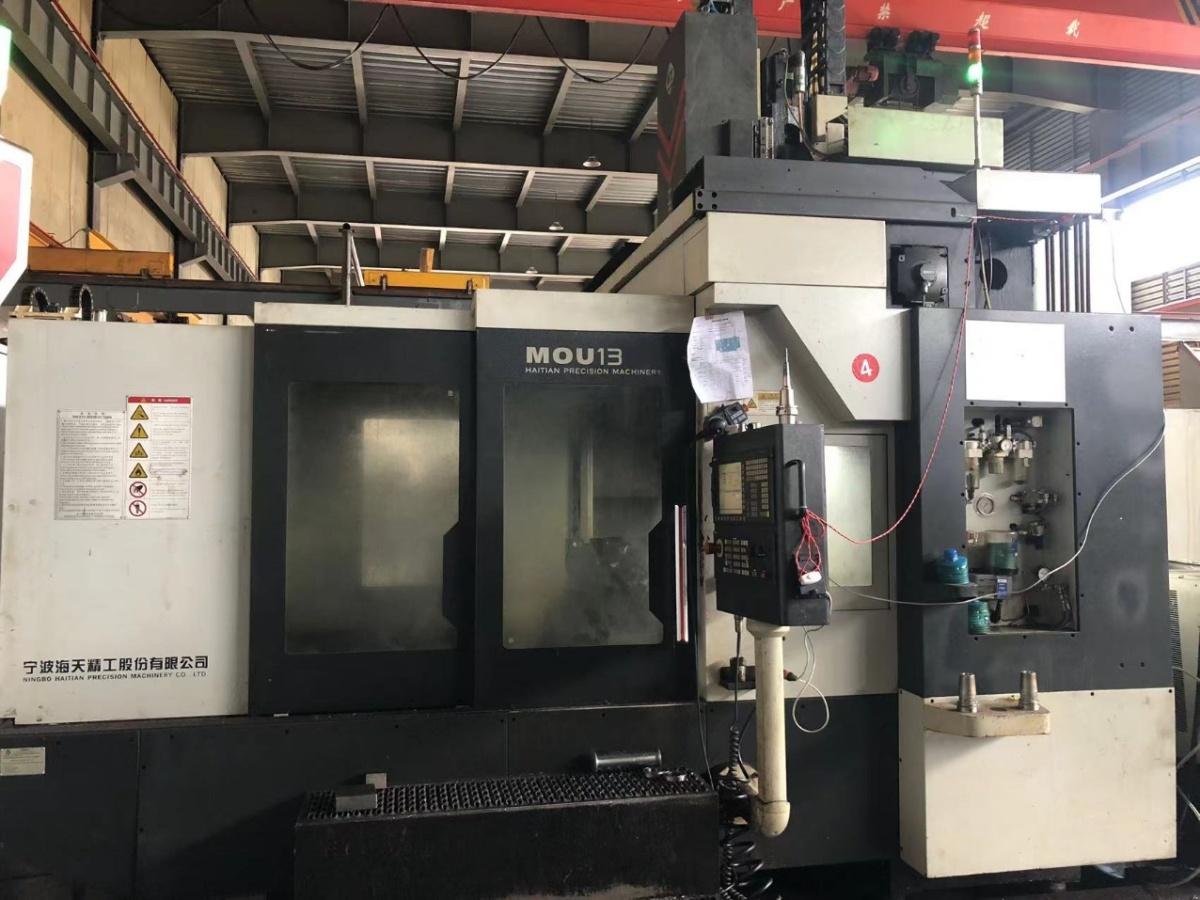

Haitian MOU13 Gantry machining centre

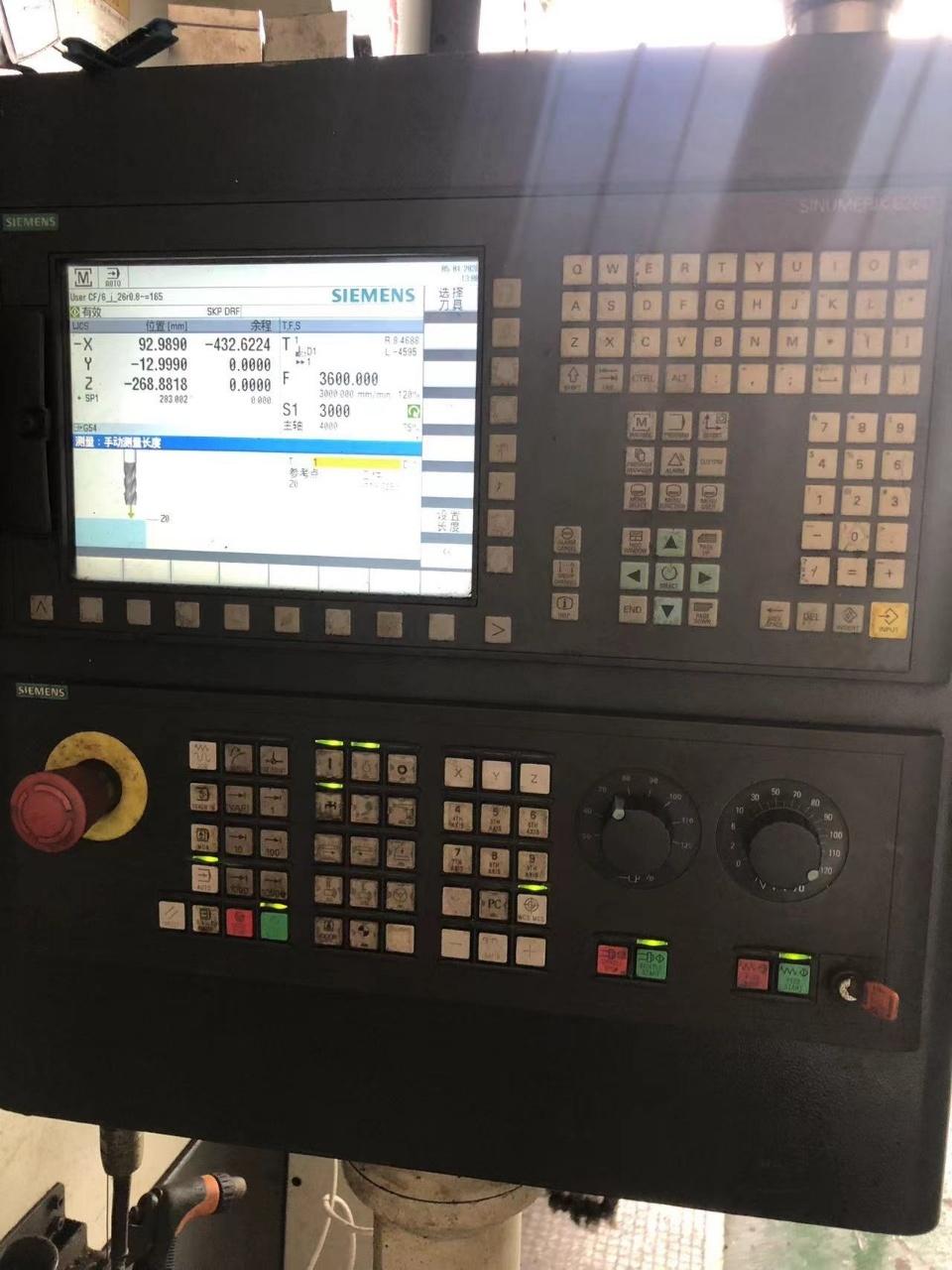

CNC System: Siemens 828D
Three-Axis Travel: 1500 × 1300 × 700 mm
Effective Gantry Width: 1380 mm
Distance from Worktable Surface to Spindle Nose: 150–850 mm
Worktable Size: 1600 × 1300 mm
Maximum Worktable Load: 3000 kg
Spindle Taper: HSK-A63
Maximum Spindle Speed: 18,000 rpm
Spindle Power: 15–18.5 kW
Three-Axis Glass Scales: Equipped
Laser Tool Setter: Bolong
Machine Weight: 12.5 tons
Machine Dimensions: 5000 × 3000 × 4000 mm
