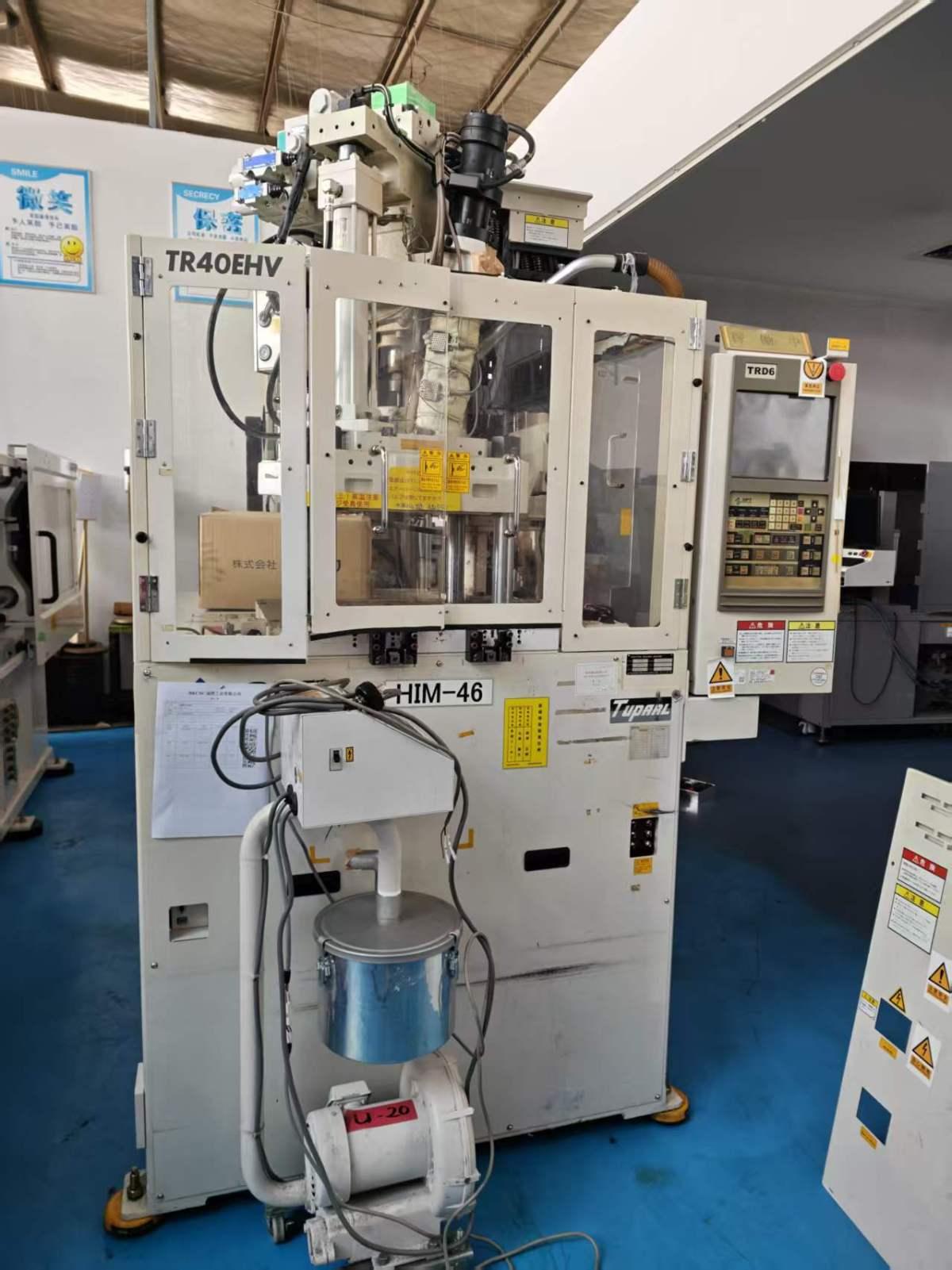

Sodick TR40EHV injection molding machine
[Product Information]:
- Inventory number：813088
- Brand：Sodick
- Model：TR40EHV
- Origin："Japan
- Location：China
- Year：2009
- Create Time：2026-09-03
Specifications:
Maximum Clamping Force: 40 tons (392 kN)
Tie-Bar Spacing: 360 × 360 mm
Platen Size: 520 × 520 mm
Maximum Mold Opening Stroke: 500 mm
Minimum Mold Thickness: 250 mm
Screw Diameter: Ø14 / Ø22 / Ø28 mm (Optional)
Maximum Injection Pressure: 262 MPa
Theoretical Injection Capacity: 14–83 cm³
Maximum Injection Speed: 300–400 mm/s
Drive System: Oil-Electric Hybrid
Plasticizing/Injection Method: V-LINE Independent Plasticizing + Plunger Injection
Machine Weight: Approx. 3,200 kg
