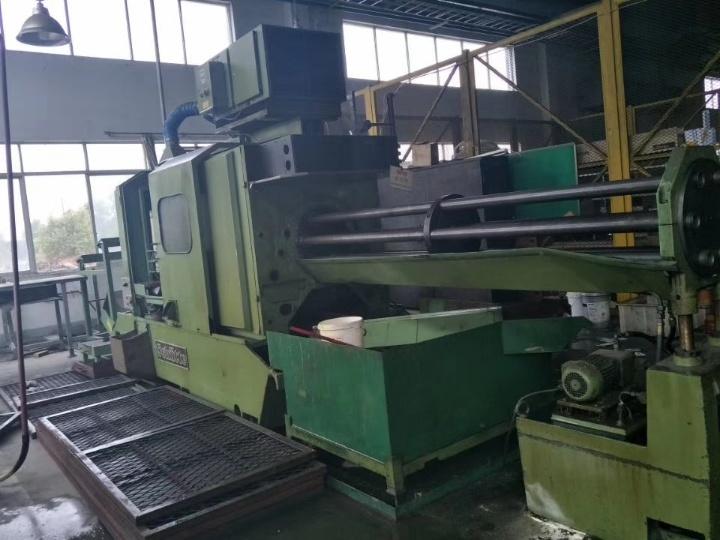

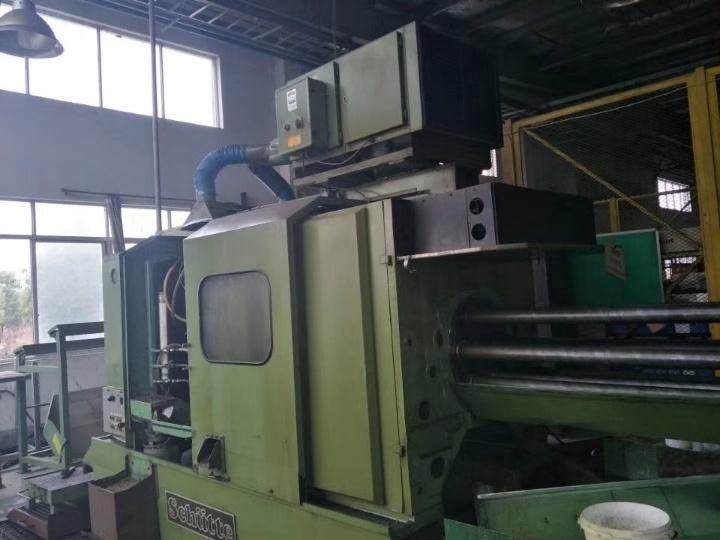

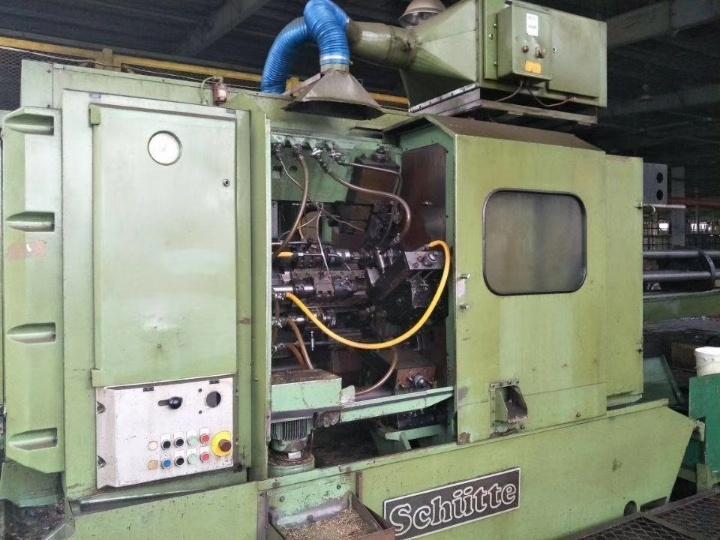

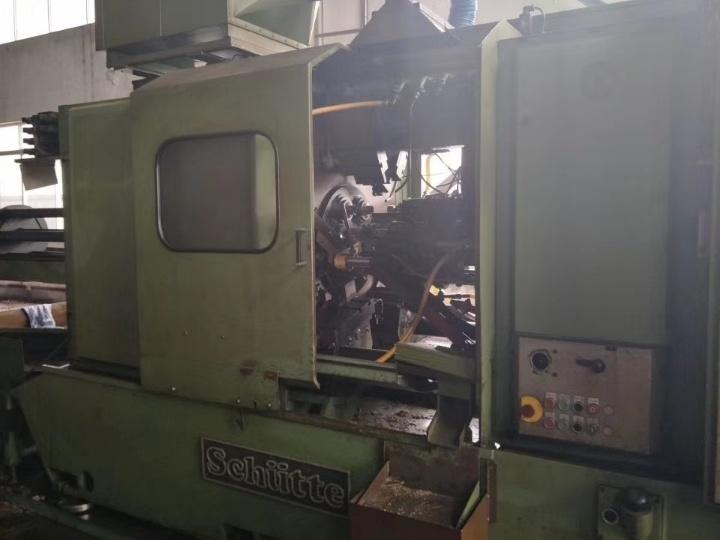

Schutte SF42 CNC turning lathe

Number of spindles: 6
Maximum machining diameter of round bar: Ø42 mm
Maximum machining size of square bar: 30 mm
Maximum machining size of hexagonal bar: 36 mm
Maximum travel of long slide: 125 mm
Machining cycle: 0.9–280 seconds
Number of spindle speed steps: 49
Spindle speed: 140–2,240 rpm
Power supply: 380 V / 50 Hz / 3-phase
Motor power: 22 kW
Machine weight: Approximately 10,000 kg
Overall dimensions: 6516 × 1588 × 2100 mm
