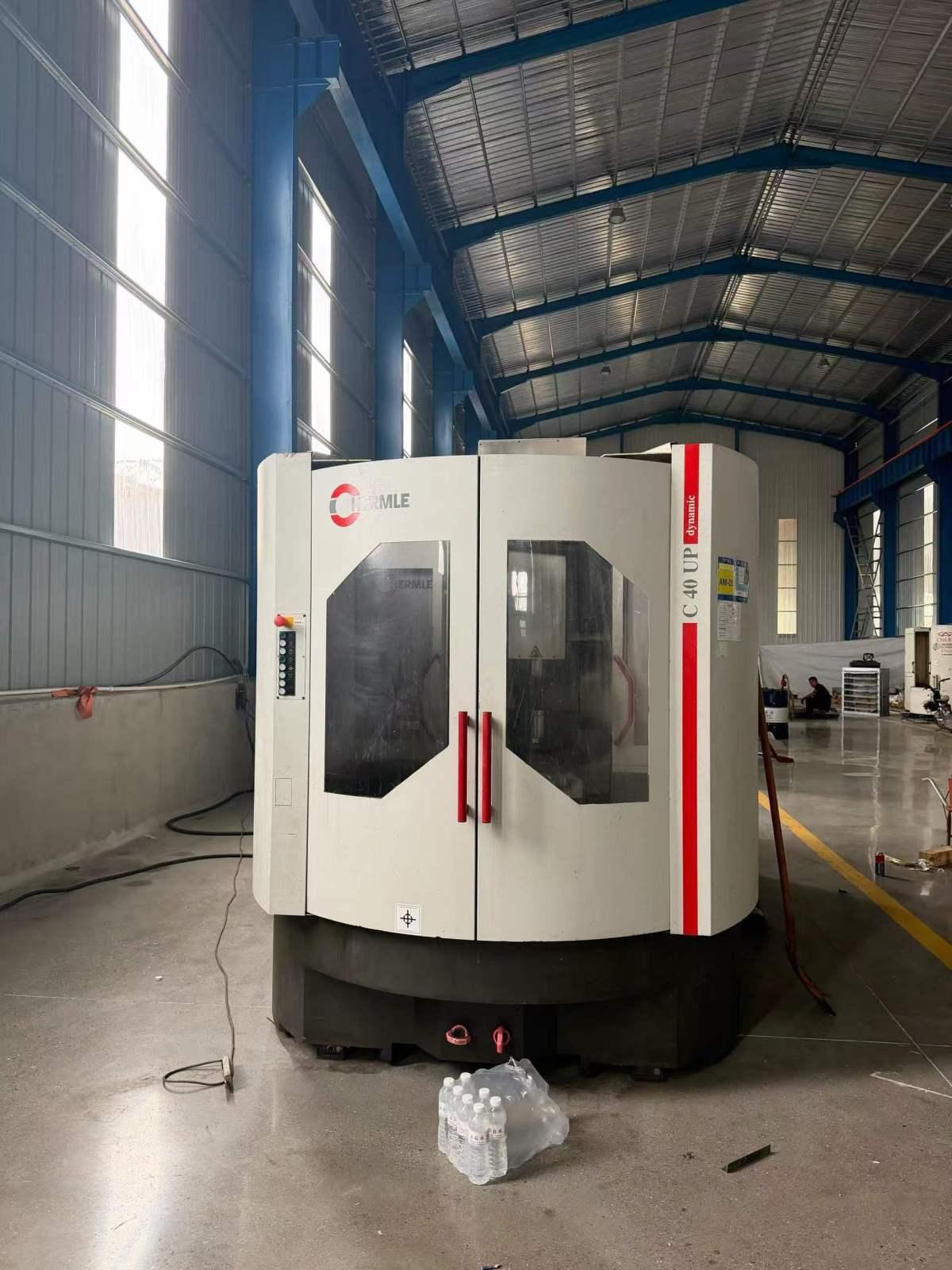

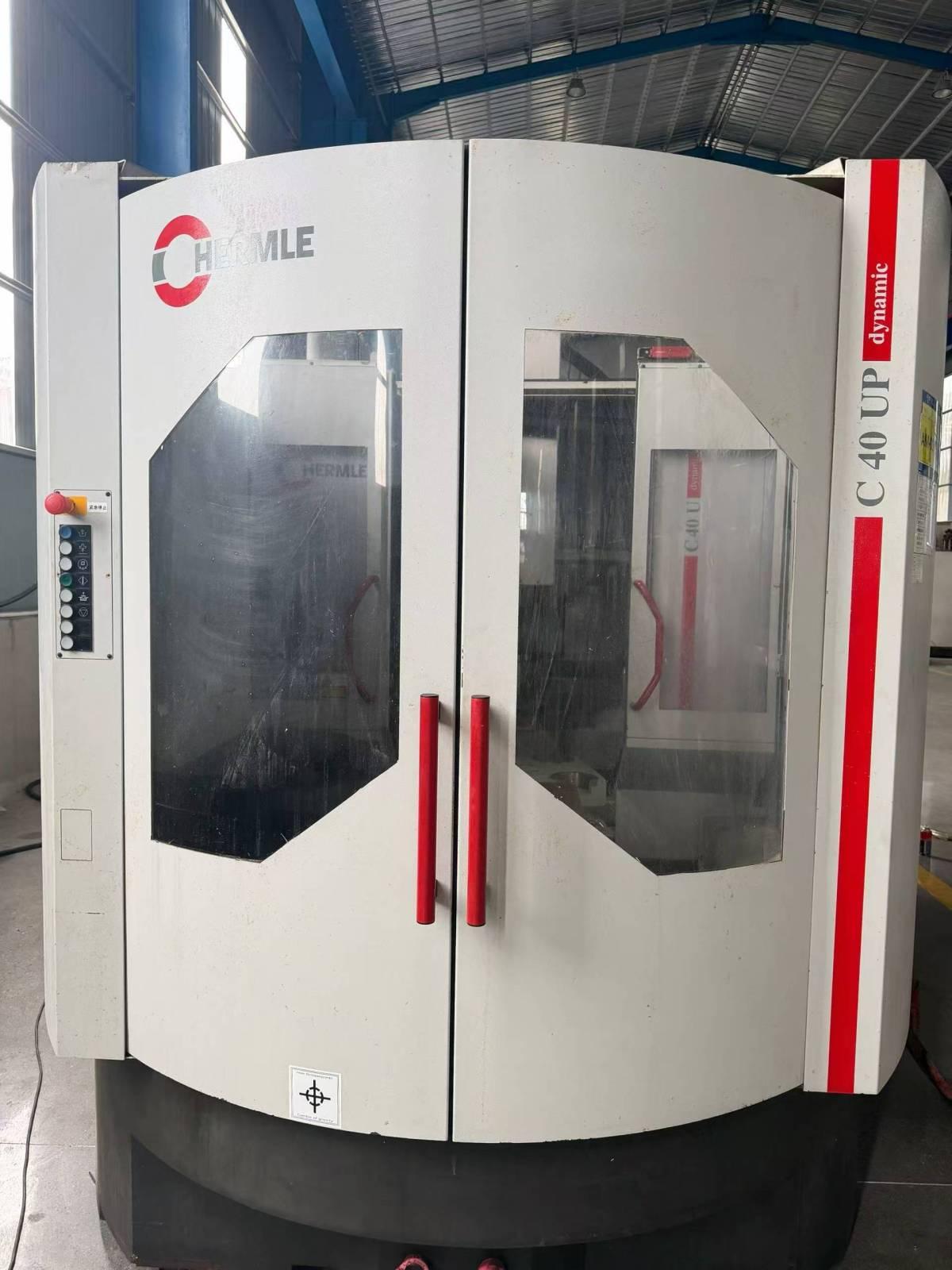

HERMLE C 40 UP 5 axis machining centre

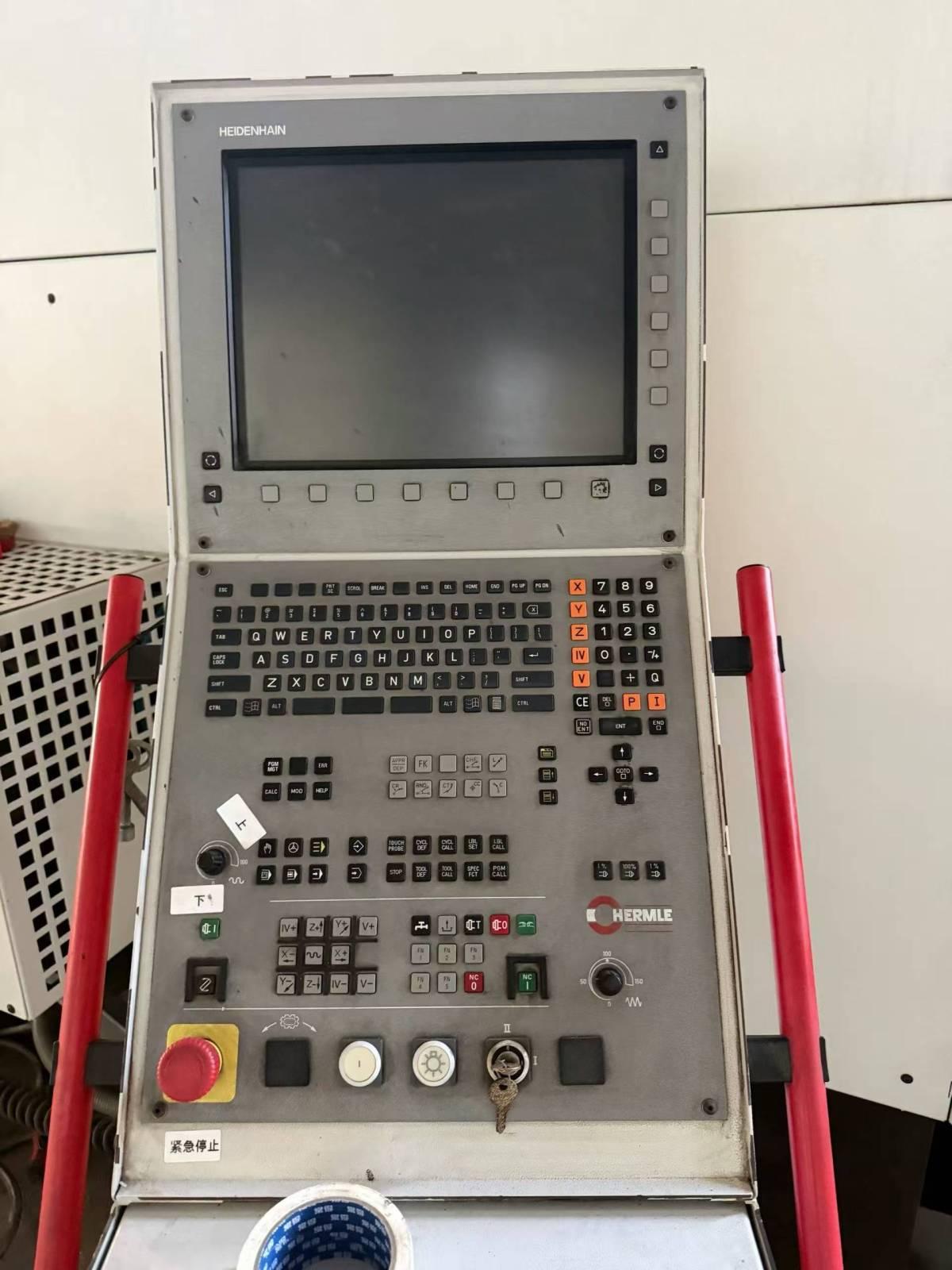

CNC System: Heidenhain iTNC 530
Three-axis Travel: 800 × 700 × 500 mm

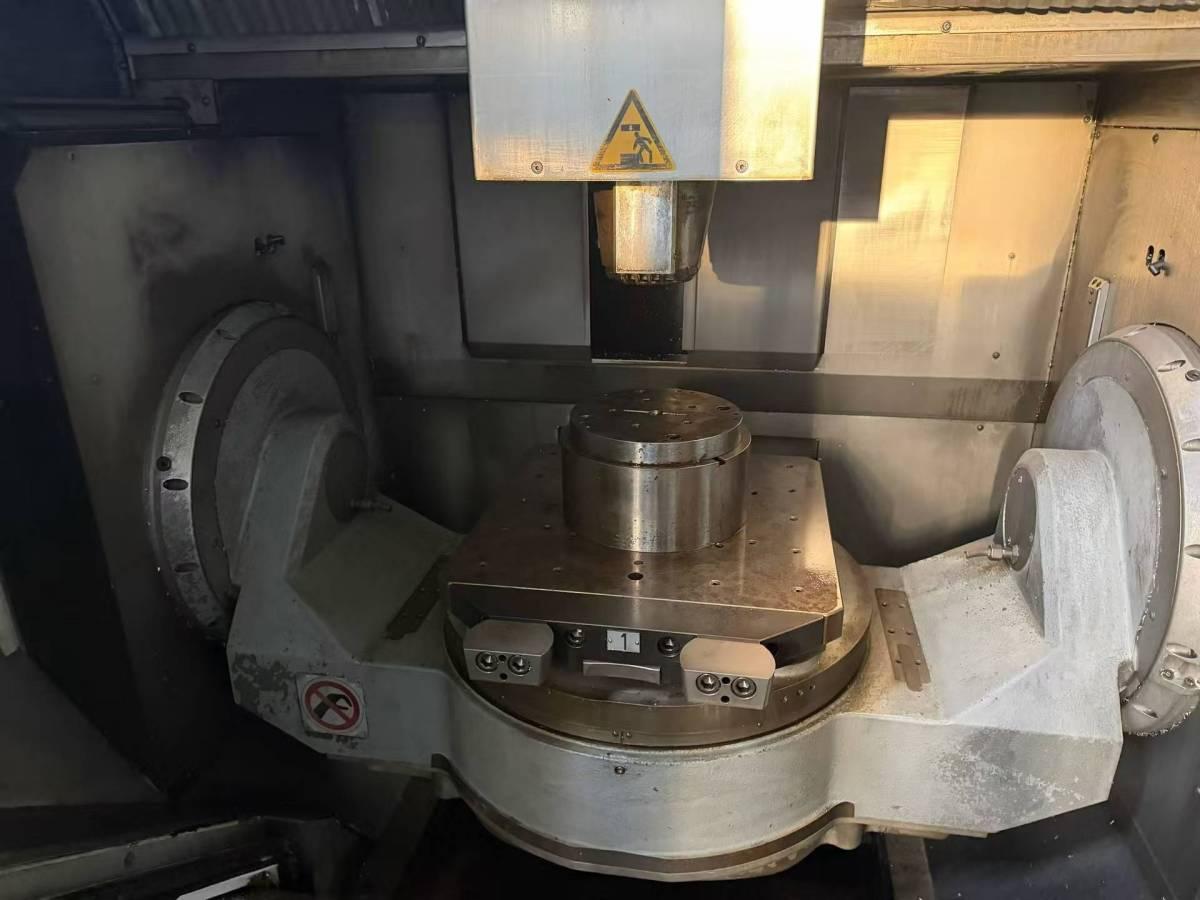

A-axis Rotation Range: -130° to +100°
C-axis Rotation Range: 360° Continuous Indexing

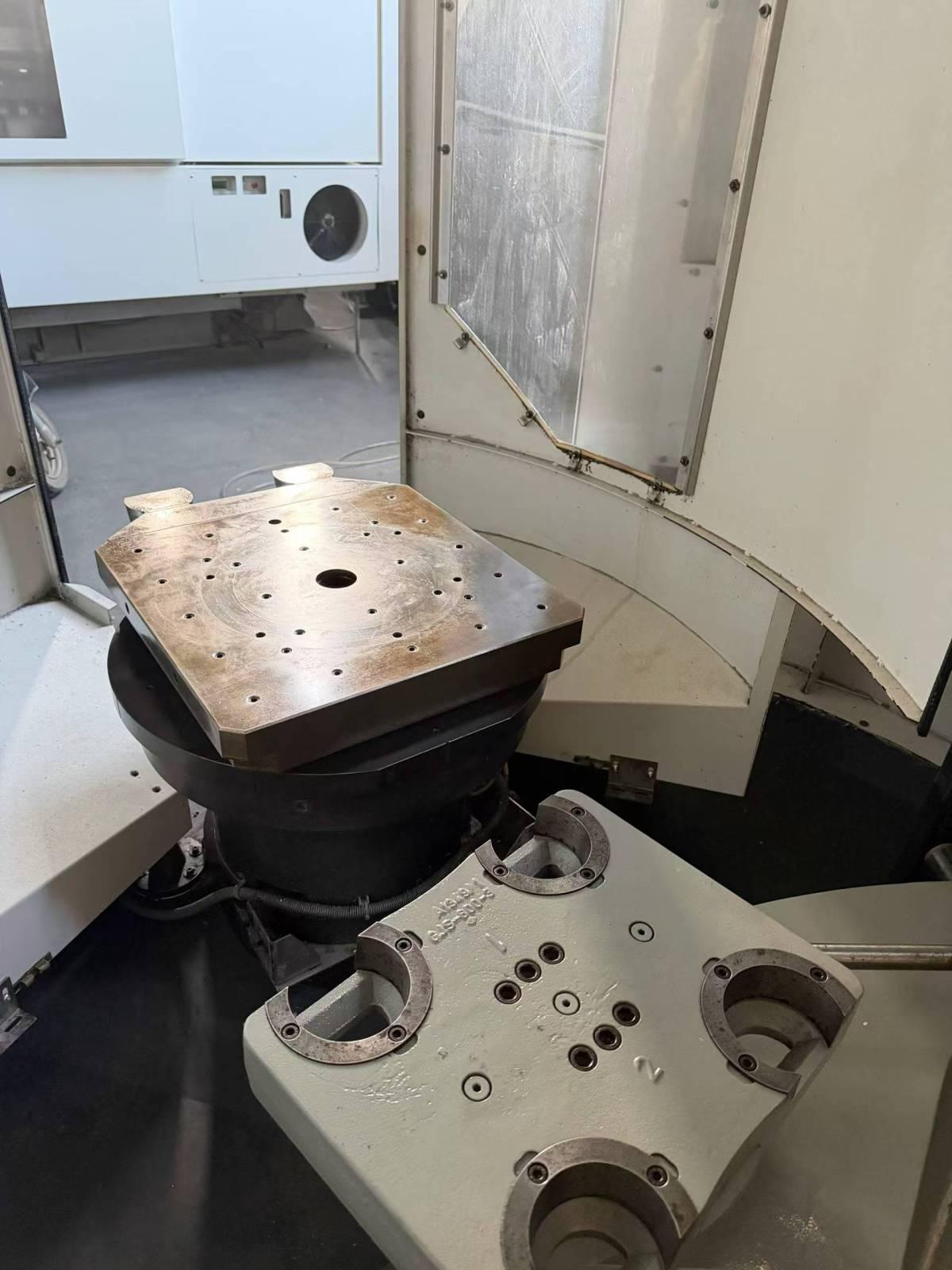

Pallet Specification: Φ500 mm Square Exchange Pallet

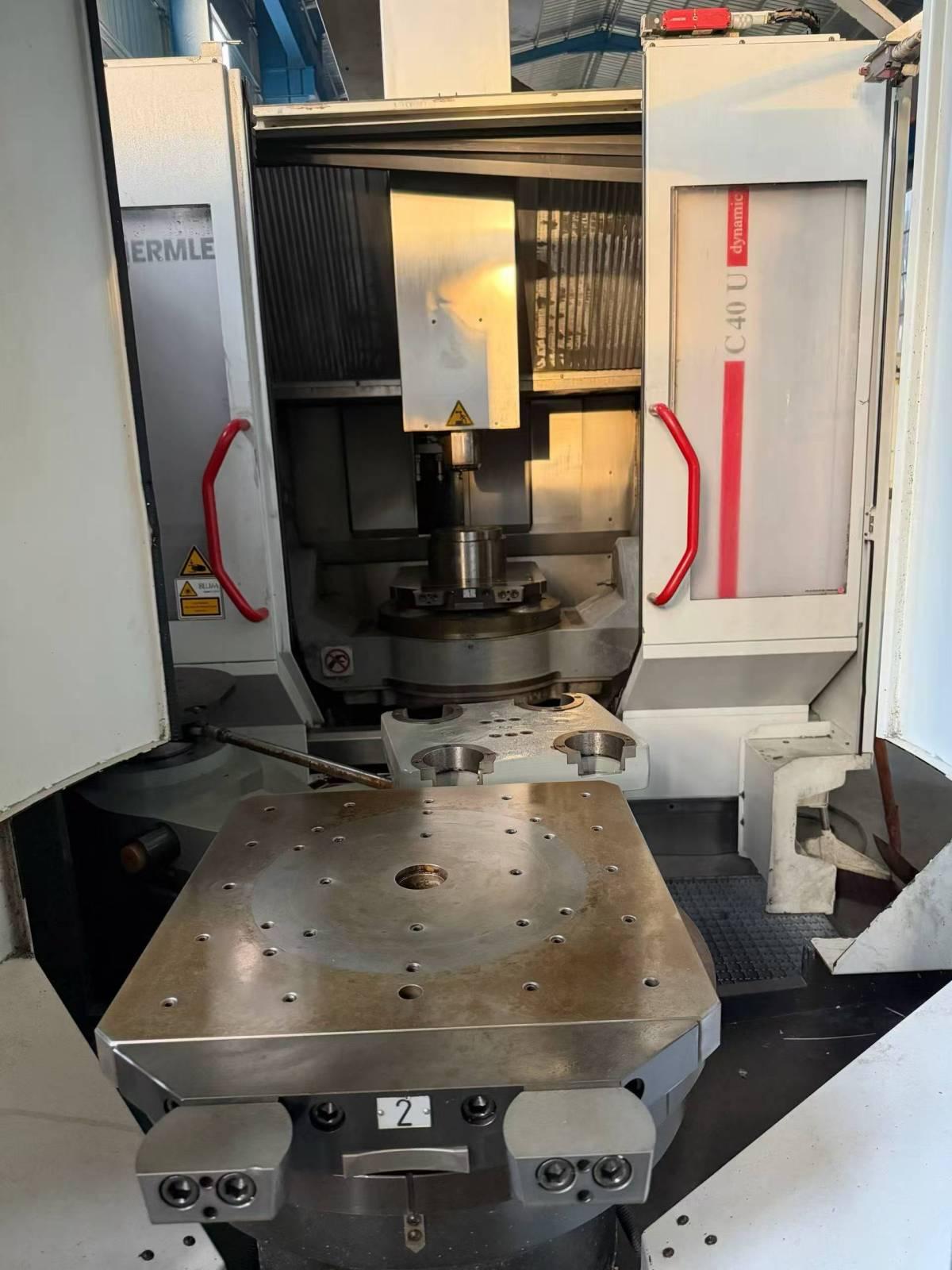

Pallet Quantity: 2, Automatic Pallet Exchange
Maximum Load per Pallet: 250 kg
Pallet Exchange Time: Approximately 12 seconds
Rotary Worktable Repeat Positioning Accuracy: ≤±0.002°
Spindle Interface: HSK-A63
Maximum Spindle Speed: 18,000 rpm
Spindle Motor Power: 26 kW (S1 Continuous Power)
Spindle Torque: 120 N·m
Spindle Runout Accuracy: ≤0.002 mm
Tool Magazine Capacity: 38 Tools
Maximum Tool Diameter: 80 mm (125 mm with Adjacent Tool Position Empty)
Maximum Tool Length: 300 mm
Maximum Tool Weight: 8 kg
Tool-to-Tool Changing Time: 4.5 seconds
5-Axis Simultaneous Machining Function: RTCP
Measurement Function: Supports Infrared Probing and In-Process Workpiece Measurement
Probe Compatibility: Renishaw OMP60
