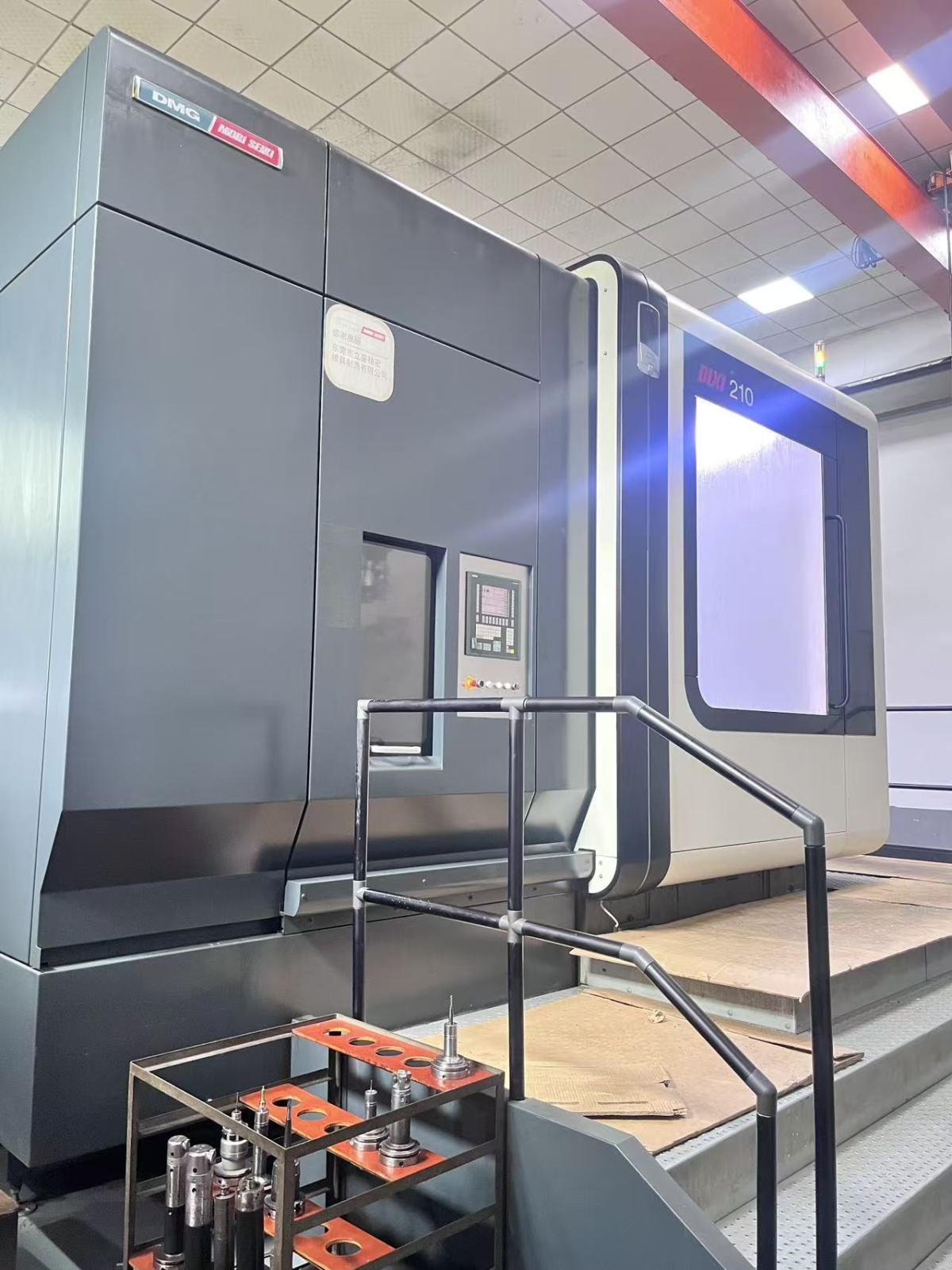

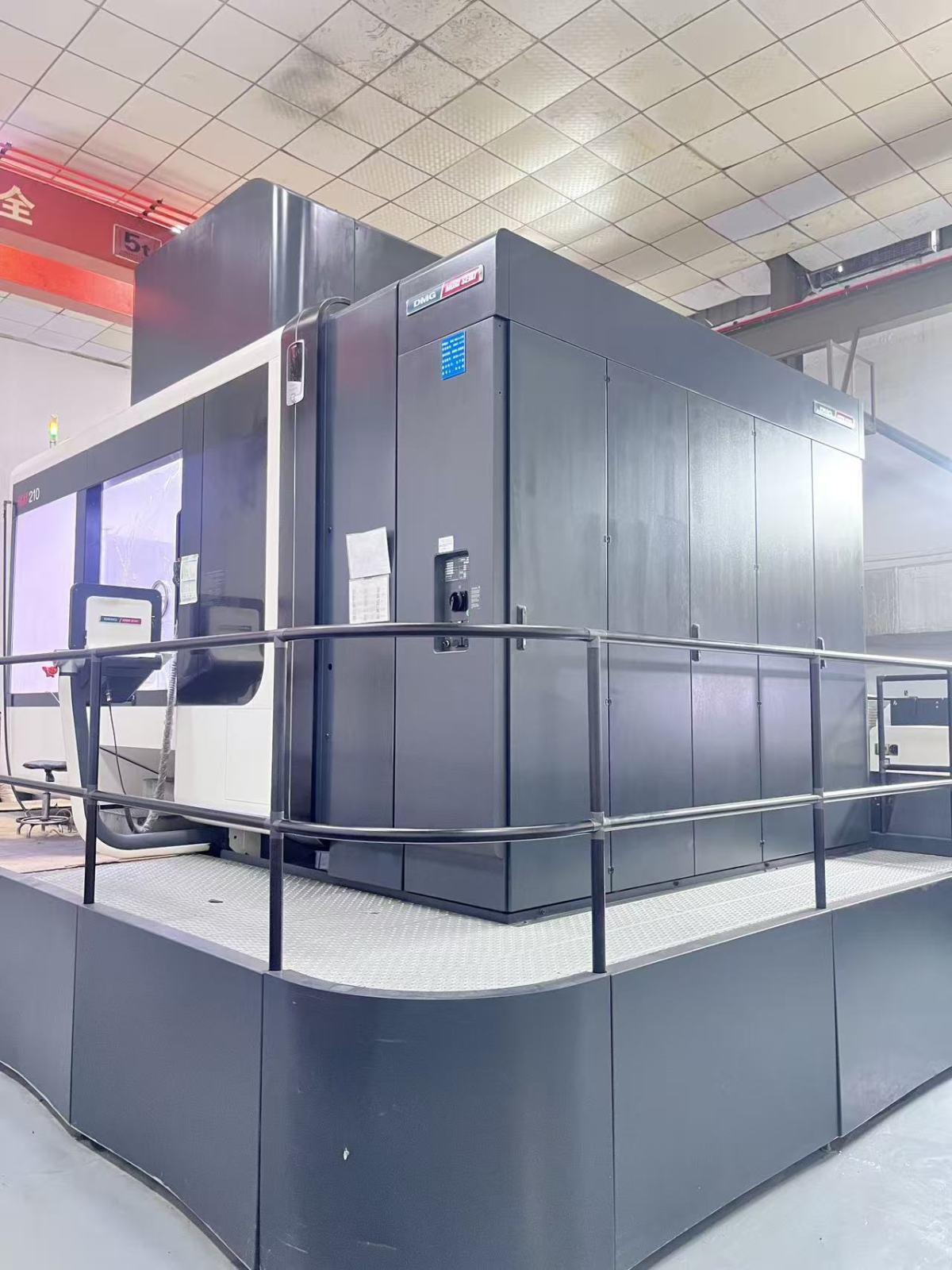

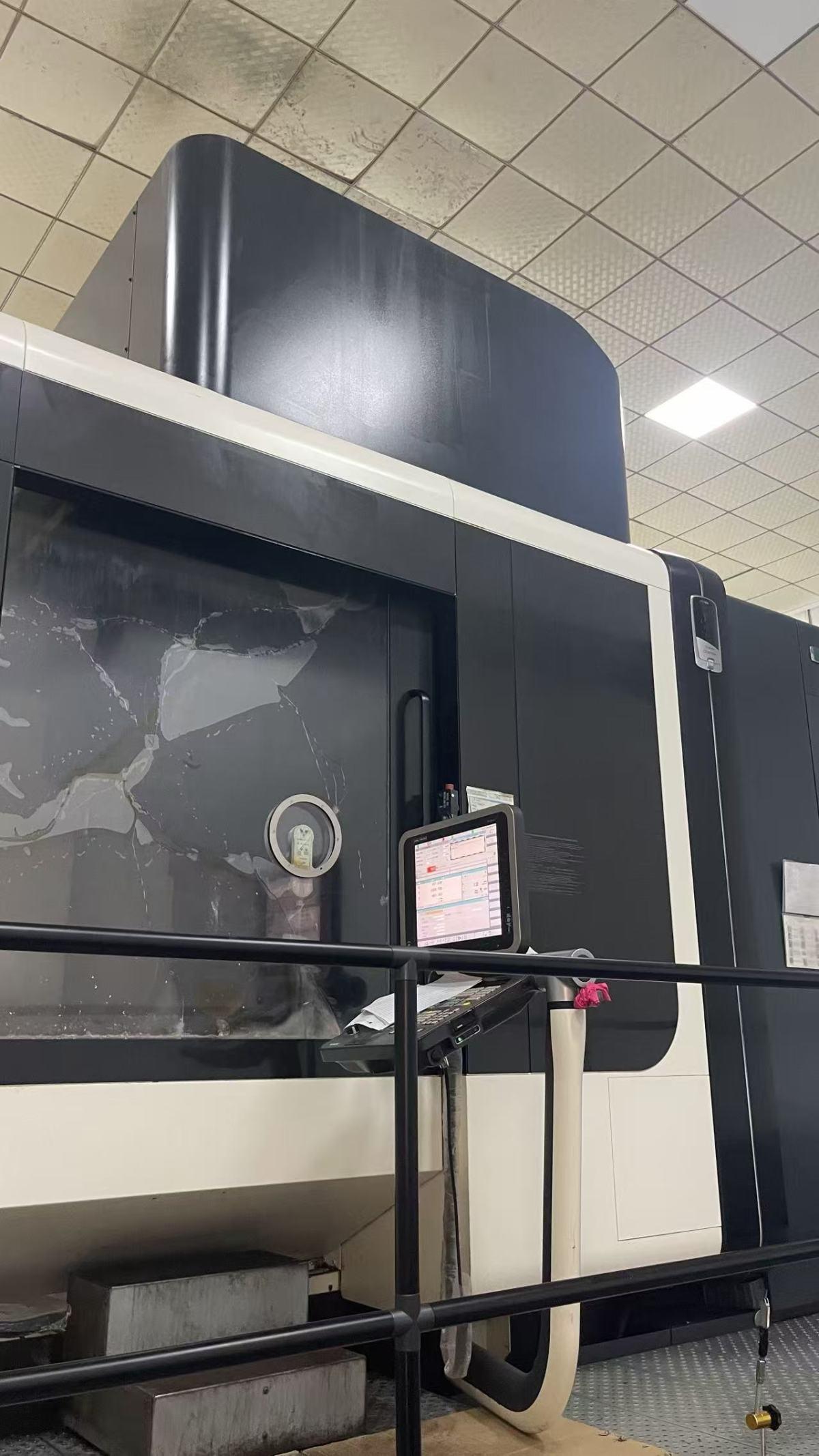

DMG DIXI 210 5 axis machining centre

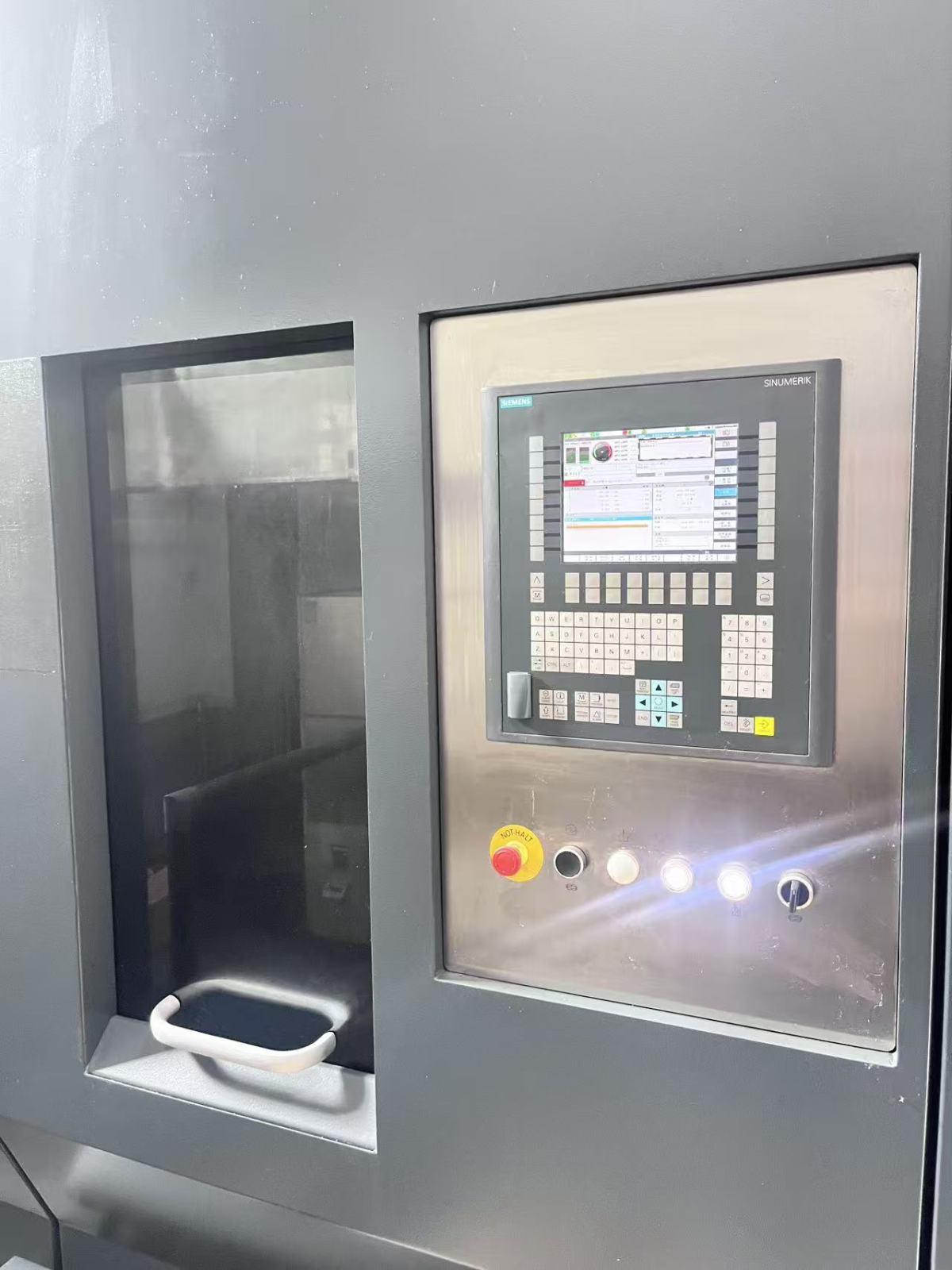

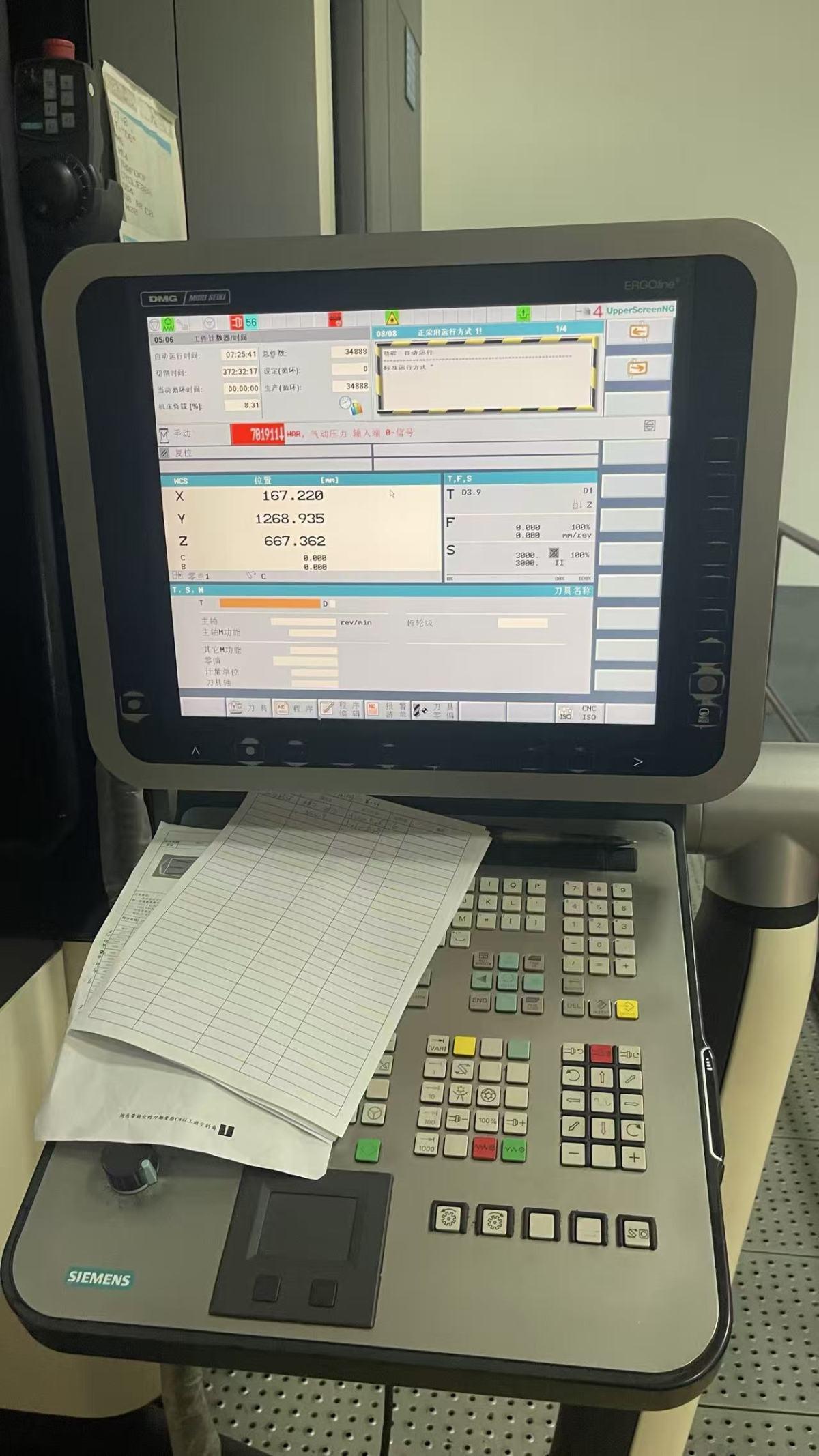

CNC System: Siemens 840D solutionline
Three-Axis Travel: 1800 × 2100 × 1250 mm
B-Axis Rotation Range: ±105° from horizontal position (Maximum rotation range: 210°)
C-Axis Rotation Range: 360°
Spindle Configuration:
Spindle Type: Motorized Spindle
Spindle Speed: 12,000 rpm
Spindle Power: 52 kW (40% Duty Cycle) / 44 kW (100% Duty Cycle)
Spindle Torque: 430 Nm
Tool Holder Specification: HSK-A100

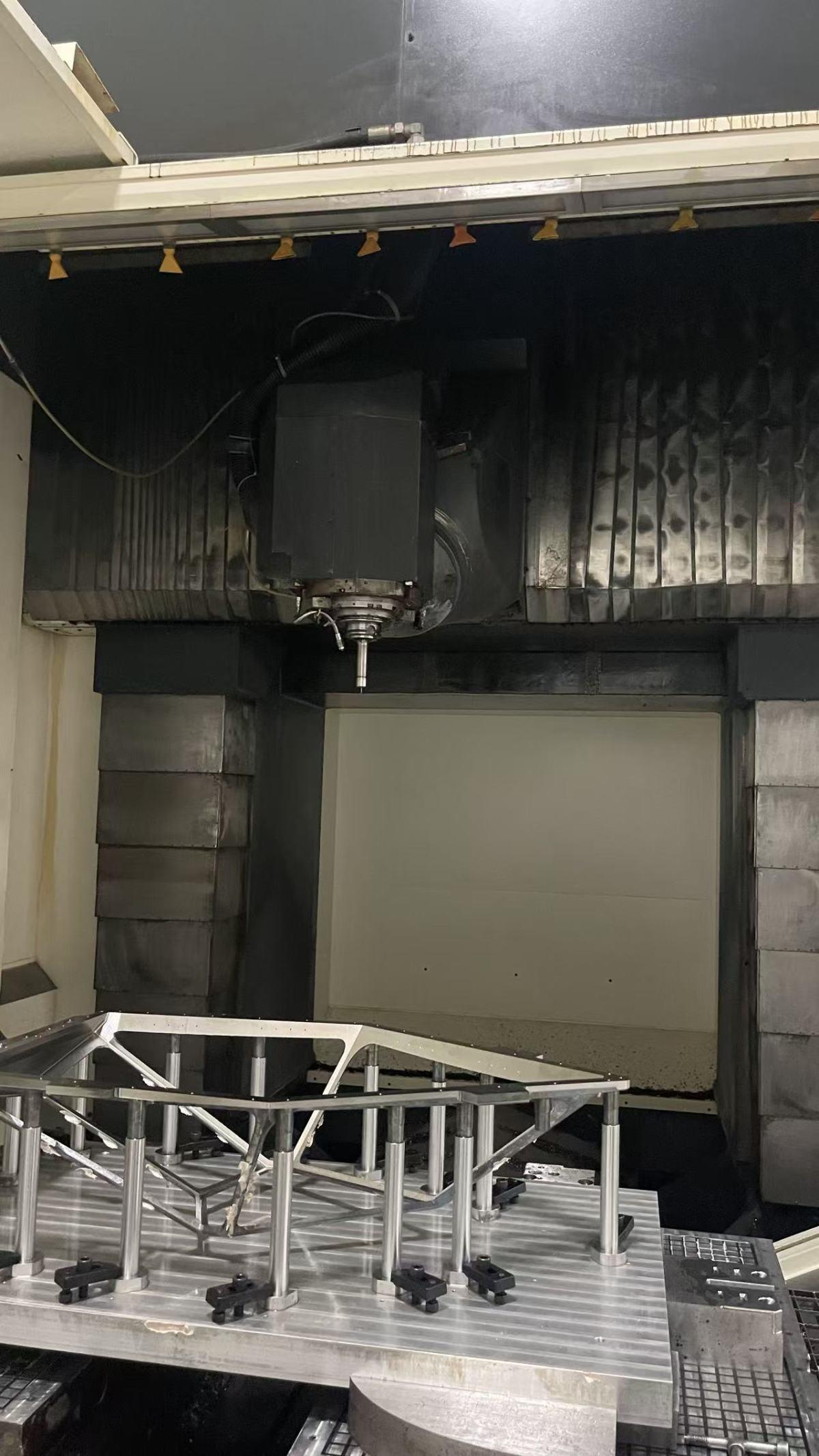

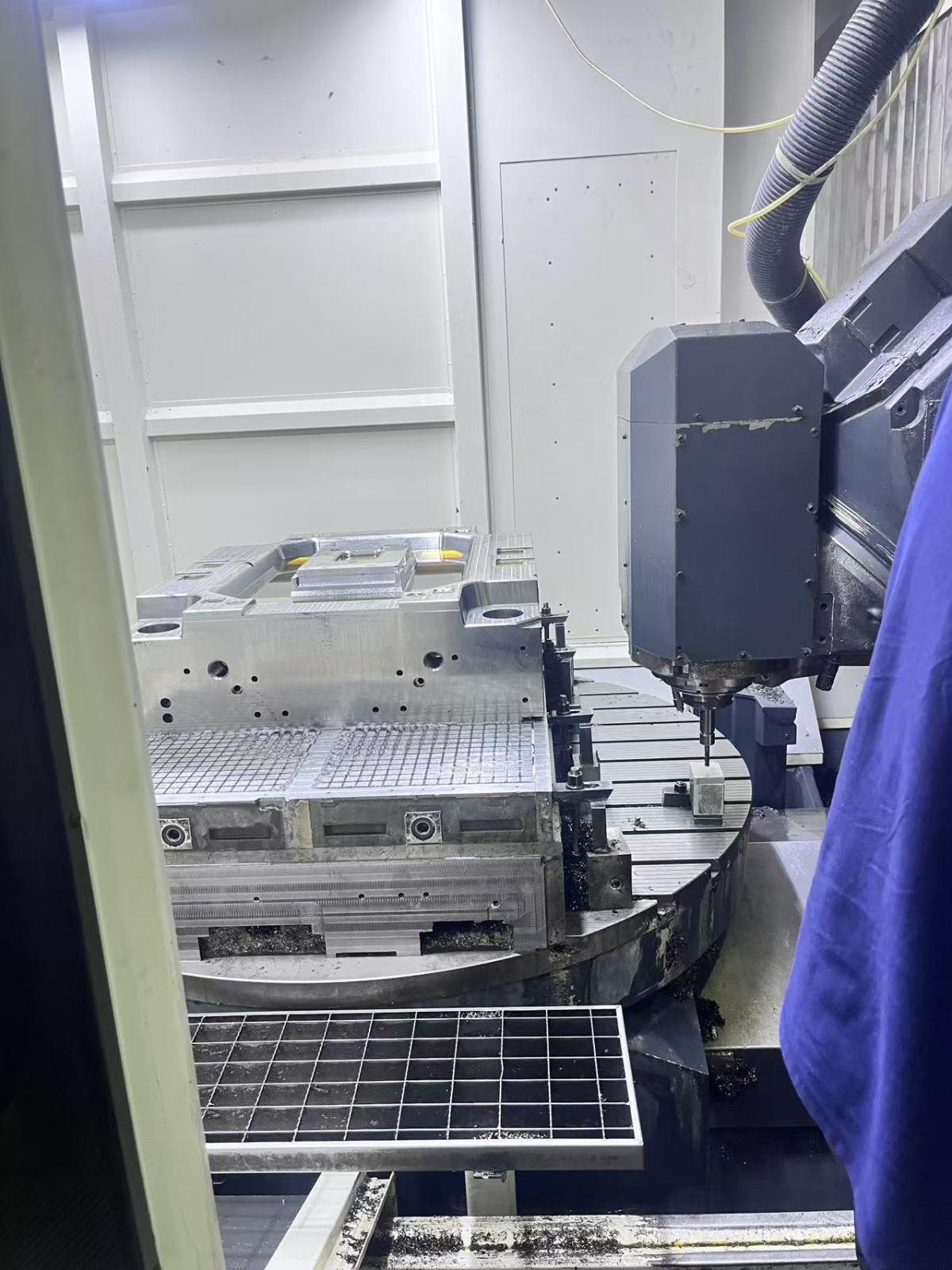

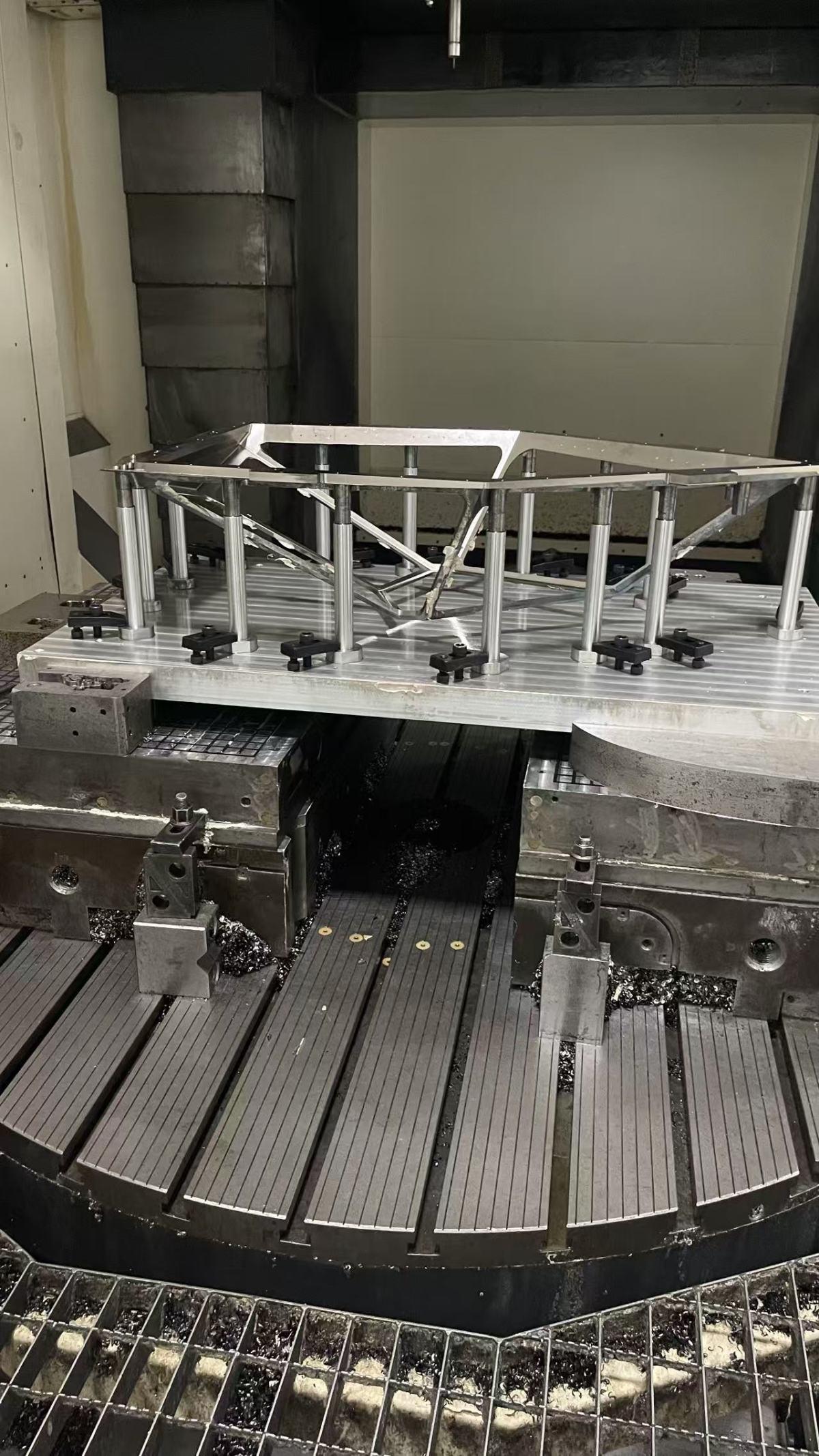

NC Rotary Worktable Diameter: Ø1700 mm
Configuration:

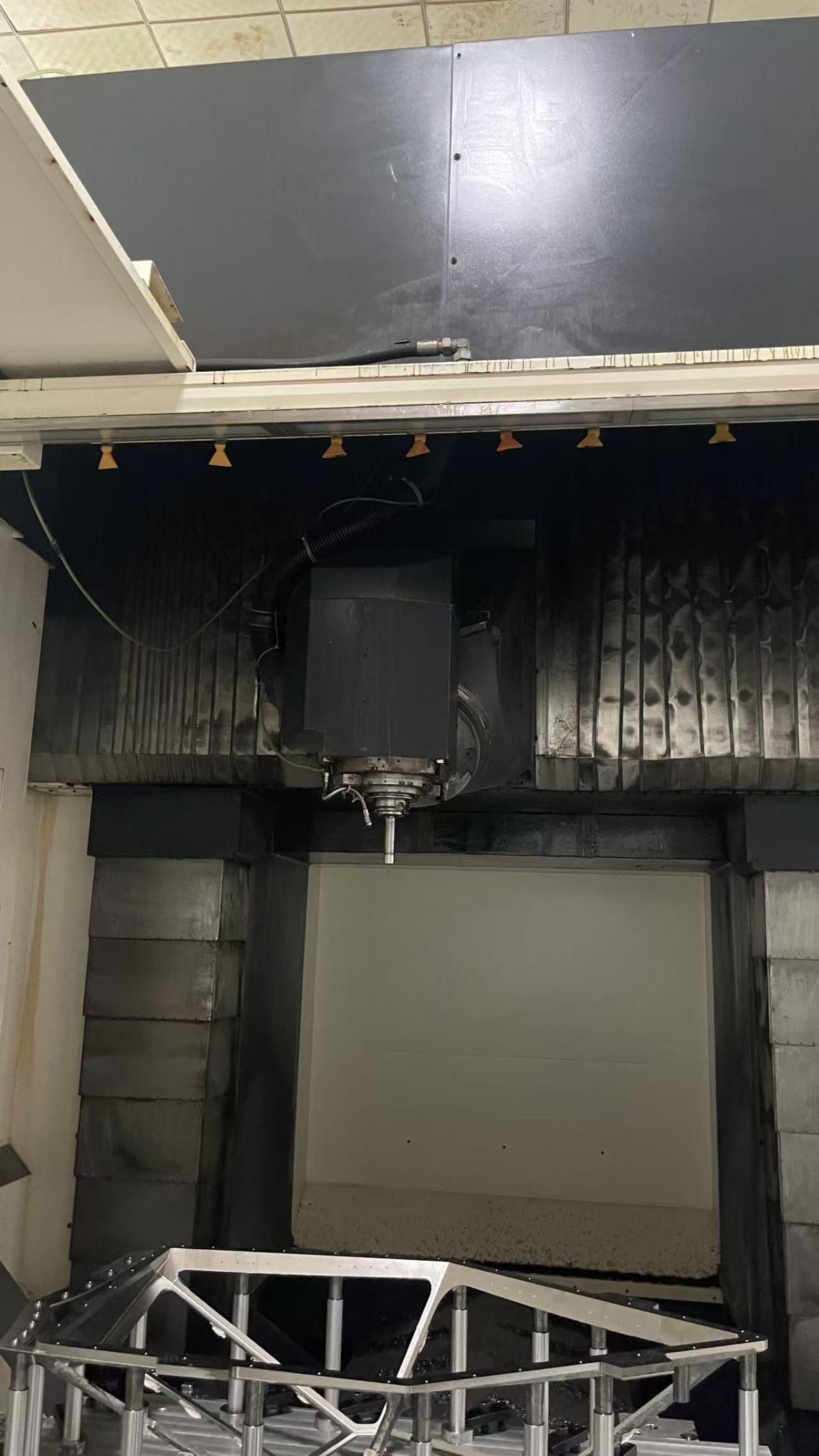

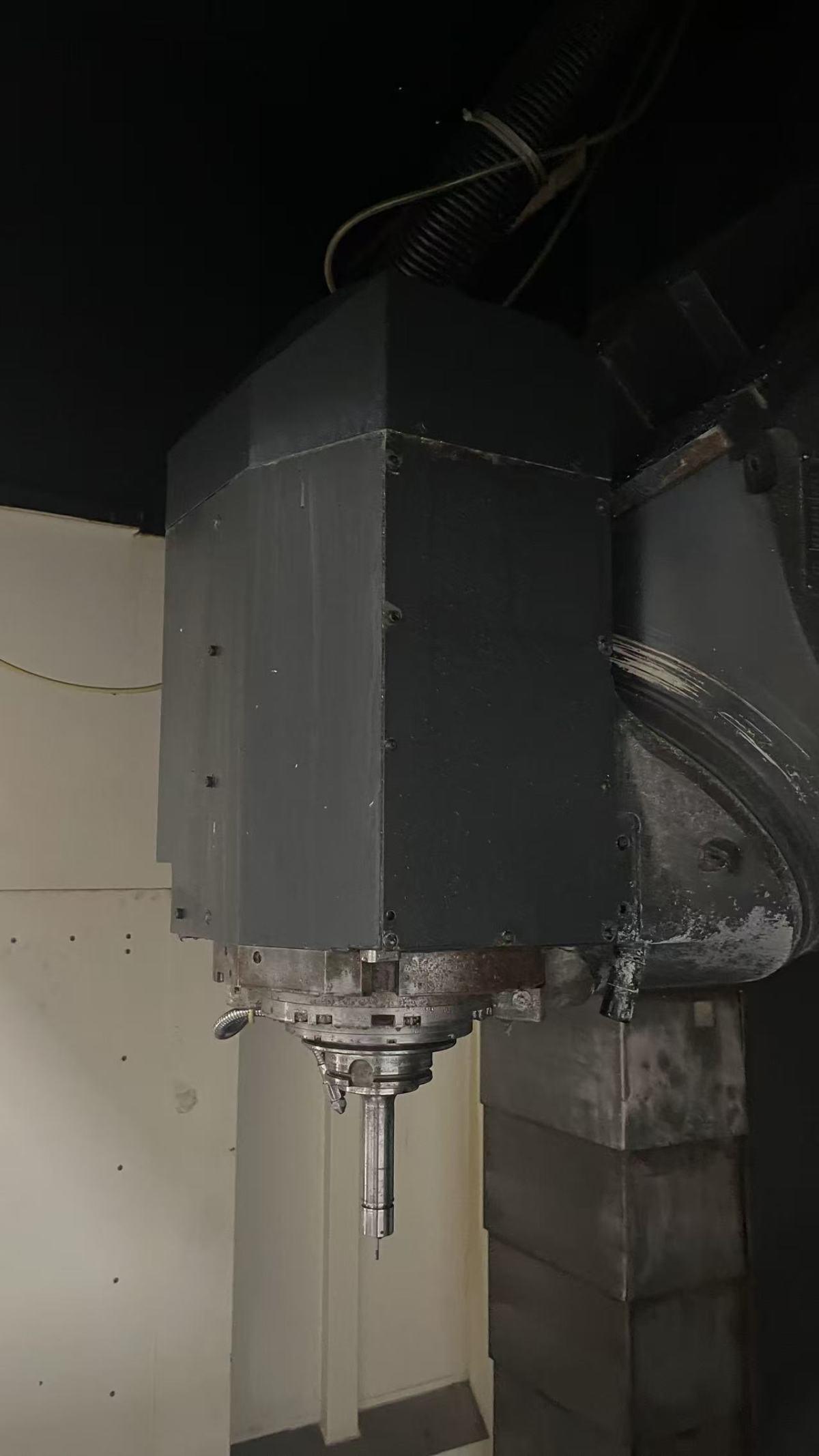

Universal Milling Head (B-Axis Controllable)
Liquid Cooling for Drive Components
Through-Spindle Coolant (AD)

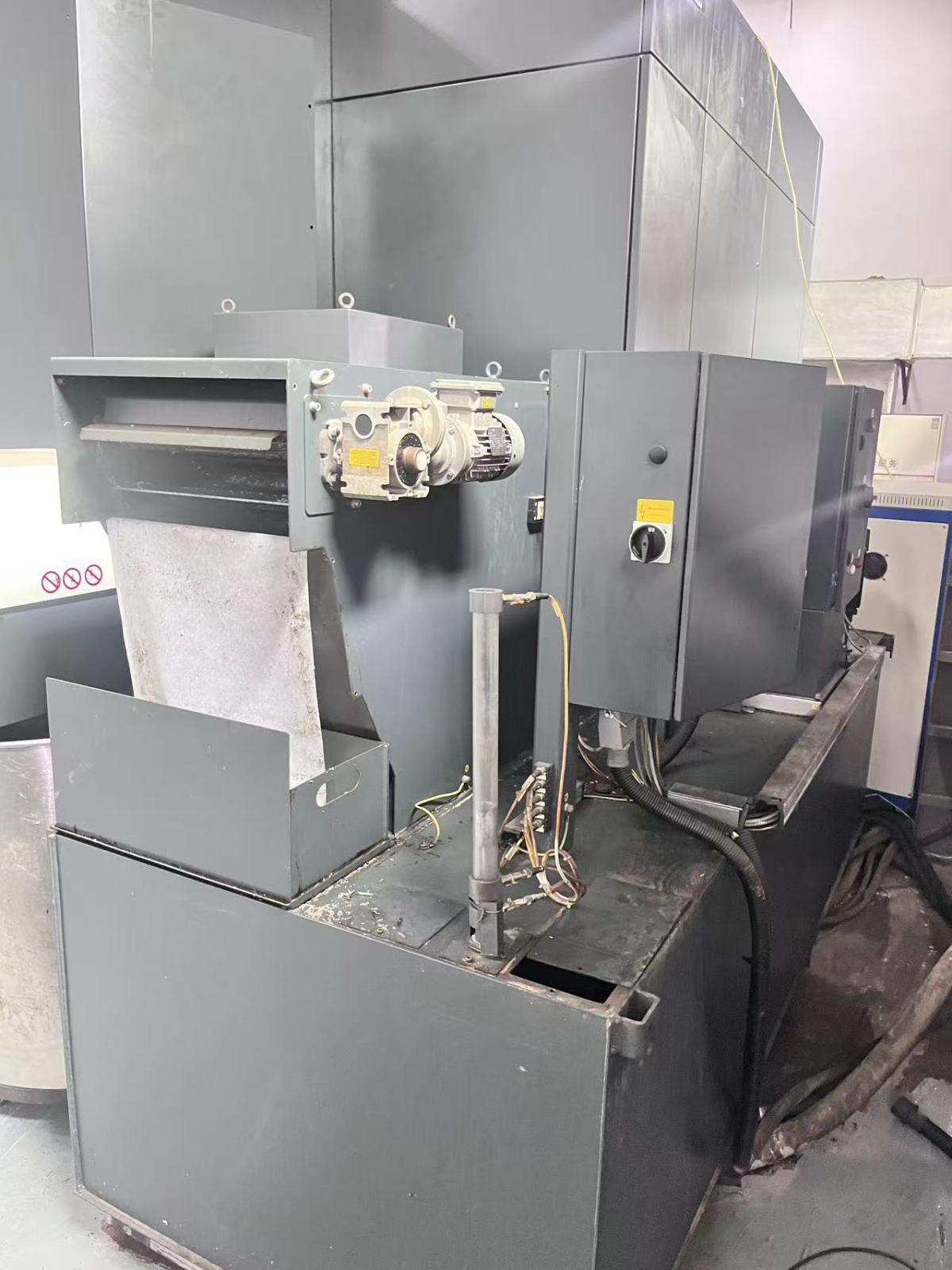

Chip Conveyor
Rotary Transparent Observation Window
Electronic Handwheel
3D CNC System
Optional Configuration:

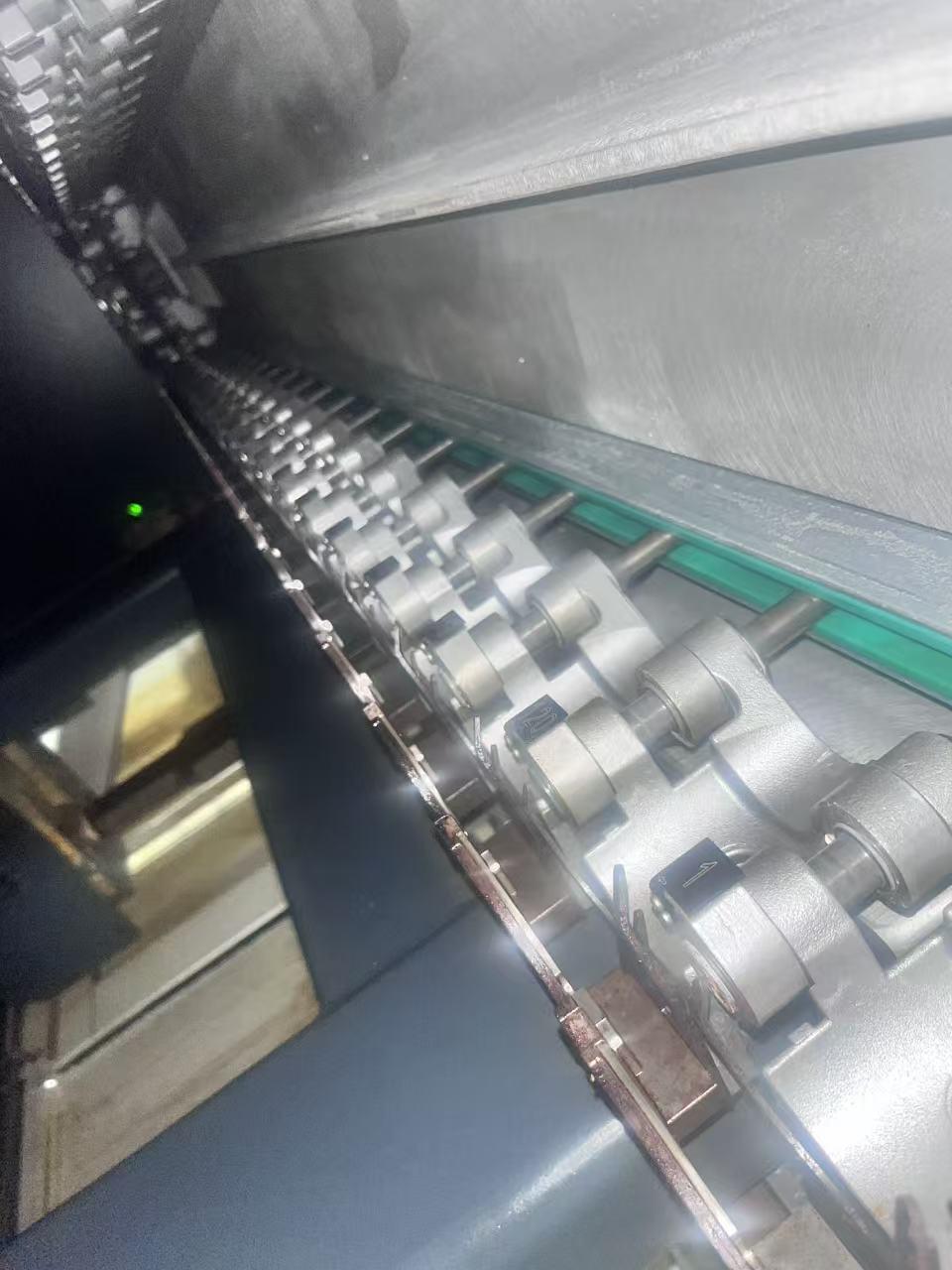

120-Tool Chain-Type Magazine
HEIDENHAIN TS649 Probe
BLUM Laser NT-Hybrid Tool Setter
3D QuickSET
Machine Tool Collision Protection System
Four-Color Signal Light
2500 L Coolant Tank
40 Bar Through-Spindle Coolant System
Spray Gun
TRANSMIT Cylindrical Surface Transformation Function (TRACYL)
CompCAD Compression Function for High-Speed Machining
Power Failure Protection Function
3D Machining, 3D Tool Compensation, Surface Normal Vector Control
Multi-Layer Safety Glass Protective Door
