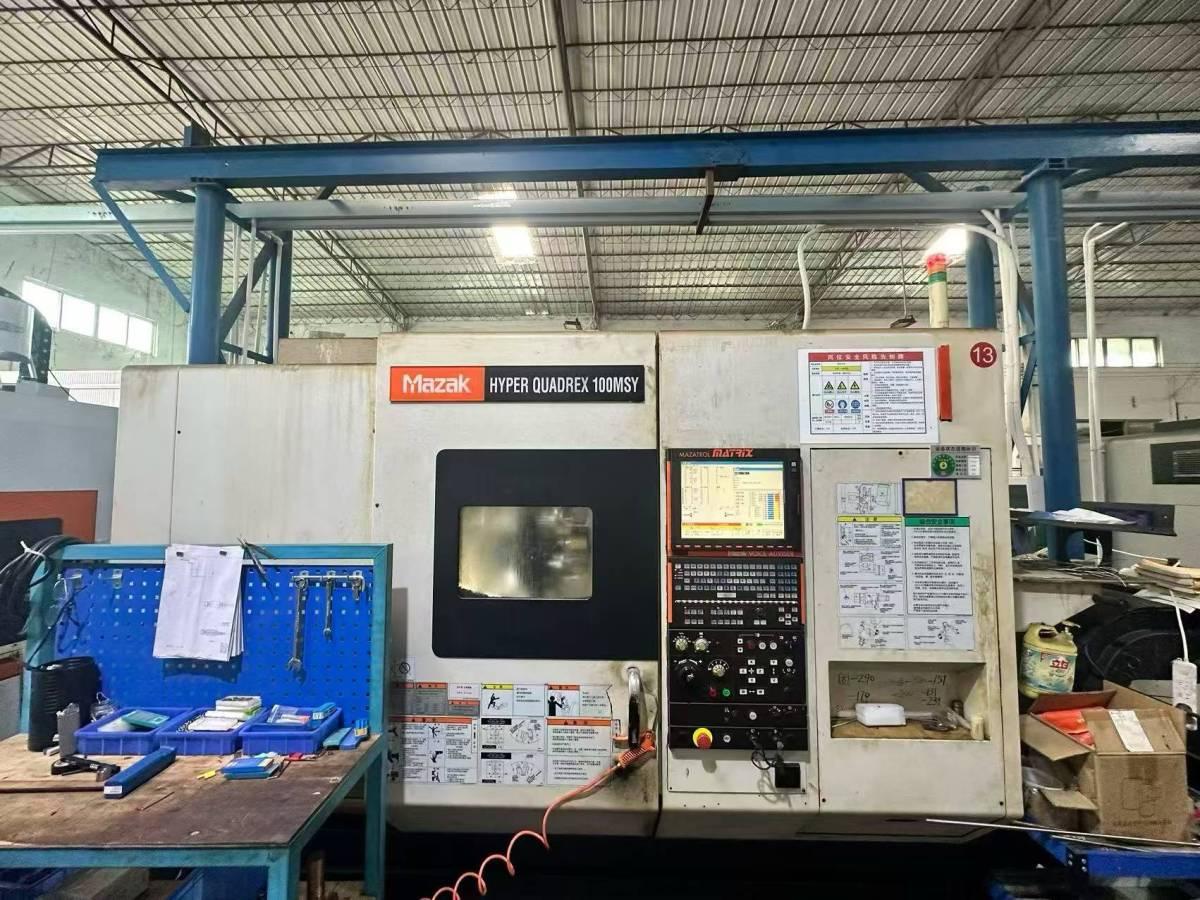

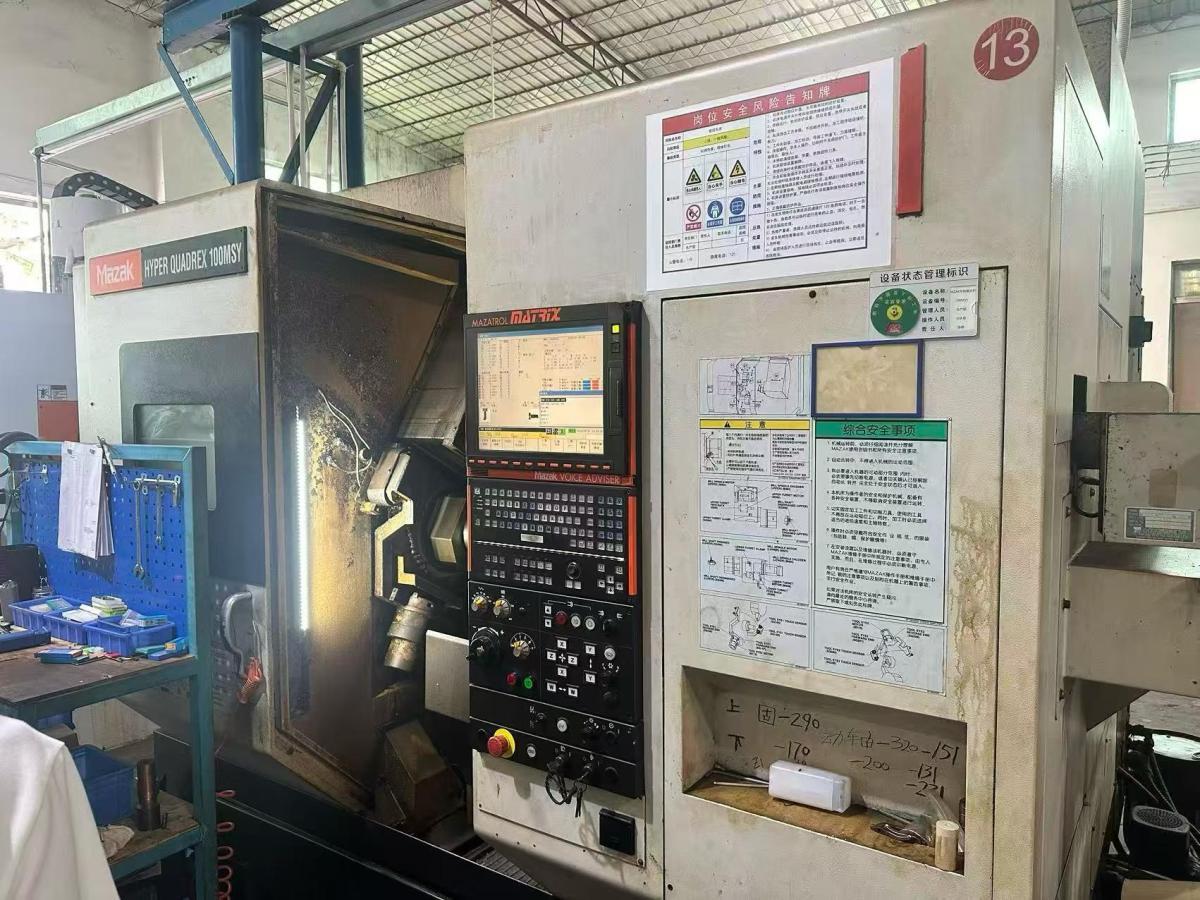

MAZAK HYPER fourth axisREX 100MSY Turn Mill Machining Centre

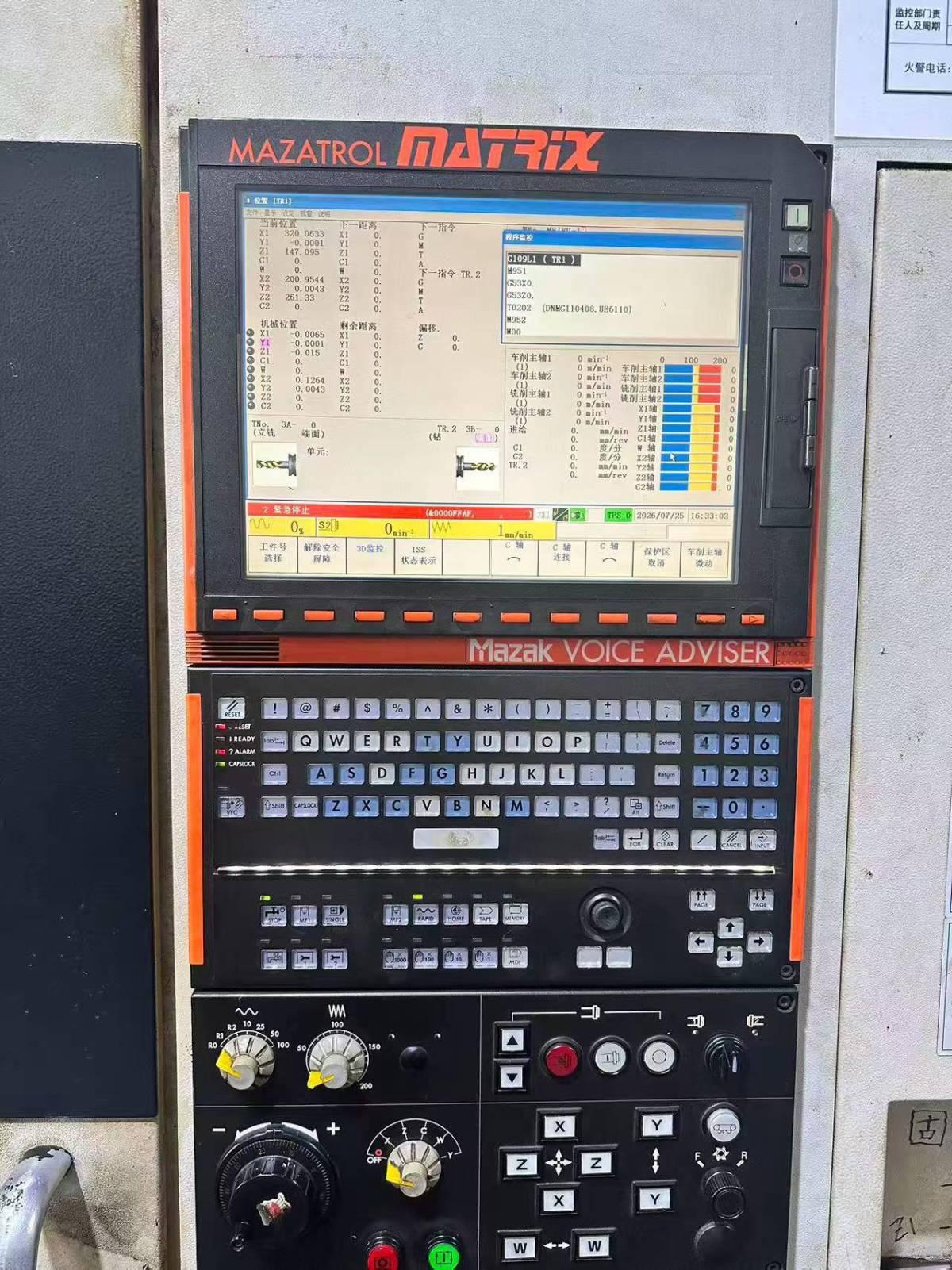

CNC System: MAZATROL MATRIX 2
Maximum bar through-hole diameter: φ52mm

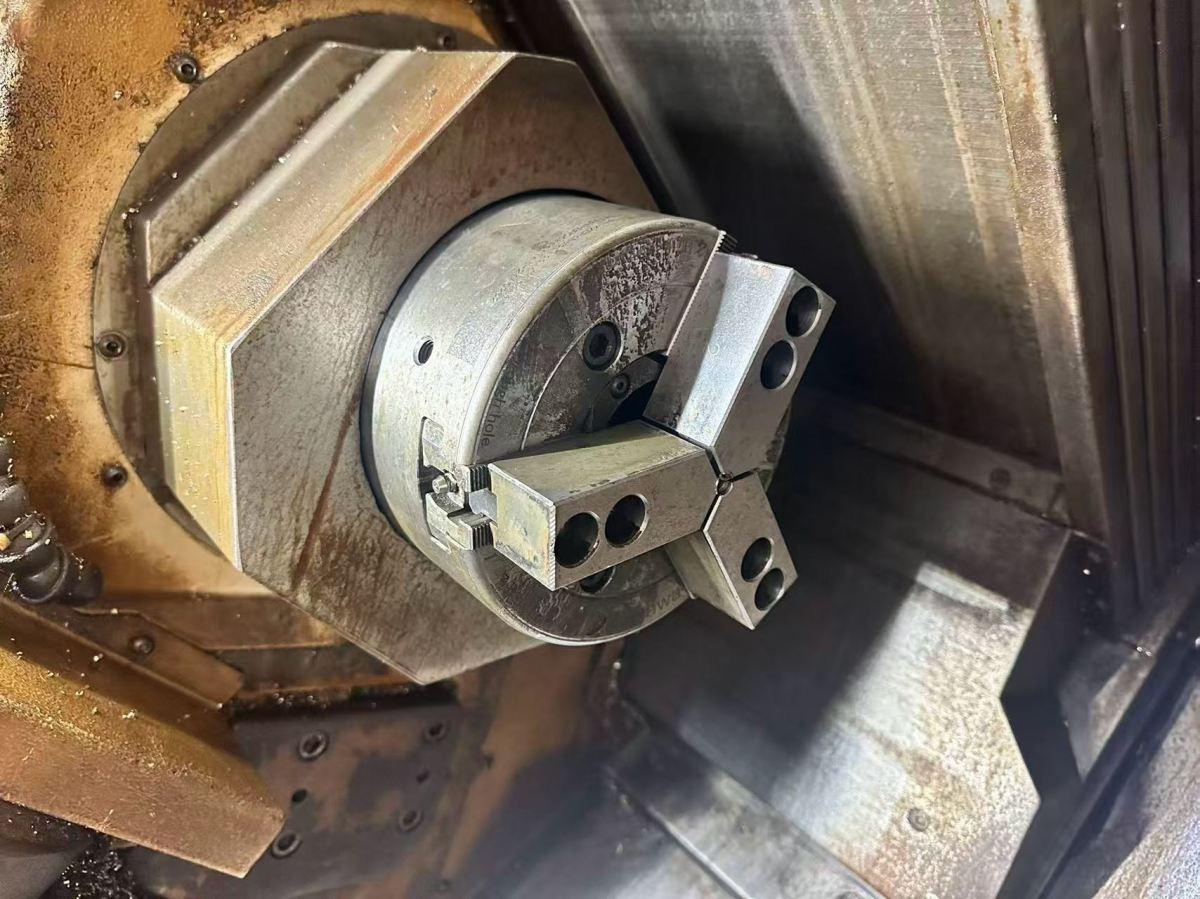

Standard chuck: 6-inch hydraulic chuck
Spindle type: Built-in electric spindle
Maximum spindle speed: 5000–6000 rpm
C-axis function: C-axis indexing and simultaneous control
Spindle center distance: 560mm
X-axis travel: 175mm
Y-axis travel: ±50mm
Z-axis travel: 580mm
Turret type: 12-position VDI40 turret
Power tools: All stations can be equipped with driven tools
Maximum swing diameter over bed: φ550mm
Maximum cutting diameter: φ260mm
Maximum machining length: 400mm
Guideway type: X/Z-axis linear scale closed-loop control, roller linear guideways
Cooling system: High-pressure internal cooling + external cooling
Chip conveyor: Standard configuration with chip conveyor

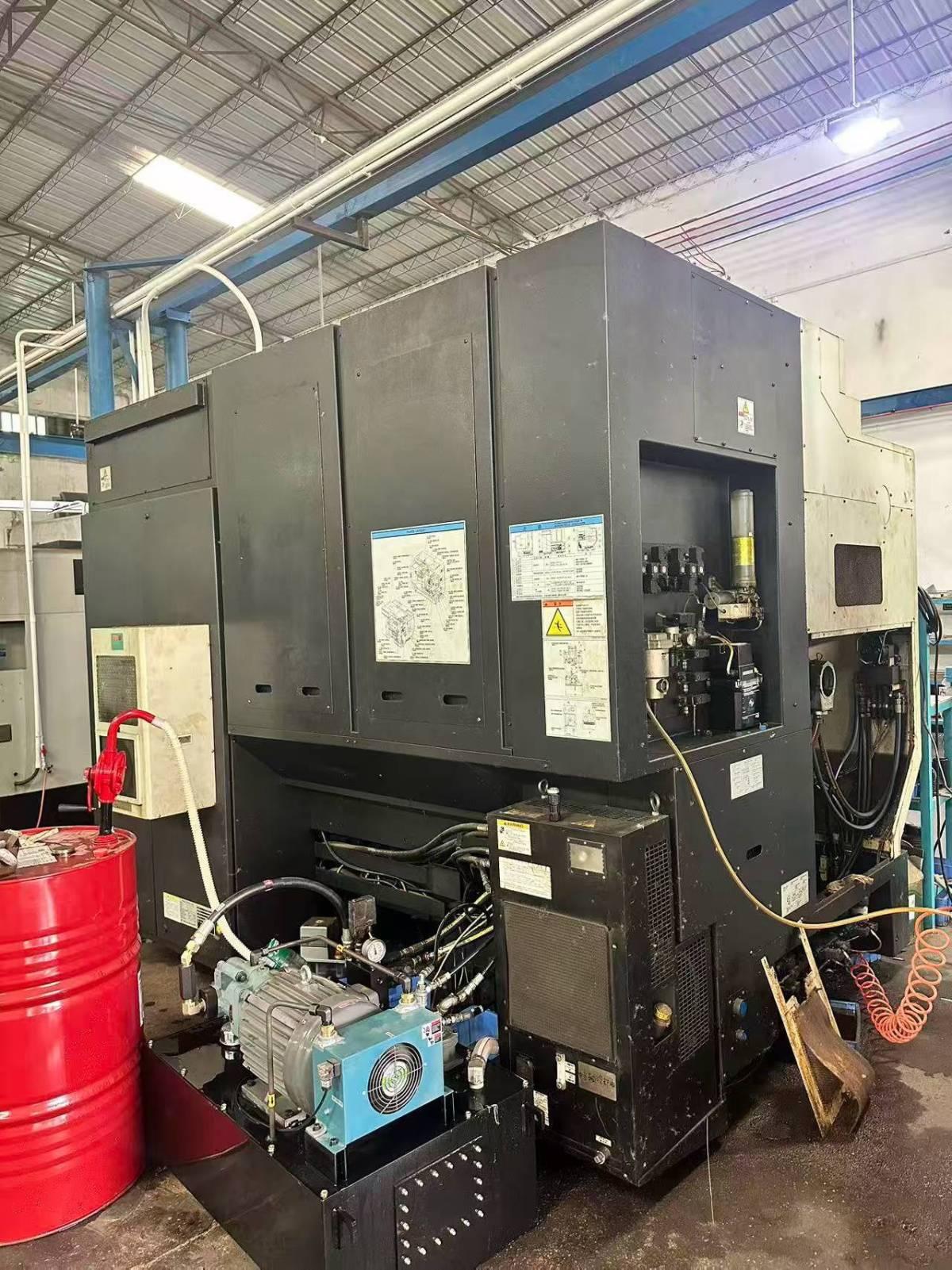

Hydraulic system: Independent hydraulic unit
Drive mode: Hydraulic drive for chuck, turret, and tailstock
Machine Machine Parameters:
Machine net weight: Approximately 8880kg
Floor space: 2400 × 1750mm
