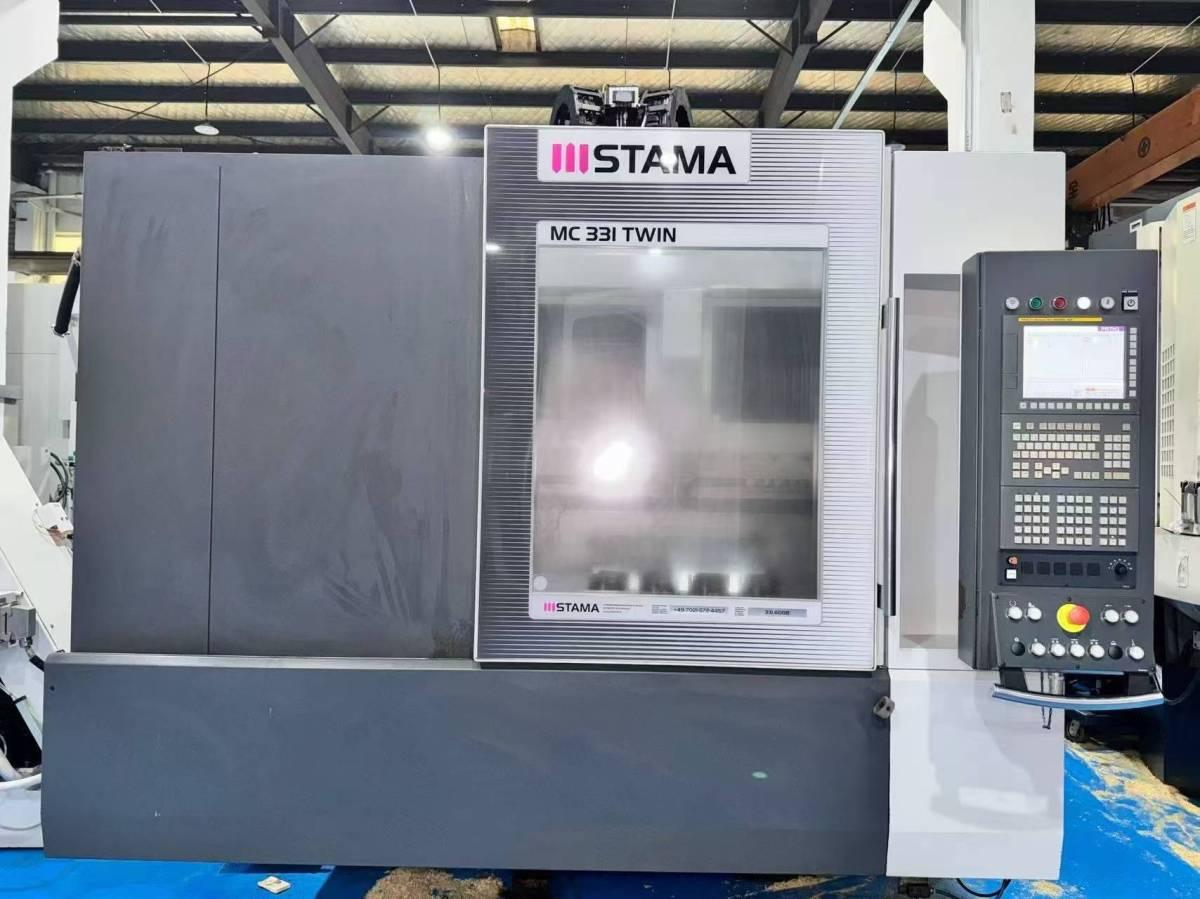

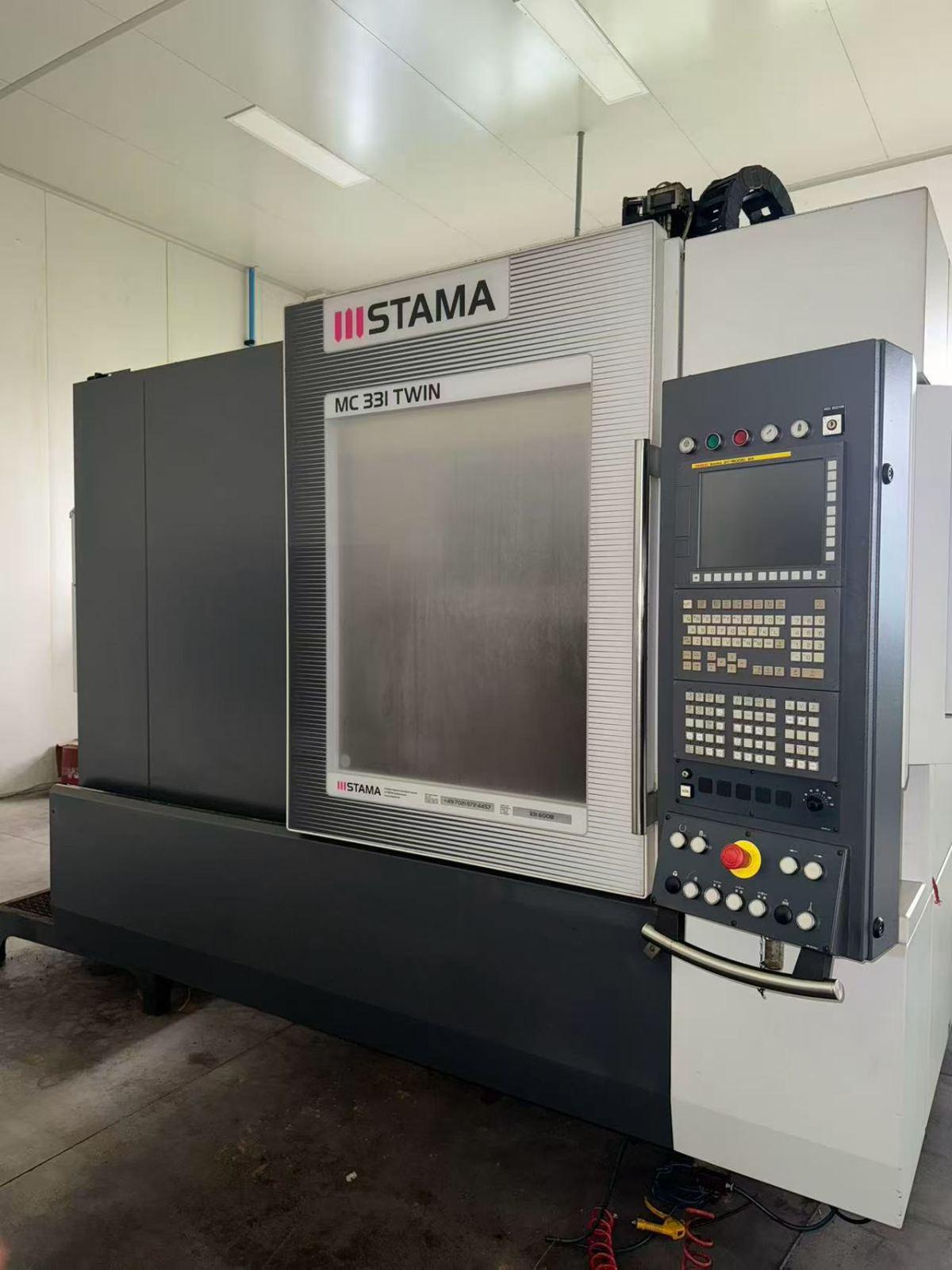

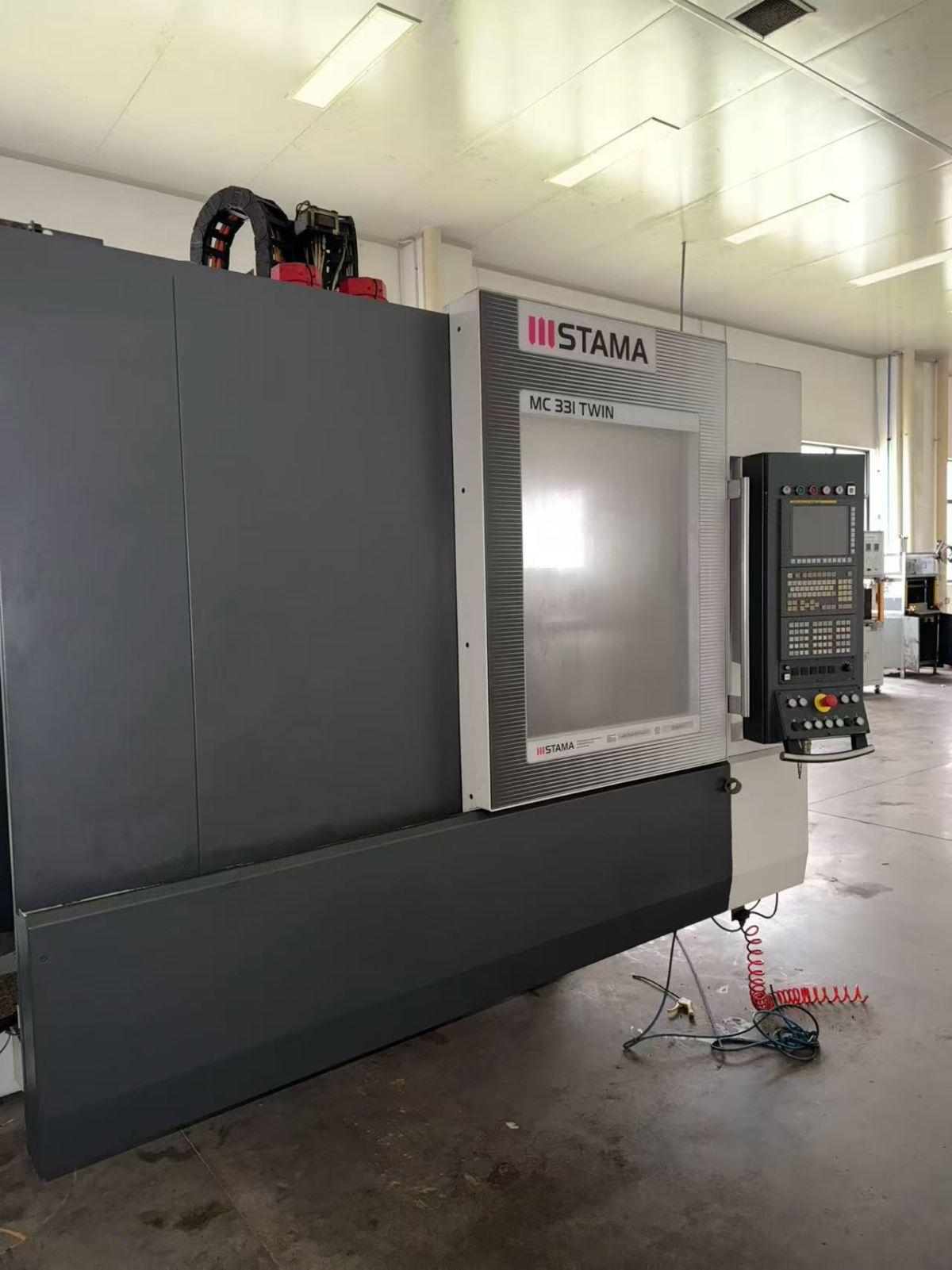

STAMA MC331 Machining centre

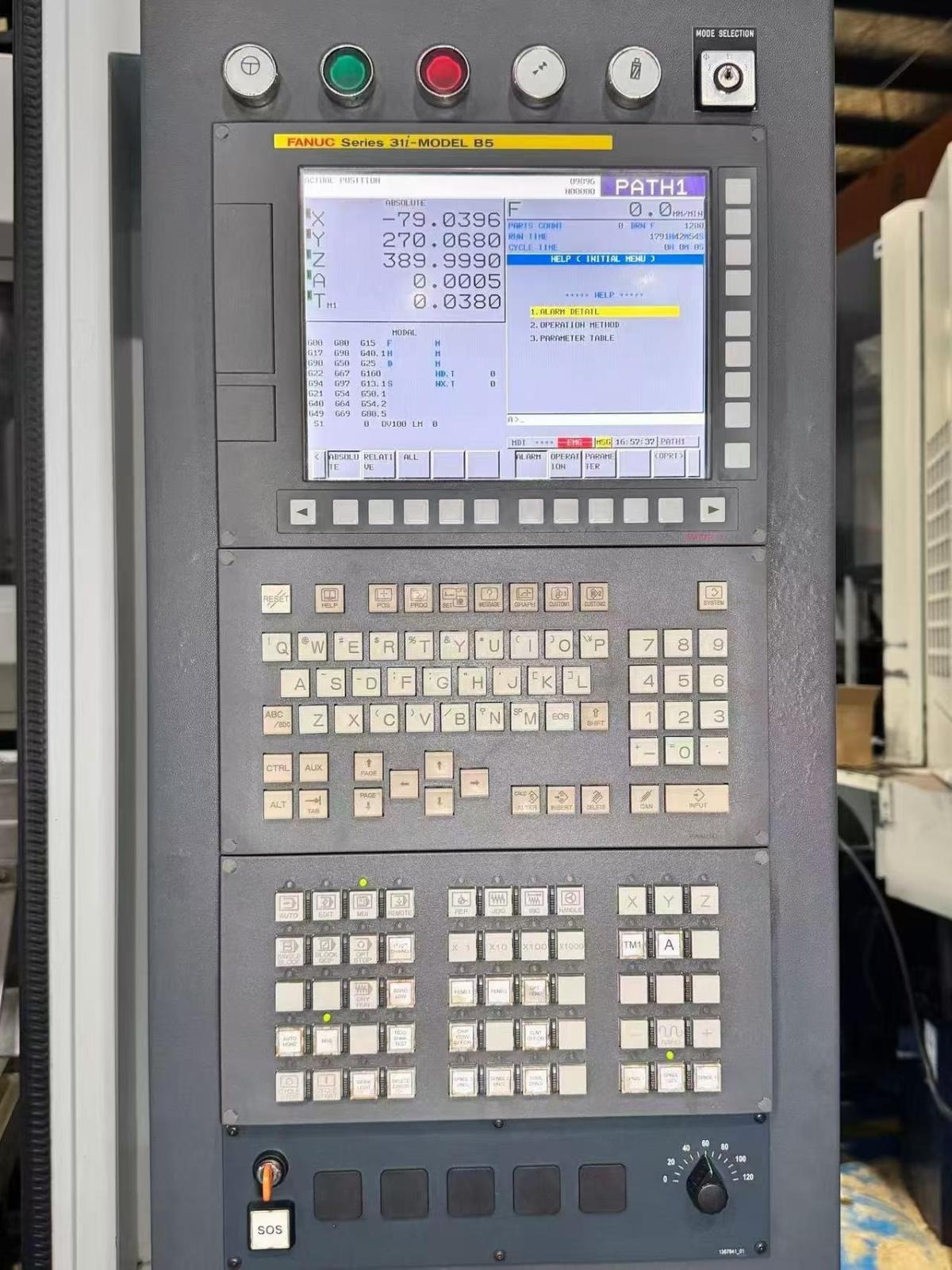

CNC System: FANUC 31i-MODEL B5
Three-axis travel (X/Y/Z): 700 × 400 × 400 mm
Main/Sub spindle speed: 10,000 rpm
Main motor power: 22/51 kW
Main/Sub spindle interface: HSK63
Tools magazine capacity: 64

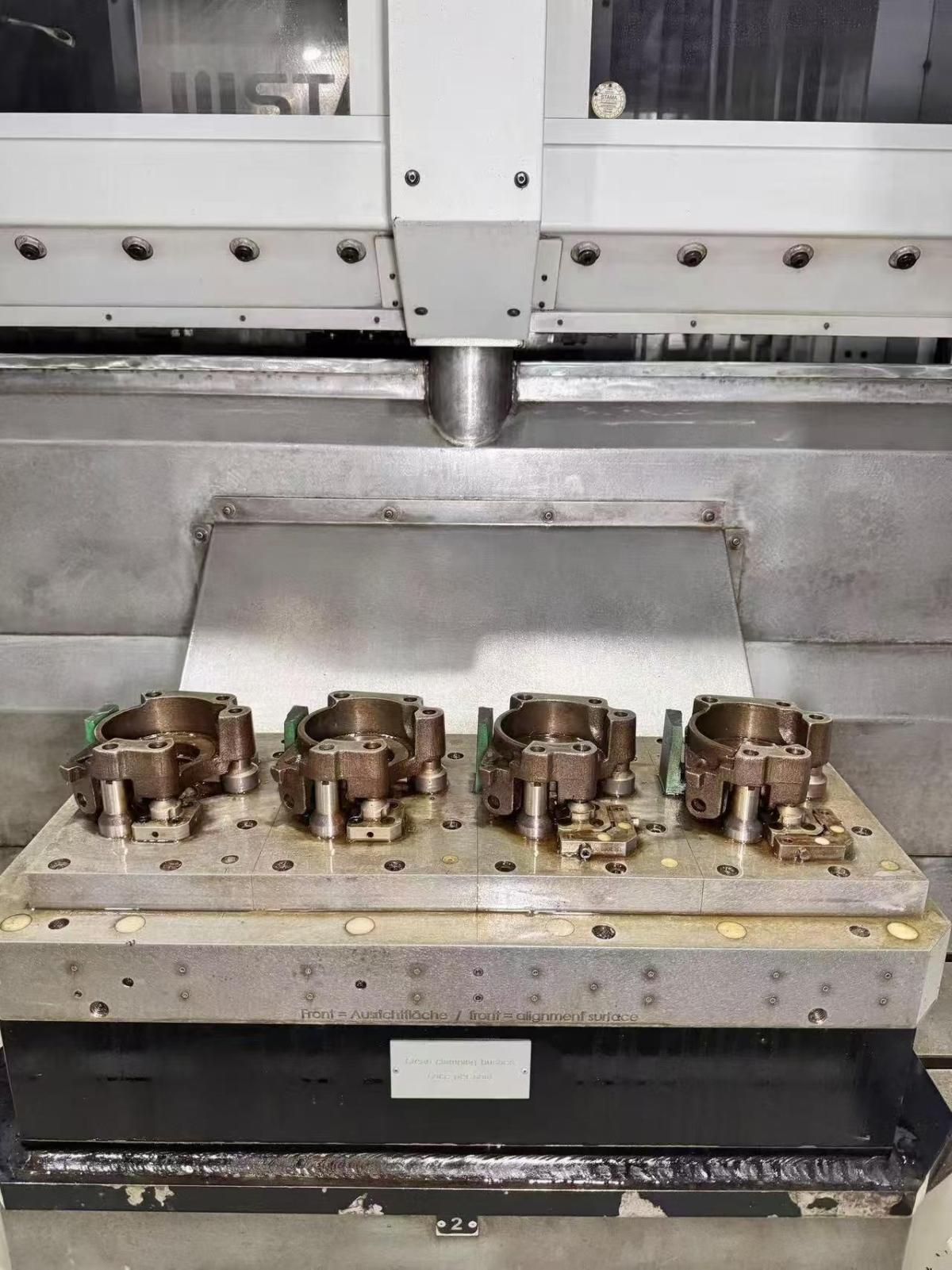

Worktable type: 180° rotating exchange double workstations
Workpiece exchange time: ≤8 seconds
Fourth axis: One side equipped with a fourth axis
Guideway type: Full linear roller guideways
Detection system: 3-axis Heidenhain glass scales with full closed-loop control

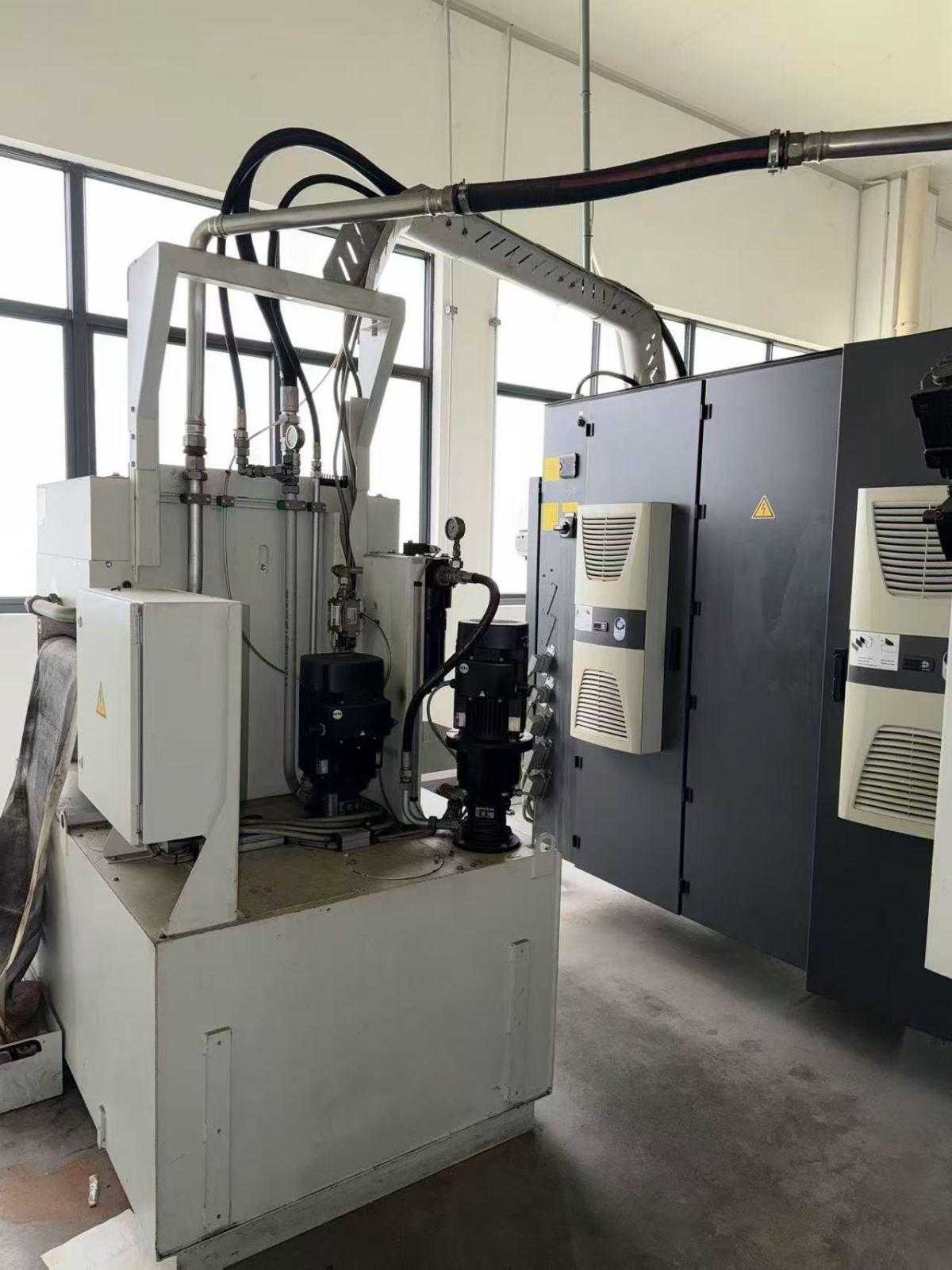

Standard accessories: 30 kg high-pressure through-spindle coolant system, spiral chip conveyor, automatic lubrication system, oil-water separator
Application: High-precision parts machining, complex structural parts machining, and automated batch production
