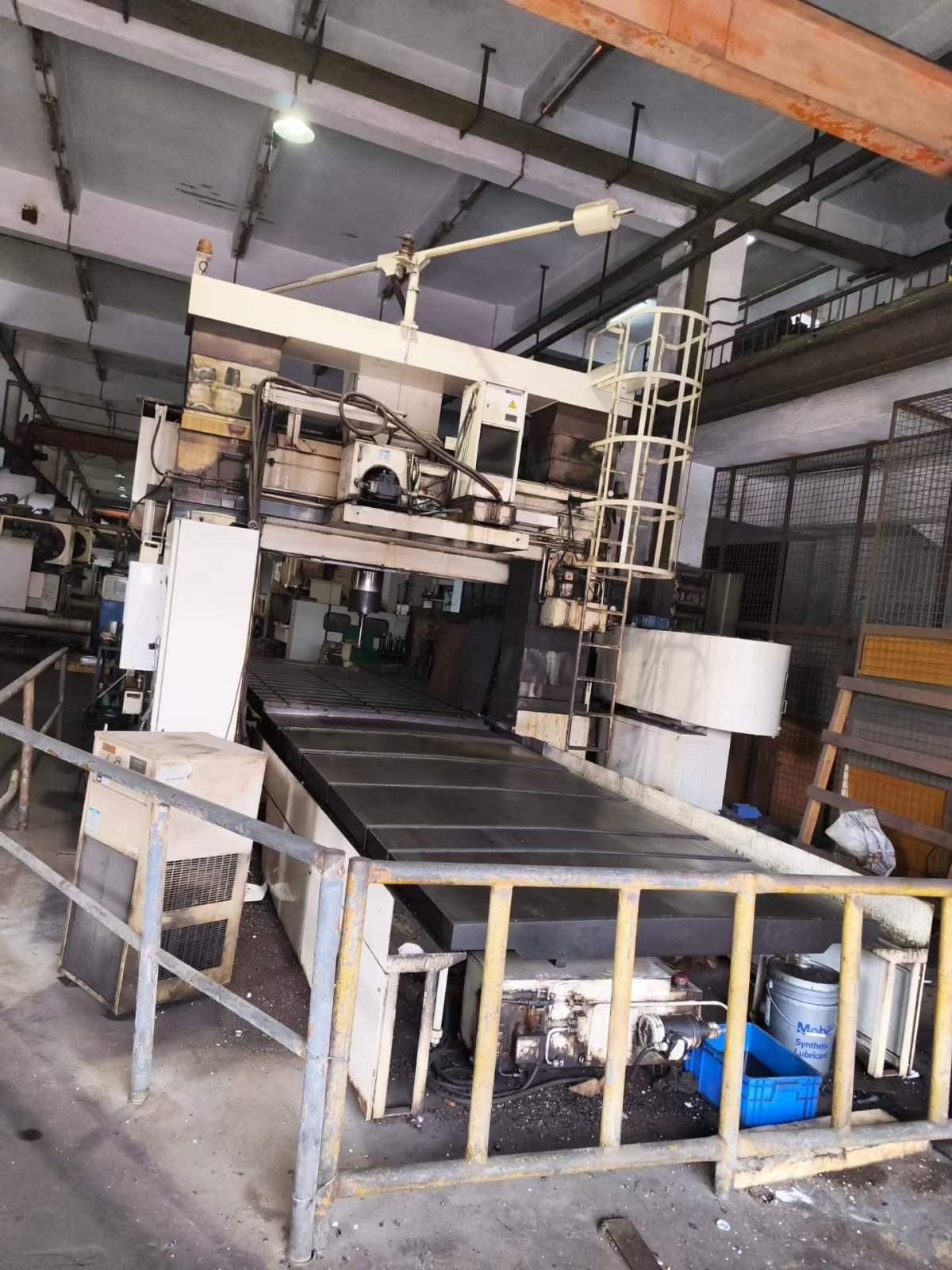

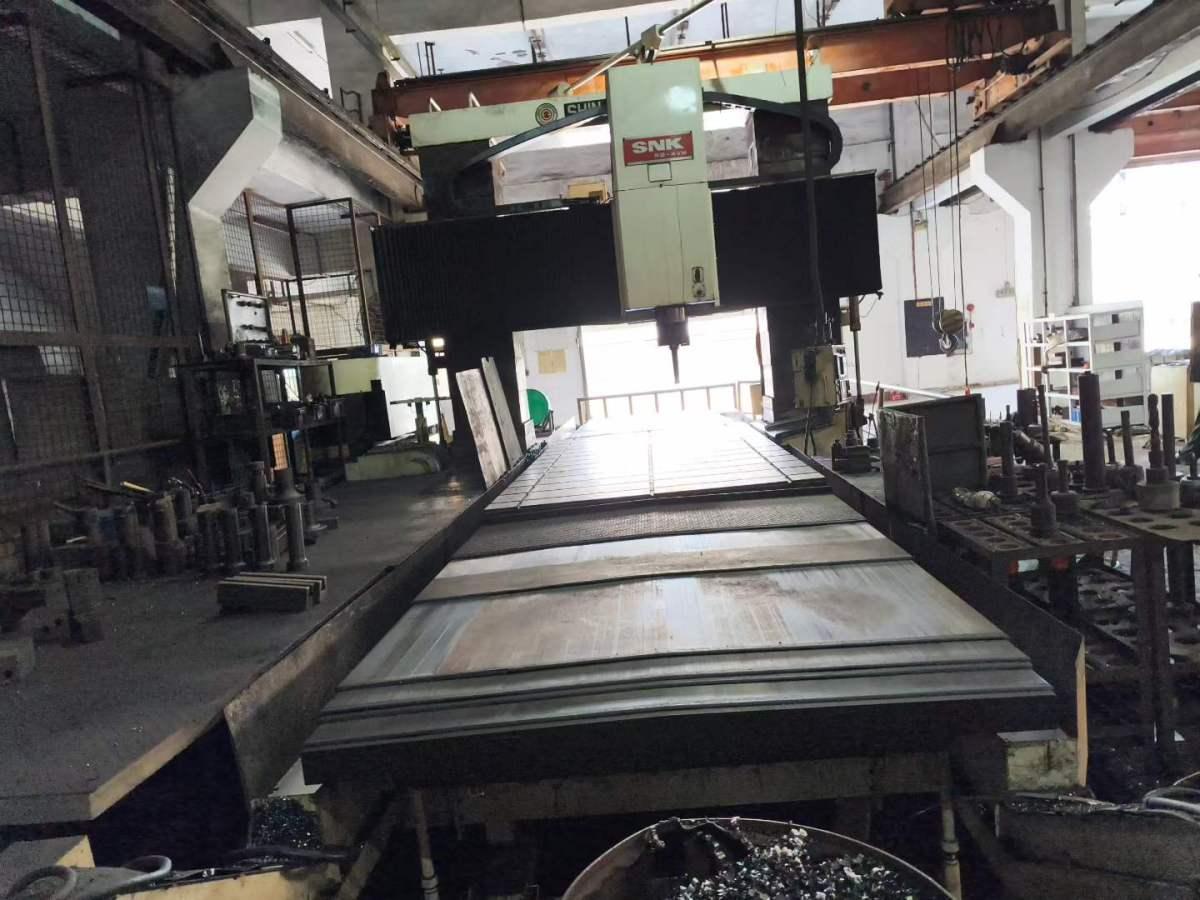

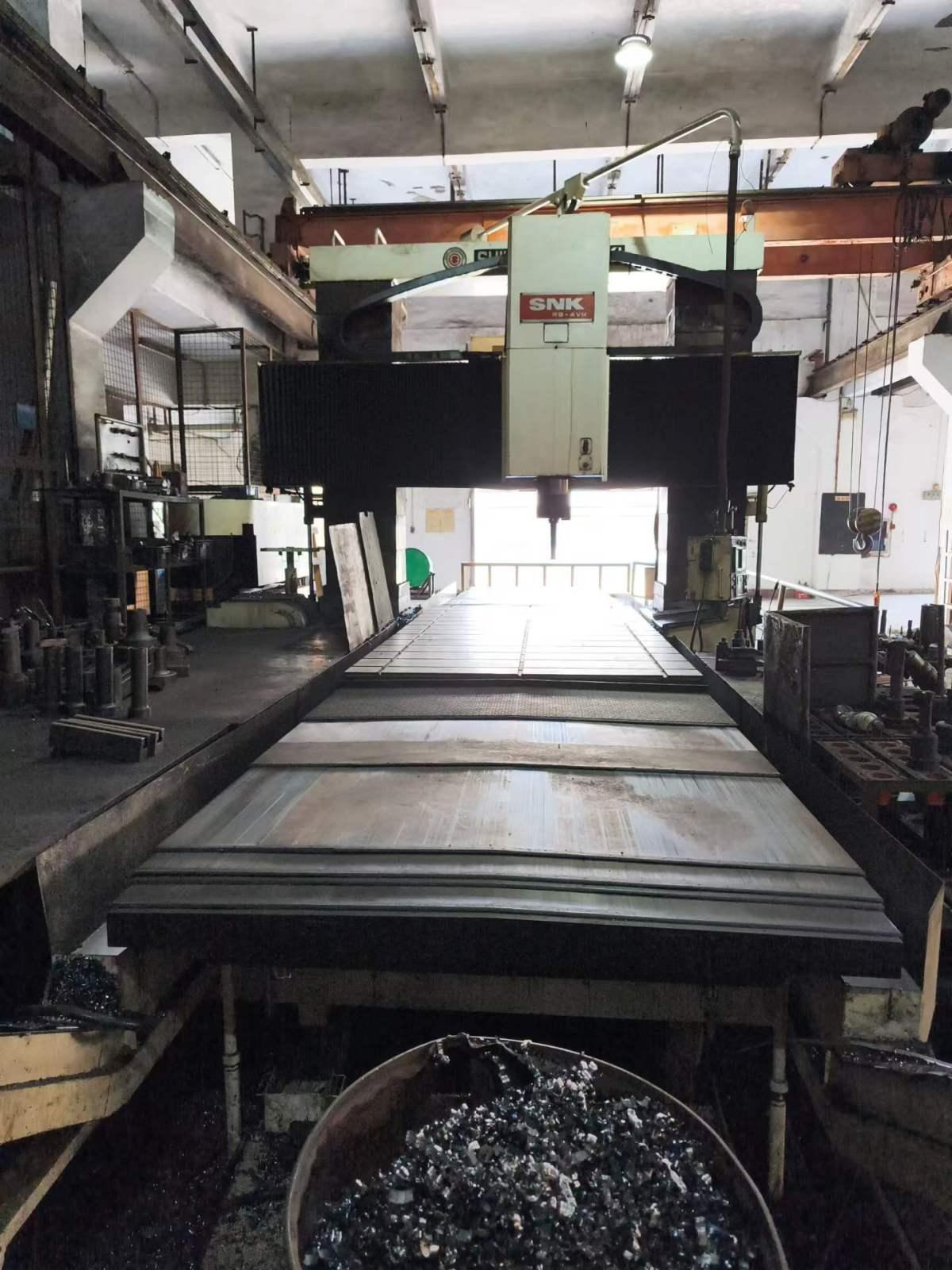

SNK RB-4VM Gantry machining centre

three-axis travel: 4250x2400x600mm
W-axis crossbeam lifting; 1100mm
Worktable size: 4000x2000mm
Maximum load of Worktable: 10,000 kg
Distance from spindle nose to Worktable surface: 500-1600mm
Gantry width: 2400mm
Height of the gantry: 1600mm
spindle taper: BT-50
Spindle speed: 20-6000rpm

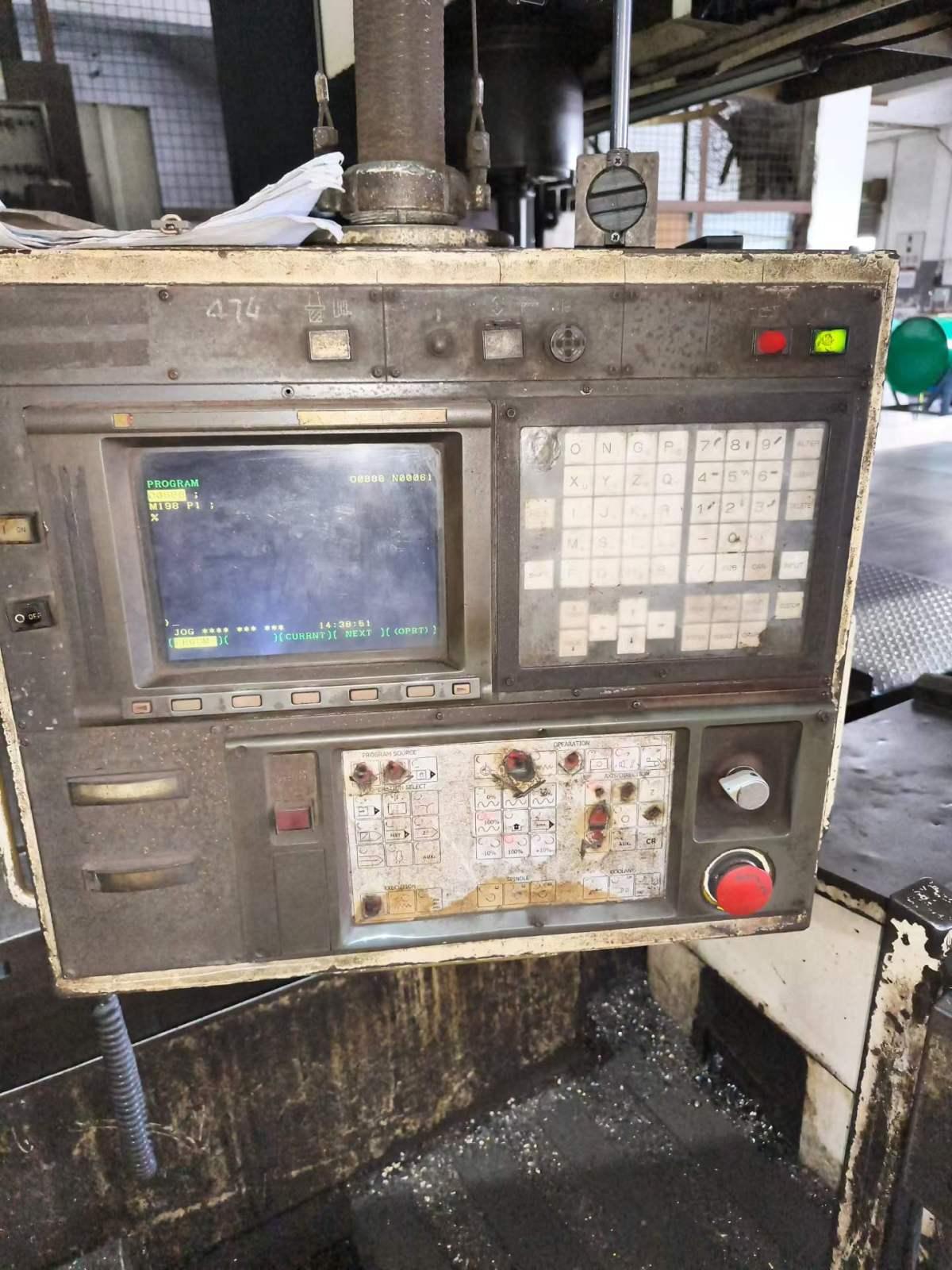

CNC System: FANUC 16-MC
