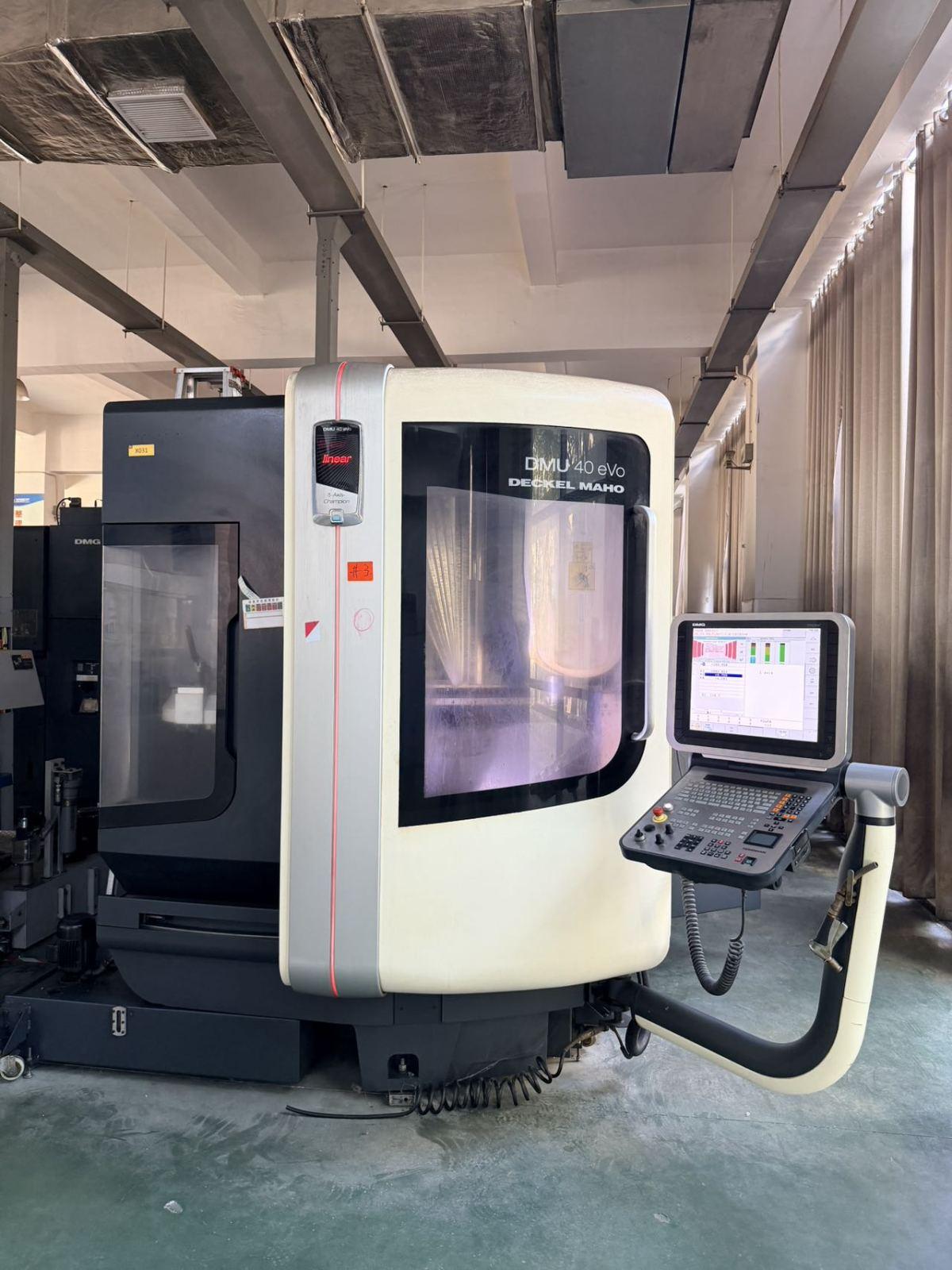

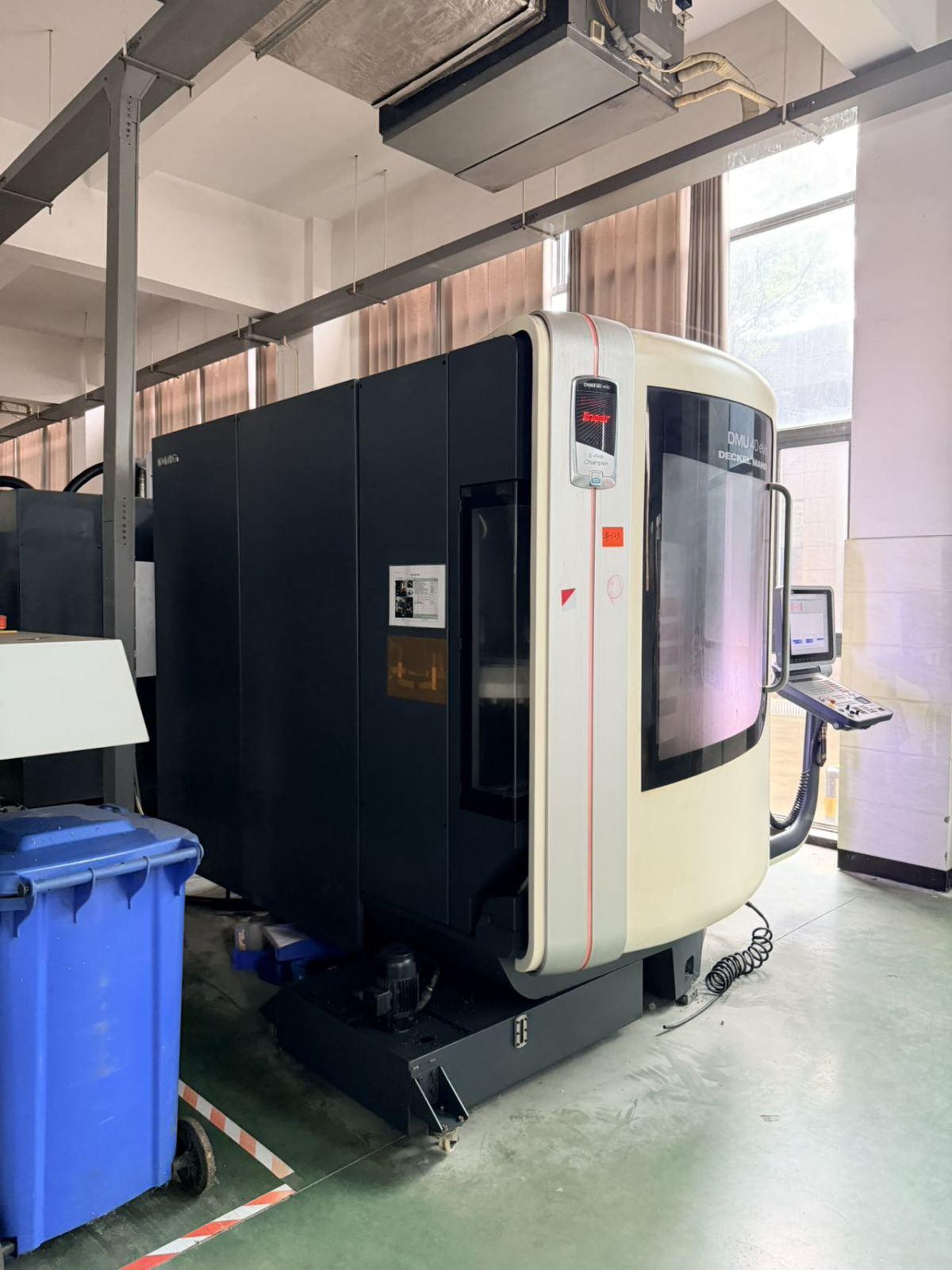

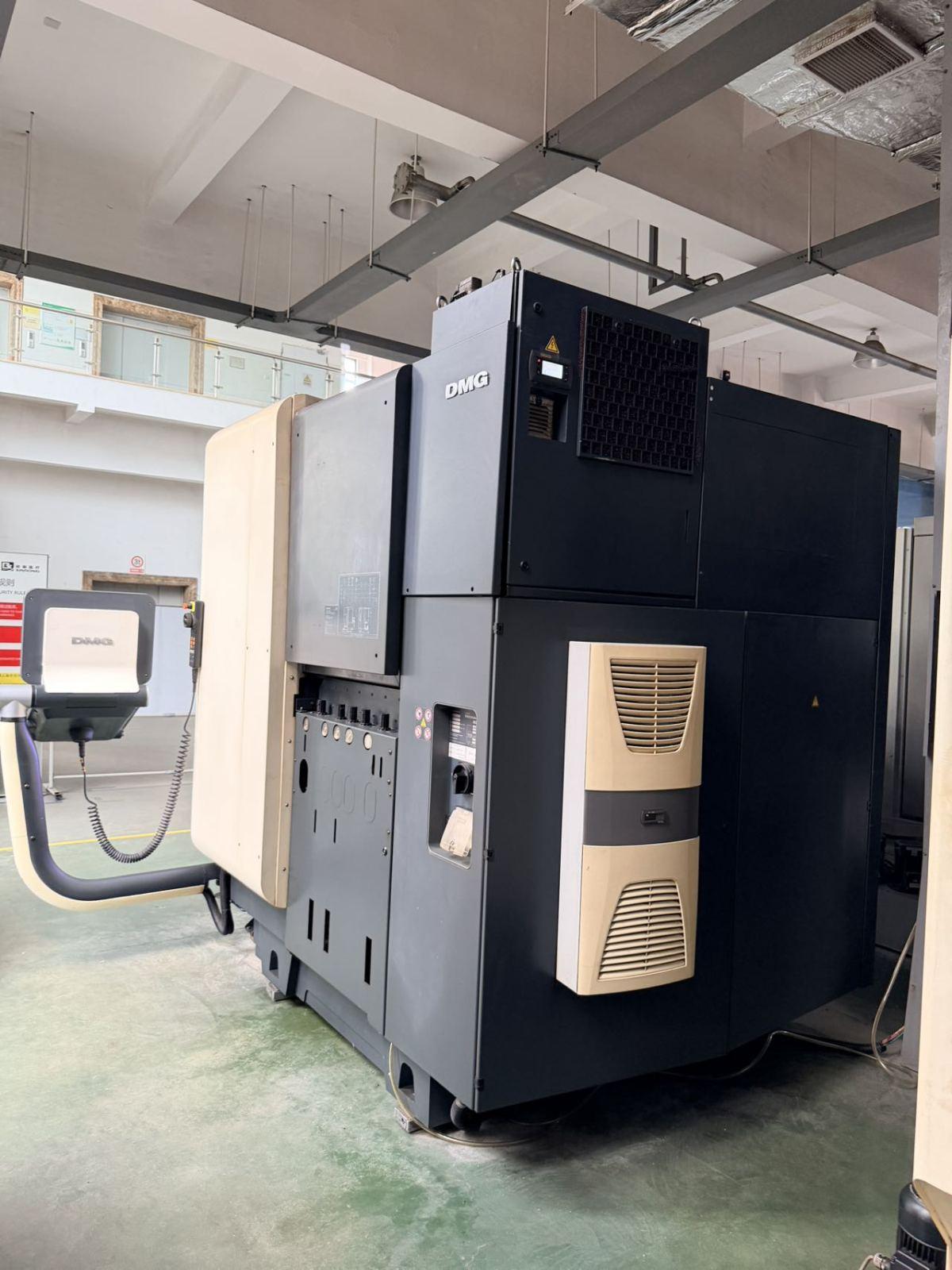

DMG DMU 40 EVO DECKEL MAHO 5 axis machining centre

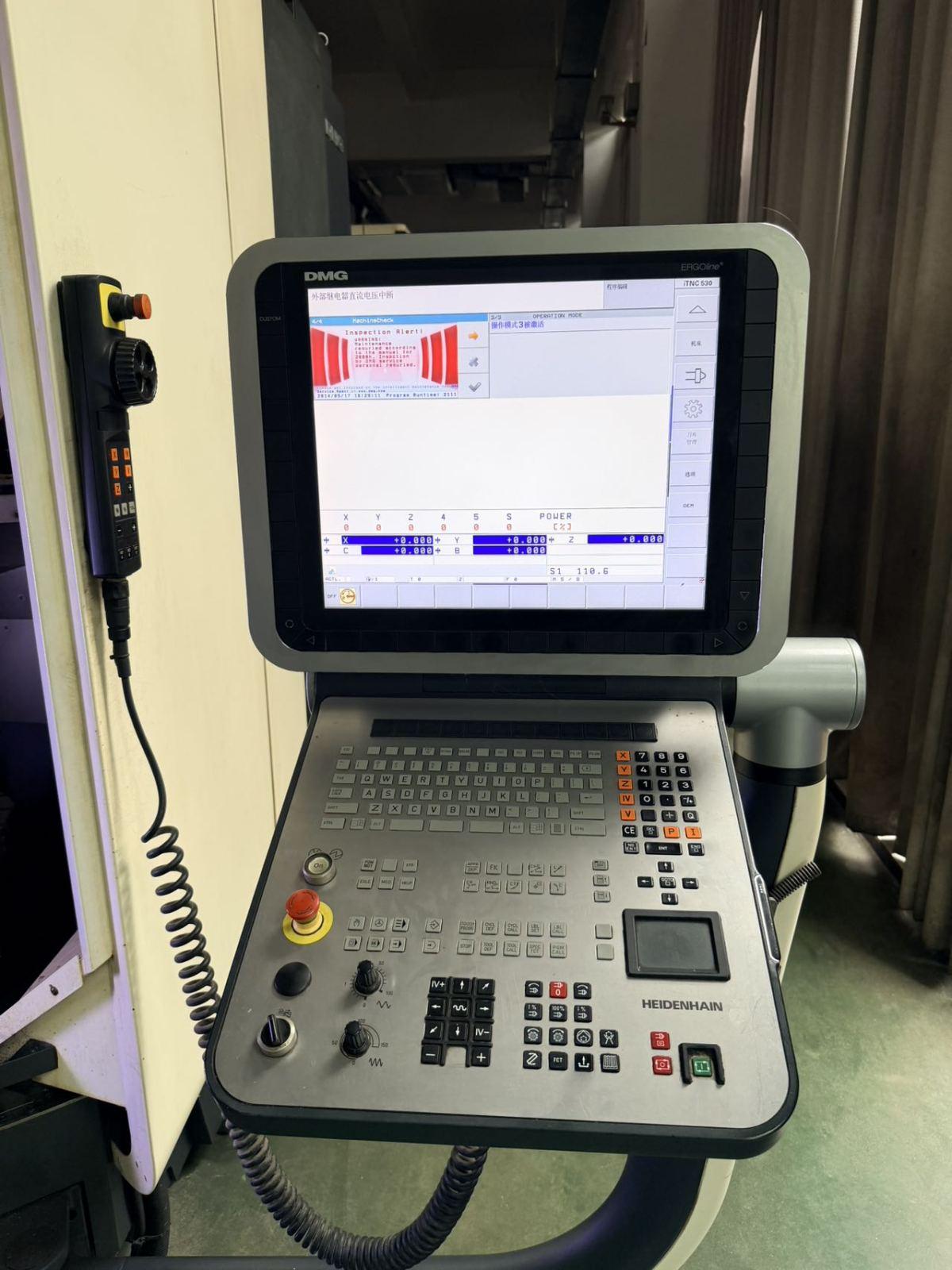

CNC System: HEIDENHAIN iTNC 530
Bed structure: Marble bed
Drive mode: Linear motor drive
Tool holder specification: SK40
Spindle speed: 18,000 rpm
Spindle power: 25 kW

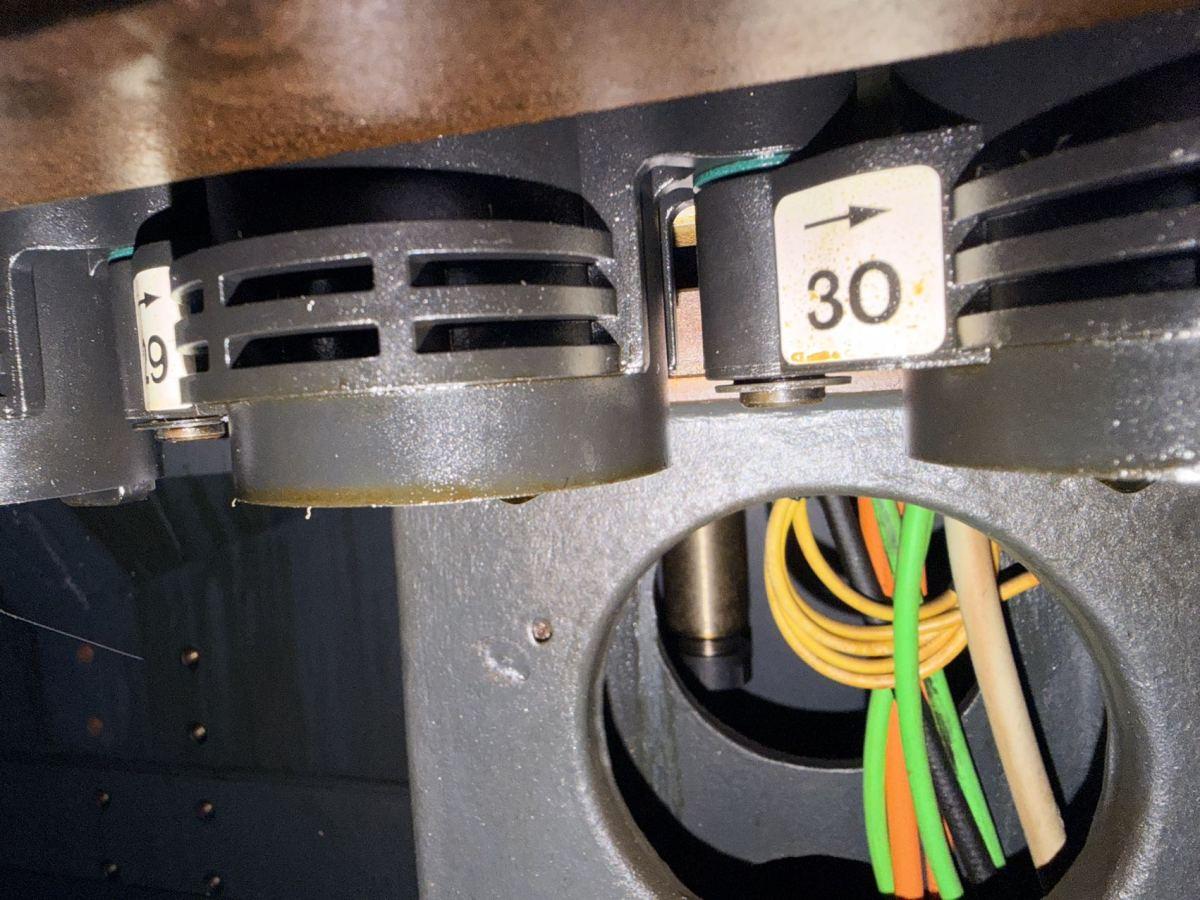

Tool magazine capacity: 30 tools

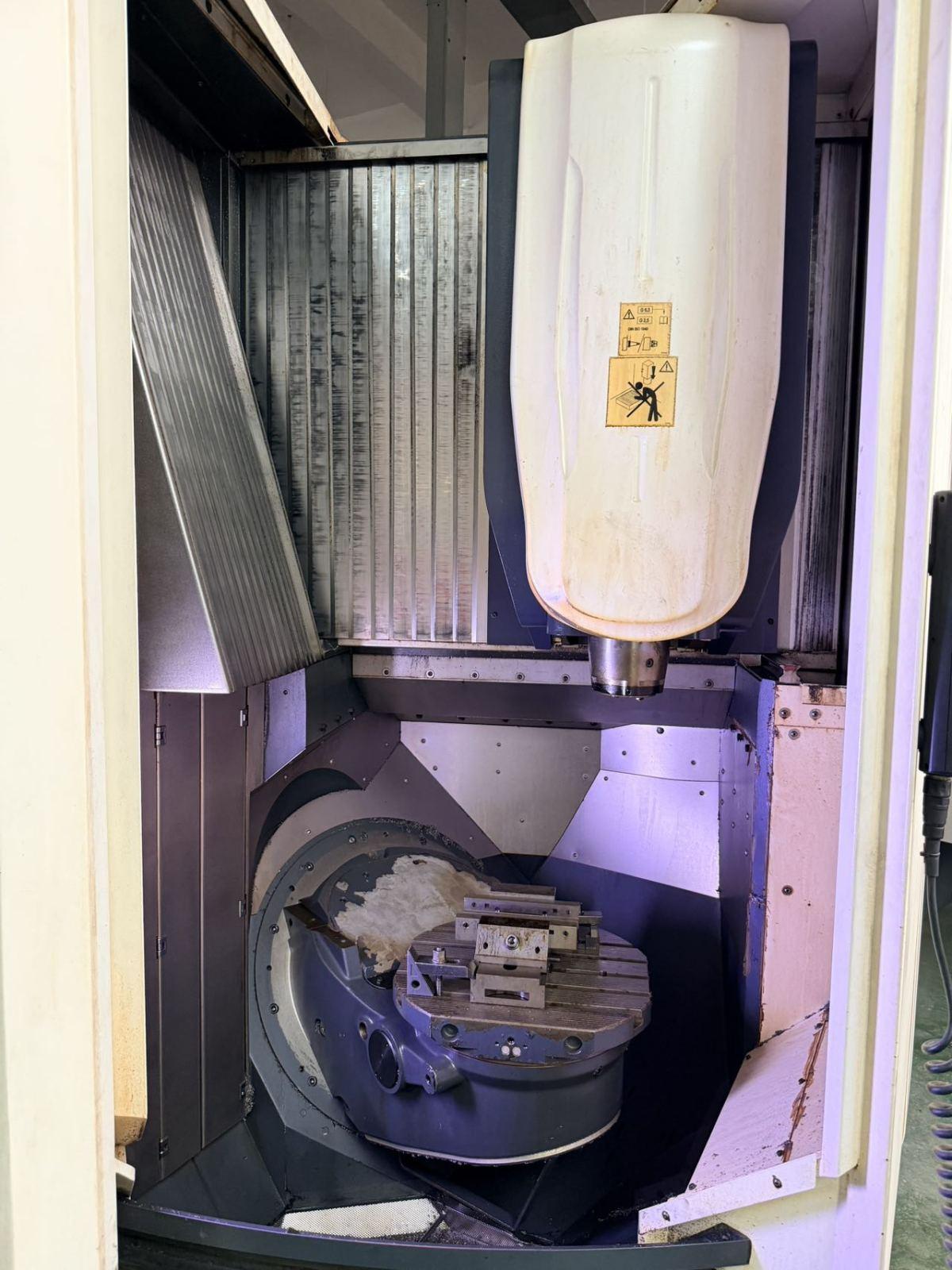

5-axis configuration: B/C axes with glass scales
X-axis travel: 400 mm
Y-axis travel: 400 mm
Z-axis travel: 375 mm
B-axis swing range: -5° to +110°
C-axis rotation range: 360°

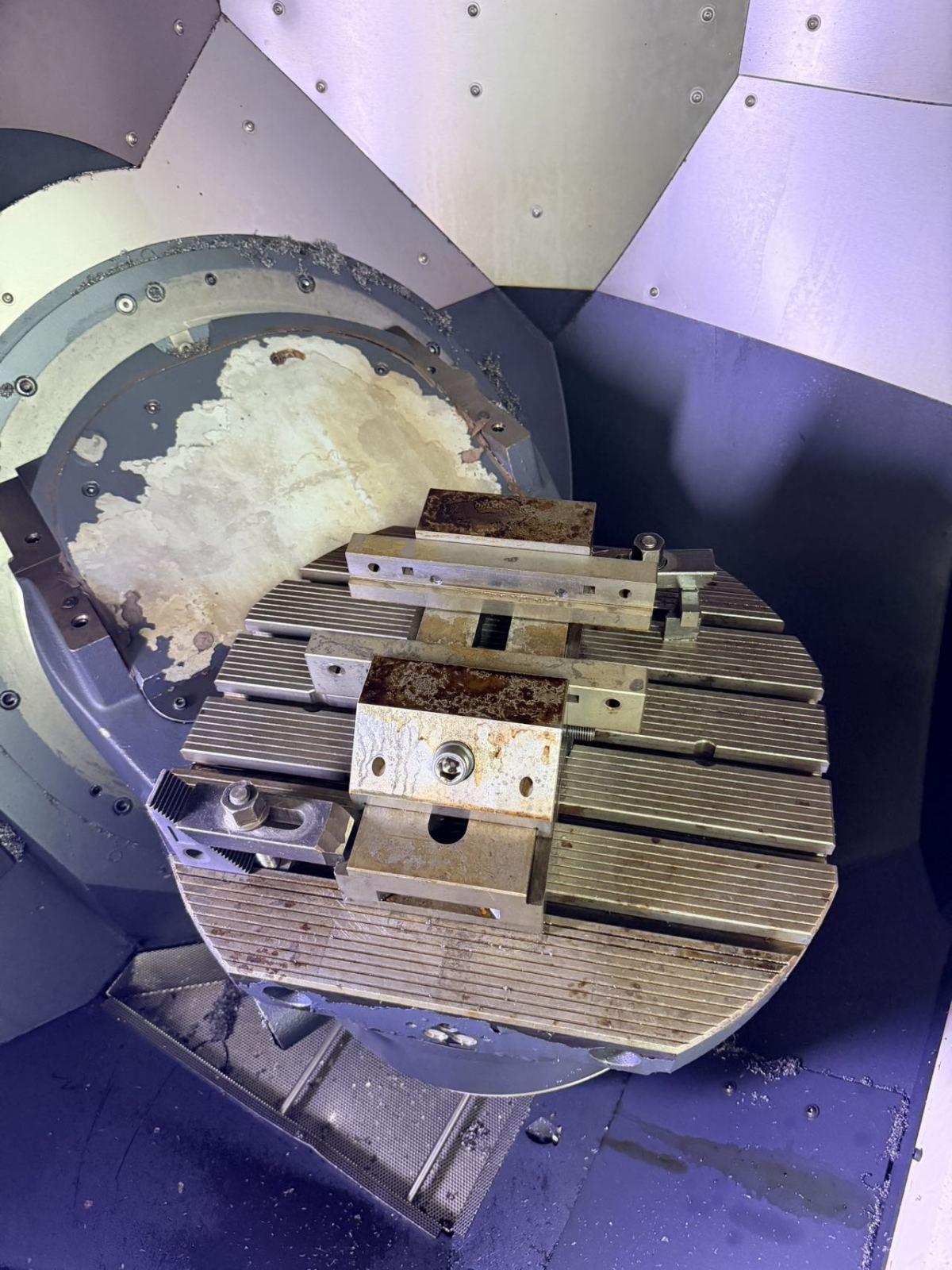

Worktable size: 450 × 400 mm
Maximum workpiece diameter: Ø450 mm
Maximum workpiece height: 460 mm
Maximum worktable load: 250 kg
Operating hours: 20,199 hours
