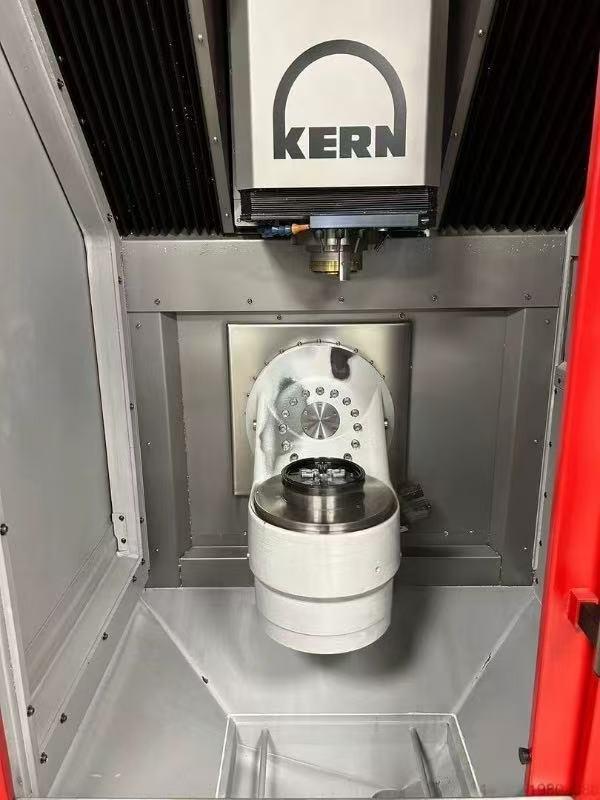

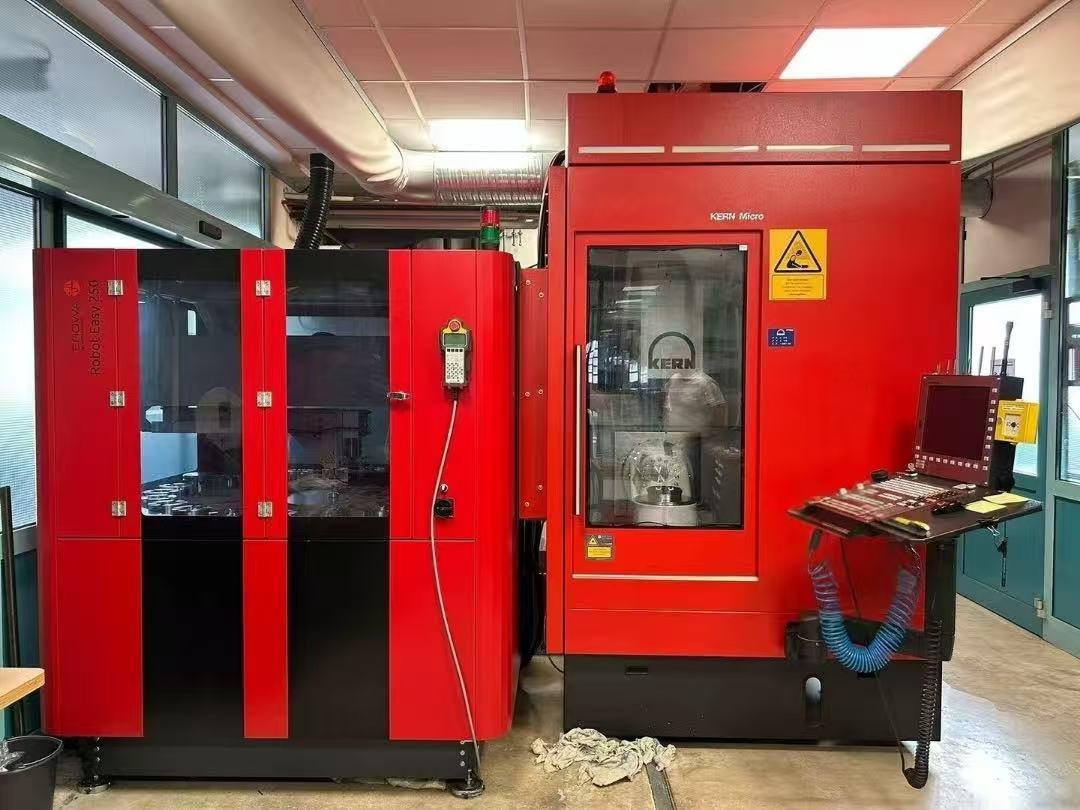

KERN Mirco Machining centre

X-axis travel: 350 mm
Y-axis travel: 220 mm
Z-axis travel: 250 mm
Three-axis feed rate (X/Y/Z): 30 m/min
Acceleration: 10 m/s²
Spindle speed range: 500 - 42,000 rpm
Spindle torque:
6 Nm at 24,000 rpm
3.4 Nm at 42,000 rpm
Spindle motor power: 15 / 20 kW
Spindle taper: HSK-E40

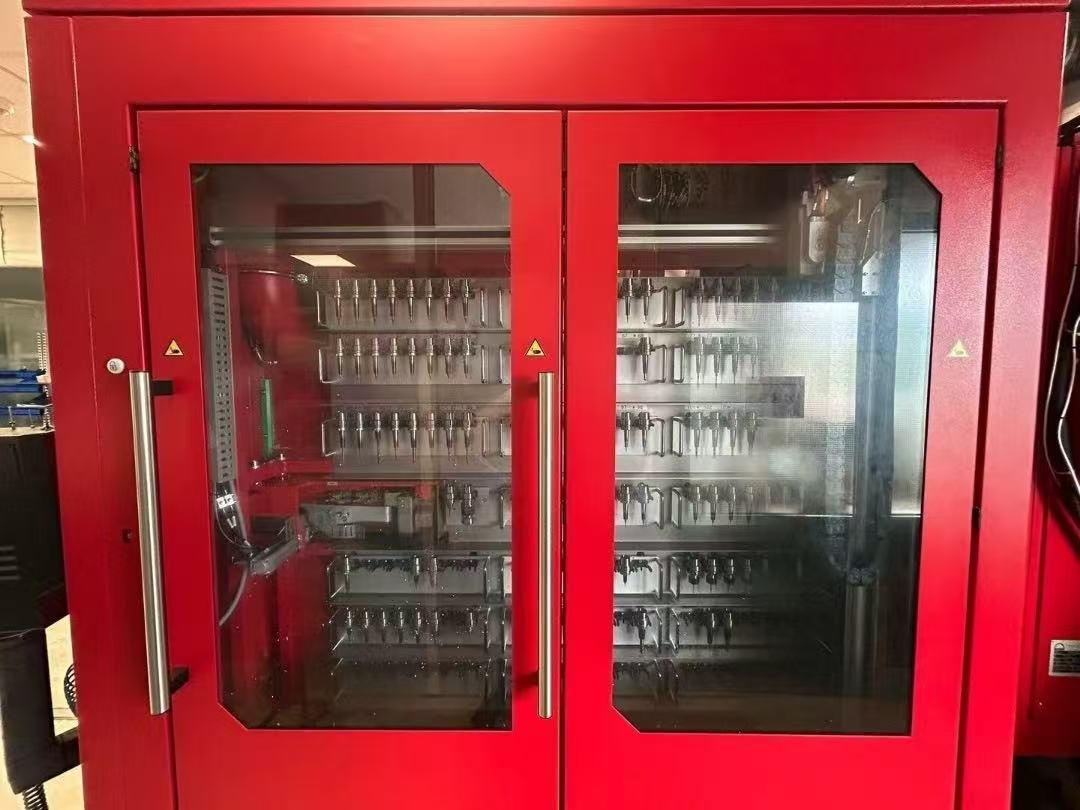

Tool positions: 186 tools

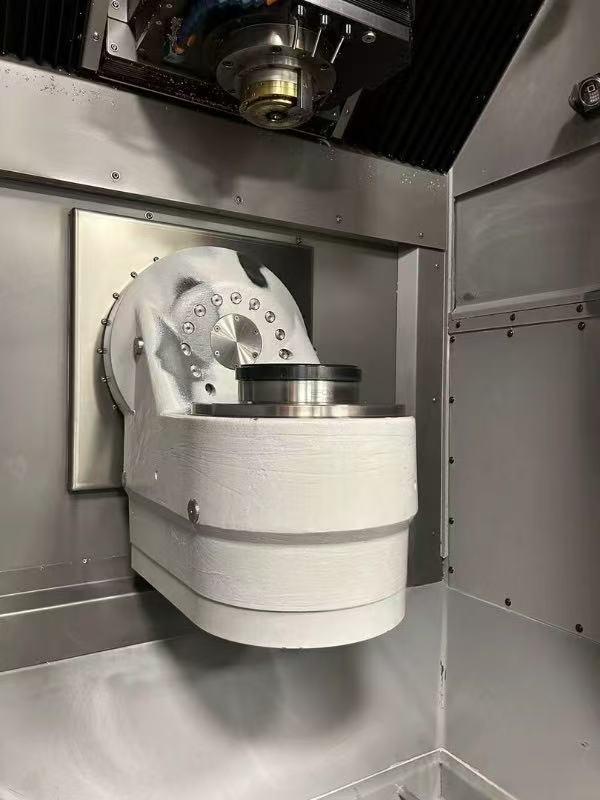

NC Rotary/Tilting Table:
Rotation range: -110° to +110°
Rotational speed: 600°/s
Maximum rotation speed: 200 rpm
Rotary axis clamping torque: 300 Nm
