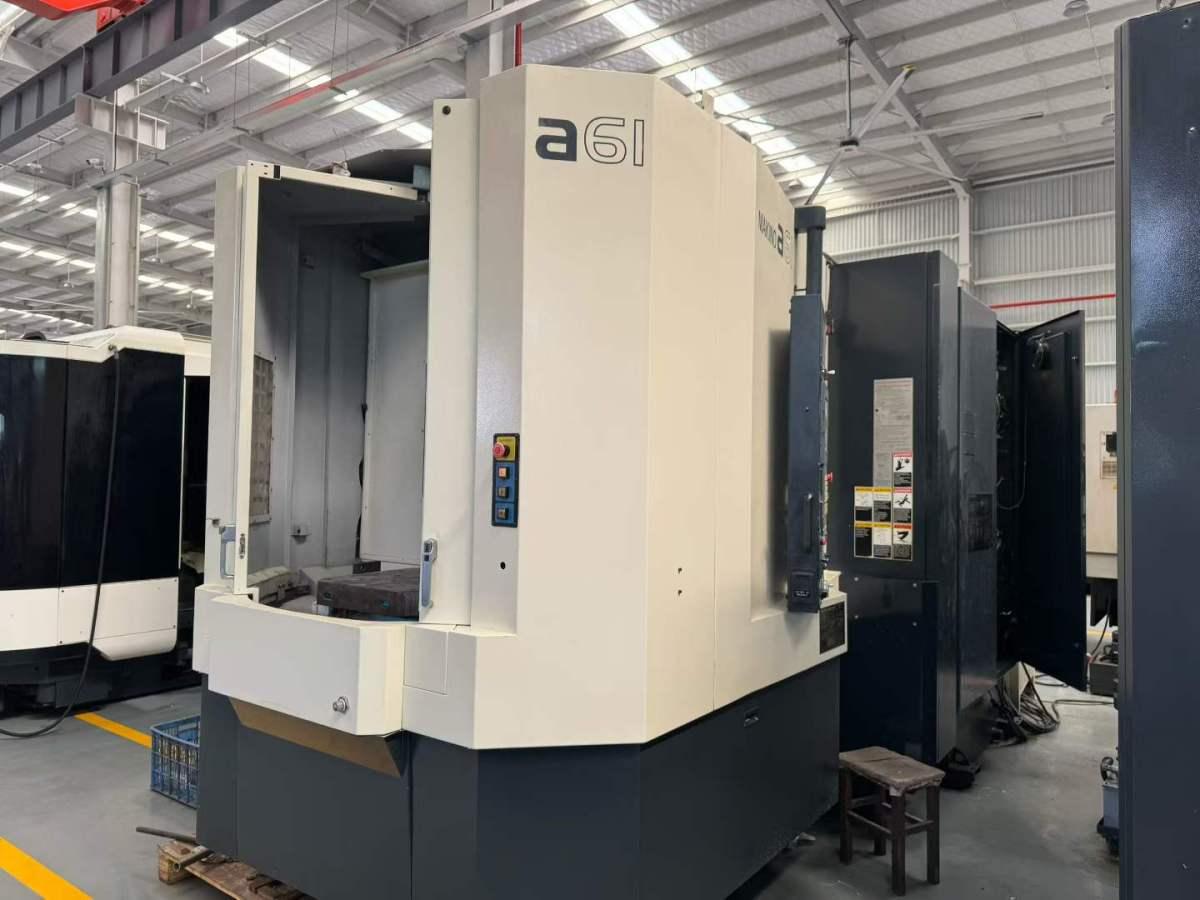

Makino A61 Horizontal Machining centre

Worktable size: 500 × 500 mm
Three-axis travel (X/Y/Z): 730 × 650 × 800 mm
B-axis: 0.0001° indexing (10,000 divisions)
Configuration: Laser tool setter
Spindle type: Electric spindle
Spindle speed: 14,000 rpm
Spindle taper: BT40
Through-spindle coolant (TSC)
Rapid traverse rate: 60,000 mm/min
Cutting feed rate: 50,000 mm/min
Maximum workpiece size: Φ800 × 1,000 mm
Worktable load capacity: 500 kg (700 kg optional)
Tool magazine capacity: 132
