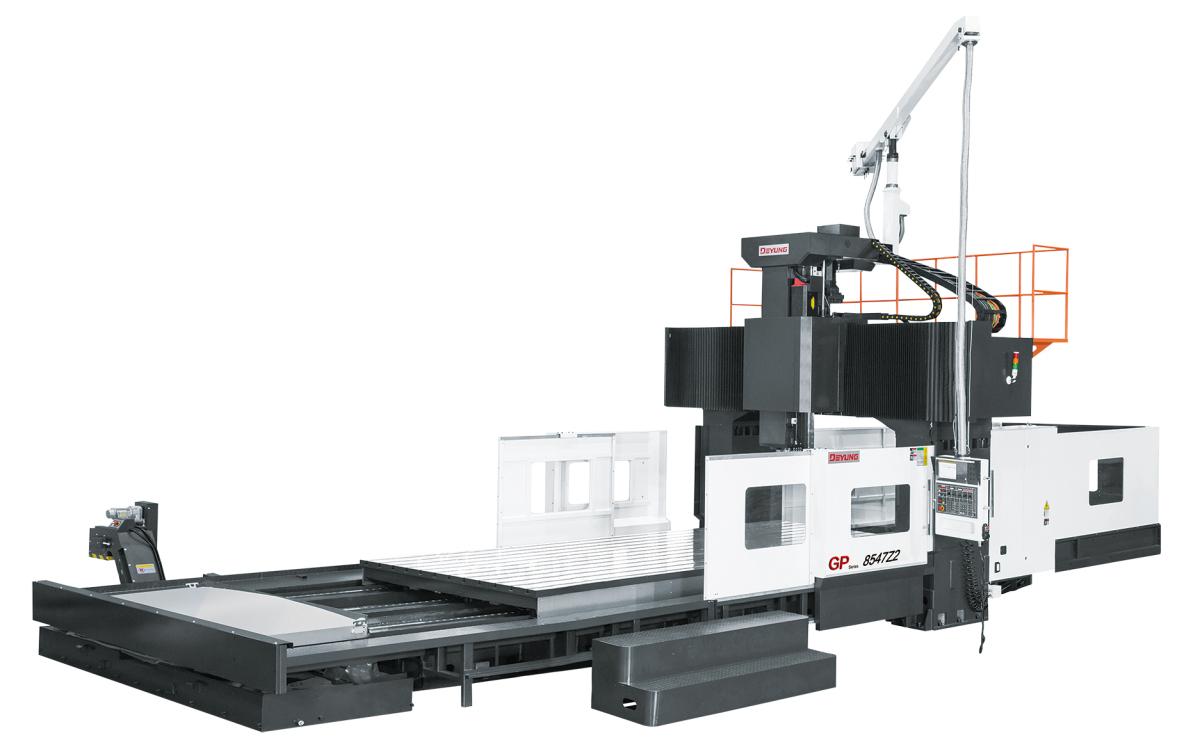

Deyung GP-8547Z2 Gantry machining centre

CNC System: FANUC 0i-MF Plus
Three-axis Travel: 8560 × 4700 × 1200 mm
Distance from Spindle Nose to Worktable: 315 - 1515 mm
Distance Between Columns: 4200 mm
Worktable Size: 8020 × 3010 mm
T-slot Size: 28 × 14 × 200 mm
Maximum Worktable Load: 28,000 kg
Spindle Motor Power: 22 / 26 kW (Continuous / 30 min)
Spindle Speed: 10 - 6000 rpm
Spindle Drive Type: Two-speed automatic transmission
Spindle Taper: BT50
X-axis Motor: αiF40/3000 FANUC
Y-axis Motor: αiF30/4000 FANUC
Z-axis Motor: αiF30B/4000 FANUC
X-axis Rapid Traverse: 5 / 8 m/min
Y-axis Rapid Traverse: 12 m/min
Z-axis Rapid Traverse: 12 m/min
Cutting Feed Rate: 1 - 6000 mm/min
Tool Magazine Configuration
Tool Magazine Capacity: 24 tools
Tool Holder Specification: BT50
Maximum Tool Diameter: Ø110 mm (Adjacent Tool) / Ø200 mm (Without Adjacent Tools)
Maximum Tool Length: 400 mm
Maximum Tool Weight: 15 kg
Accuracy (VDI 3441 Standard)
Full Travel Positioning Accuracy: 0.045 mm
Full Travel Repeatability: 0.030 mm
Hydraulic & Cooling System
Coolant Tank Capacity: 950 L
Hydraulic System Capacity: 120 / 7.5 L
Minimum Air Pressure Requirement: 6 kg/cm²
Other Configurations
XY-axis Guideway Type: Heavy-duty roller linear guideways
Power Supply: AC380V ±10%, 3 Phase, 50 Hz
Total Power Requirement: 60 kW
Overall Dimensions (Approx.)
Length × Width × Height: 24000 × 10500 × 5850 mm
