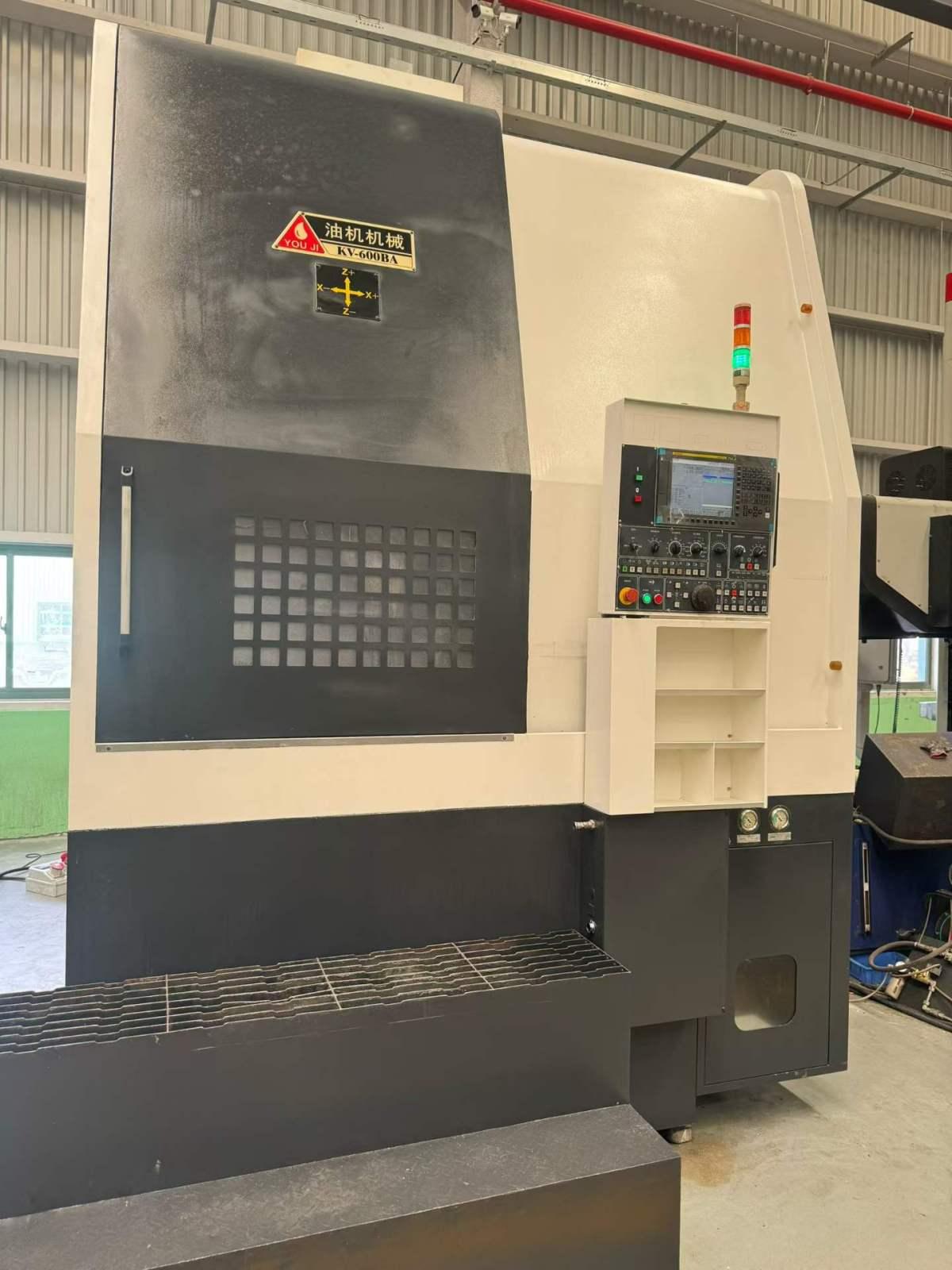

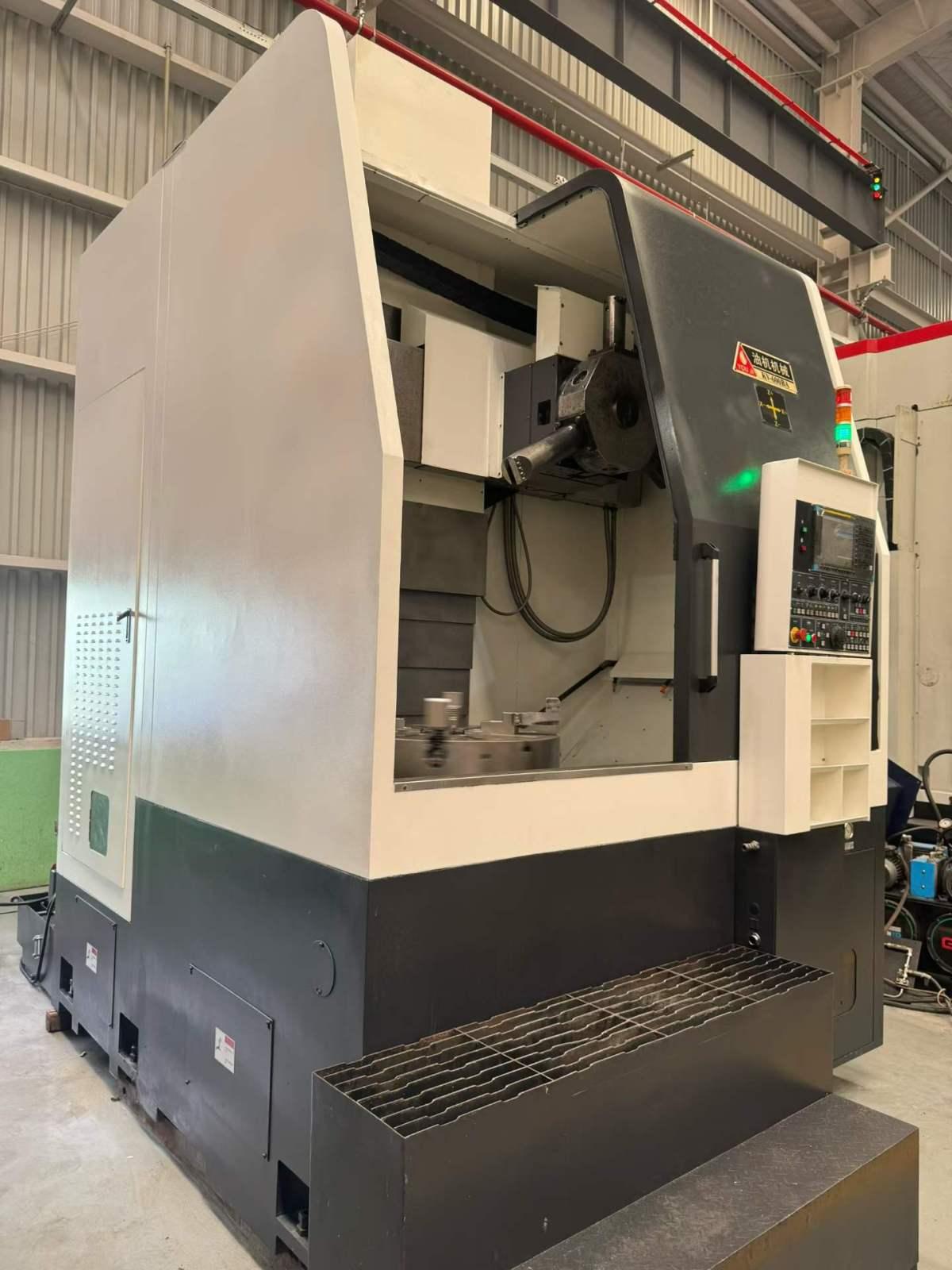

YouJi KV-600BA CNC vertical lathe

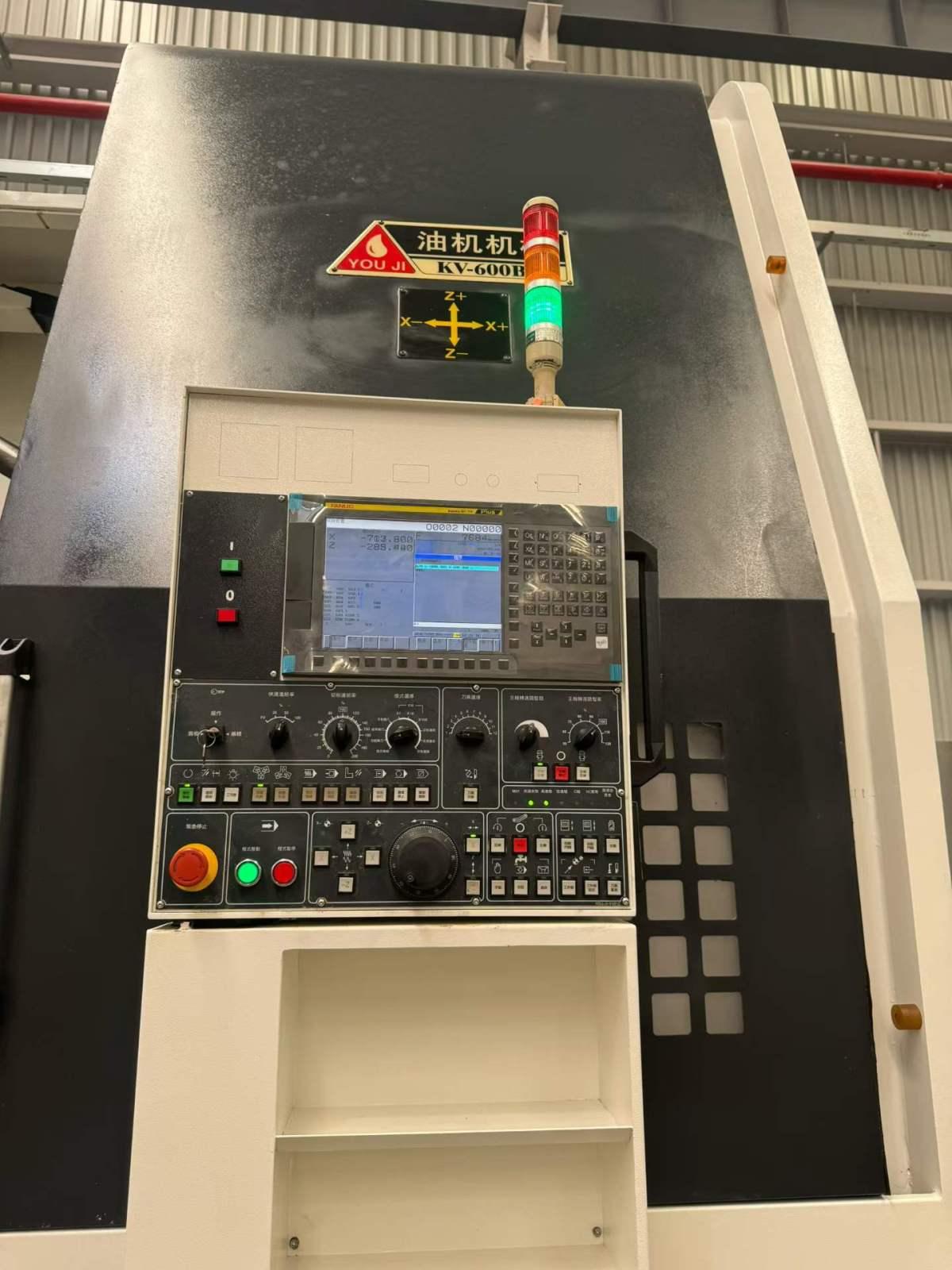

CNC System: FANUC TF

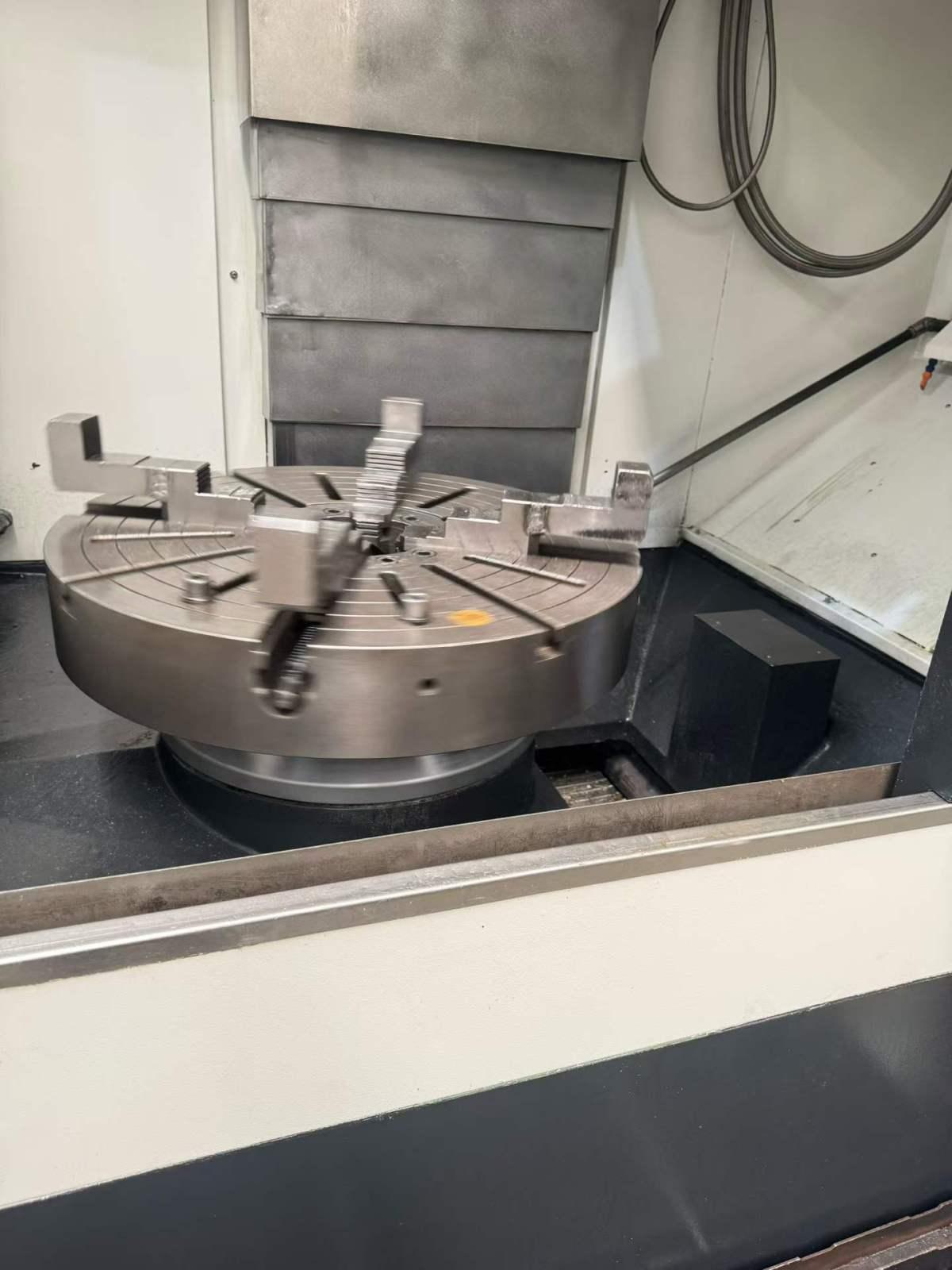

Chuck diameter: Φ800 mm, manual chuck

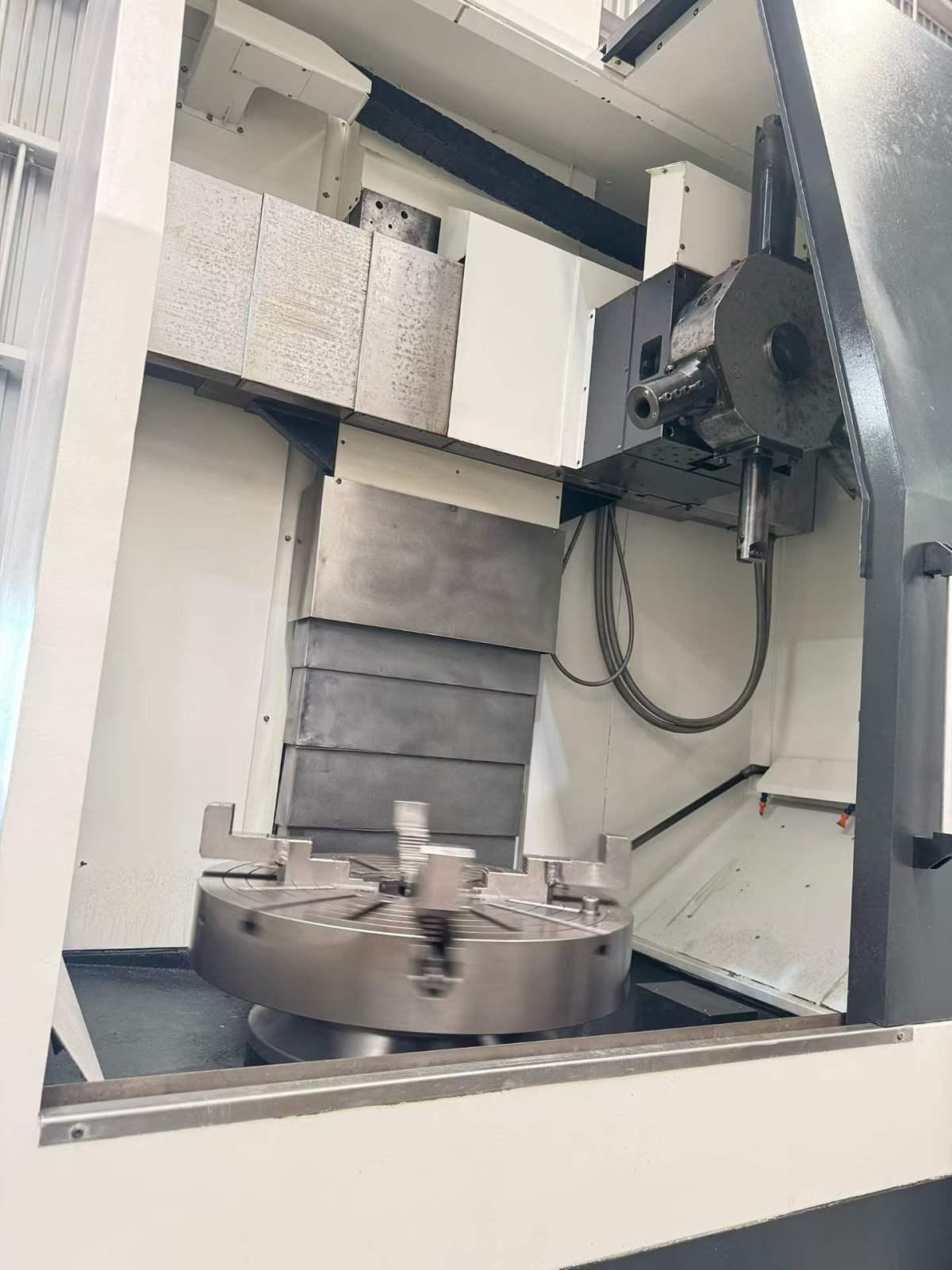

Tool turret: 6-station heavy-duty hydraulic turret
Maximum swing diameter: Φ1,100 mm
Maximum cutting diameter: Φ1,050 mm
Maximum cutting height: 750 mm
Maximum worktable load: 1,800 kg
Spindle speed range: 20–340 / 340–1,500 rpm (low/high speed)
Spindle motor power: 18.5/22 kW
Spindle nose: A2-11
X-axis travel: −55 to +650 mm
X-axis rapid traverse rate: 12 m/min
Z-axis travel: 620 mm
Z-axis rapid traverse rate: 20 m/min
X-axis servo motor power: 3 kW
Z-axis servo motor power: 4 kW
Machine net weight: approximately 17,000 kg (17 tons)
Floor space: 4,300 × 2,650 mm
Machine height: 4,300 mm
