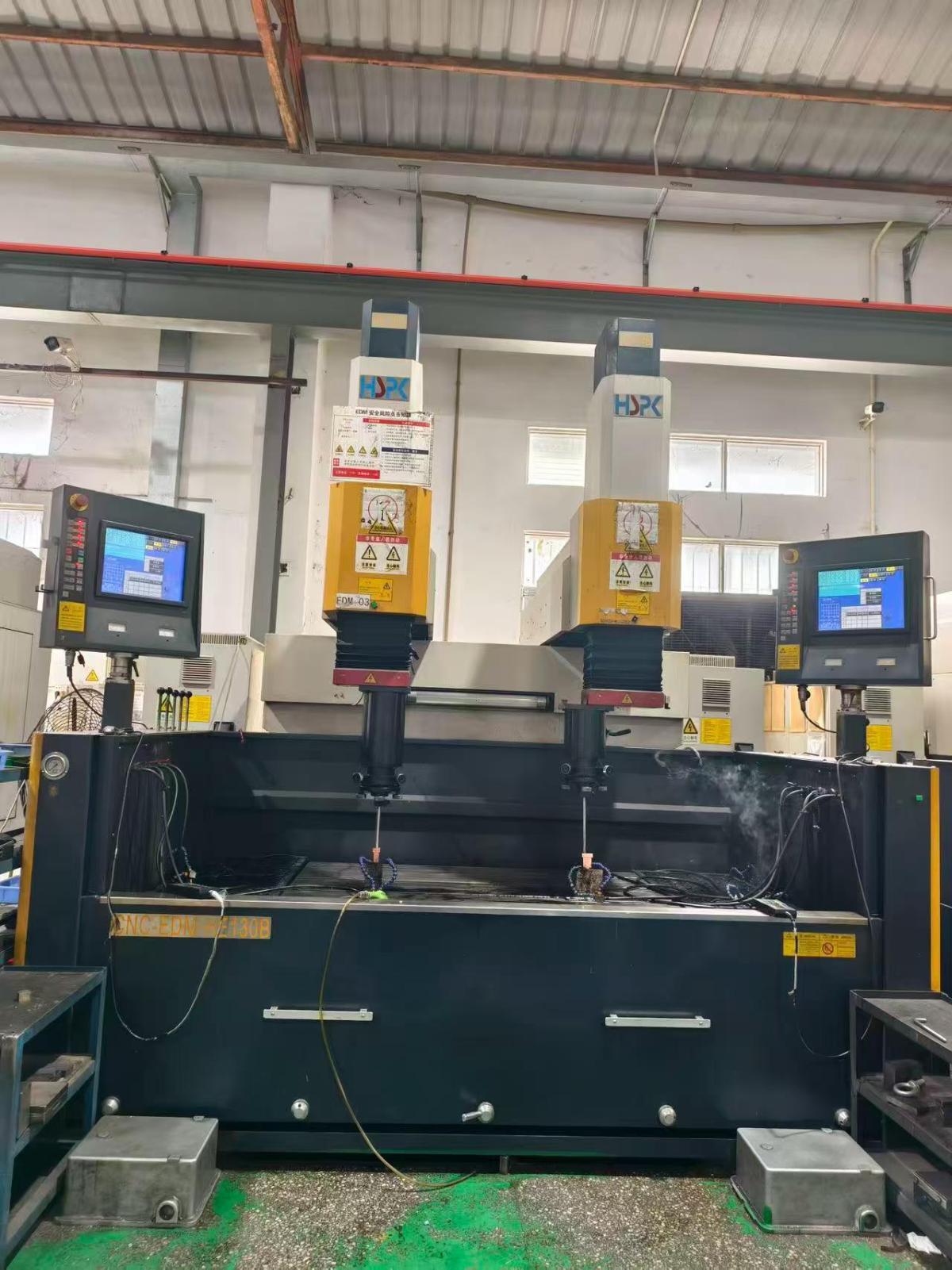

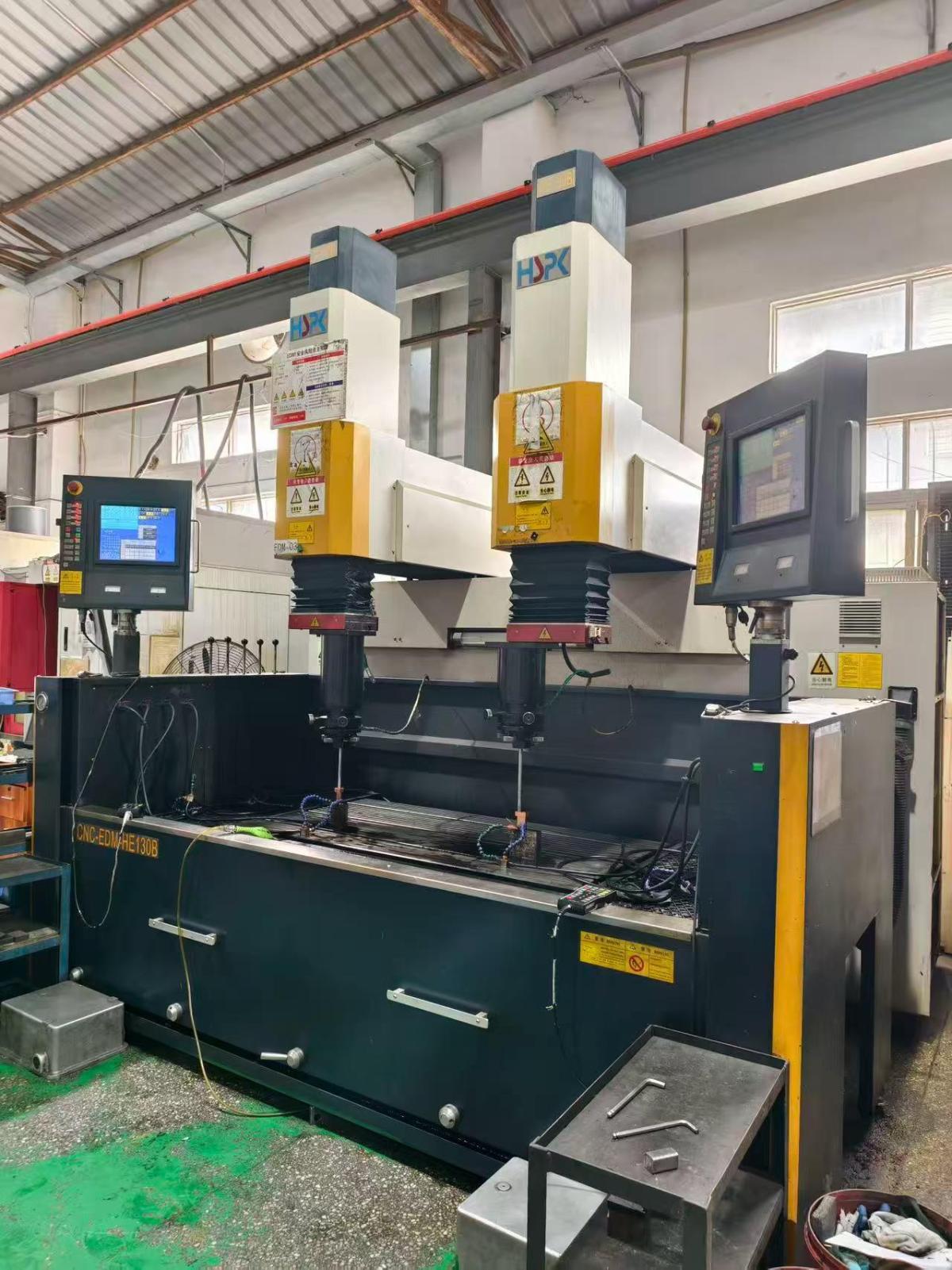

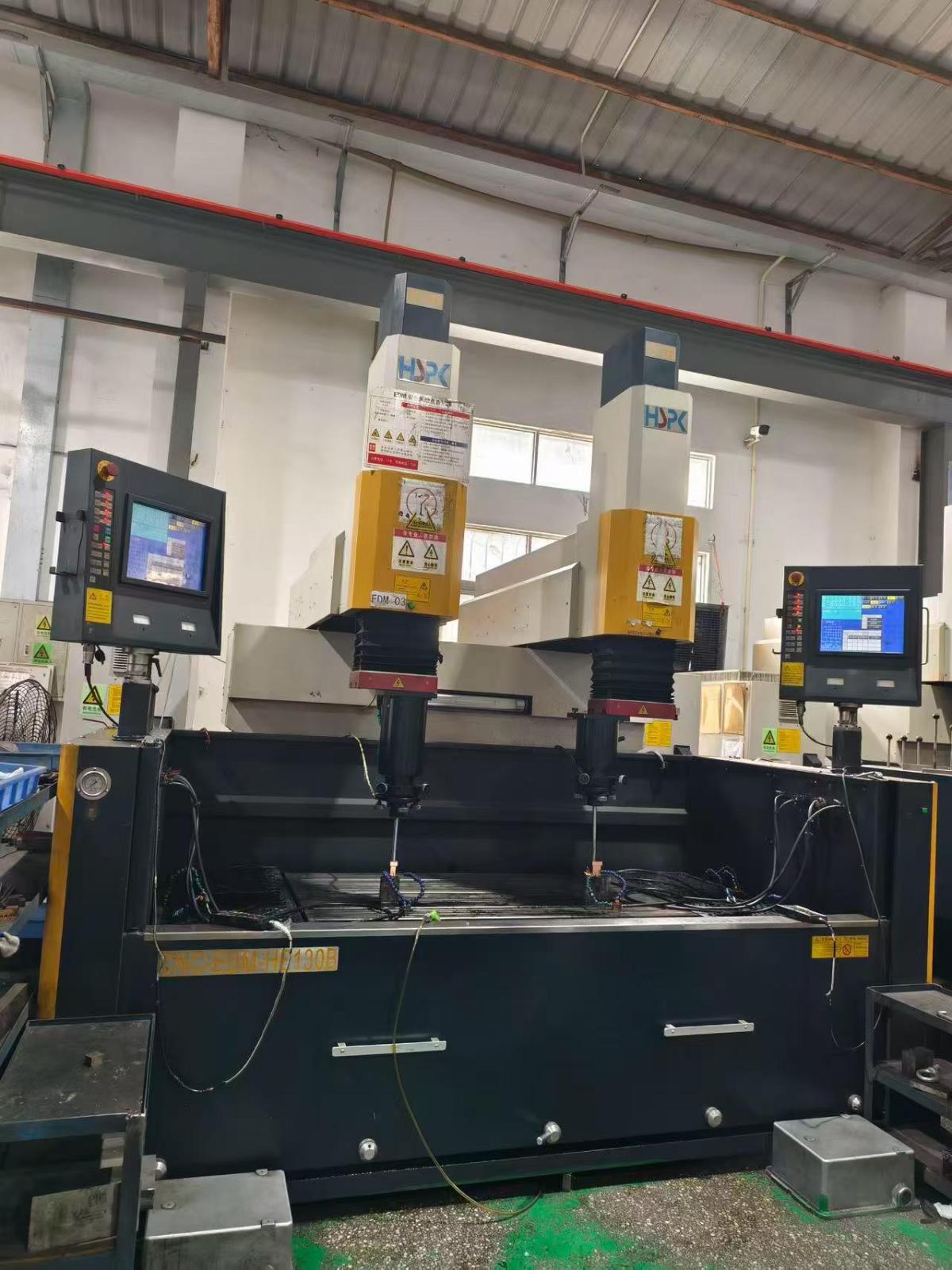

HSPK HE 130B Spark eroder

three-axis travel: 1300 × 600 × 500 mm
(The two heads share the X-direction travel, and each bull head has its own independent Y and Z axes.
Worktable size: 1400 × 700 mm
The inner cavity Footage of the working fluid Water tank are 2200 × 1300 × 650 mm
Distance from the electrode plate to Worktable surface: 550-1050 mm
Worktable load: 6000 kg
Maximum single-head electrode load: 100 kg
