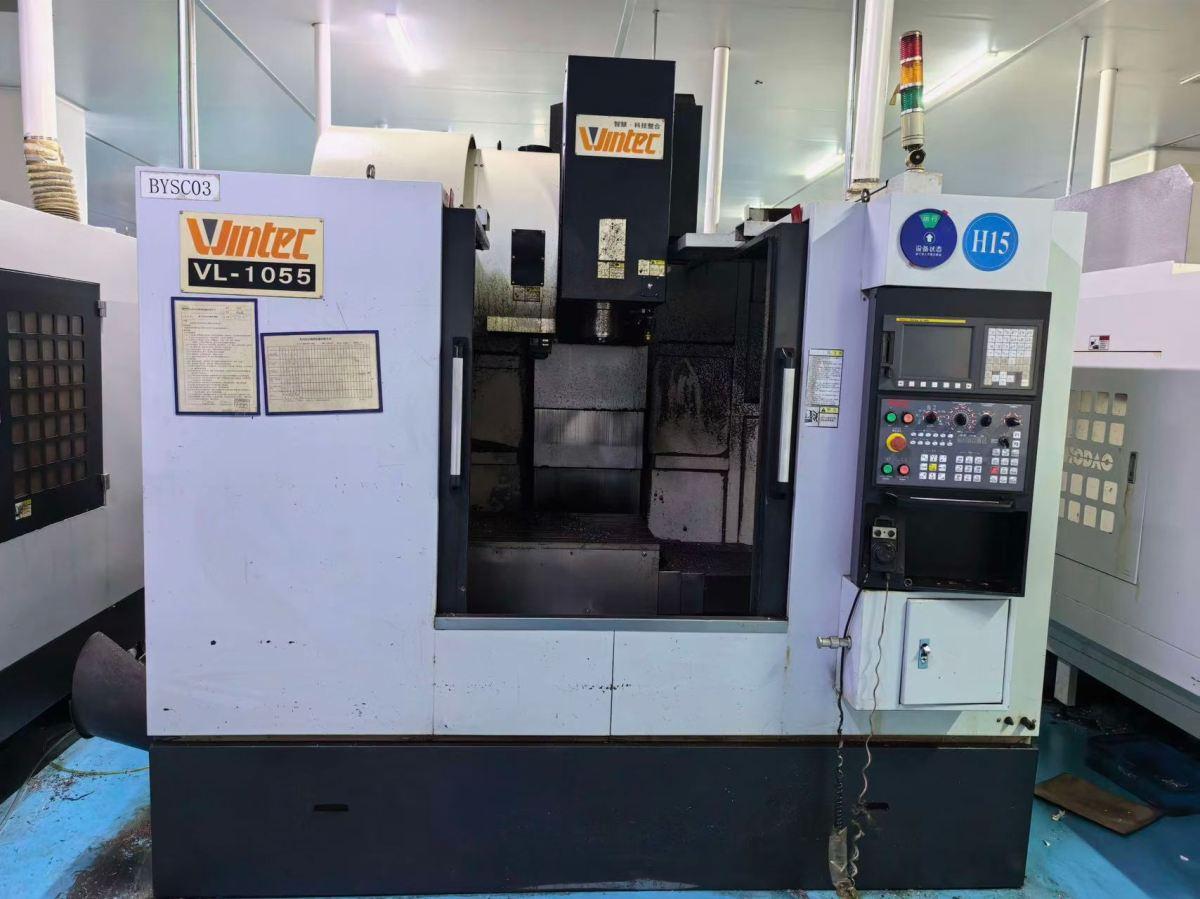

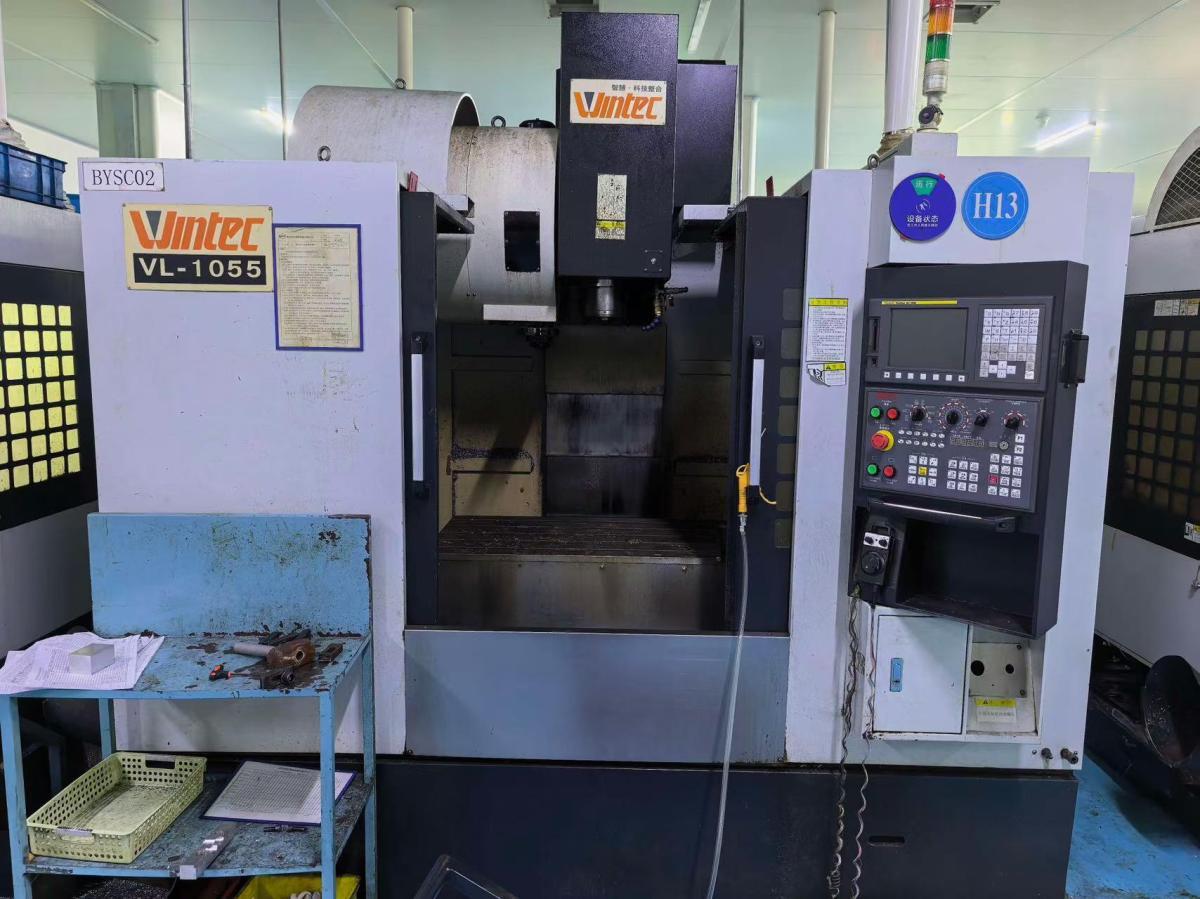

Wintec VL-1055 Vertical Machining centre

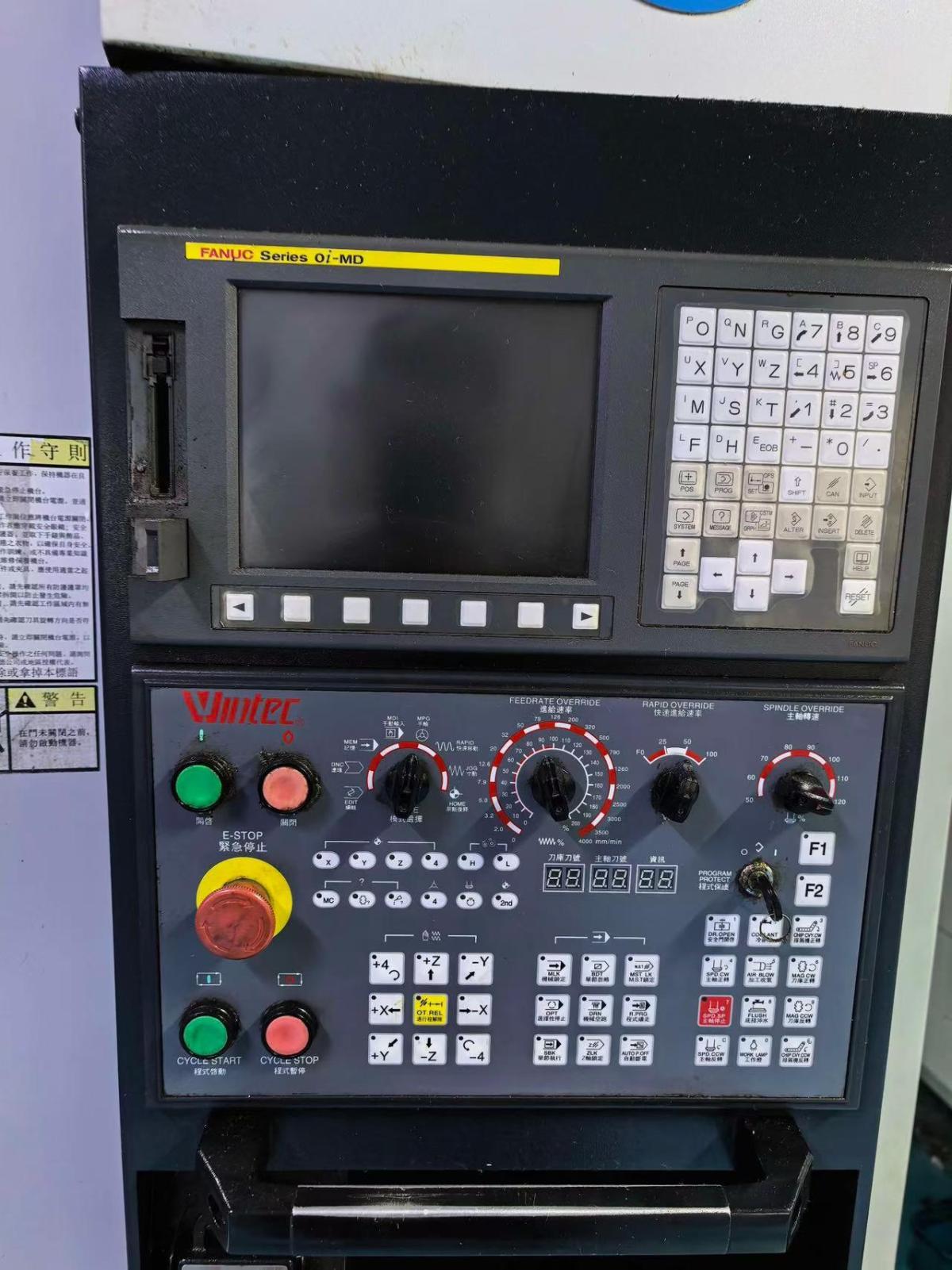

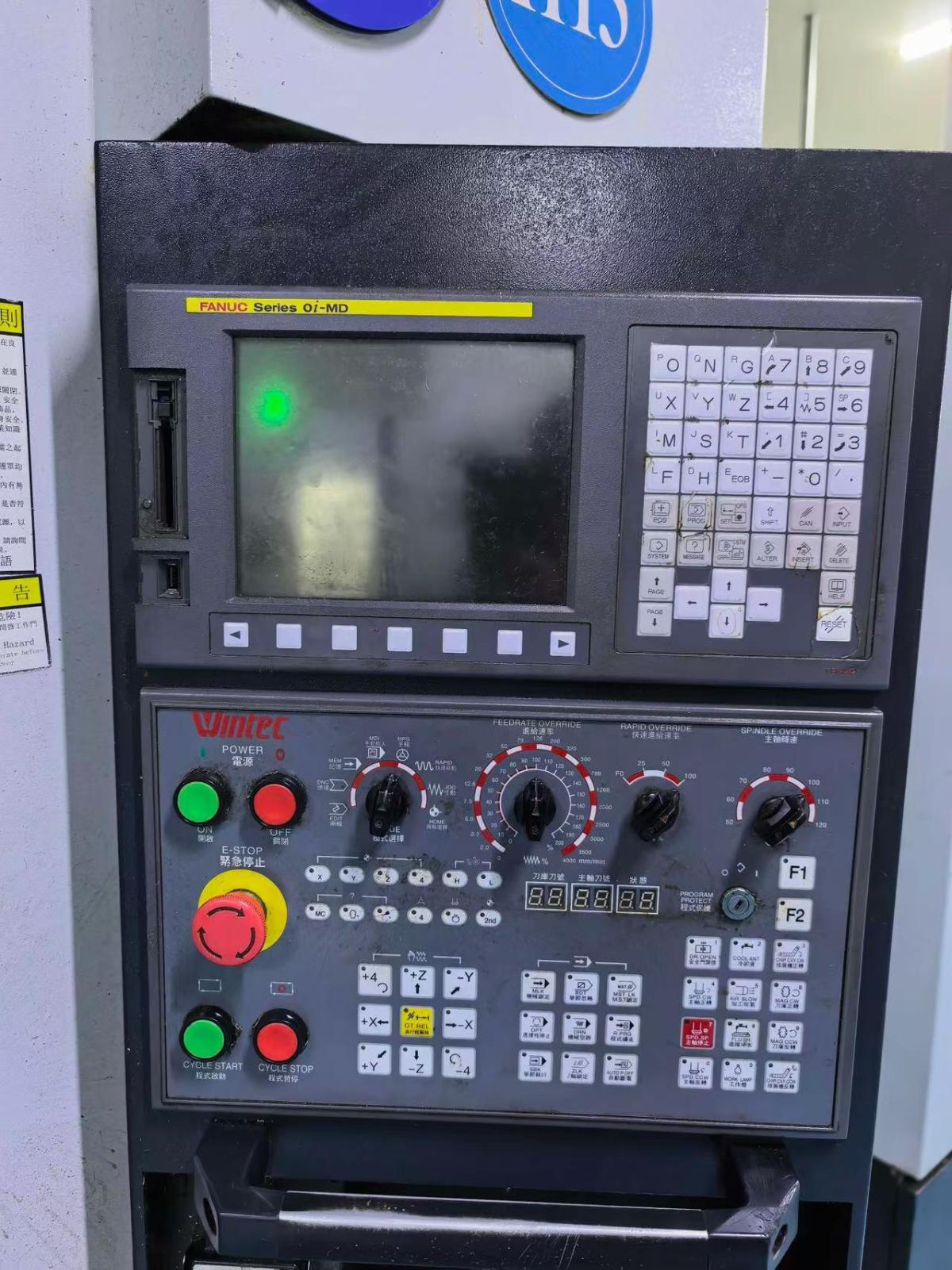

CNC System: FANUC MD
USB Interface
Three-axis travel (X/Y/Z): 1000 × 550 × 550 mm
Worktable size: 1100 × 550 mm
T-slot: 5 slots, 18 mm slot width
Maximum Worktable Load: Approx. 1200 kg
Spindle Interface: BT40
Spindle Speed: 10,000 rpm

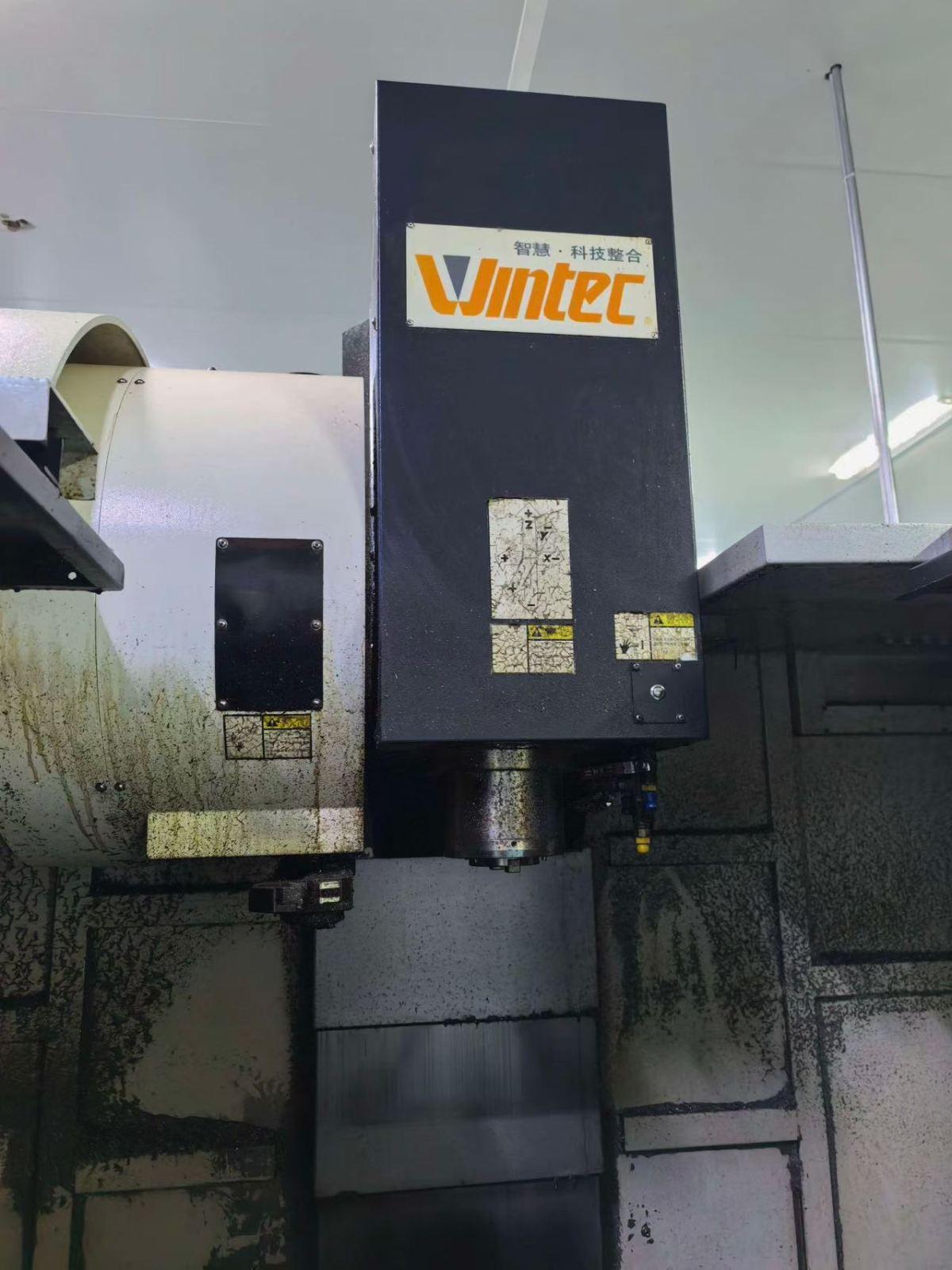

Spindle Type: Direct-drive Spindle
Spindle Power: 11–15 kW
Guideway: 45 mm Roller Linear Guideways on 3 Axes
X-axis: 6 Guideway Blocks
Tool Magazine Capacity: 24 Tools, ATC
Configuration:
Chip Conveyor
Oil Chiller
