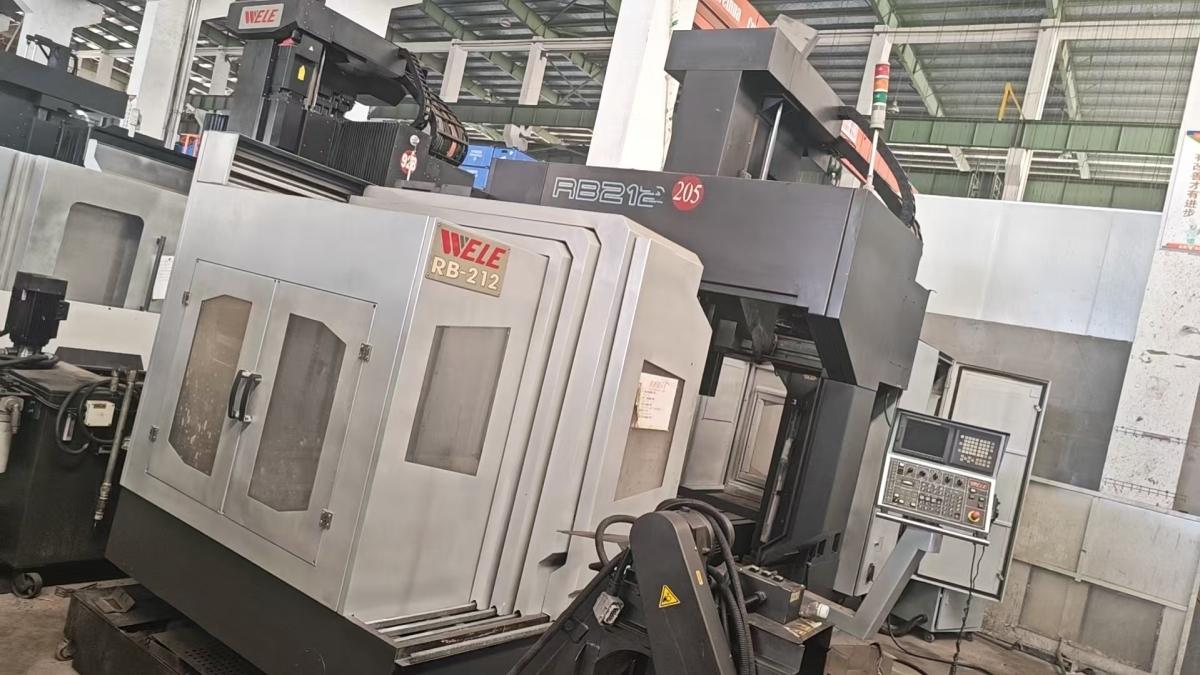

WELE RB-212 Gantry machining centre

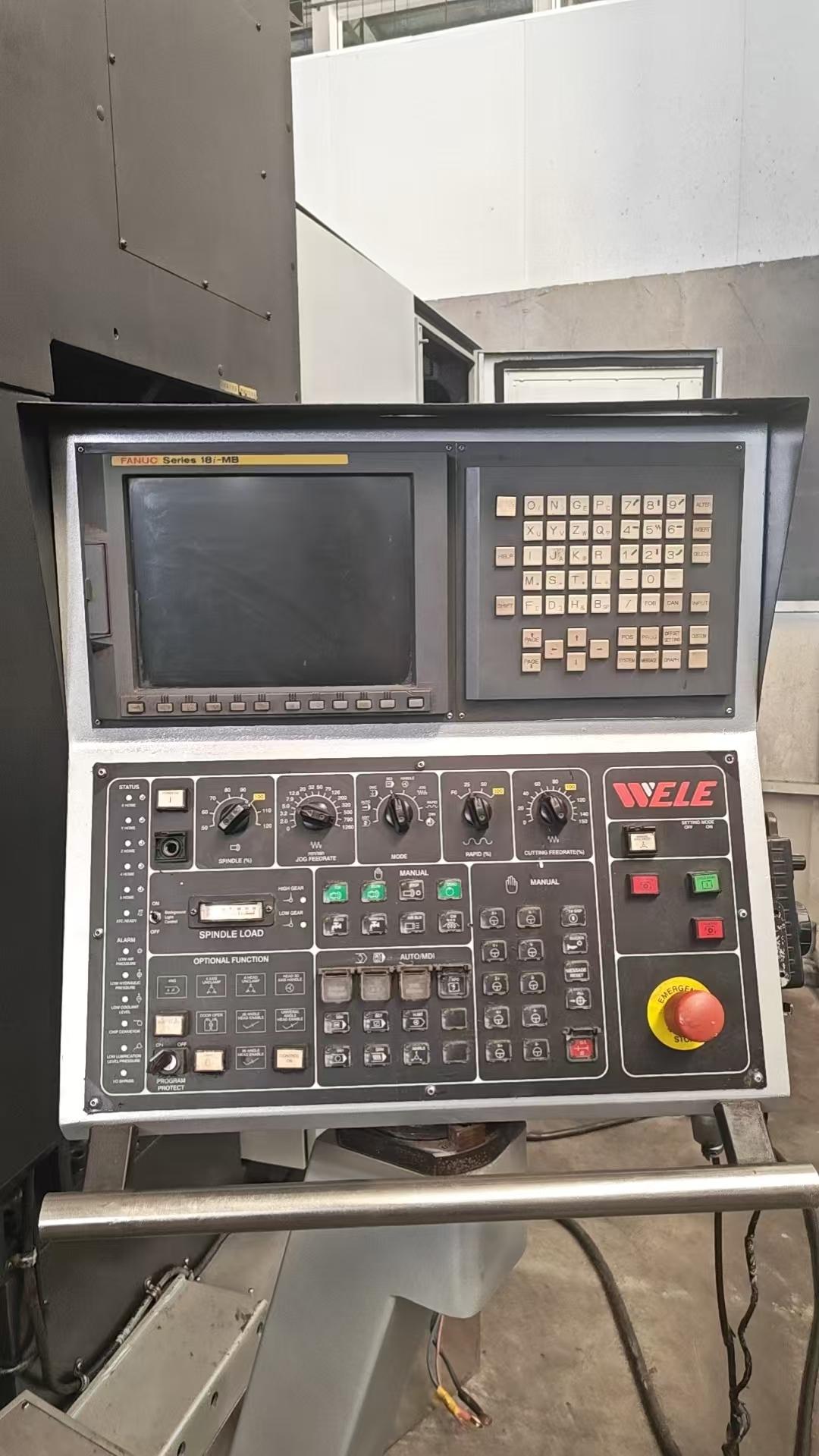

CNC System: FANUC 18i-MB
Three-axis travel (X/Y/Z): 2100 × 1200 × 800 mm
Worktable size: 2000 × 1100 mm
Gantry width: 1300 mm
Gantry height: 1140 mm
Spindle taper: BT50
Spindle type: Gear-driven spindle
Spindle speed: 6000 rpm,oil-cooler
Tools magazine capacity: 32,Chain-type
Linear scales: Y- and Z-axes
Configuration:

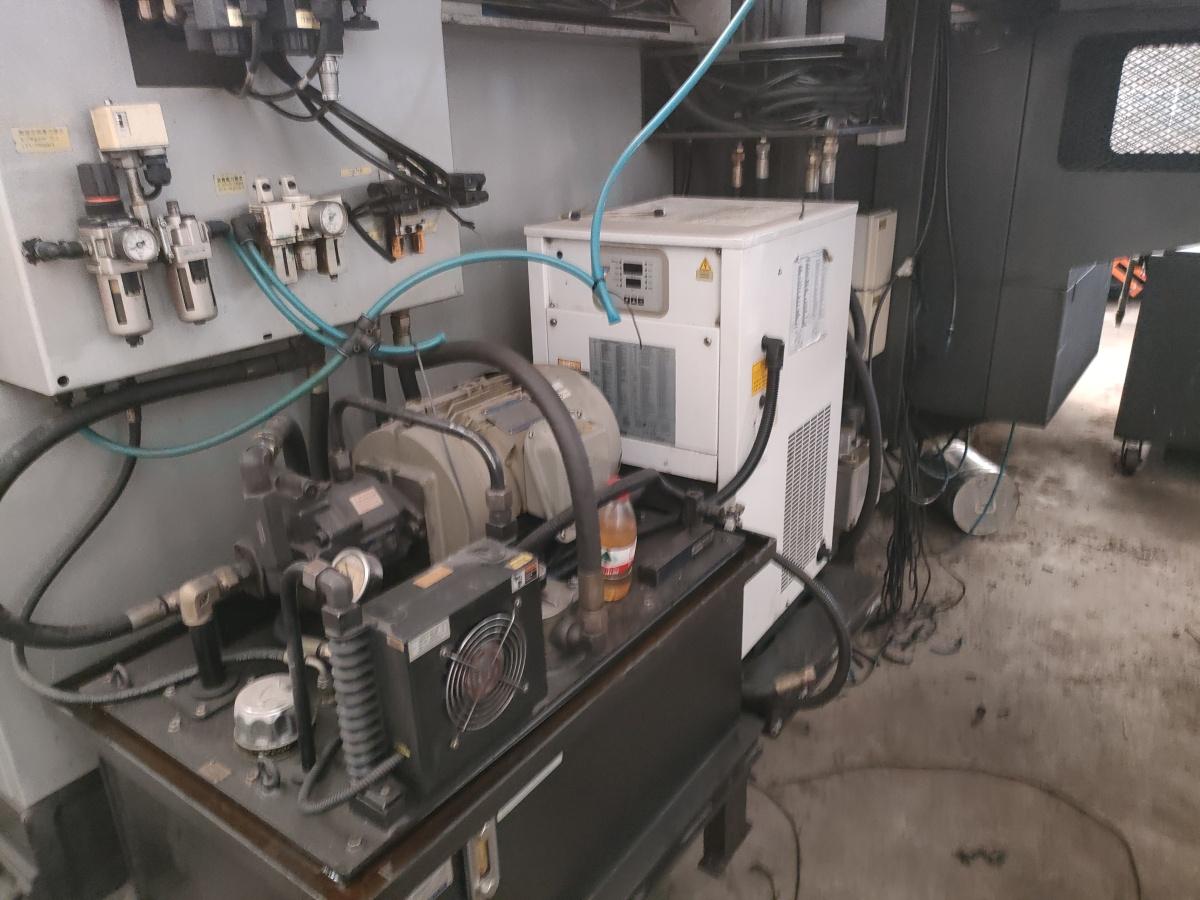

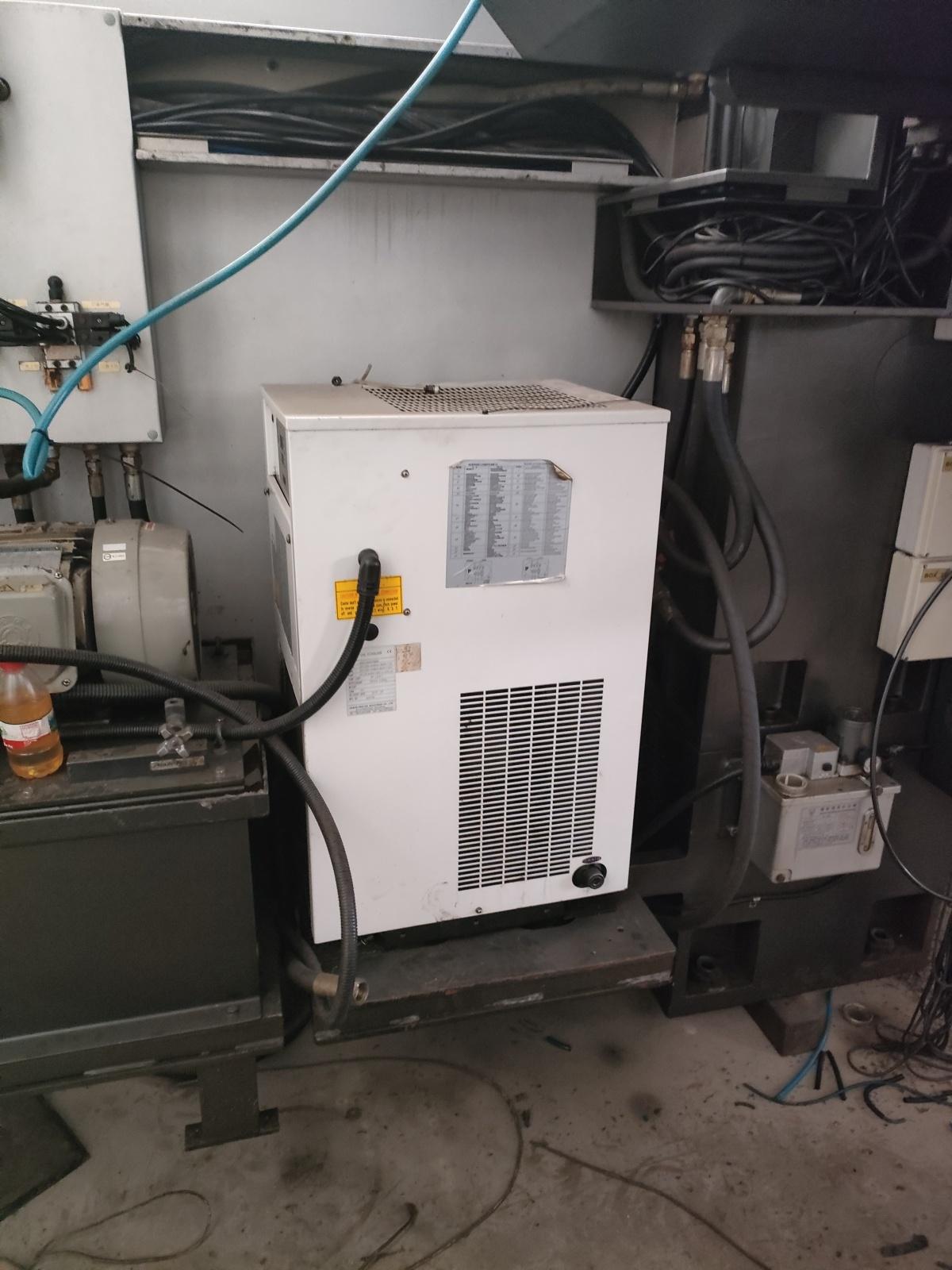

- Spindle oil chiller
- Through-spindle coolant (TSC)
- Y- and Z-axis linear scales
- Hinge-type chip conveyor
With center flushing

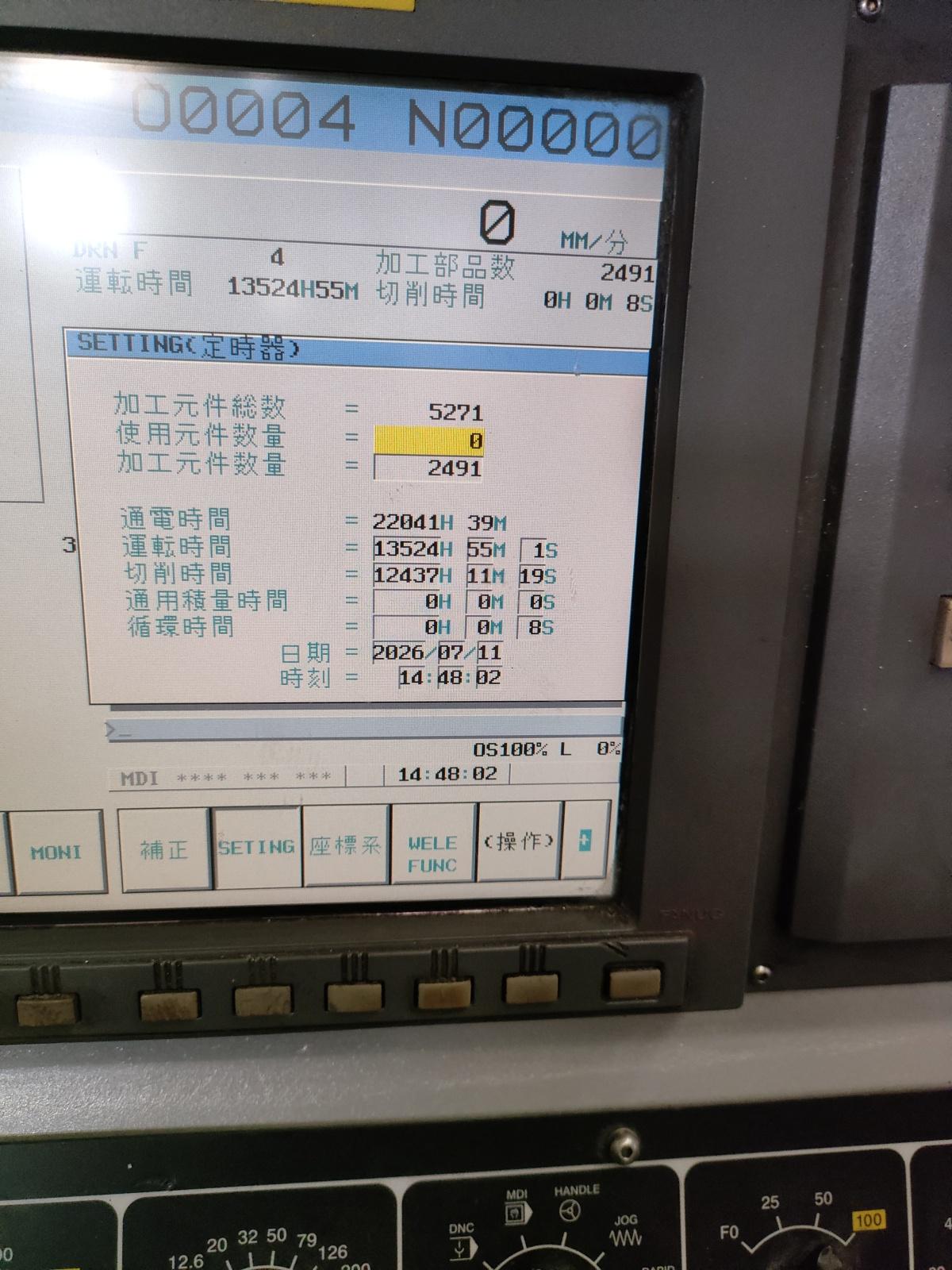

Total Machined Parts Count: 5271 pcs
Used Parts Count: 0 pcs
Machined Parts Count: 2491 pcs
Power-on Time: 22041 H 39 M
Operating Time: 13524 H 55 M 41 S
Cutting Time: 12437 H 11 M 19 S
General Accumulated Time: 0 H 0 M 0 S
Cycle Time: 0 H 0 M 0 S
