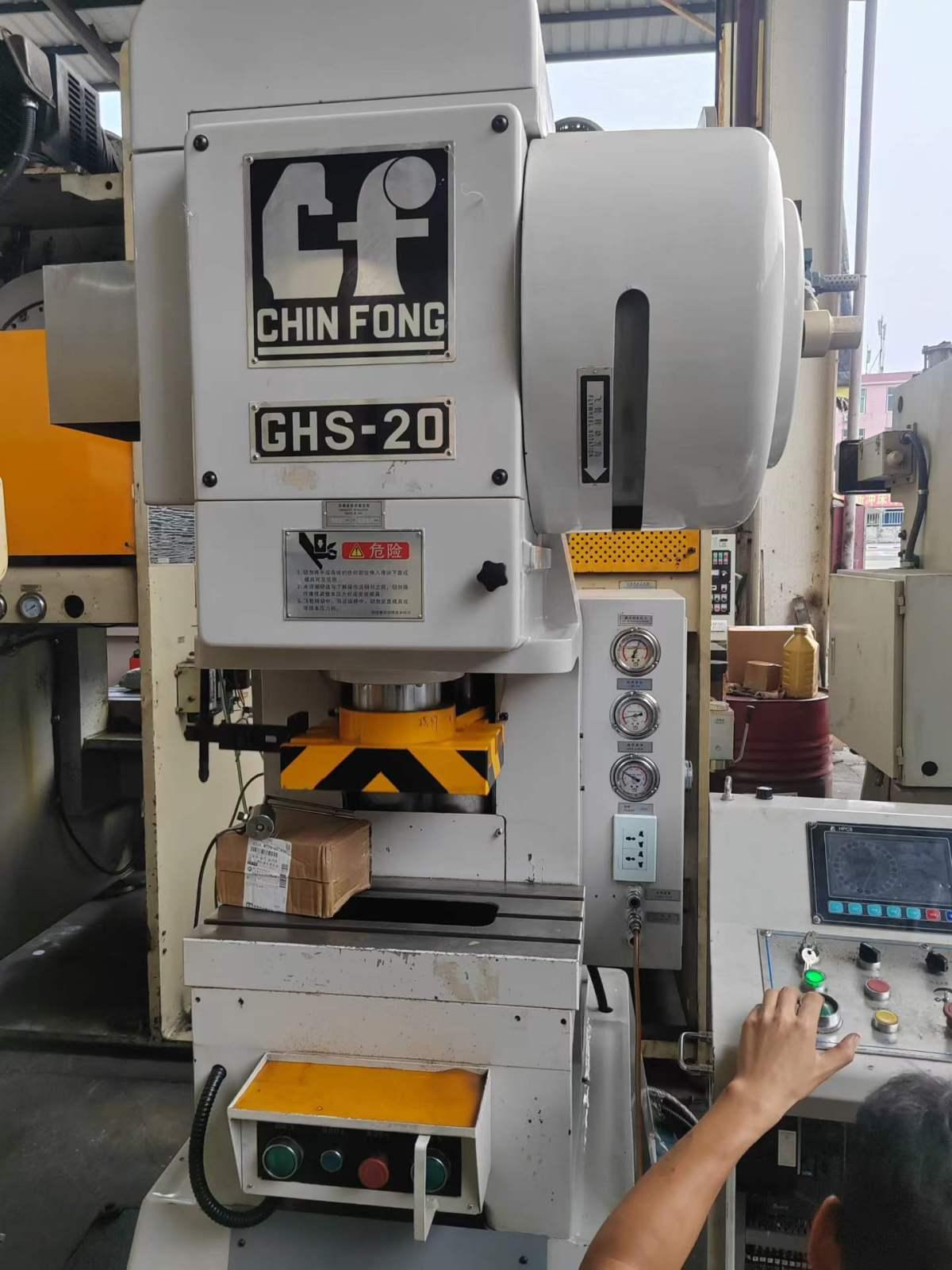

CHIN FONG GHS-20 High speed punch

Nominal pressure: 20 tons
Slider travel: 30 mm
Stamping speed range: 200 to 550 SPM
Maximum mold installation height: 305 mm
Mold height adjustment allowance: 50mm
Slider size: 300x205mm
The size of Worktable panel is 530x310x70mm
The size of the blanking hole on Worktable is 300x180mm
Throat depth of the fuselage: 220mm
Main motor power: 3.7kW
Net weight of the entire machine: 2.6 tons
