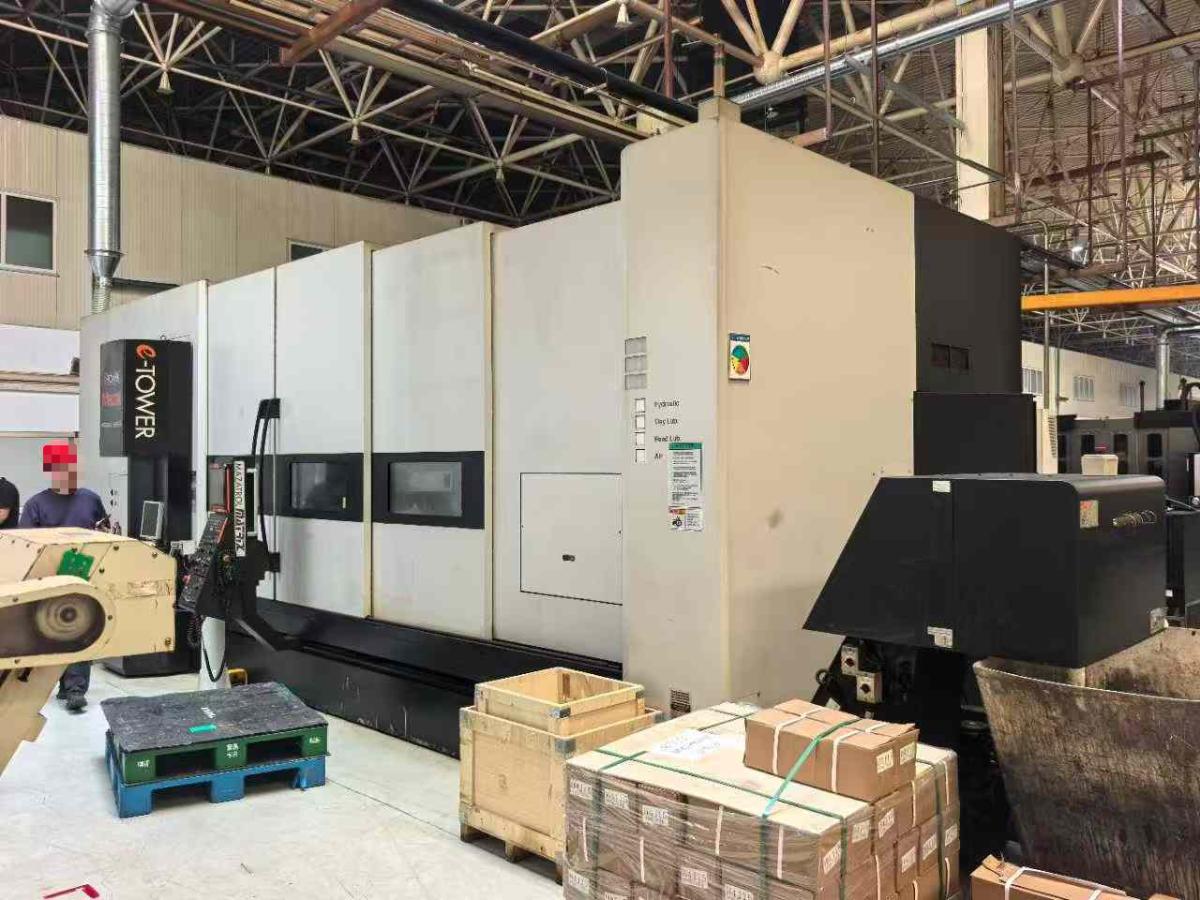

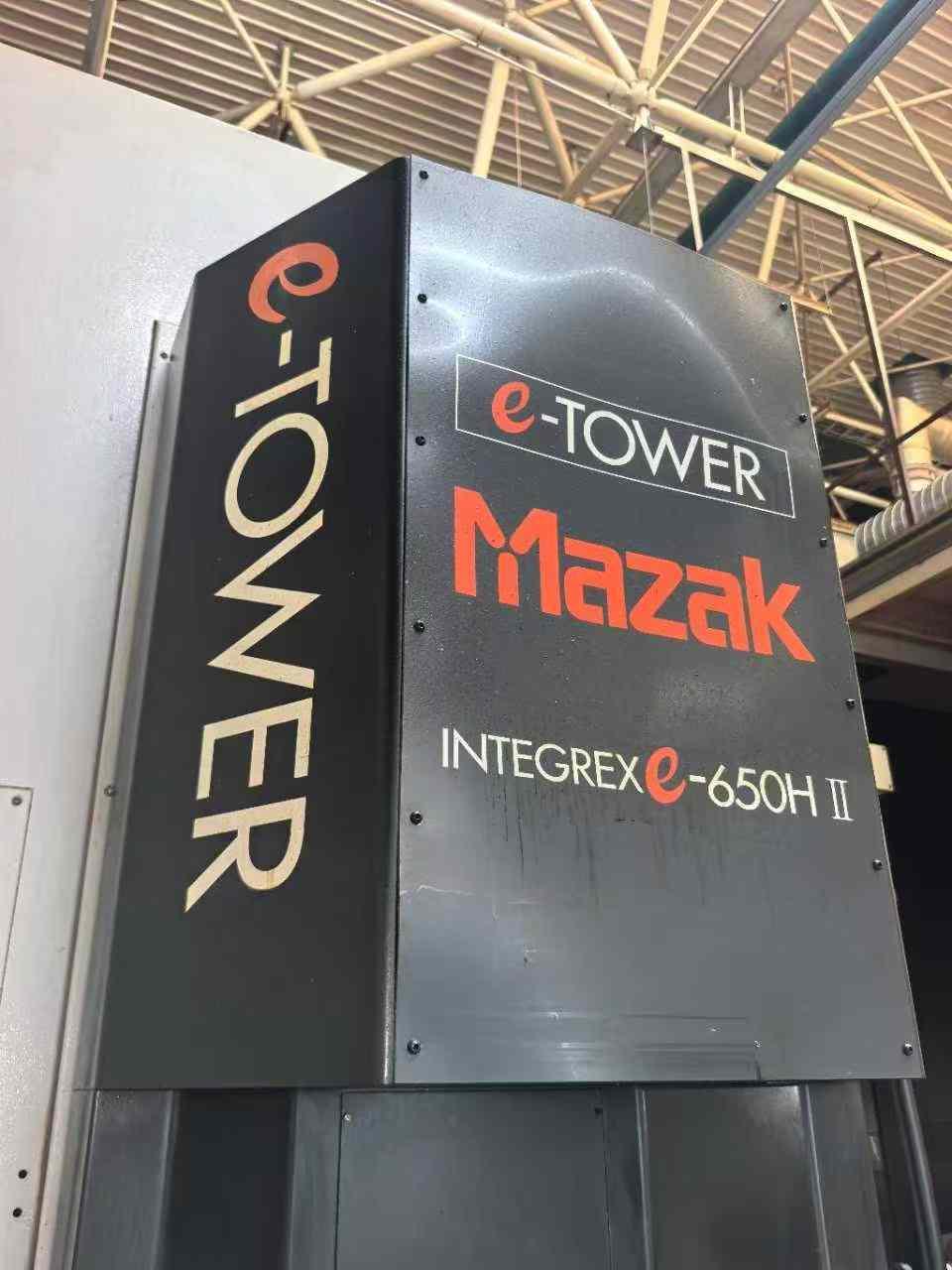

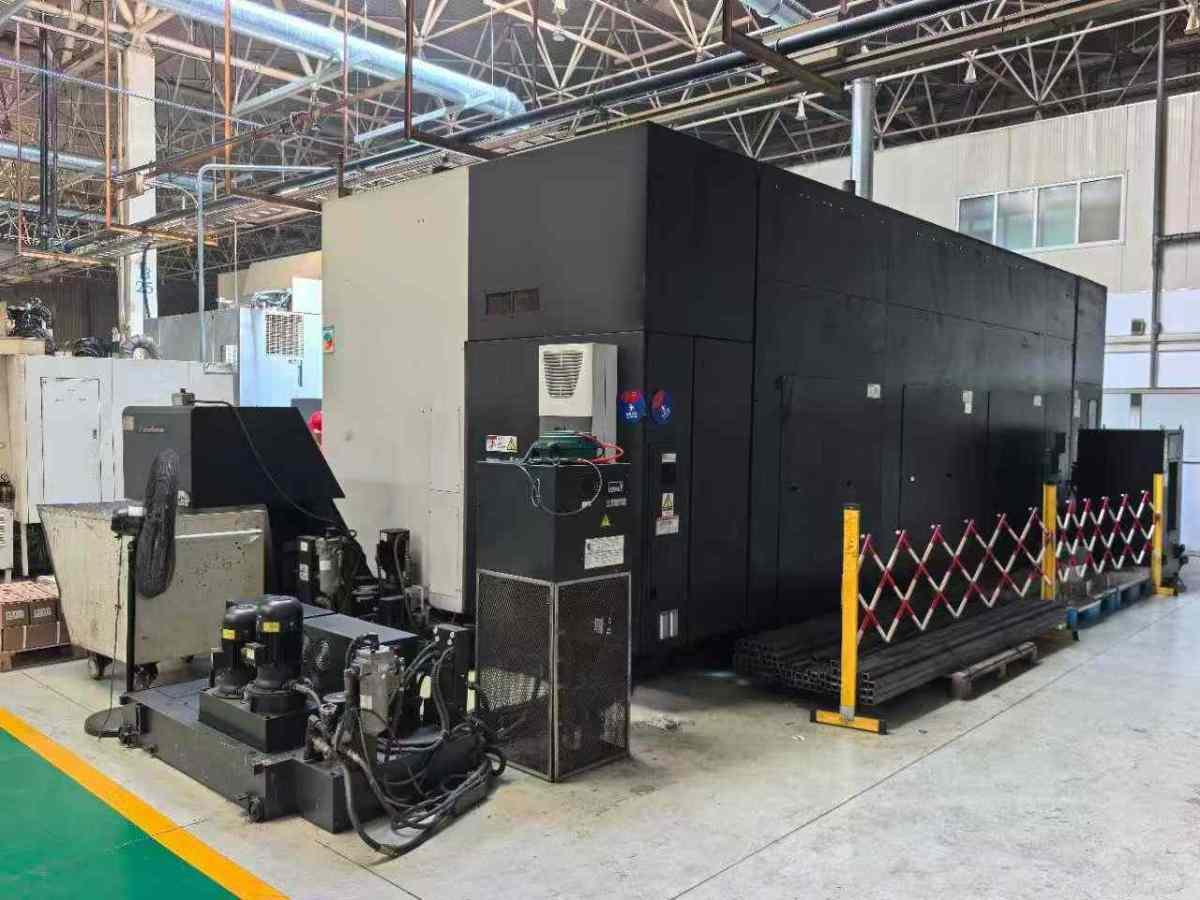

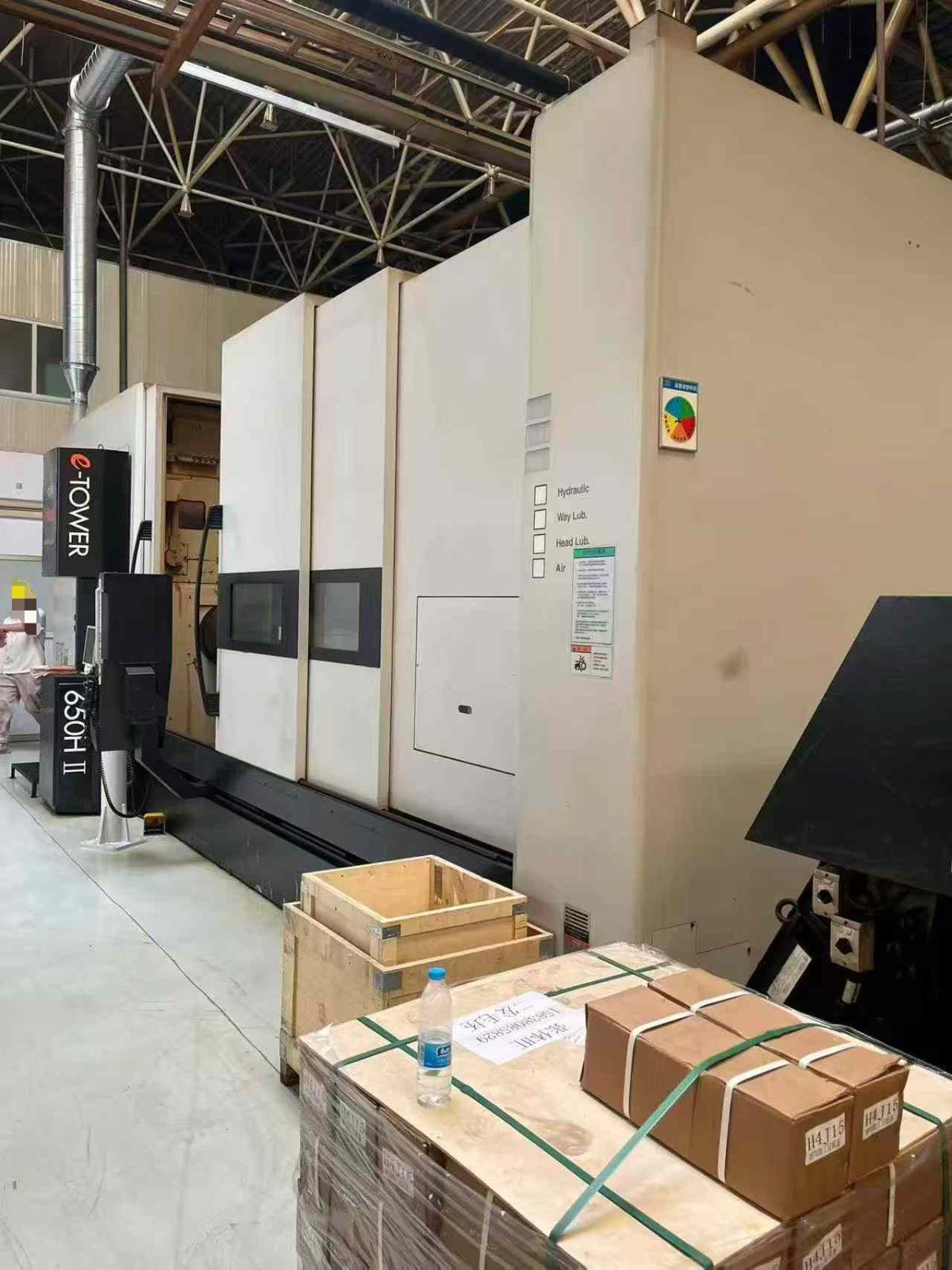

MAZAK INTEGREX e‑650H‑II Turn Mill Machining Centre

Maximum rotation diameter: φ1050 mm
Maximum turning diameter: φ920 mm
Maximum turning machining length: 3048 mm
Total Z-axis travel: 3122 mm
Bar stock through hole: φ132 mm
Maximum workpiece weight: 2000 kg
X-axis: 670 mm
Y-axis: ±300 mm
Z-axis: 3122 mm
C-axis: 360°
B-axis milling swing head: -30 ° to +120°, 0.001° indexing
Main turning spindle
Rotational speed: 10-2000 rpm
Motor power: 45 kW
Maximum torque: 6850 N·m

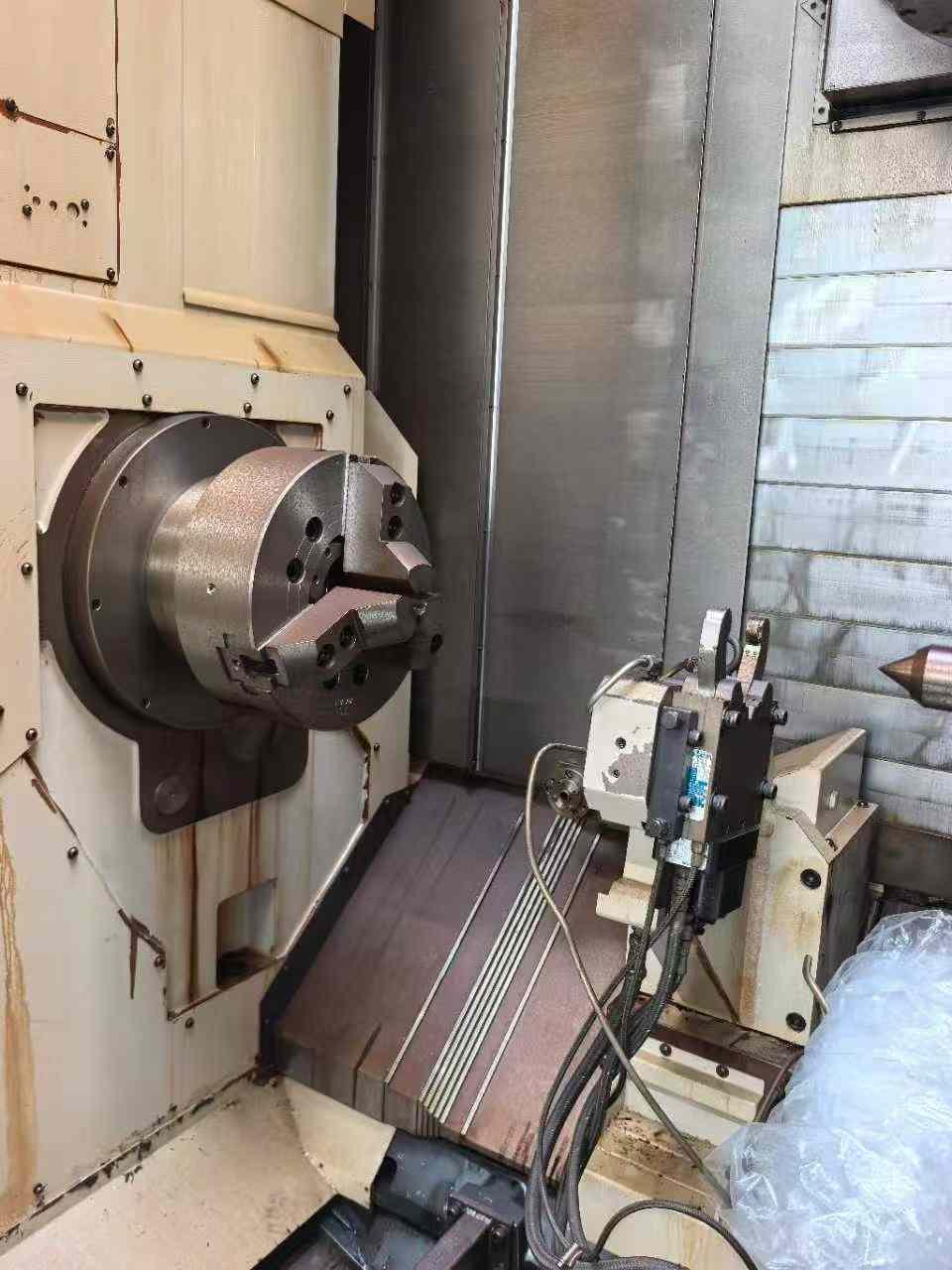

Standard configuration includes a 15-inch hydraulic chuck

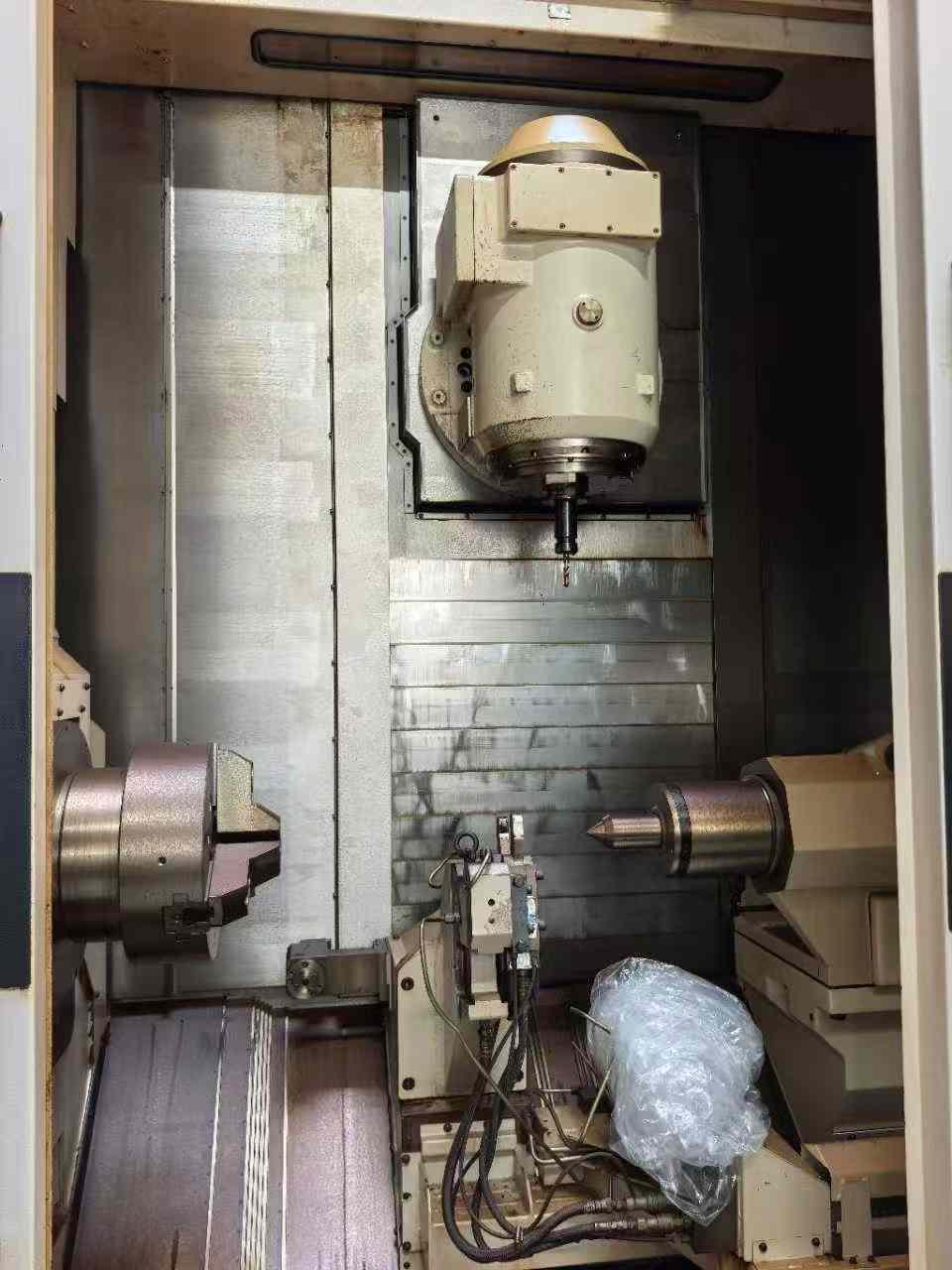

B-axis mill swing head spindle
Maximum rotational speed: 12,000 rpm
mill power: 37 kW
mill torque: 226 N·m
