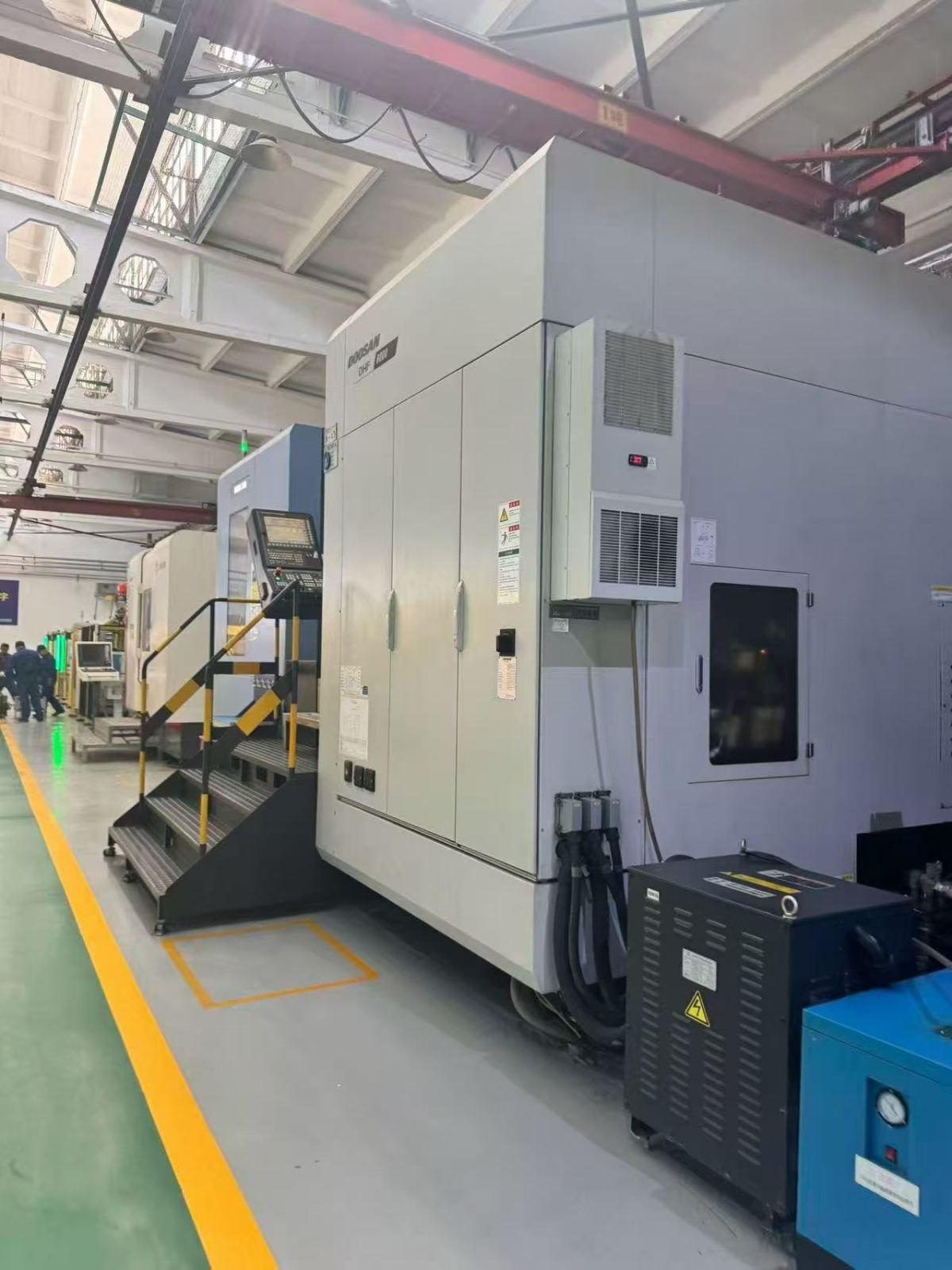

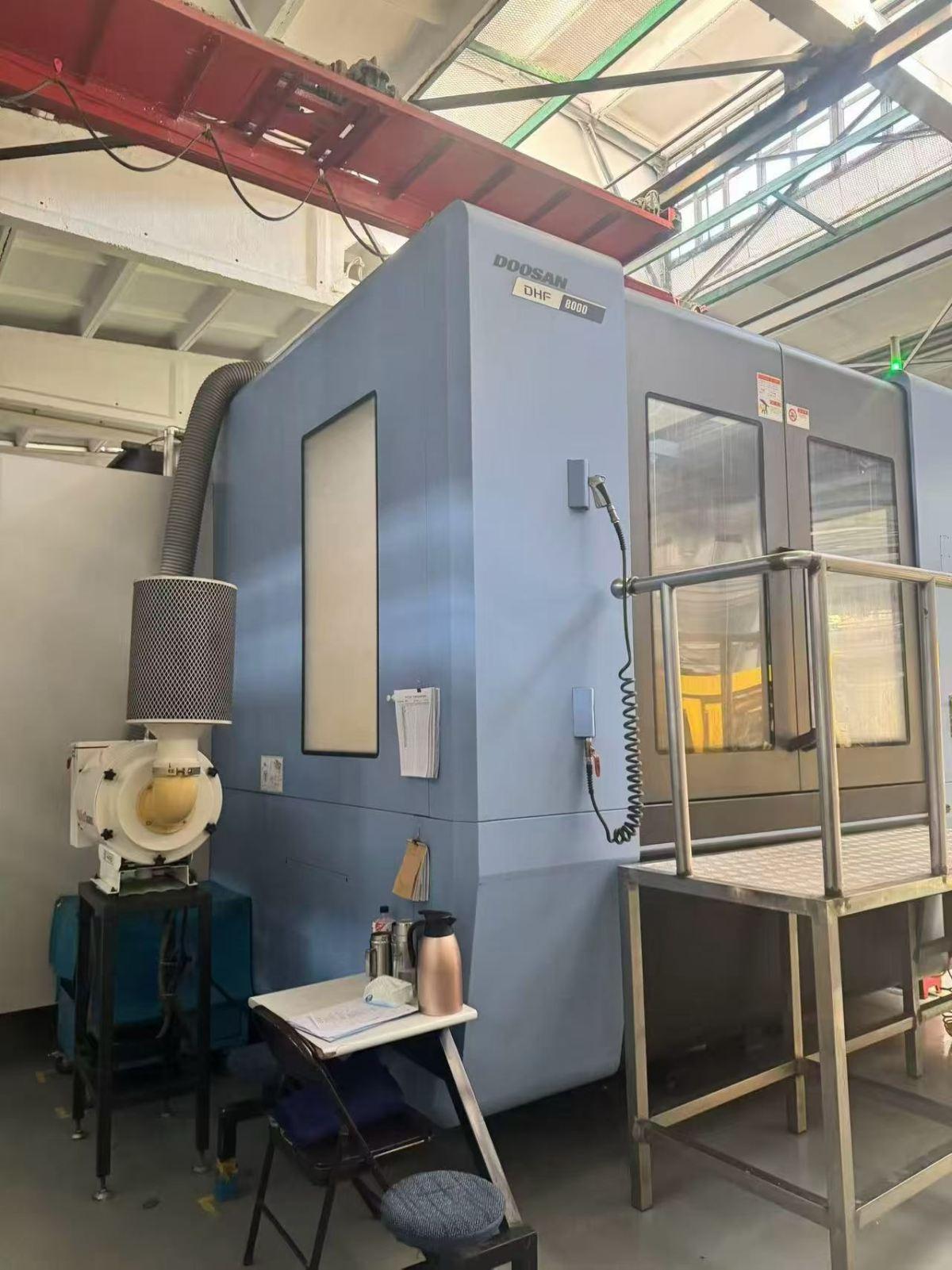

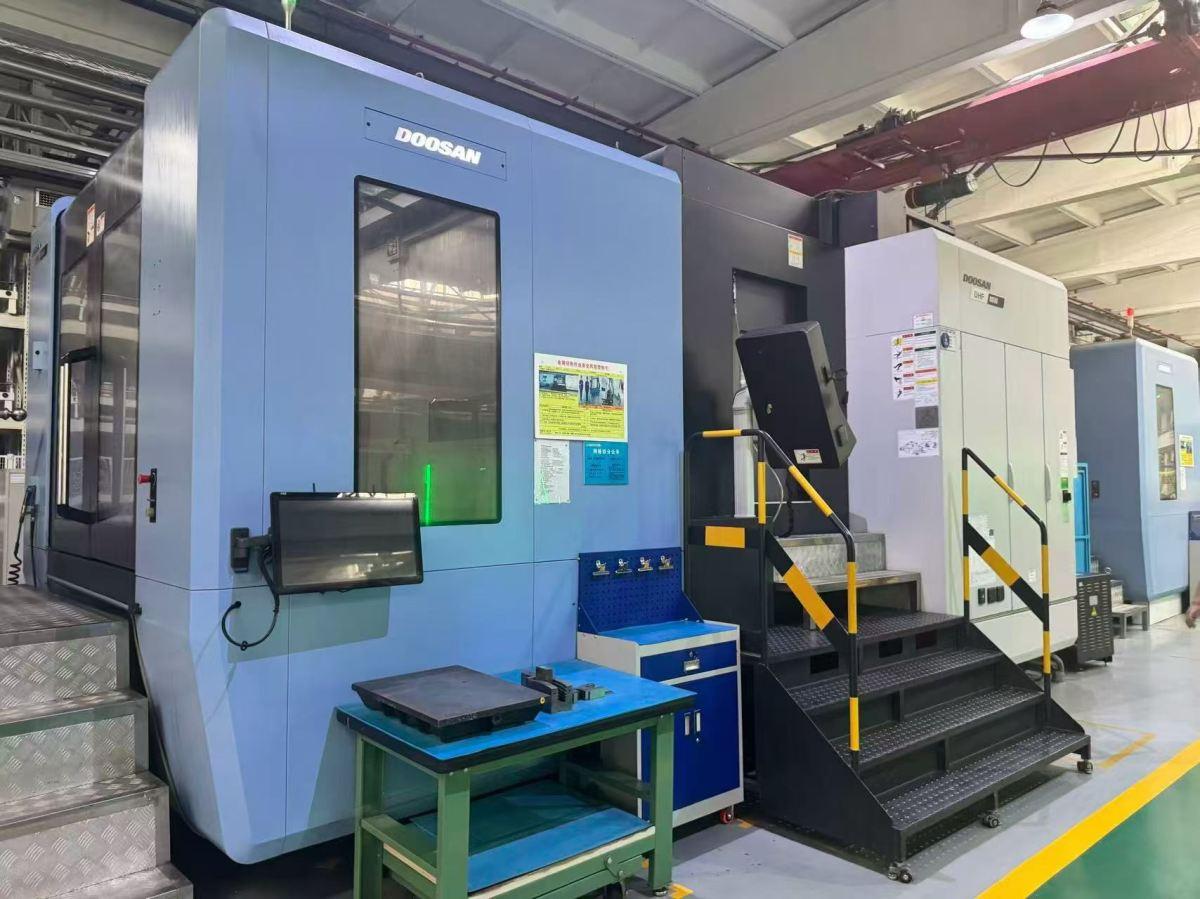

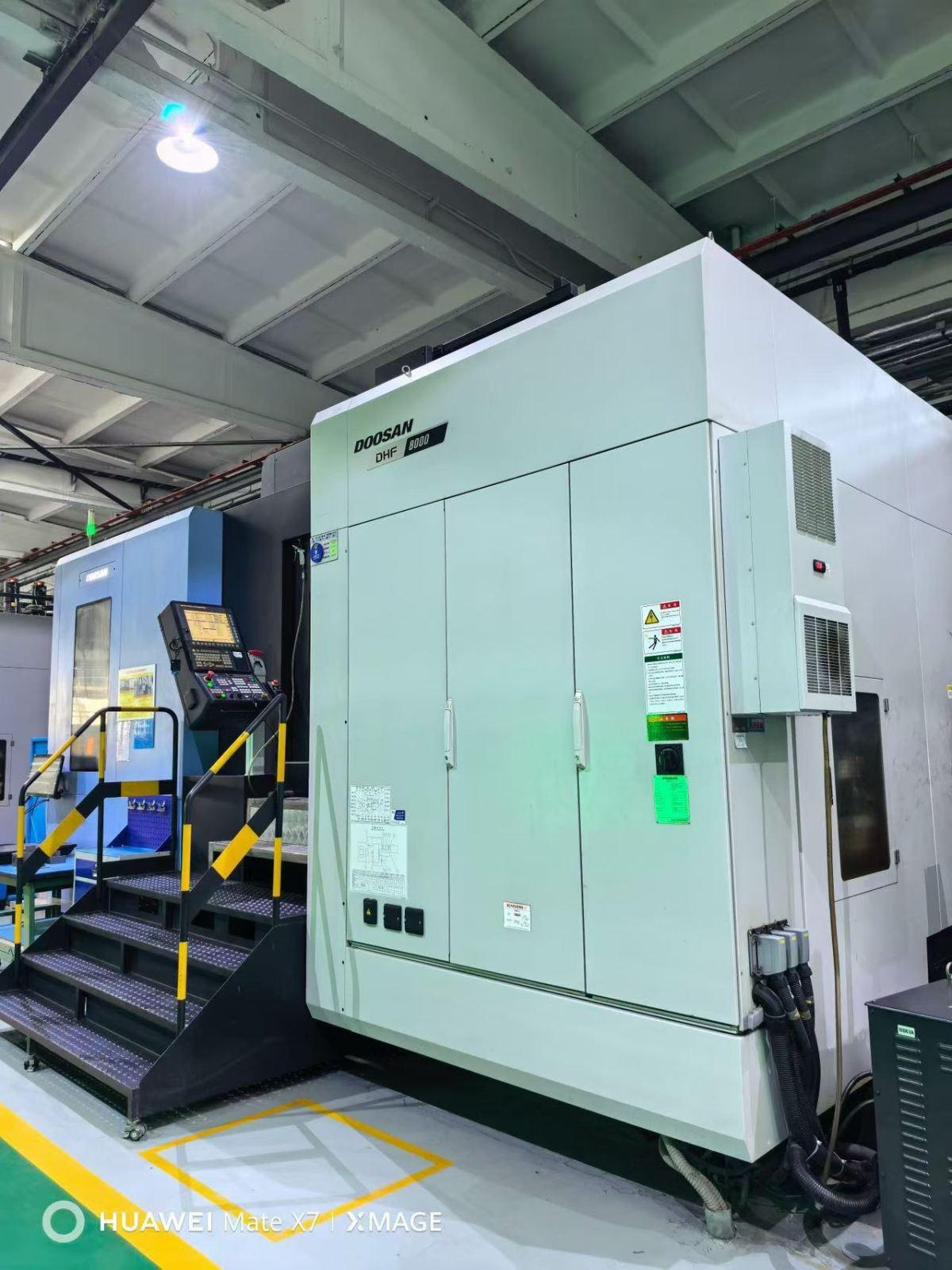

DOOSAN DHF8000 5 axis machining centre

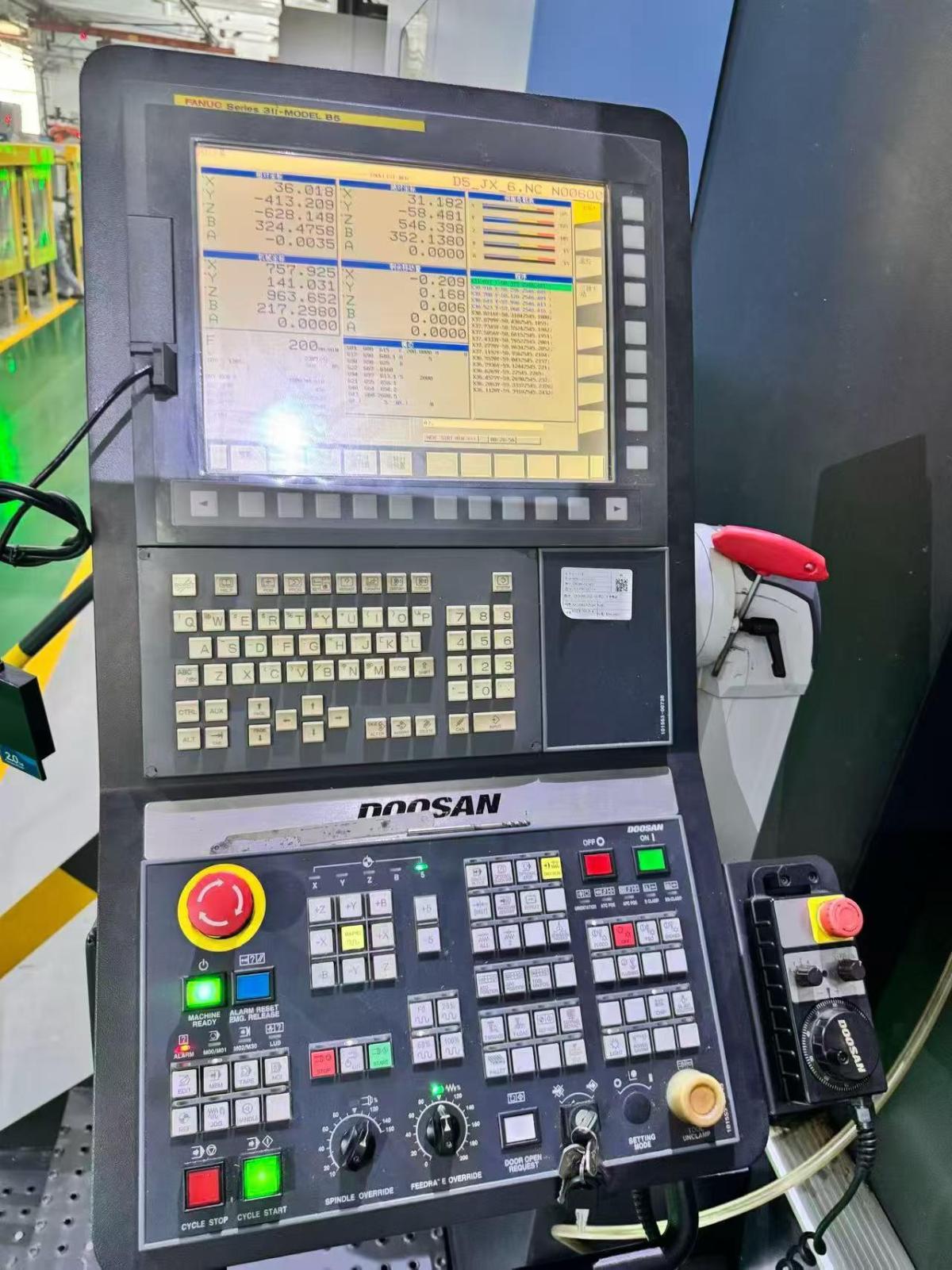

CNC System: FANUC Series 31i-MODEL B5
Three-axis travel (X/Y/Z): 1450 × 1200 × 1500 mm
Spindle speed: 6,000 rpm
X/Y-axis rapid traverse rate: 40 m/min
Z-axis rapid traverse rate: 50 m/min

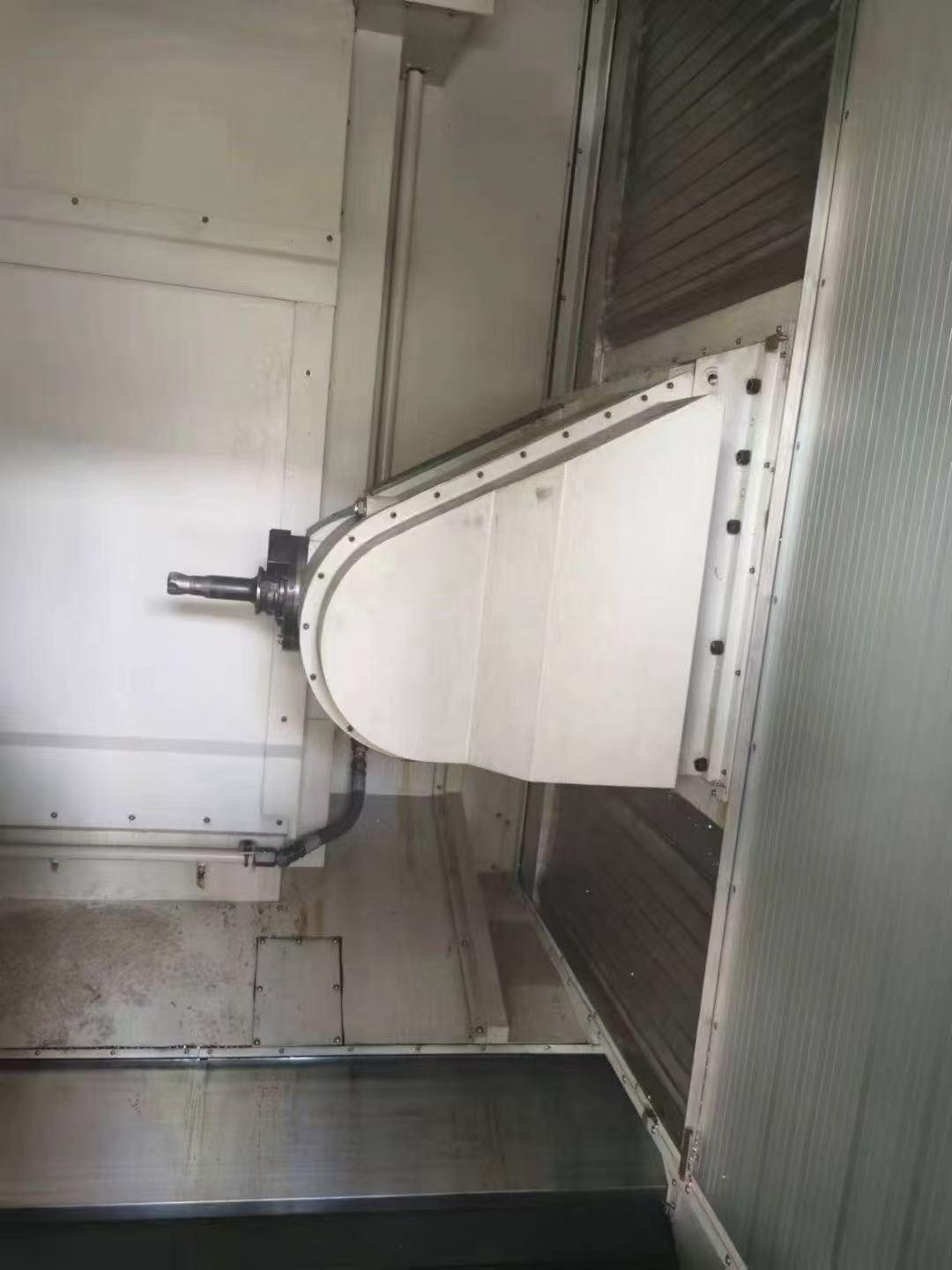

A-axis swing angle (spindle swivel head): -100° to +60°
Spindle power: 22/35 kW
Maximum spindle torque: 960 N·m
Spindle taper: BT50
Worktable size: 800 × 800 mm
Maximum worktable load: 2,000 kg
Tool magazine capacity: 40 tools
Machine weight: 31,000 kg
Configuration:
70 kg center-through coolant system
