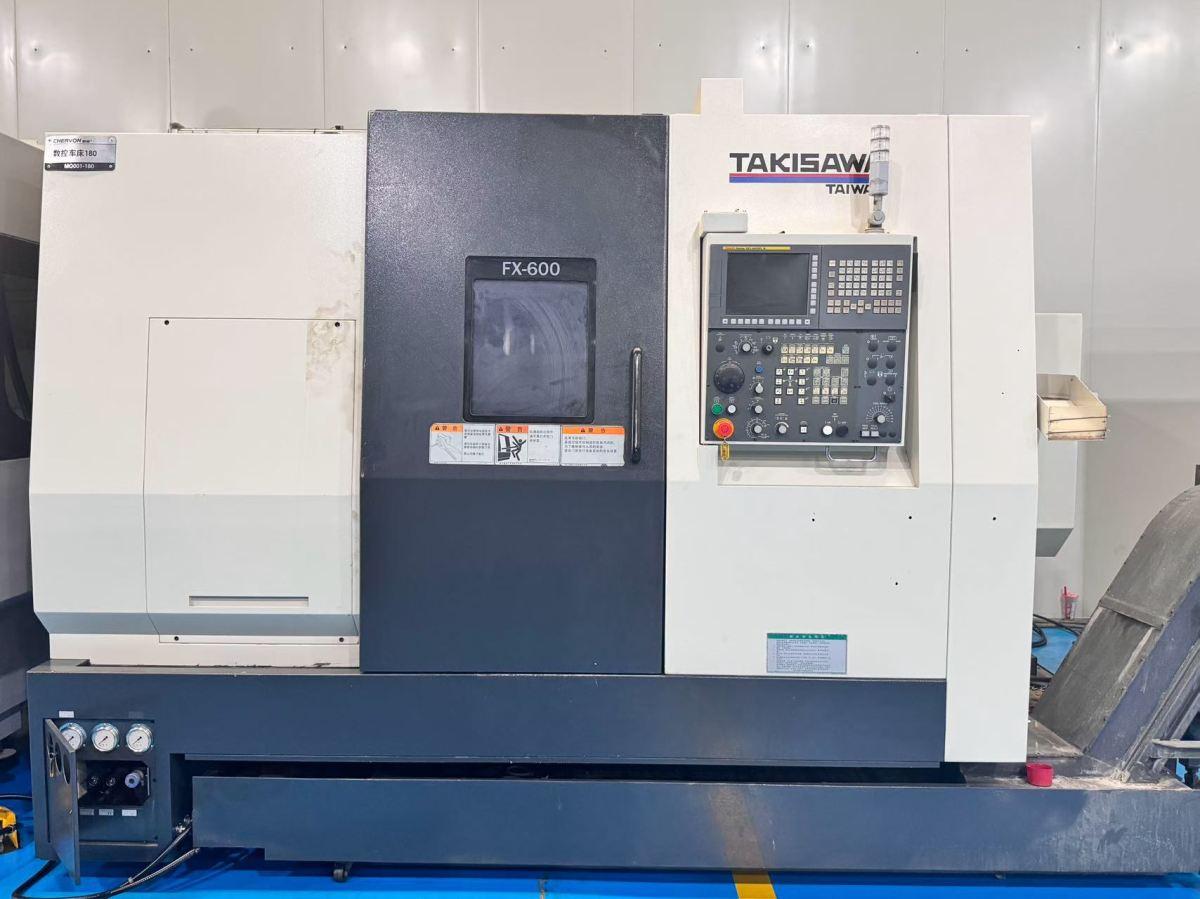

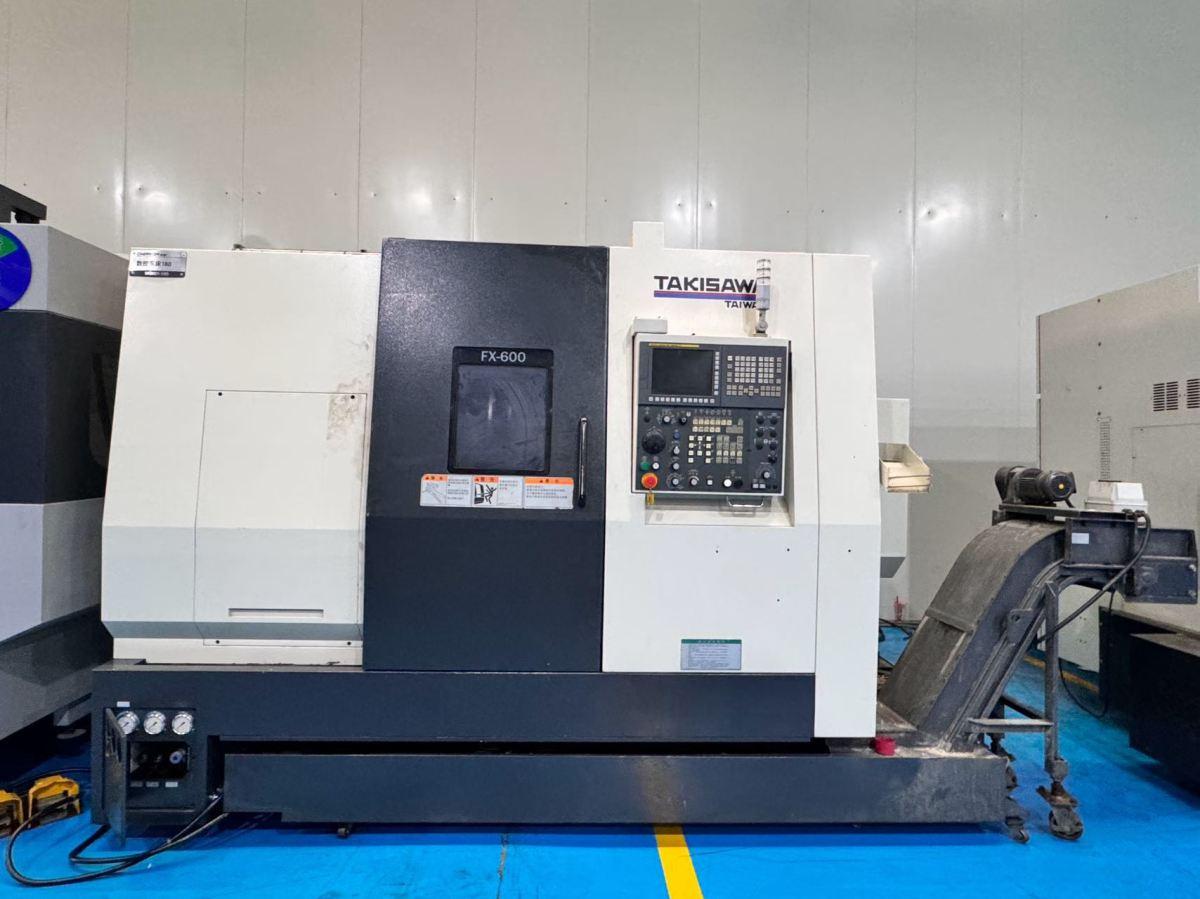

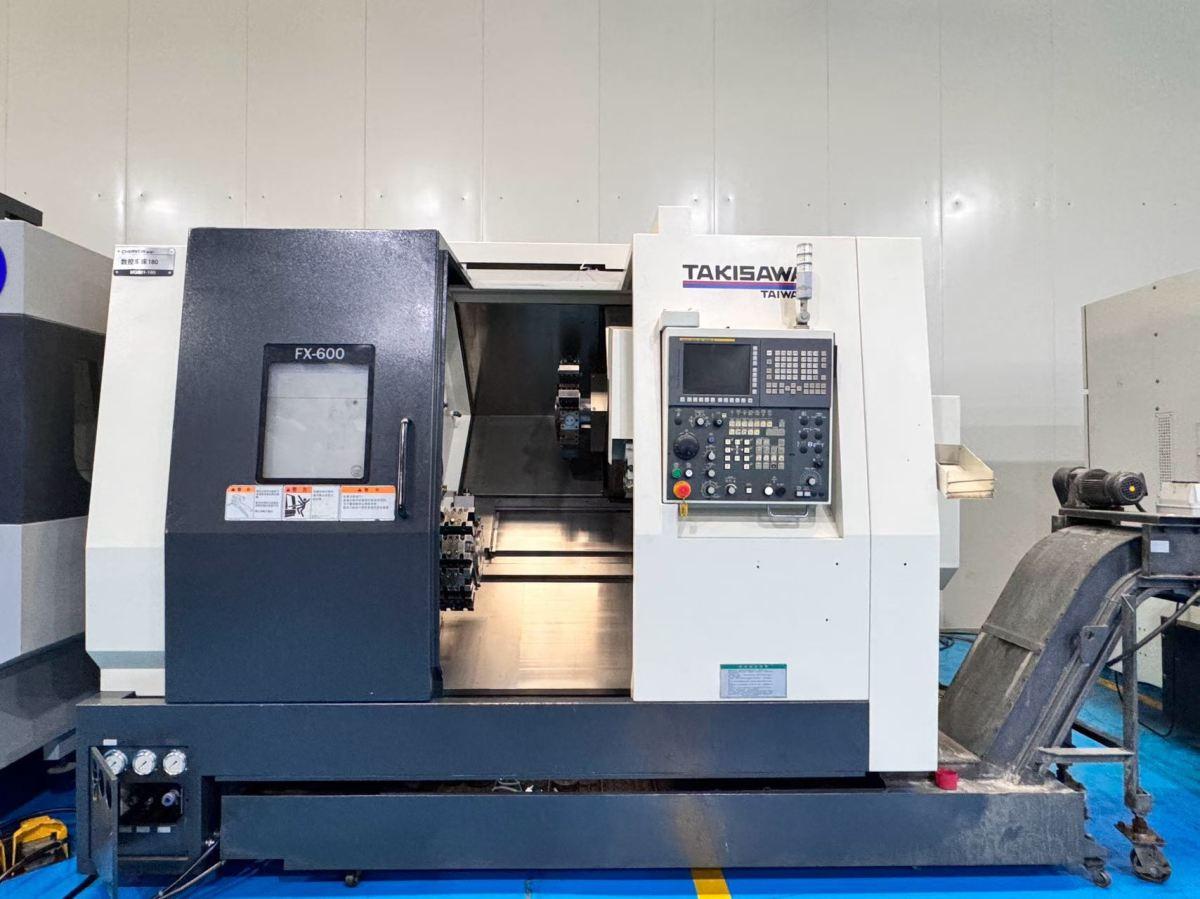

Takisawa FX-600 Turn Mill Machining Centre

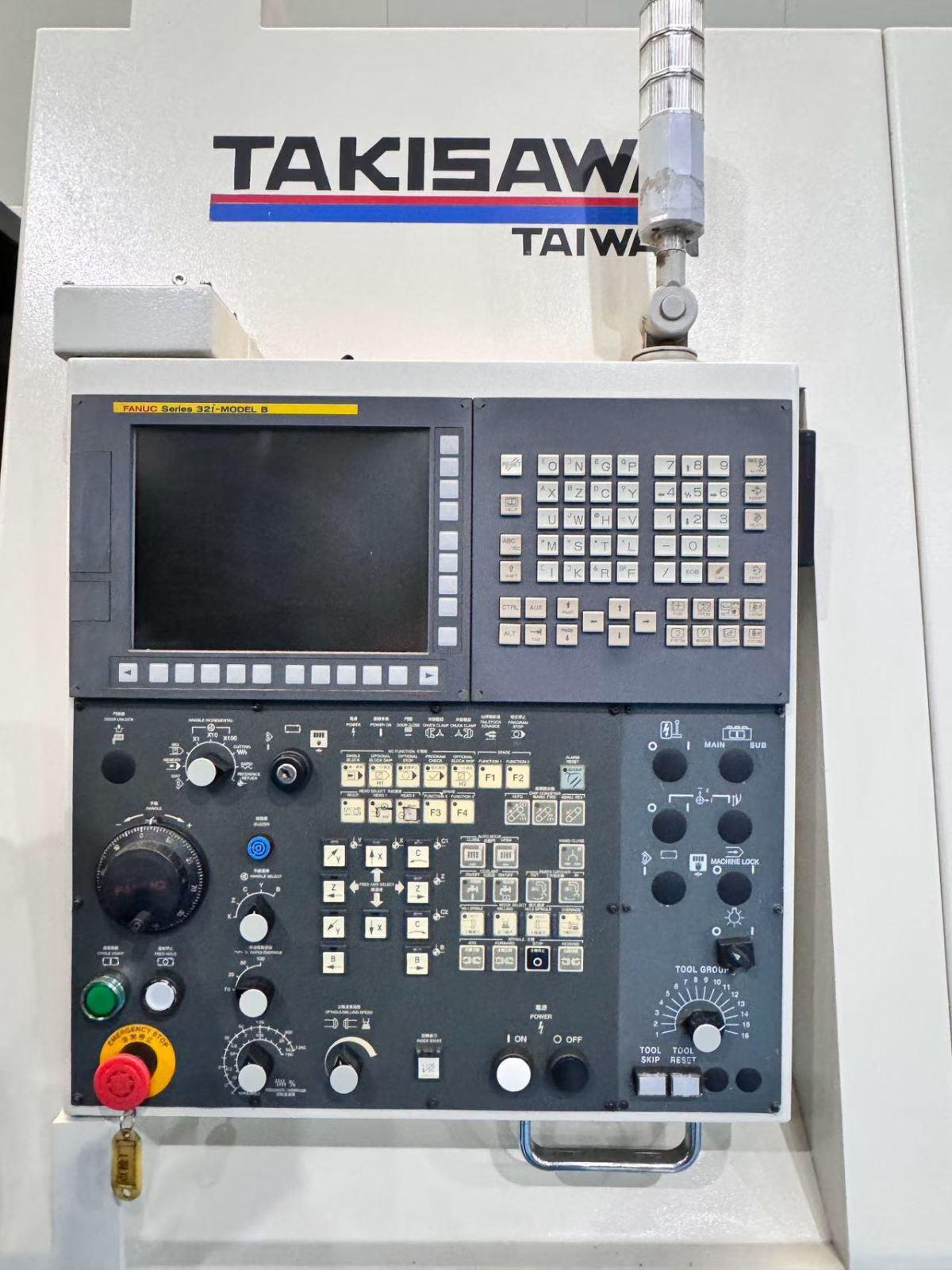

CNC System: FANUC 32i-MB
Spindle configuration: Dual spindle
Chuck size: 6 inches
Spindle type: Electric spindle
Maximum spindle speed: 6000 rpm
Spindle motor power: 7.5/11 kW
Spindle through hole: Ø56 mm
Maximum turning diameter: Ø300 mm
Standard turning diameter: Ø200 mm
Maximum machining length: 510 mm

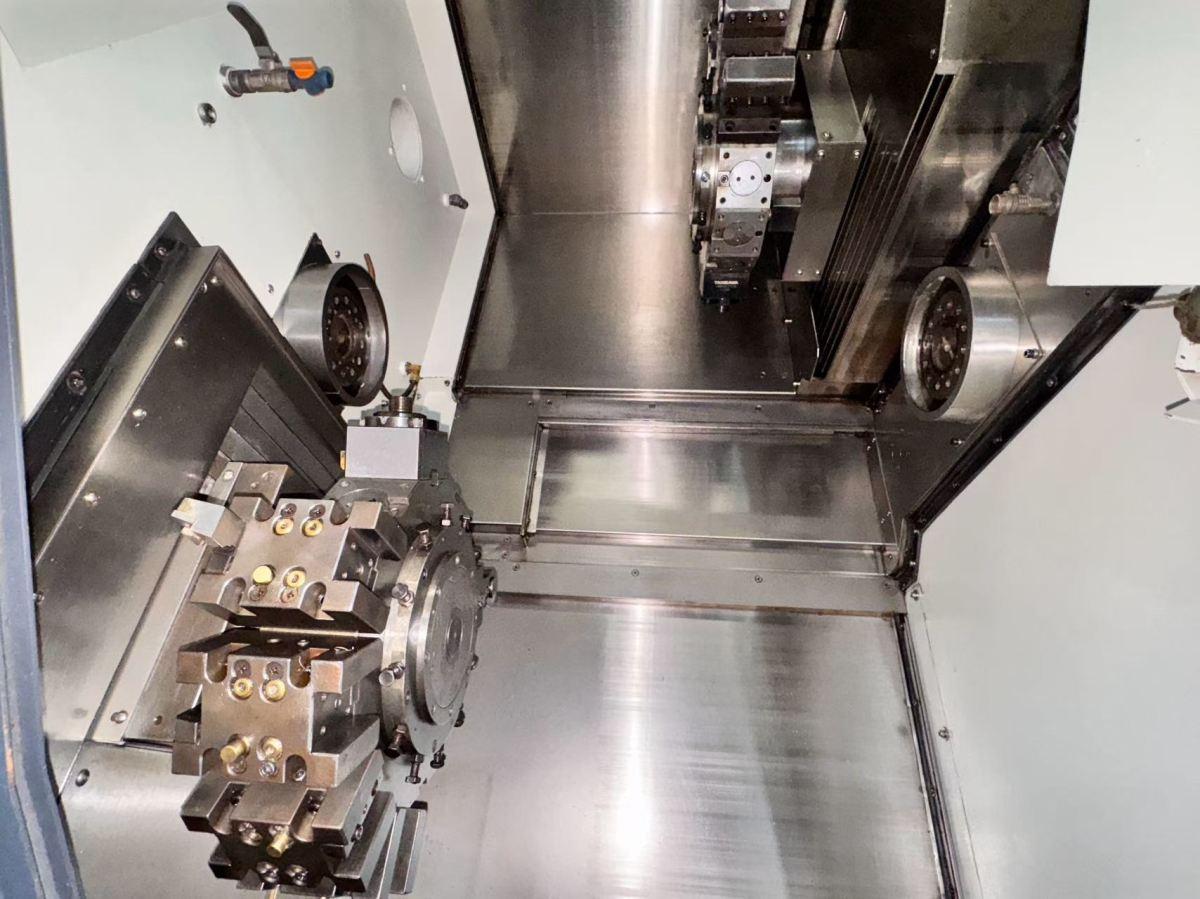

Number of tool turrets: Double tool turrets (both with Y-axis)

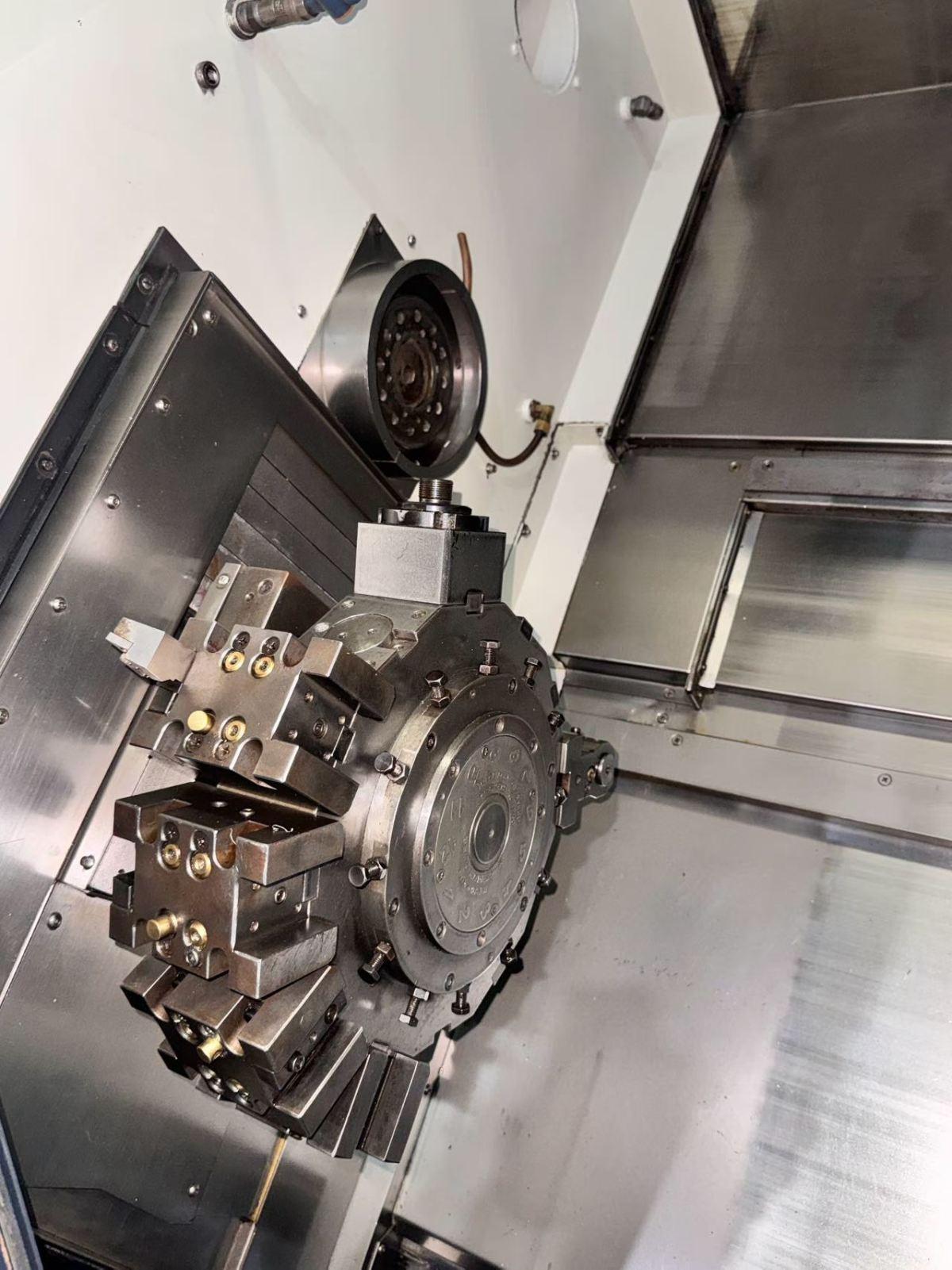

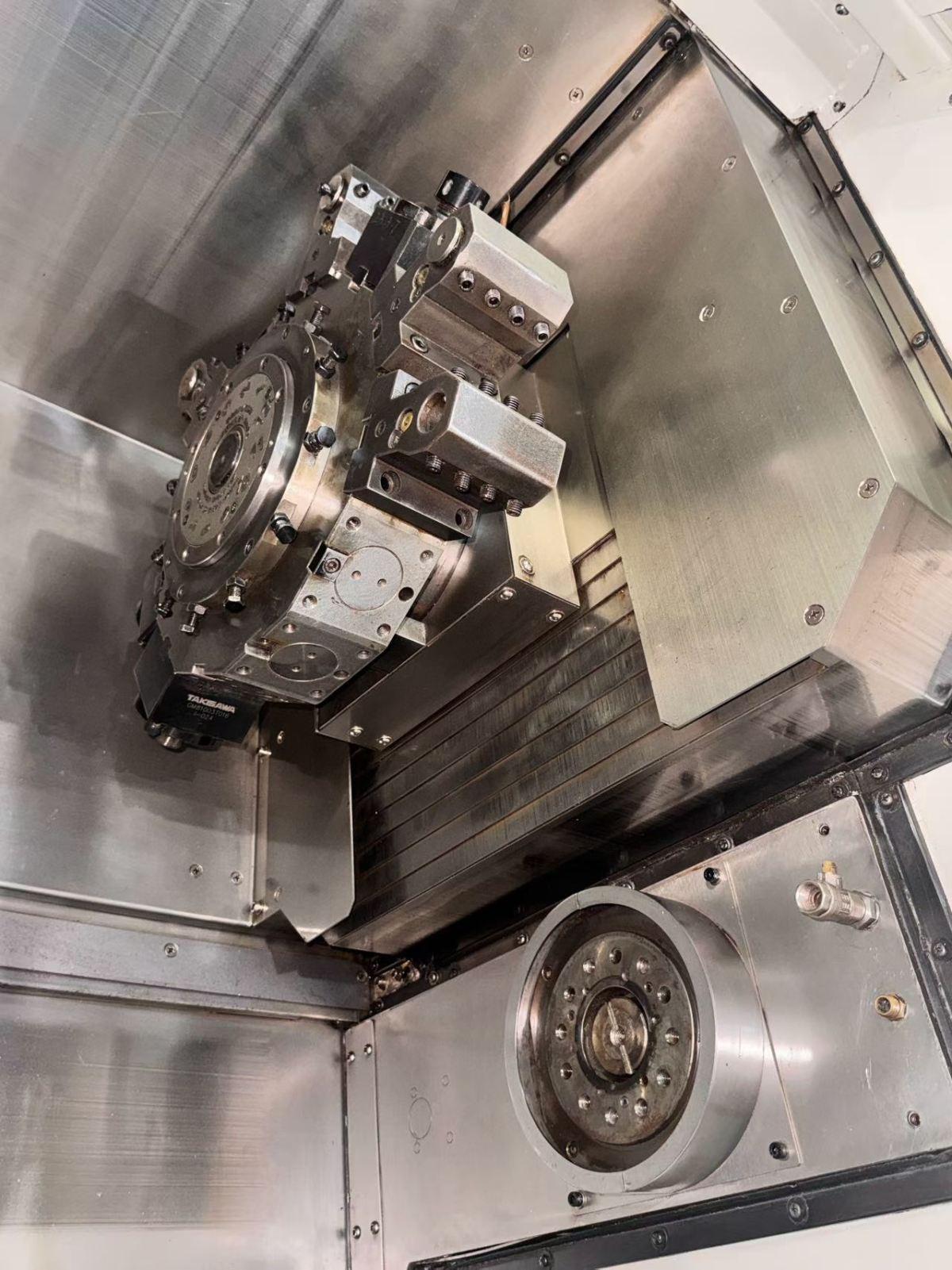

Tool turret type: 12-position servo tool turret
Live tooling: Each tool position can be equipped with live tooling
Live tool speed: 600 rpm
X1/X2-axis travel: 180 × 180 mm
Rapid traverse speed of X1/X2-axis: 24/24 m/min
Y1/Y2-axis travel: 70 × 70 mm
Rapid traverse speed of Y1/Y2-axis: 16/16 m/min
Z1/Z2-axis travel: 540 × 540 mm
Rapid traverse speed of Z1/Z2-axis: 40/40 m/min
B-axis travel: 540 mm
Rapid traverse speed of B-axis: 40 m/min
Machine structure: Linear guideway
Chip removal system: Chip conveyor with coolant tank
Machining accuracy: Dial indicator accuracy within 0.01 mm
Overall dimensions: 2740 × 2020 × 2200 mm
Machine weight: Approx. 8,000 kg
