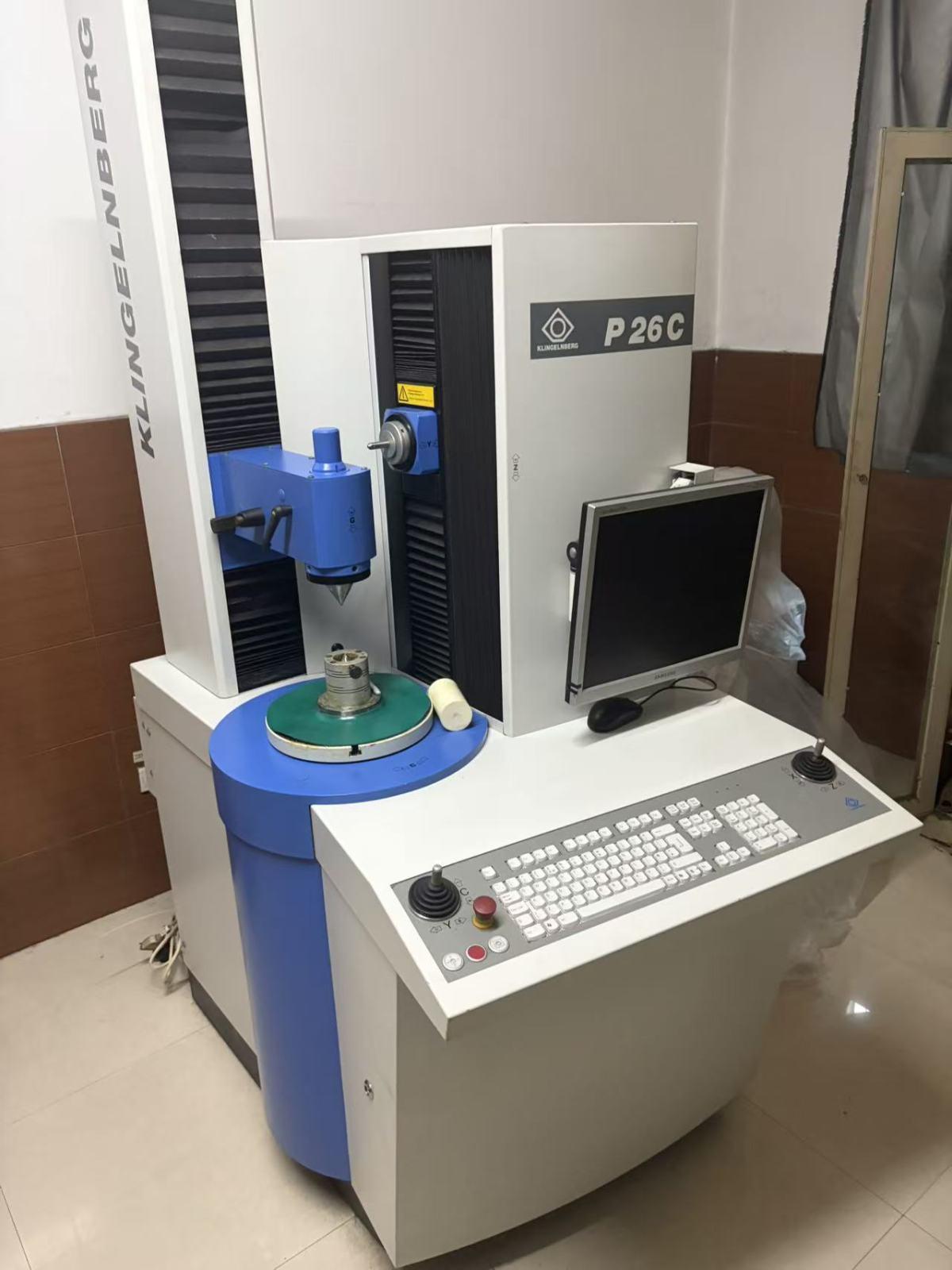

KLINGELNBERG P26C Measuring equipment

Workpiece diameter (max.): Ø260 mm
Module range: 0.5 – 12 mm
Gear width (max.): 400 mm
Helix angle range: 0° – 90°
Horizontal measuring range (X-axis): ±75 mm
Vertical measuring range (Z-axis): 400 mm
Distance between centers: 50 – 600 mm (optional 800 mm)
Maximum workpiece weight: 80 kg
Machine weight: Approx. 1,600 kg
Machine dimensions (L × W × H): Approx. 1465 × 1310 × 2000 mm
