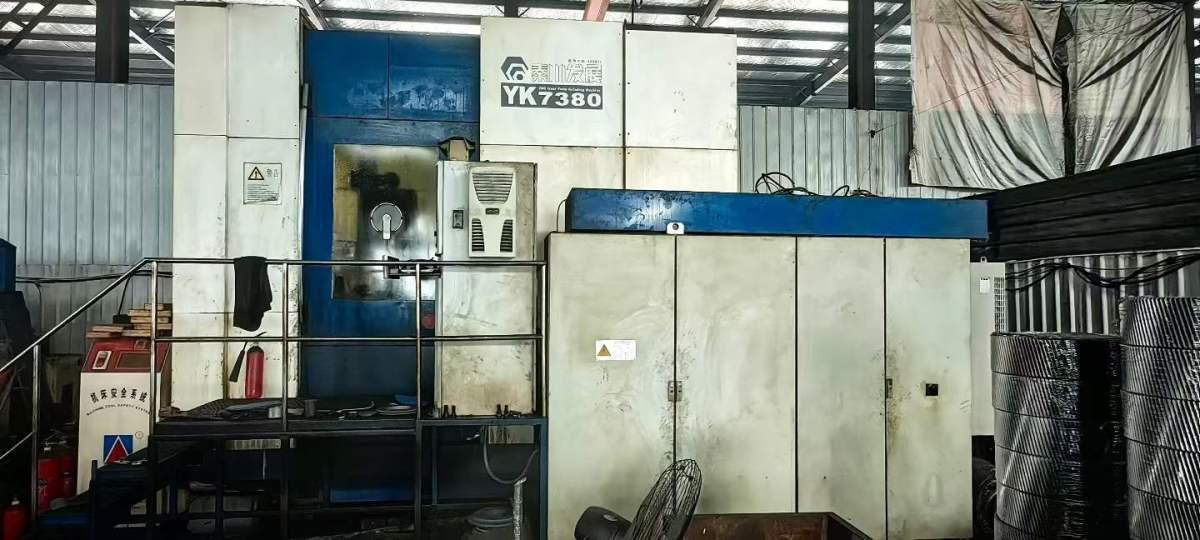

QINCHUAN YK7380 Gear grinding machine

Maximum machining diameter: φ800 mm
Maximum module: 20 mm
Maximum straight tooth width: 500 mm
Helix angle range: ±45°
Maximum worktable load: 2000 kg
Grinding wheel power: 20 kW (Max)

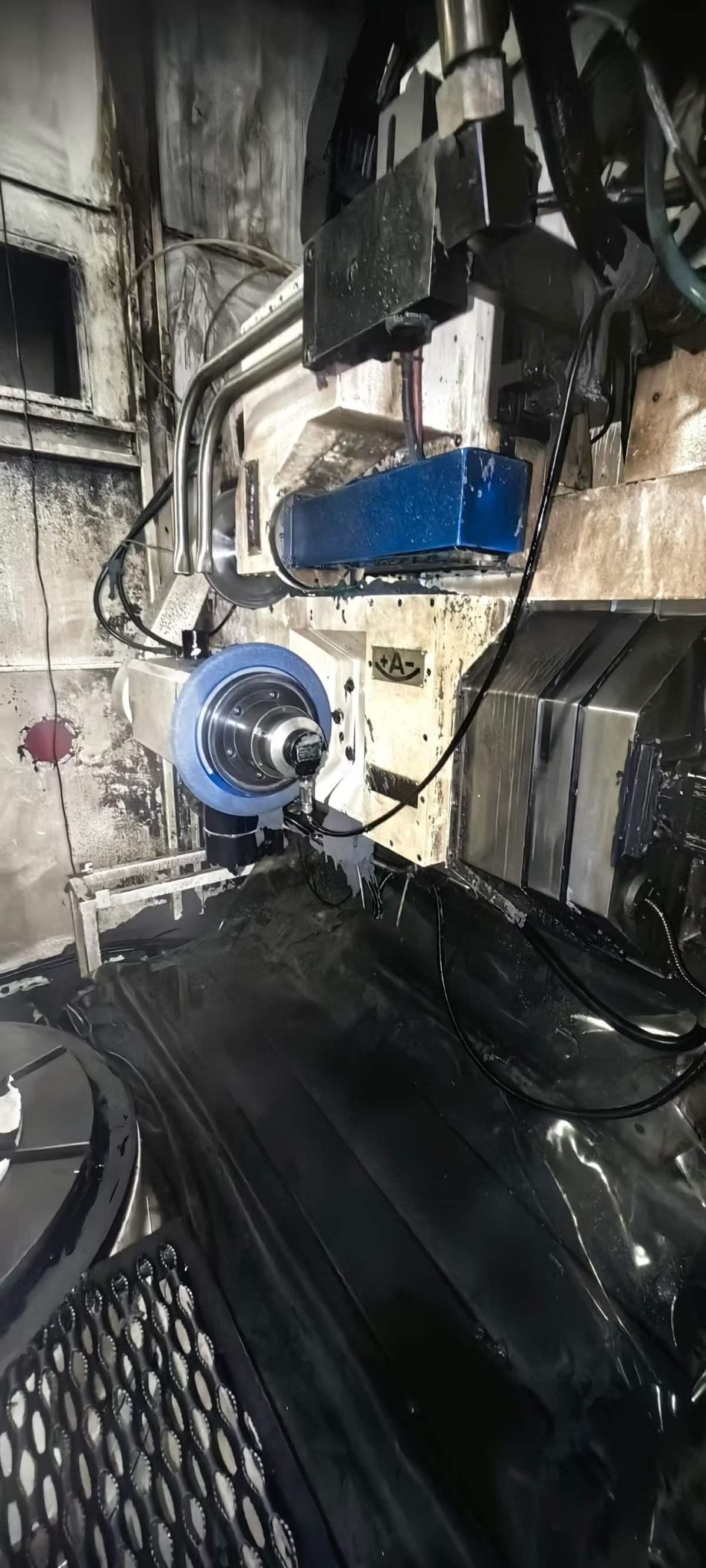

Grinding wheel diameter: φ300–400 mm
Grinding wheel thickness: 63 mm
Minimum distance between the grinding wheel center and the worktable surface: 320 mm
Worktable diameter: φ650 mm
Height of the tailstock from the worktable surface: 700–1200 mm
Worktable height: 980 mm
