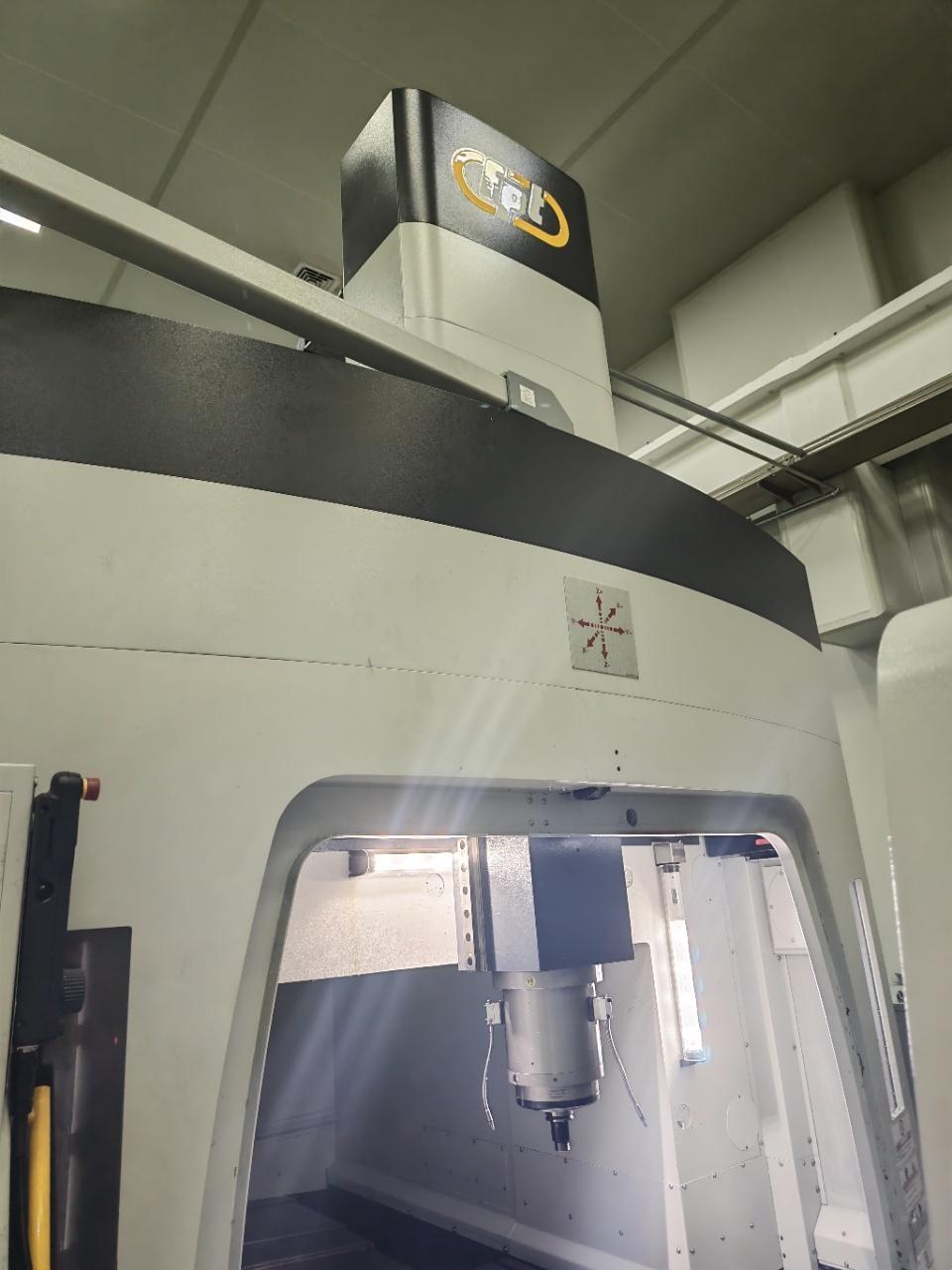

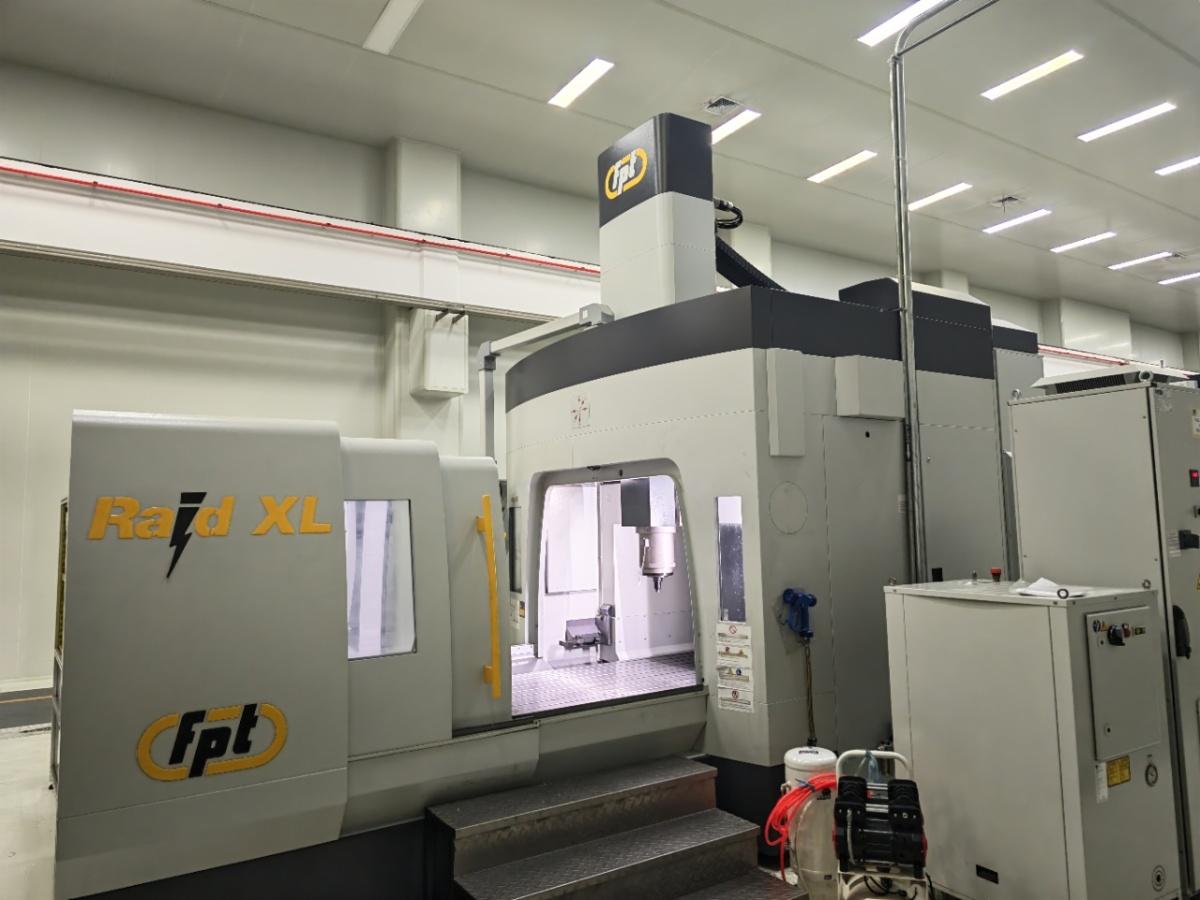

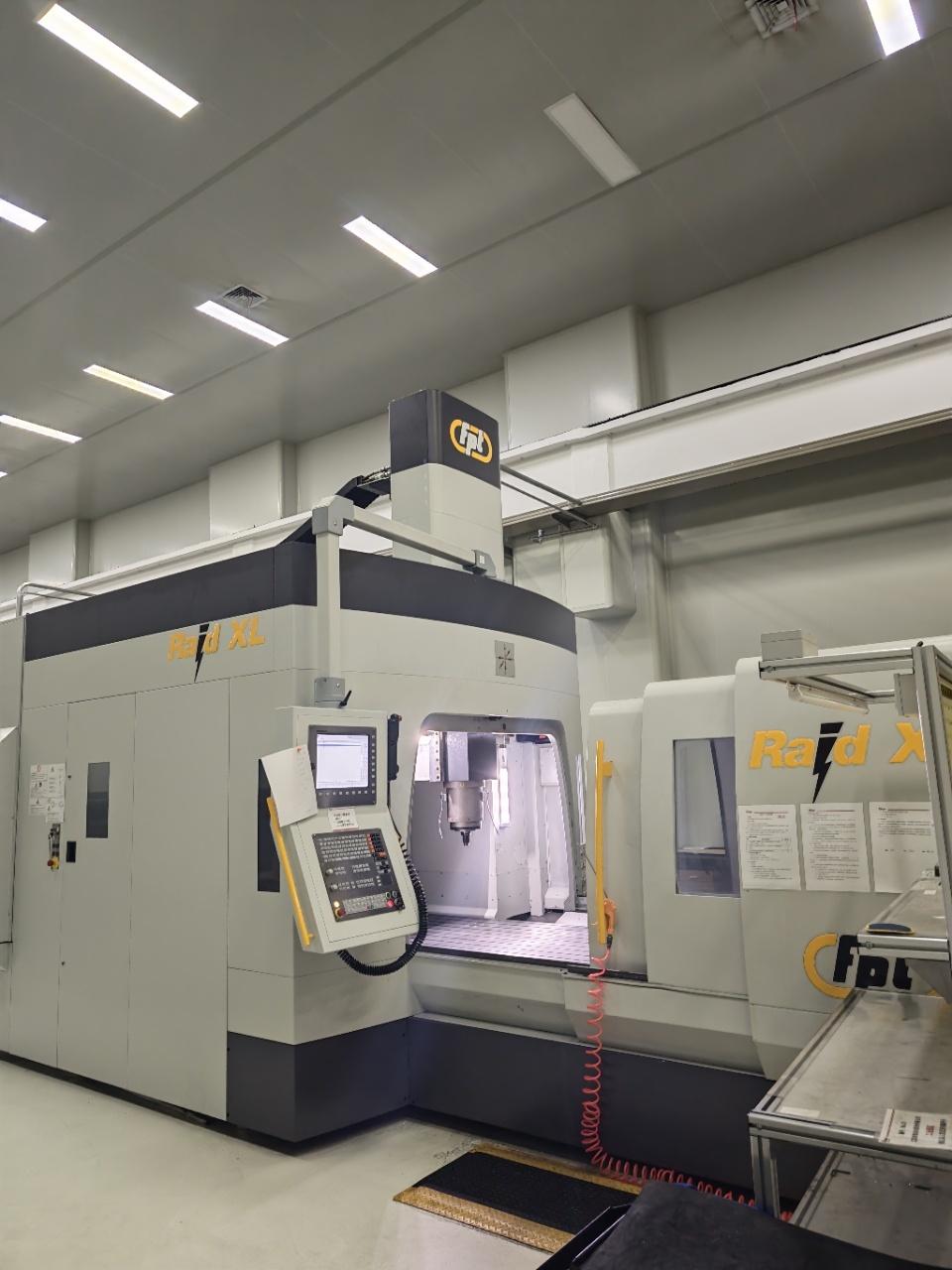

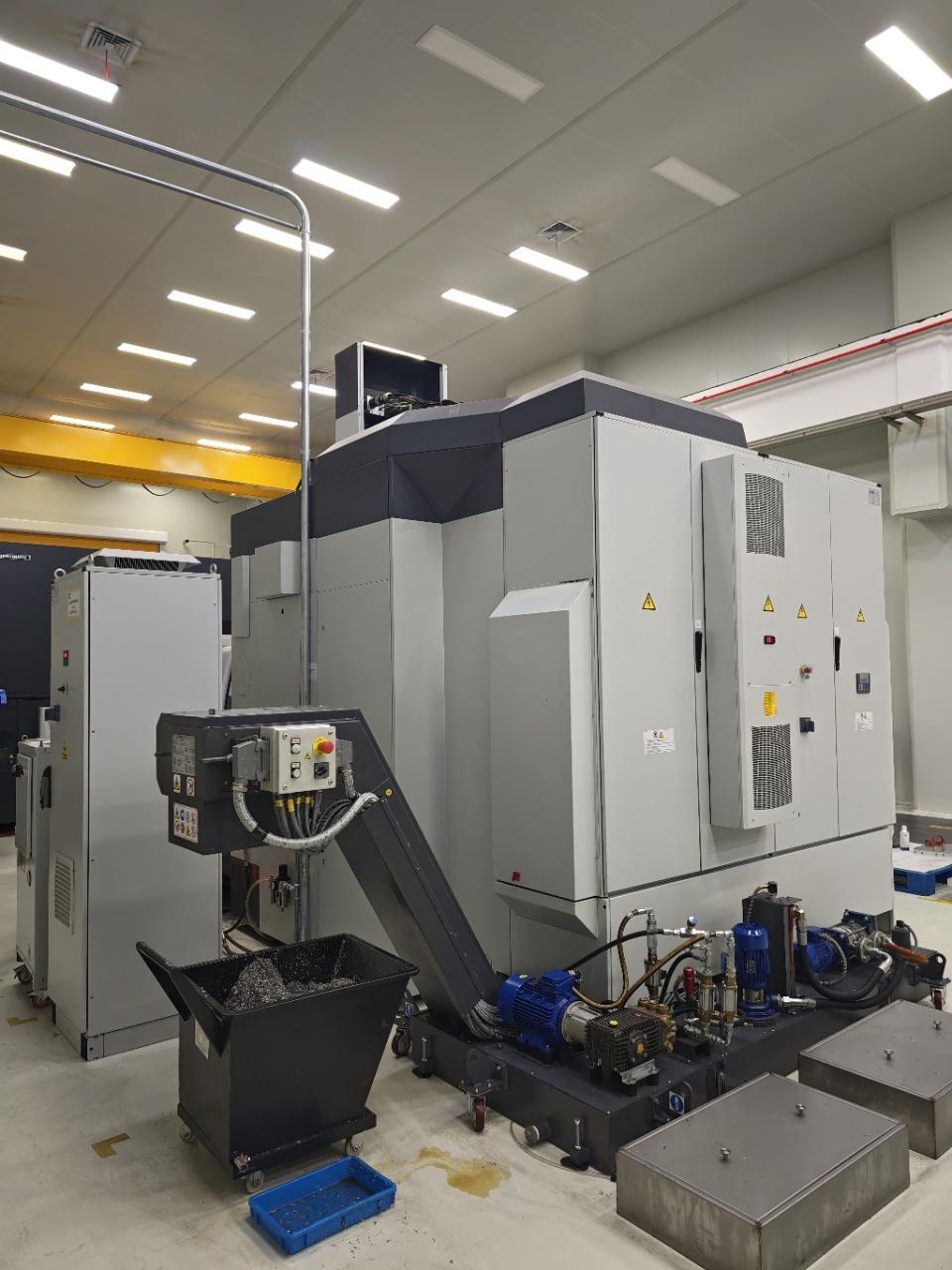

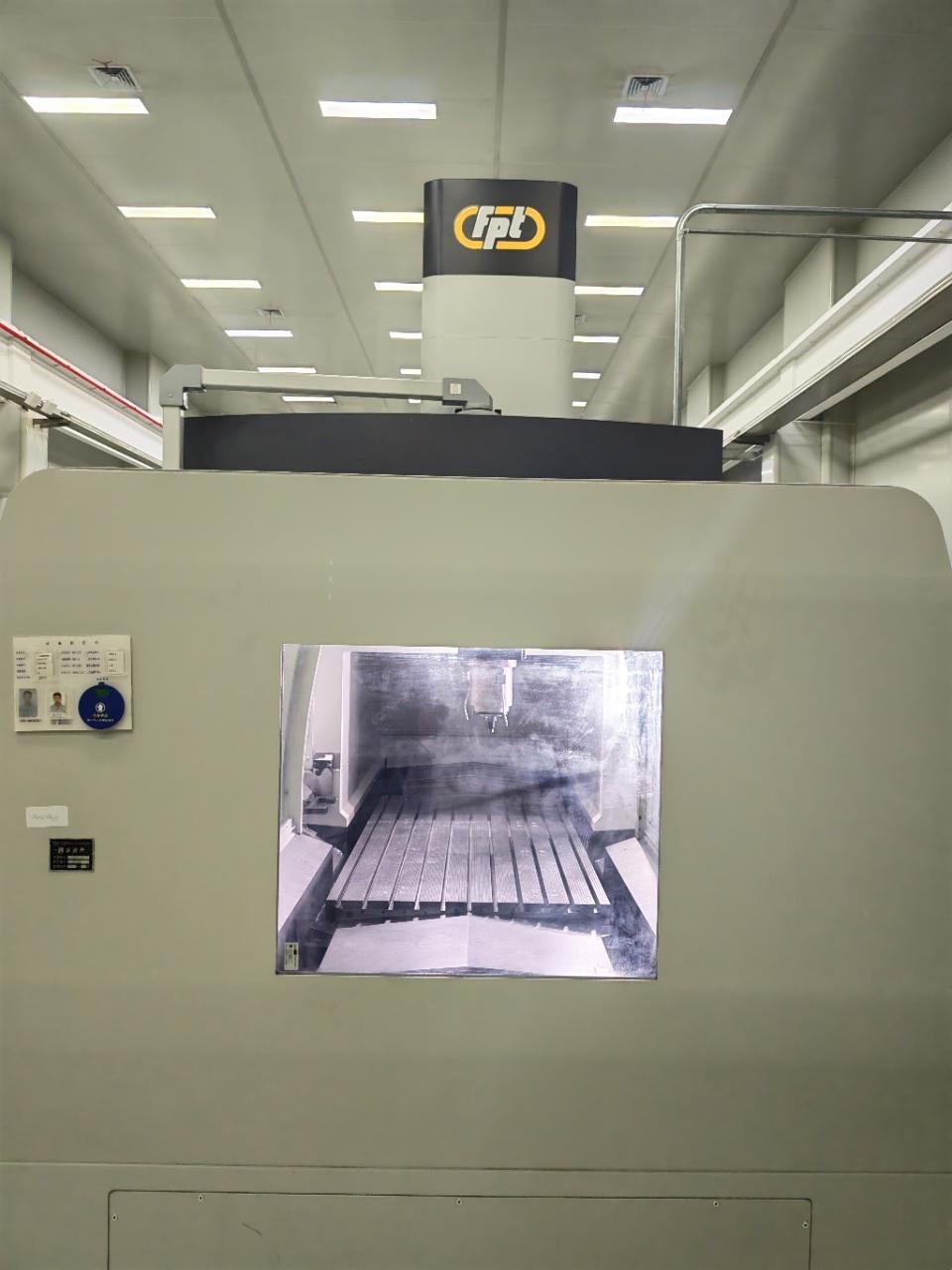

FPT RV096 Gantry machining centre

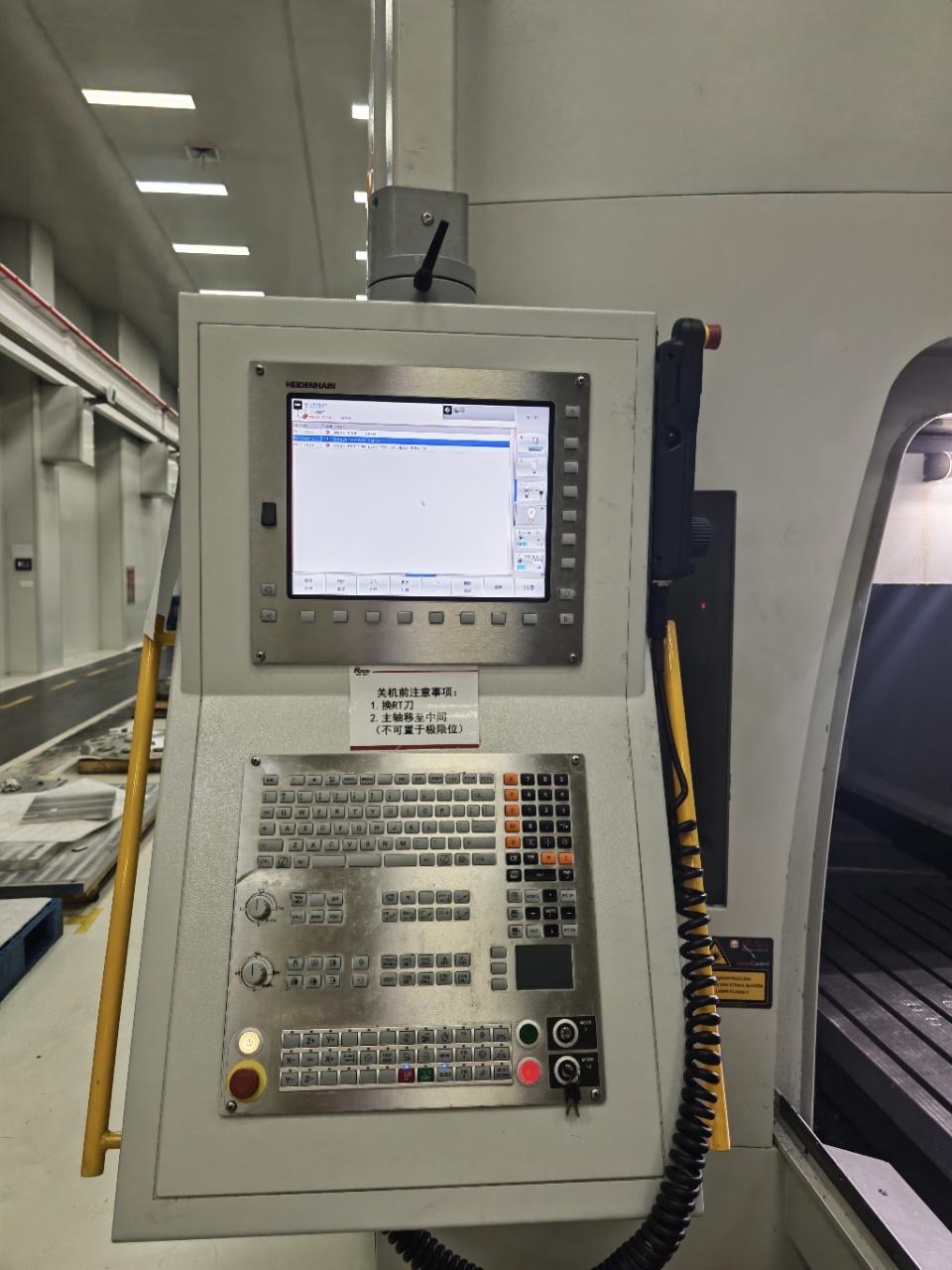

CNC System: Heidenhain TNC 620
Tool Magazine Capacity: 43 Tools
Tool Holder Specification: HSK A63
Worktable Size: 2000 × 1100 mm
X-axis Travel: 2000 mm
Y-axis Travel: 1400 mm
Z-axis Travel: 800 mm
Rotary Axis Configuration: No A/B/C Axes
Maximum Spindle Speed: 12,000 rpm
Tool Parameters:
Maximum Tool Diameter at Adjacent Tool Positions: 80 mm
Maximum Tool Length: 300 mm

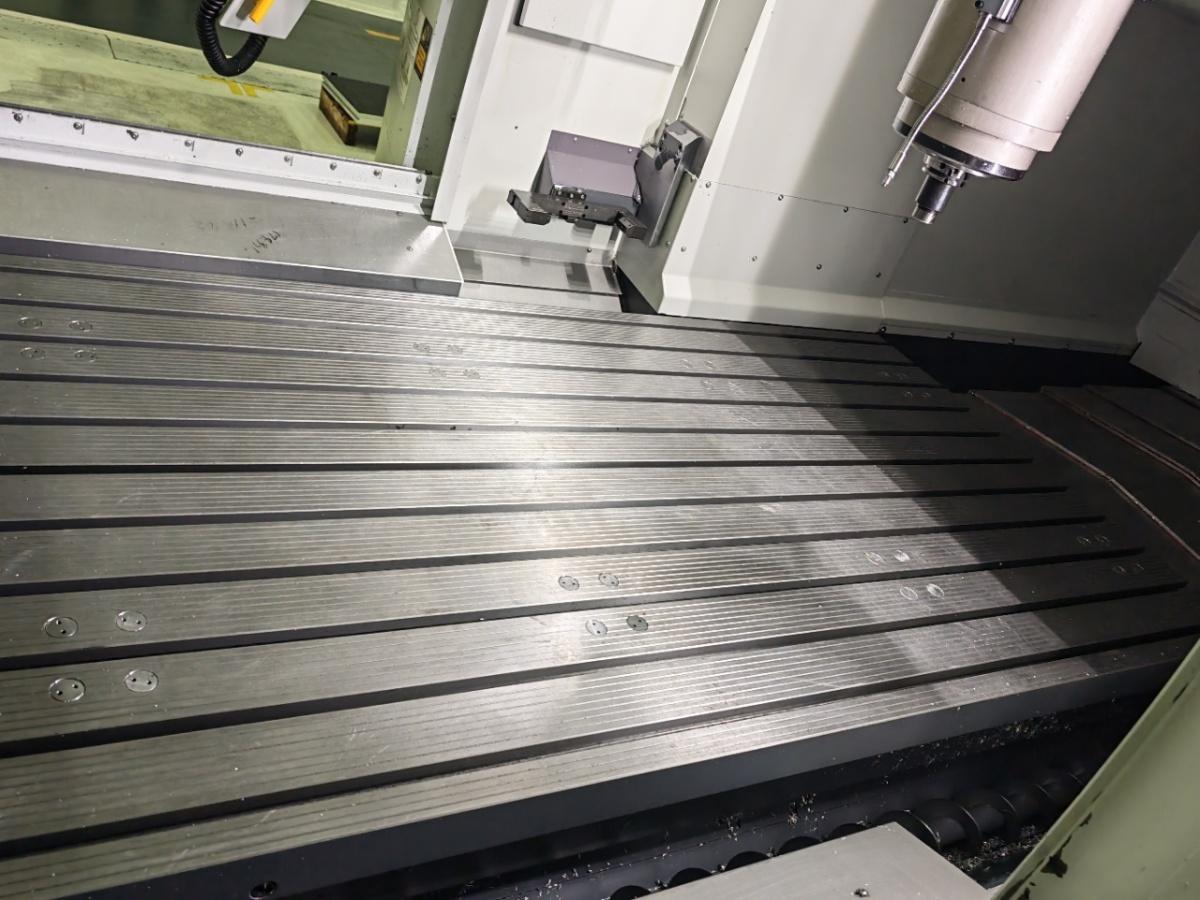

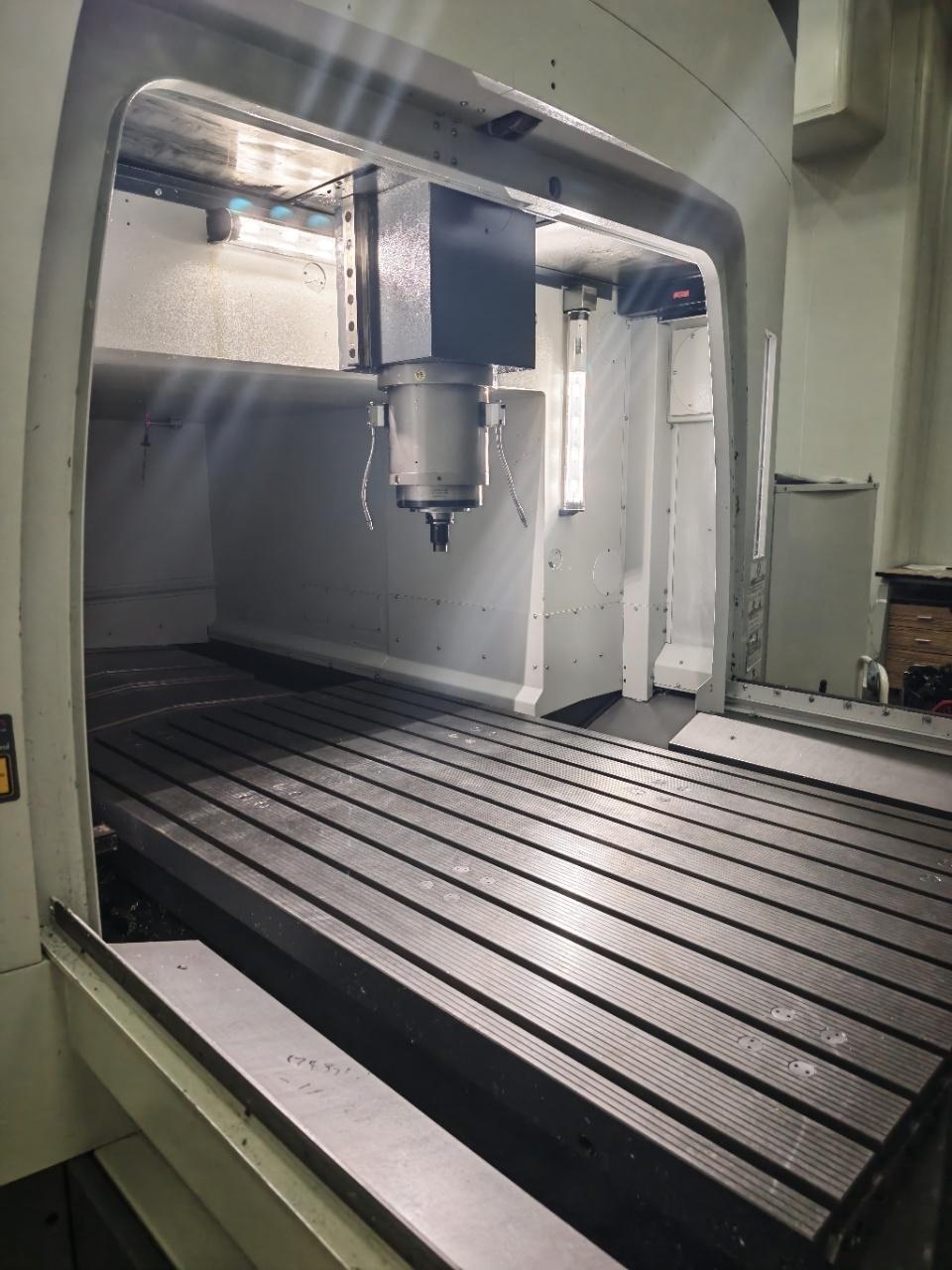

Worktable Structural Parameters:
T-slot Specification: 11 × 18 × 100 mm
Distance from Spindle Nose to Worktable Surface: 100–900 mm
Distance from Spindle Center to Front Edge of Machine Body: 700 mm
Worktable Height from Ground: 950 mm
