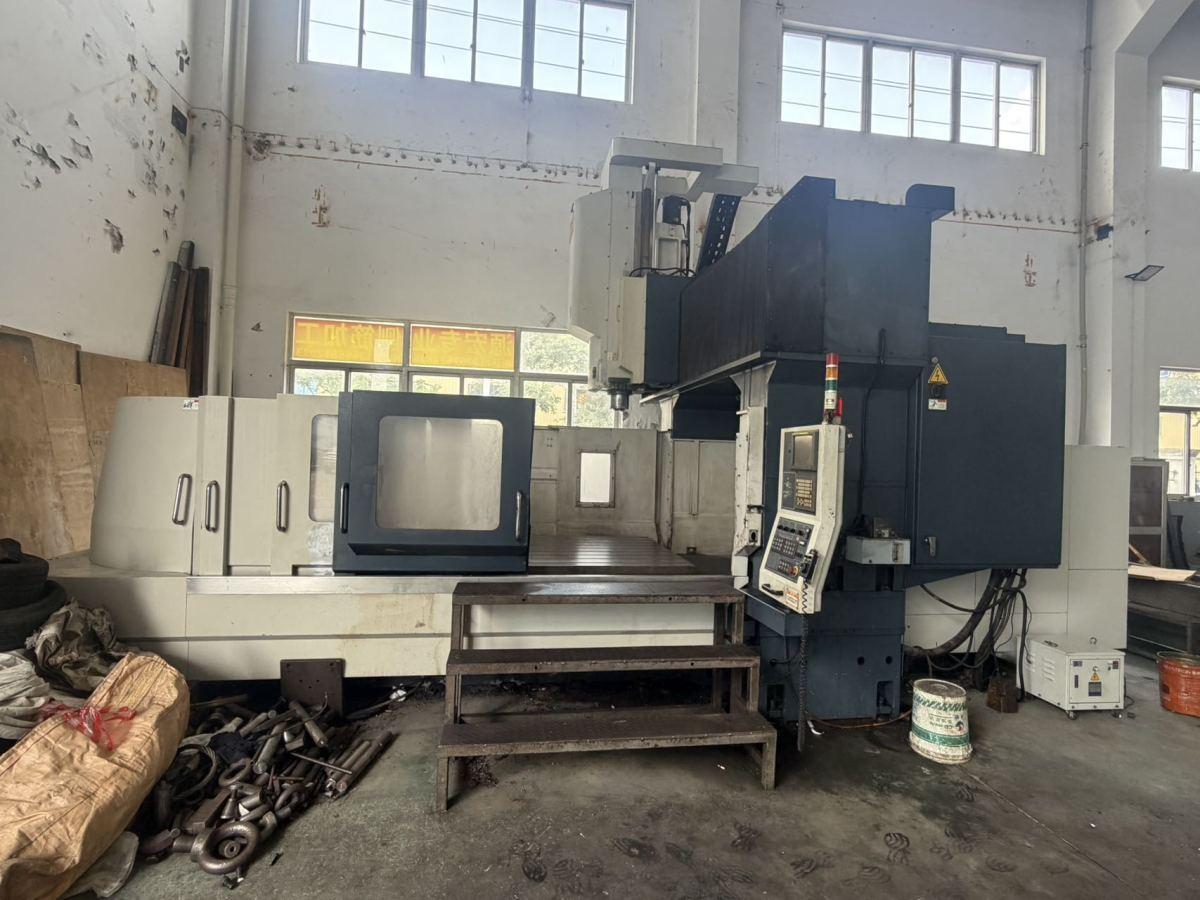

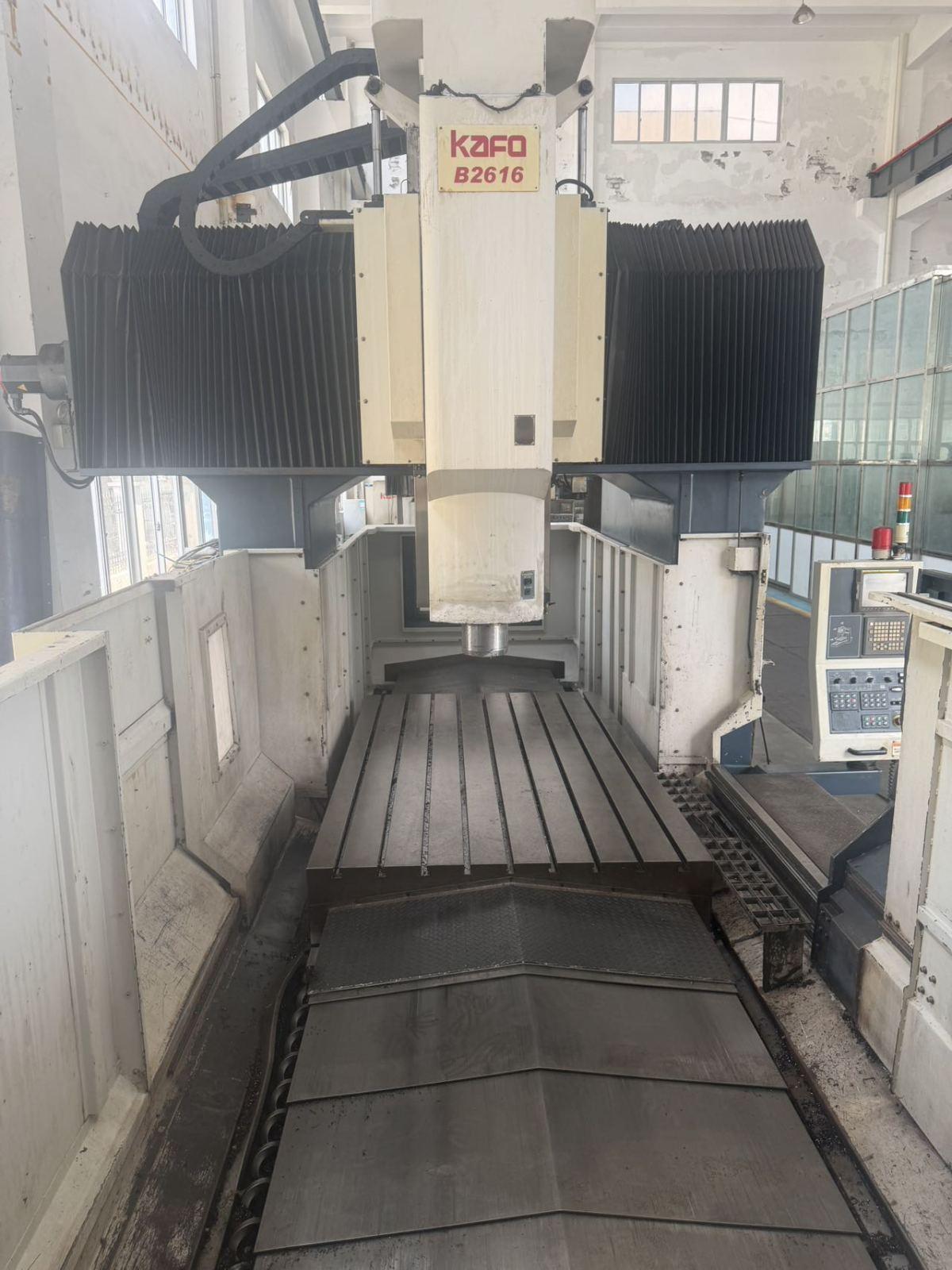

KAFO B-2616 Gantry machining centre

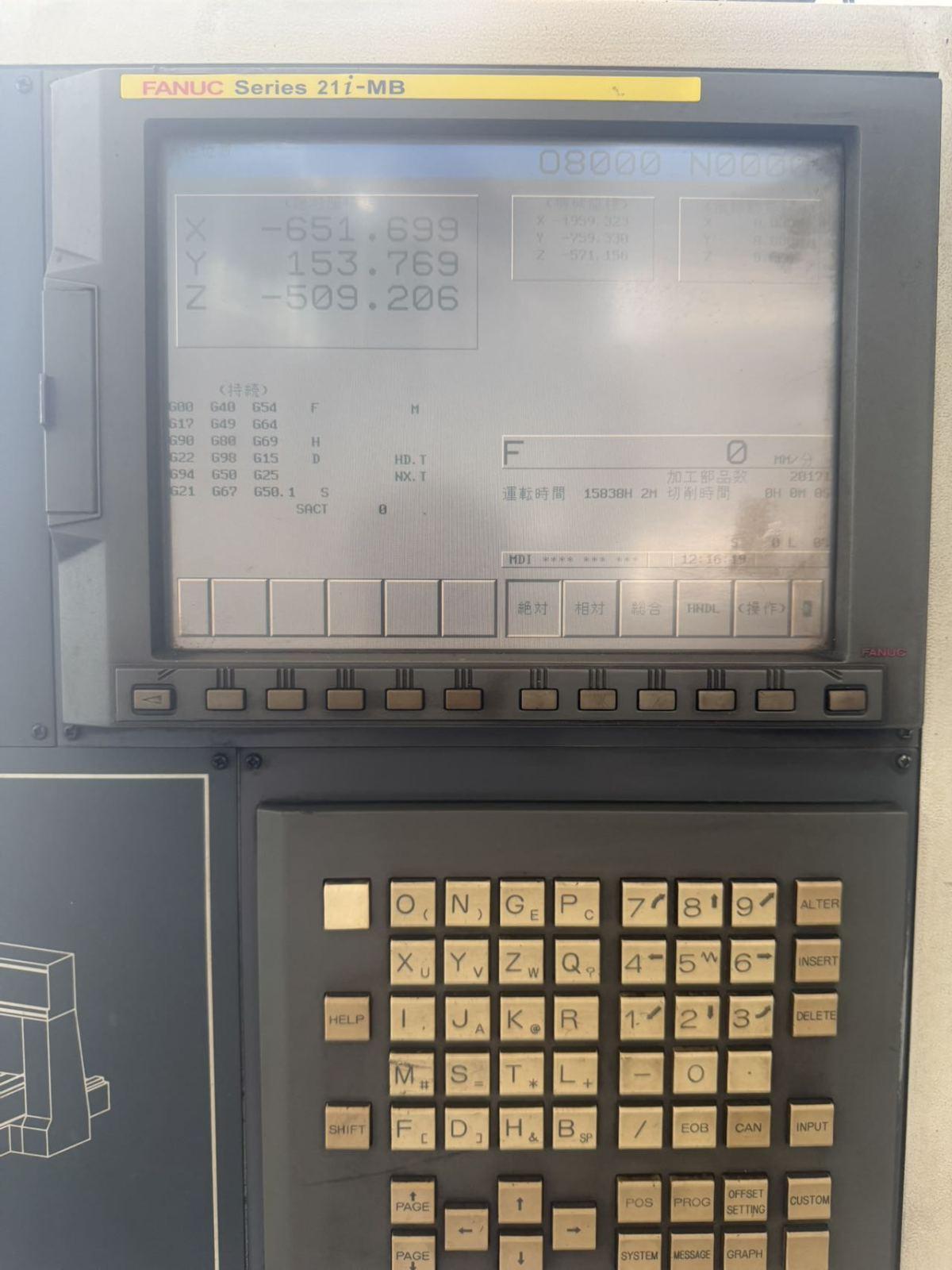

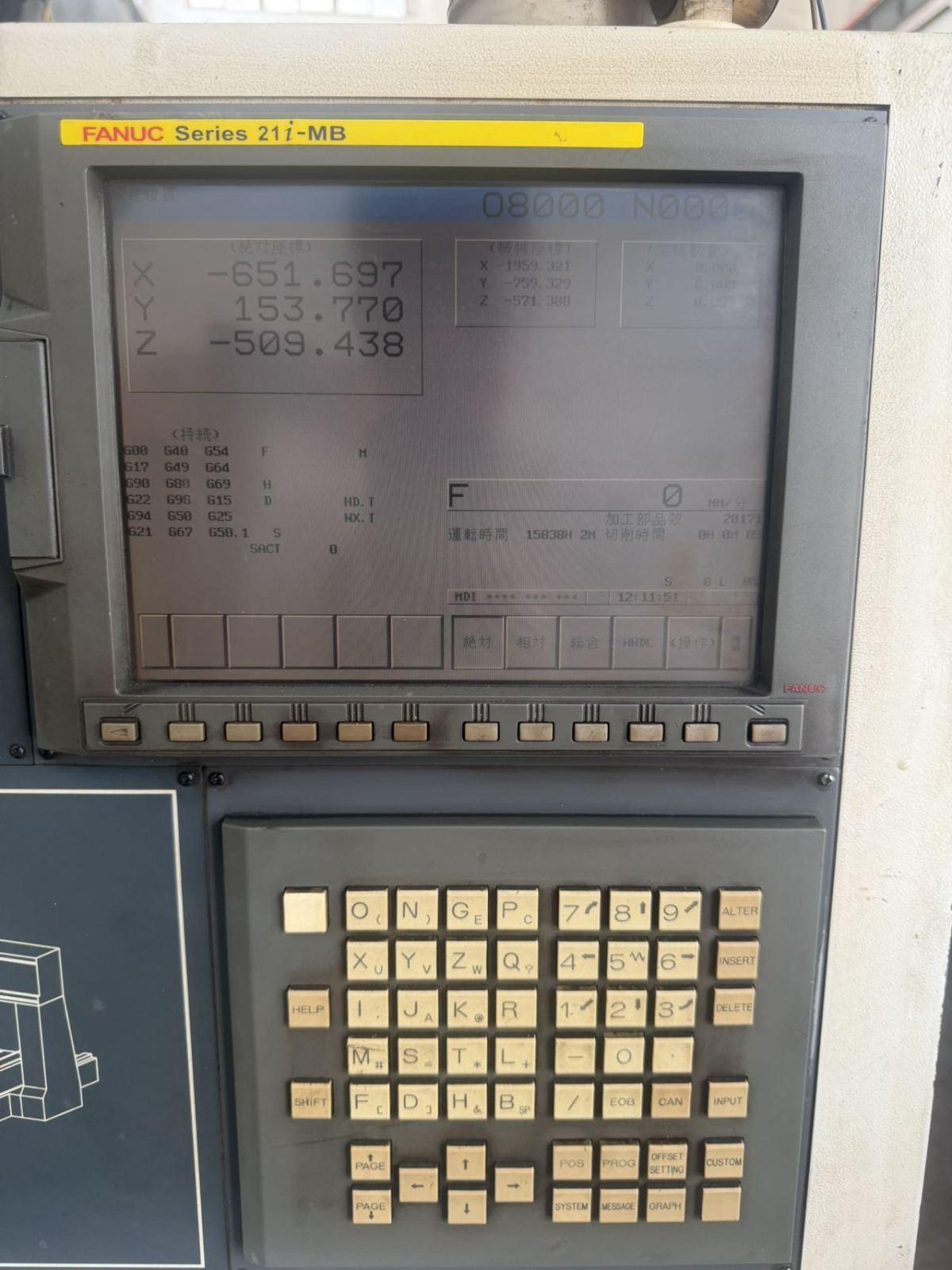

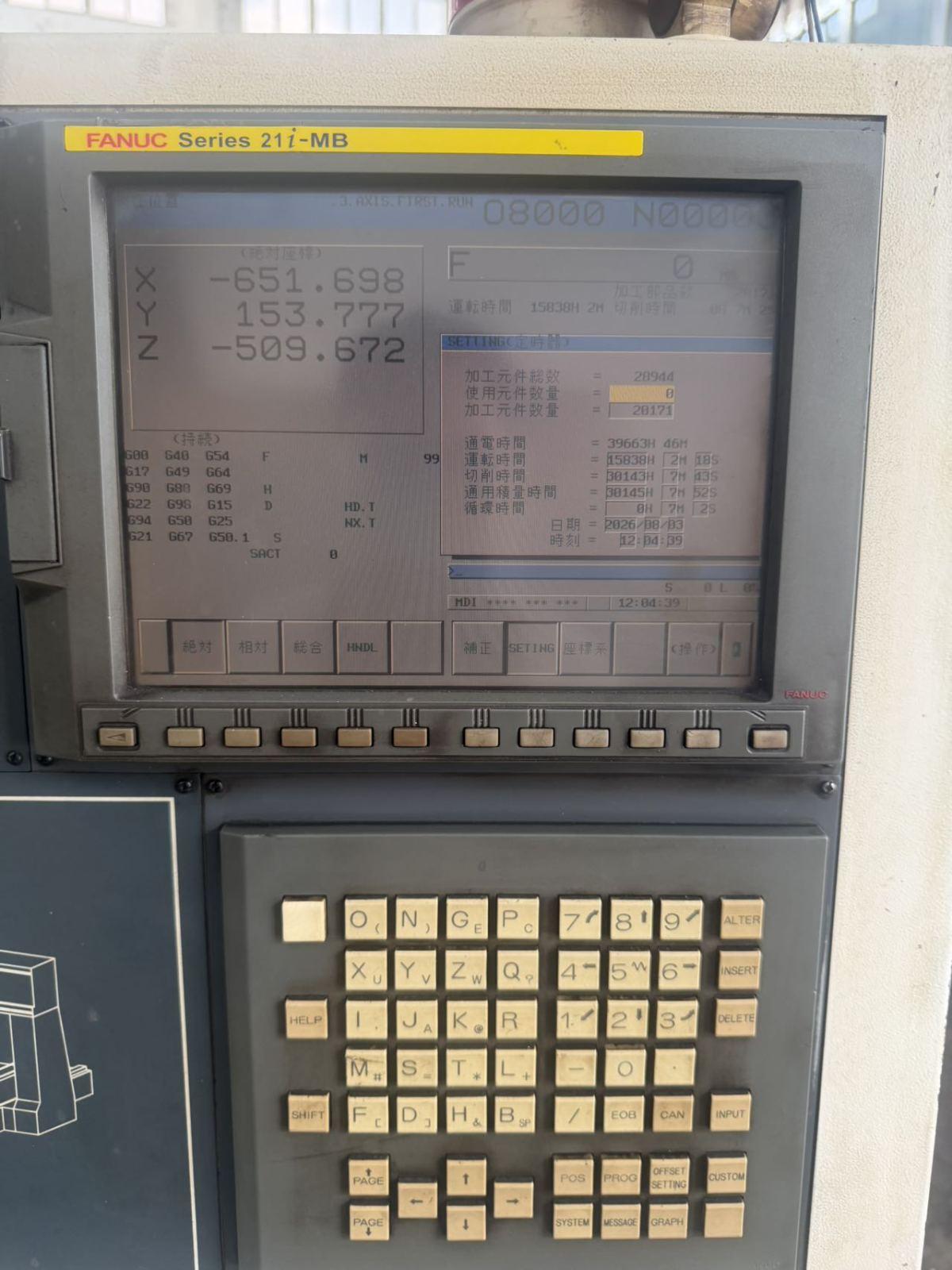

CNC system: FANUC 21i-MB
Three-axis travel (X/Y/Z): 2600 × 1600 × 850 mm

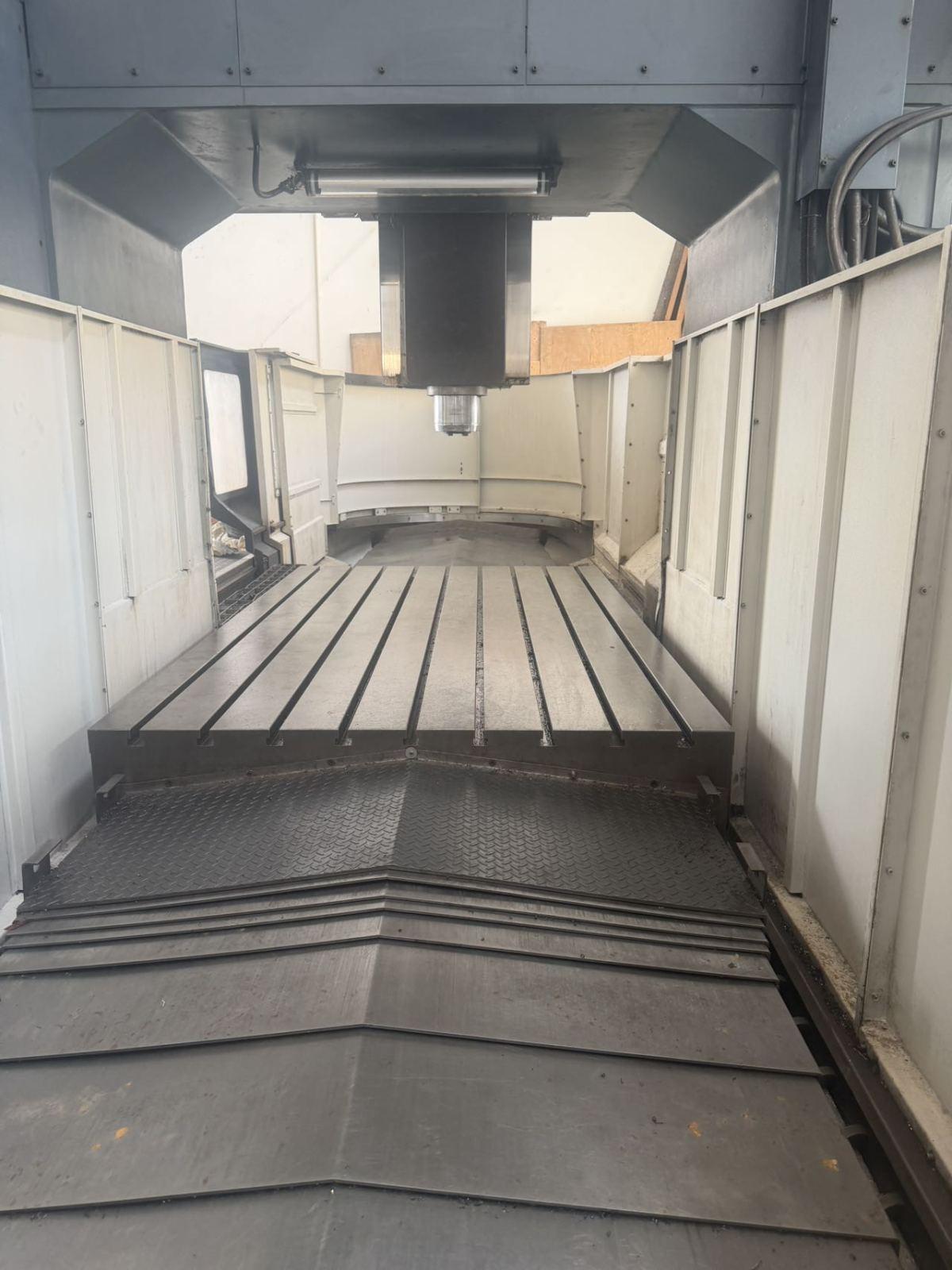

WorkTable size: 2500 × 1500 mm
Gantry width: 1740 mm
Gantry height: 1300 mm
Spindle taper: BT50
Spindle speed: 6000 rpm
Distance from spindle nose to table surface: 1050 mm
Machine dimensions (L × W × H): 7800 × 3700 × 4150 mm
Machine weight: approx. 29 tons
Configuration:
Side milling head
Built-in twin screw chip conveyor + front-mounted hinged belt chip conveyor
