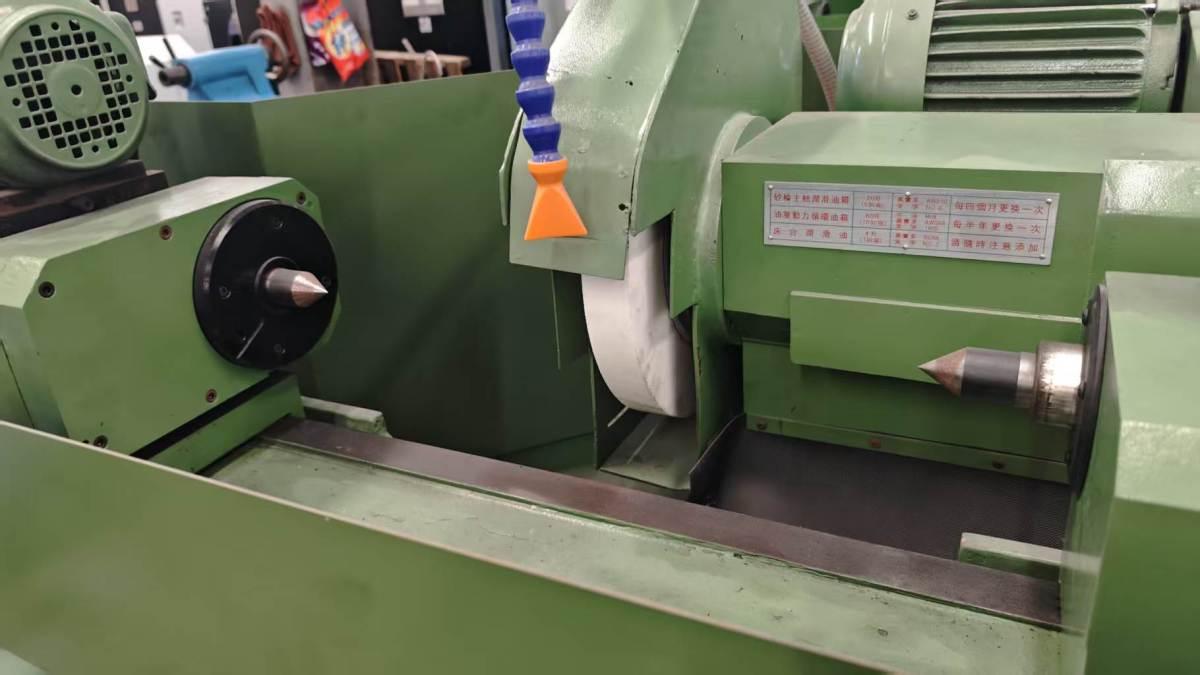

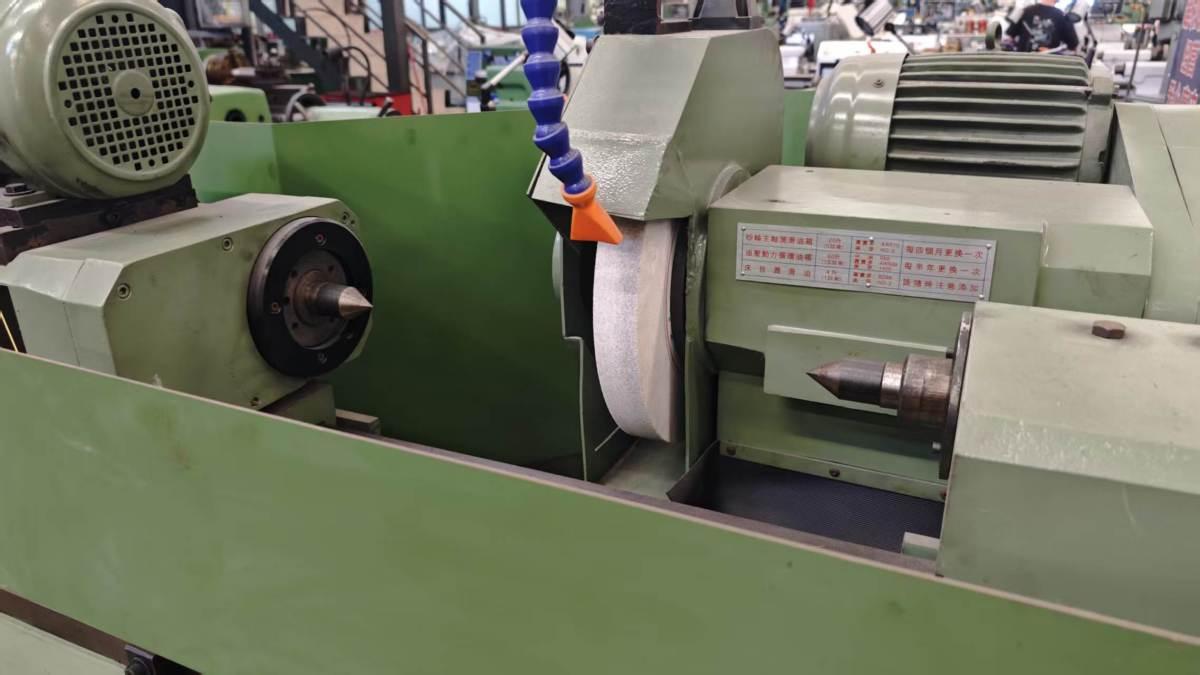

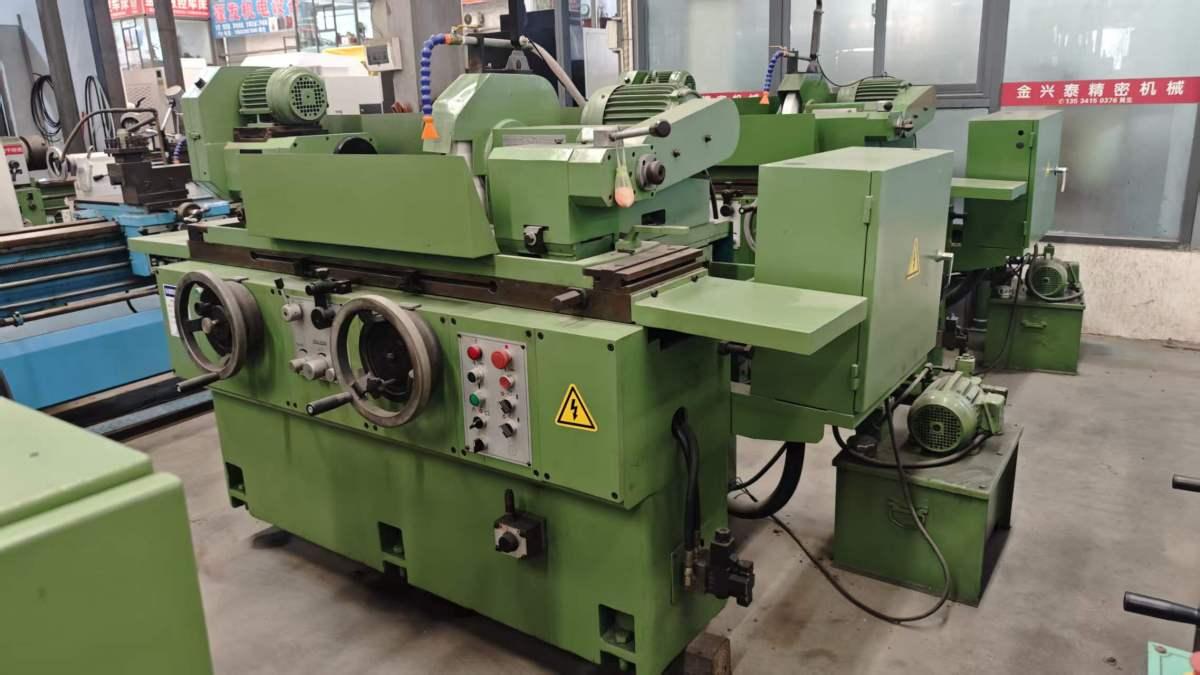

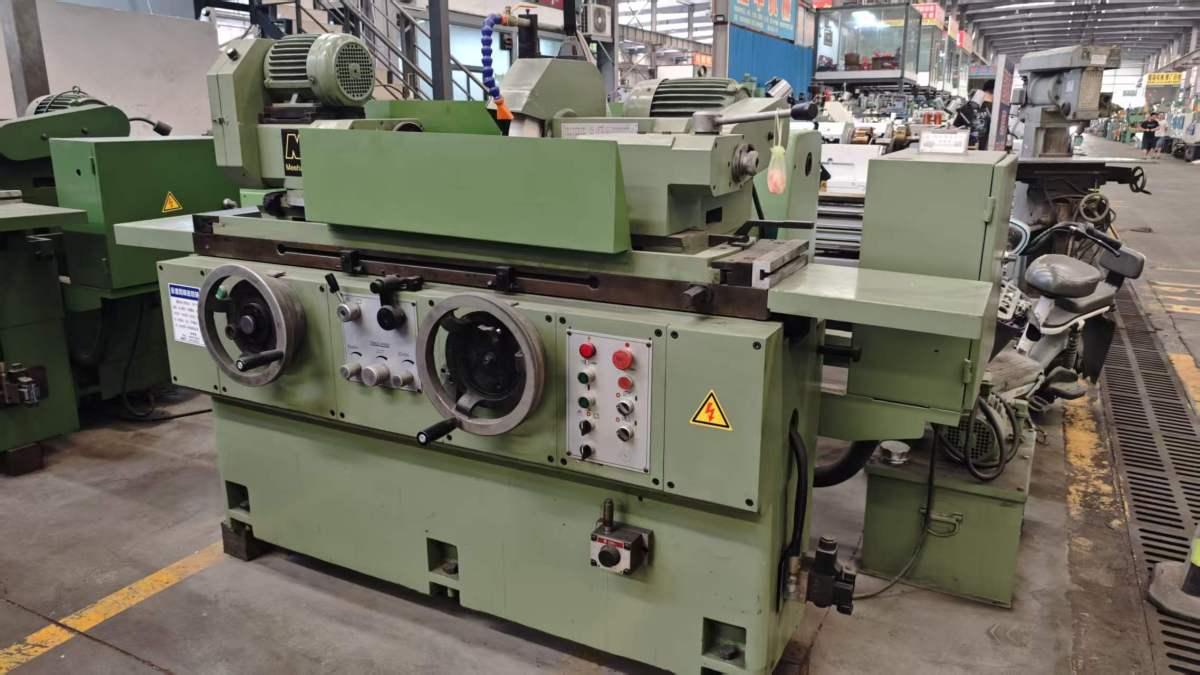

Forever G27 CNC Cylindrical grinder

Machining Capacity
Swing over bed: 270 mm
Distance between centers: 600 mm
Maximum workpiece weight between centers: 60 kg
Maximum workpiece weight on workhead only: 20 kg
Grinding Wheel Head and Feed
Grinding wheel head swivel angle: Left/Right 0°
Standard grinding wheel size: φ405 × 32–50 × φ152.4 mm
Grinding wheel spindle speed: 1650–1850 rpm
Travel distance: 250 mm
Rapid feed travel: Servo driven
Automatic feed: Servo driven
Handwheel feed (MPG): 1μ / 10μ / 100μ
Workhead
Spindle rotation mode: Live Center / Dead Center
Workhead swivel angle: 30°
Grinding wheel side rotation angle: 90°
Spindle speed: 30–450 rpm
Center taper: MT No.4
Spindle through-hole diameter: 25 mm
Tailstock
Quill travel: 32 mm
Center taper: MT No.4
Worktable
Worktable swivel angle:
Workhead side: 4°
Grinding wheel side: 9°
Handwheel feed (MPG): 1μ / 10μ / 100μ
Automatic feed speed: Max. 4000 mm/min
Motor
Grinding wheel spindle motor: 3.7 kW (5 HP × 4P)
Workhead spindle motor: 0.4 kW (1/2 HP × 2P)
Power circulation oil pump: 0.75 kW (1 HP × 4P)
Grinding wheel spindle lubrication pump: 0.1 kW (1/8 HP × 4P)
Coolant pump: 0.2 kW (1/4 HP × 4P)
Tank Capacity
Grinding wheel spindle lubrication oil tank: 30 L
Power circulation oil tank: 60 L
Coolant tank: 80 L
Machine Dimensions and Weight
Overall dimensions (L × W × H): 2700 × 1520 × 1650 mm
Net machine weight: 2200 kg
