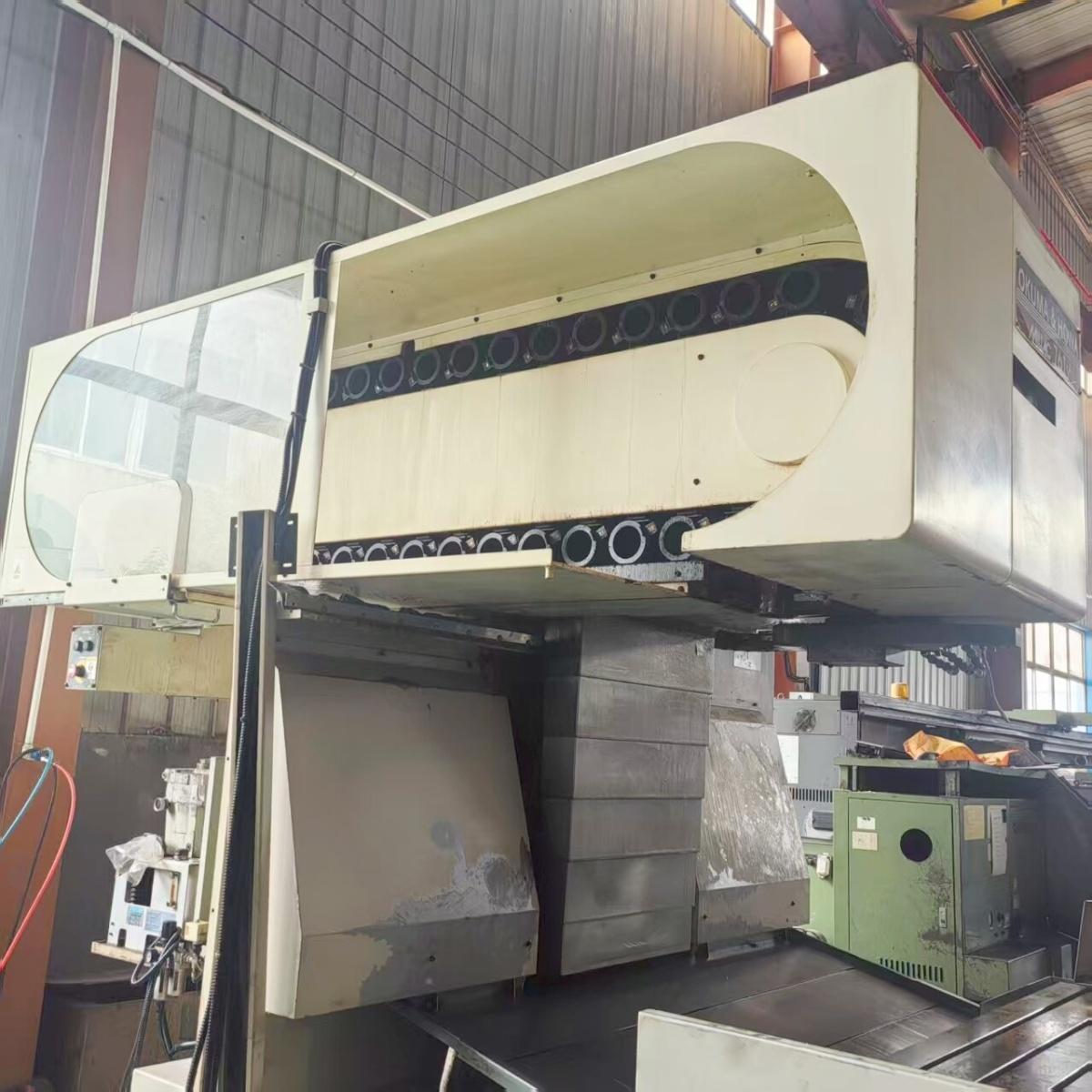

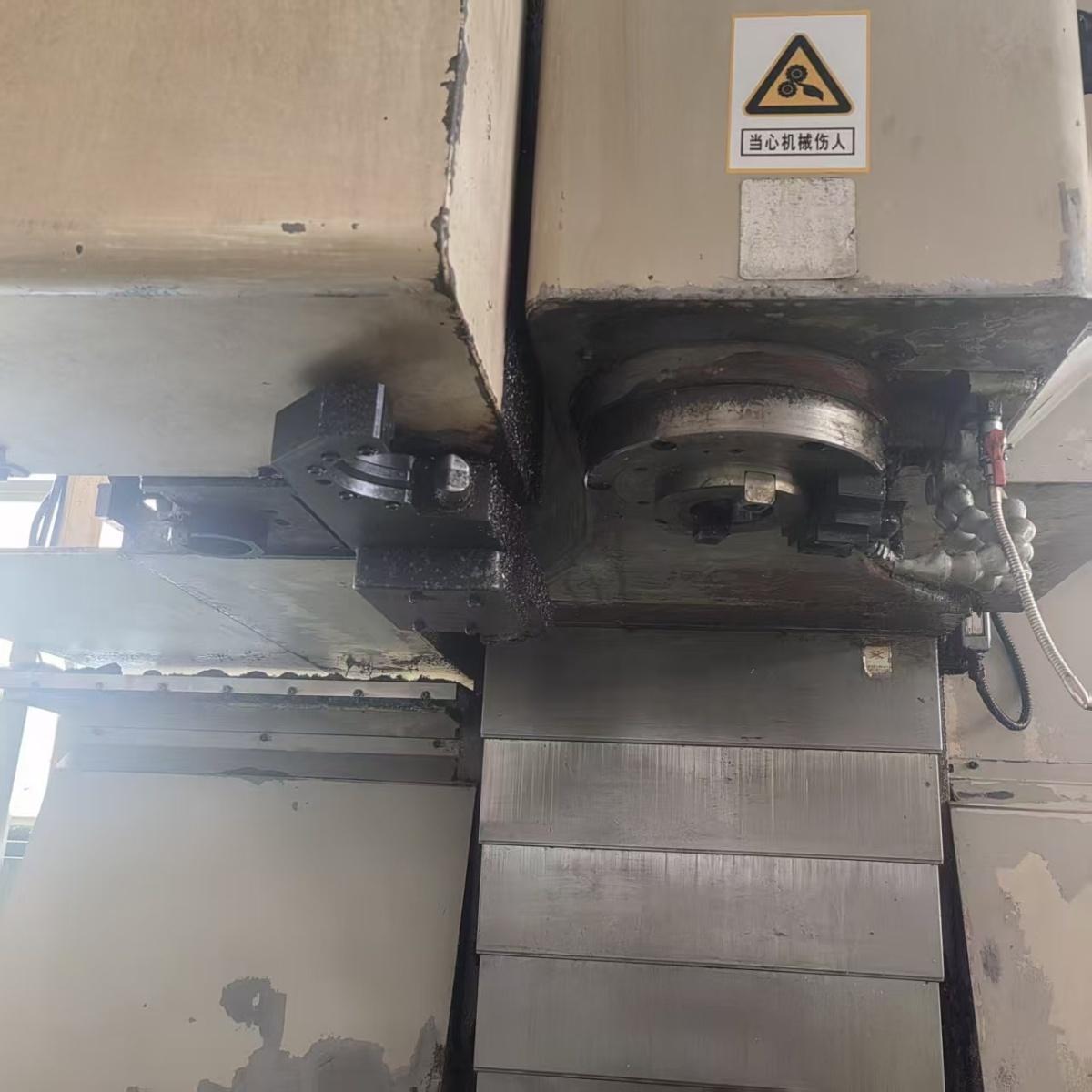

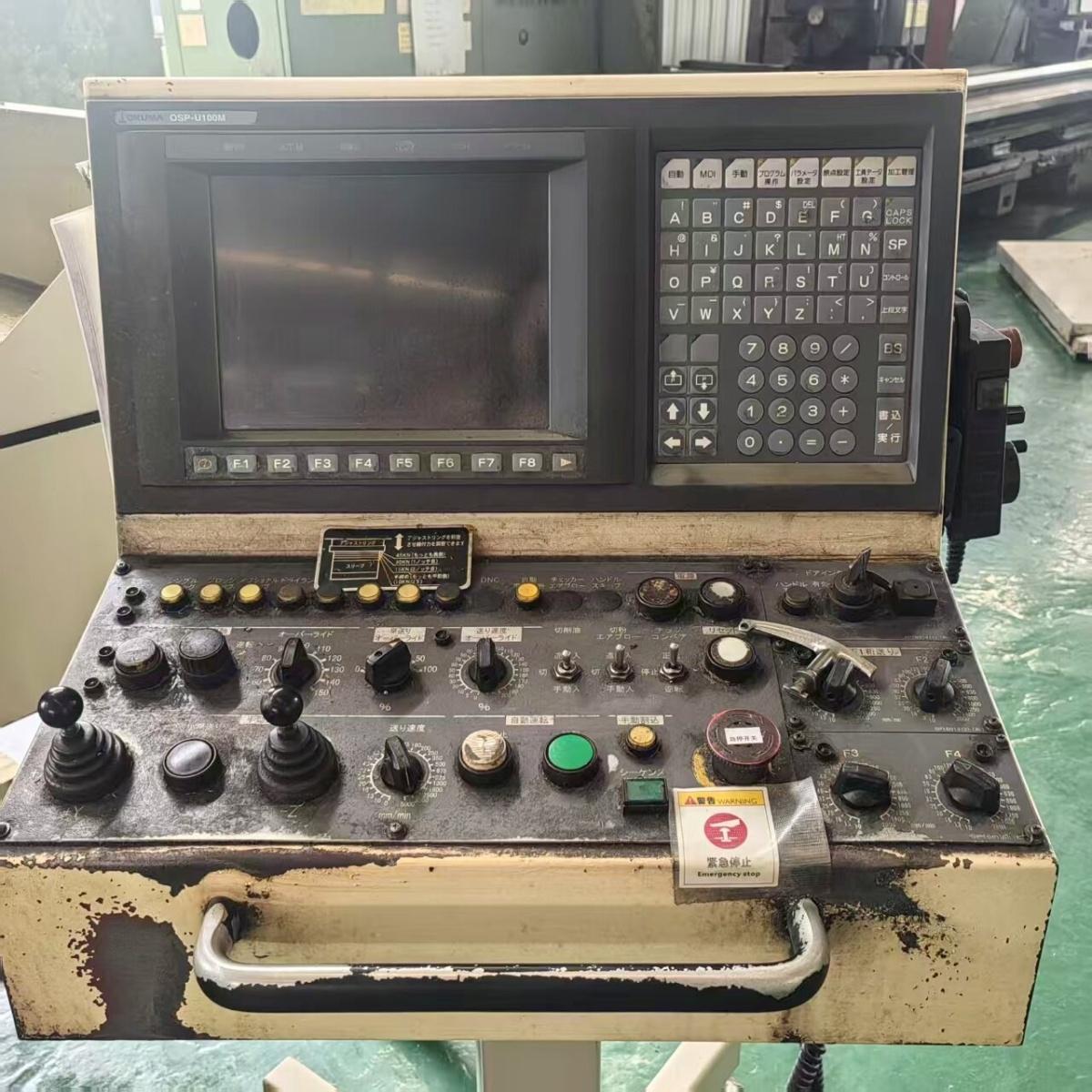

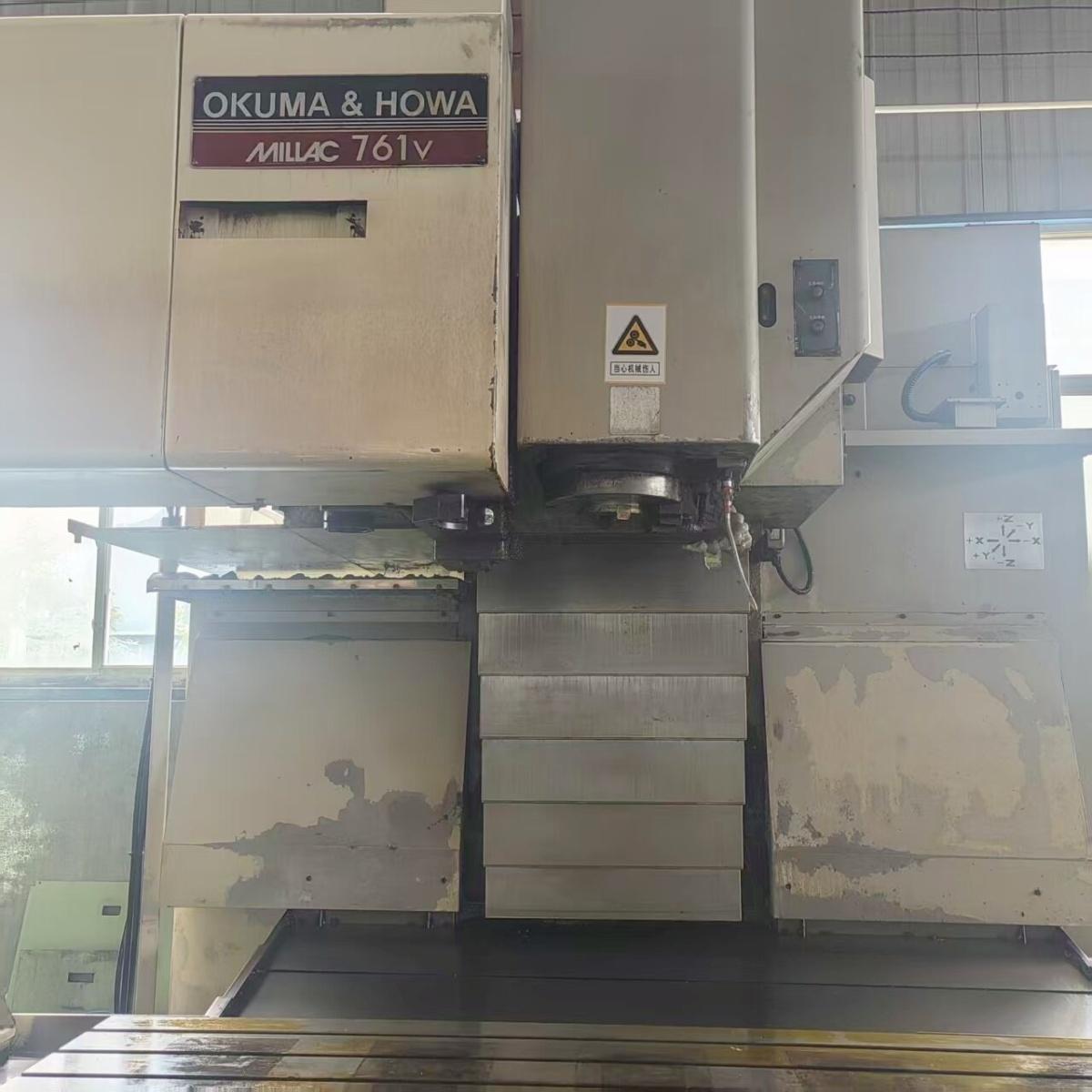

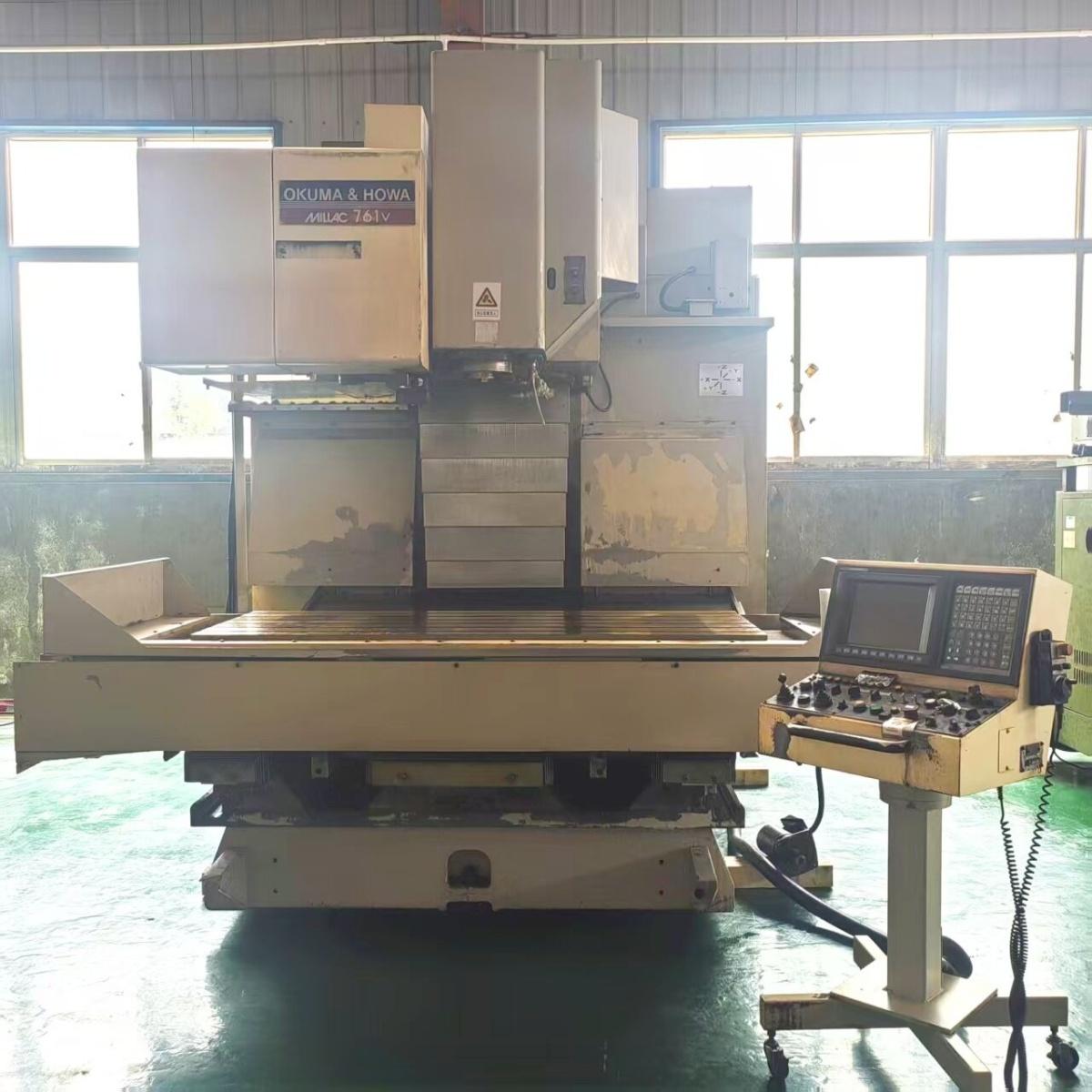

OKUMA & HOWA MILLAC 761V Vertical Machining centre

Worktable size: 1800*720mm
Worktable load: 2000kg
three-axis travel: 1540*760*660mm
From the top of Worktable to the end face of spindle: 200 to 860mm
From the front of the column to the center of spindle: 800mm
Spindle speed: 30 to 6000rpm
spindle motor power: 18.5/15 kW
spindle: BT50
Power supply capacity: 48kVA
Floor space Footage: 4300*4060*3230mm
Mechanical mass: 14,300 kg
