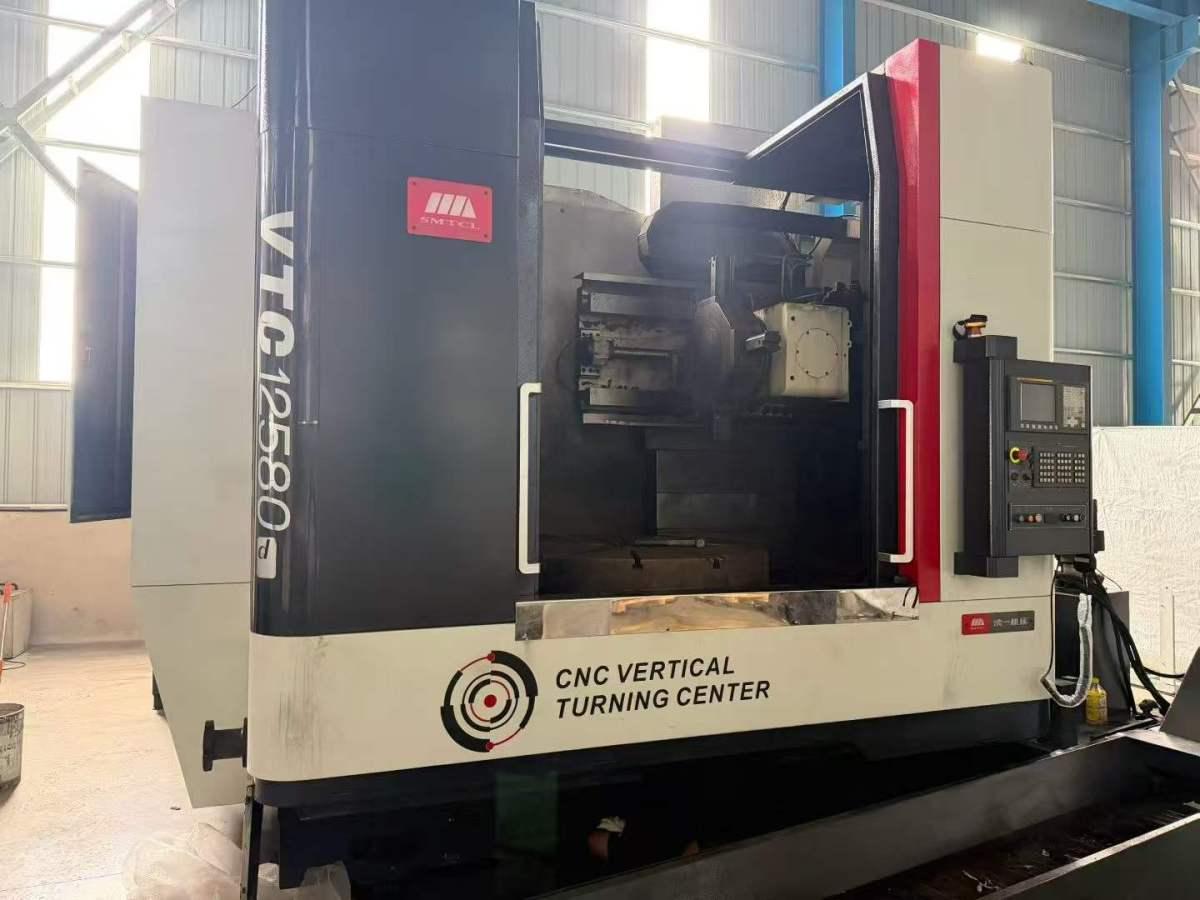

SHENYANG NO.1 VTC12580d CNC vertical lathe

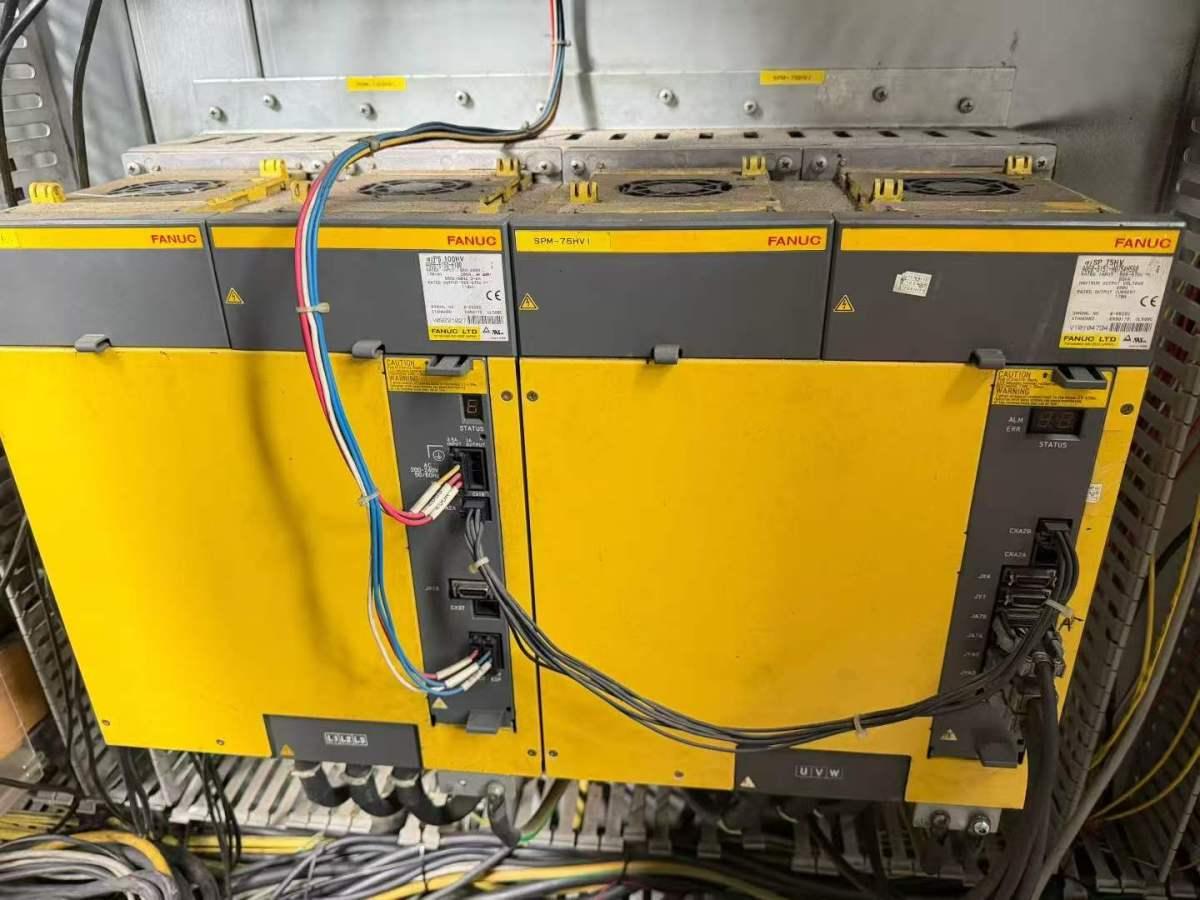

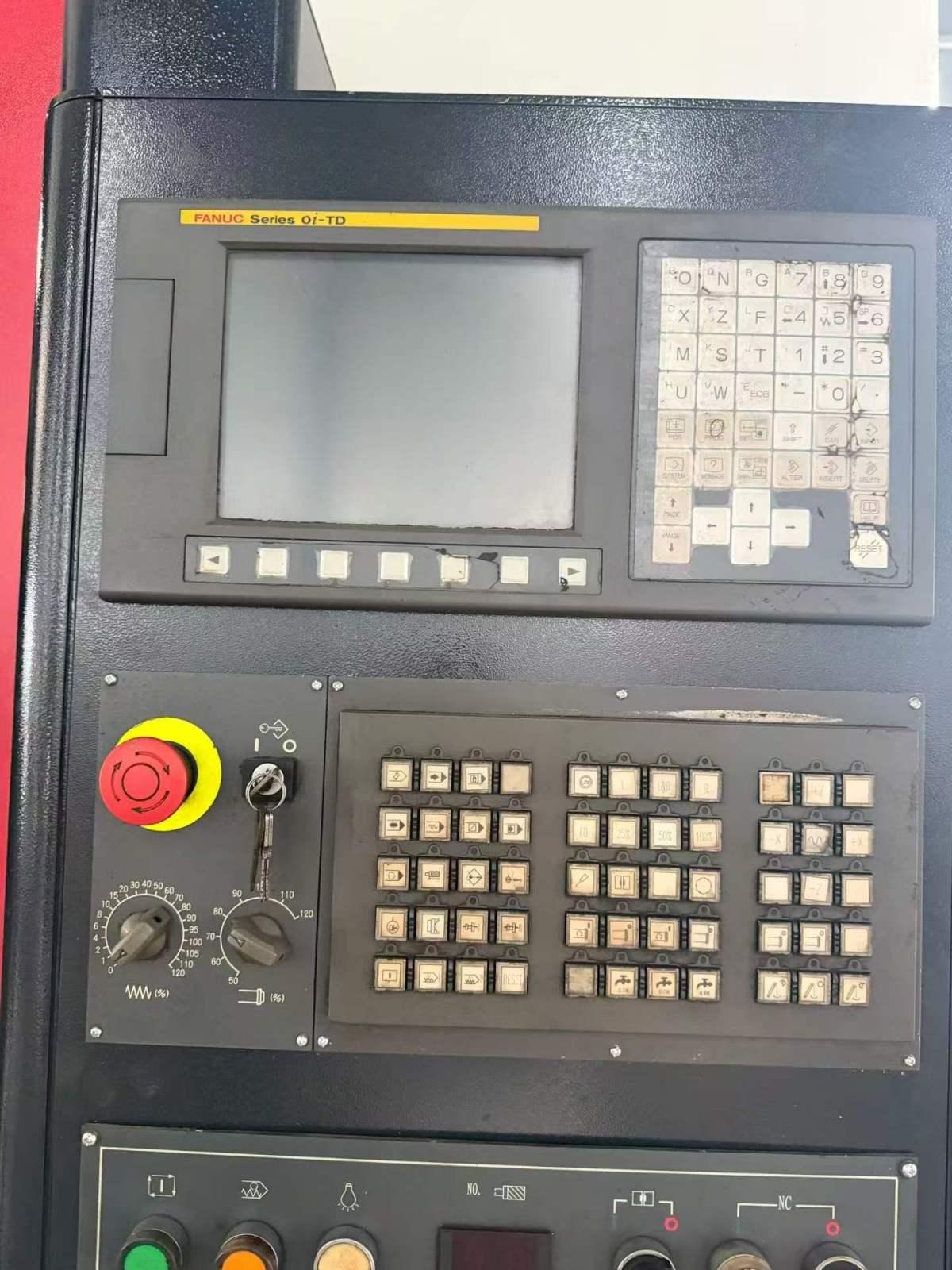

CNC System: FANUC Oi-TD
Worktable diameter: Φ 1250 mm
Maximum Swing diameter: Φ 1600 mm
Maximum machining diameter: Φ 1250 mm
Maximum machining height: 800 mm
Maximum Worktable load: 5000 kg
X-axis travel: 800 mm
Z-axis travel: 800 mm
X-axis travel Fast moving rate: 12 m/min
Z-axis travel Fast moving rate: 12 m/min
X-axis Positioning accuracy: ± 0.012 mm
Z-axis Positioning accuracy: ± 0.015 mm
RePositioning accuracy: ± 0.006 mm

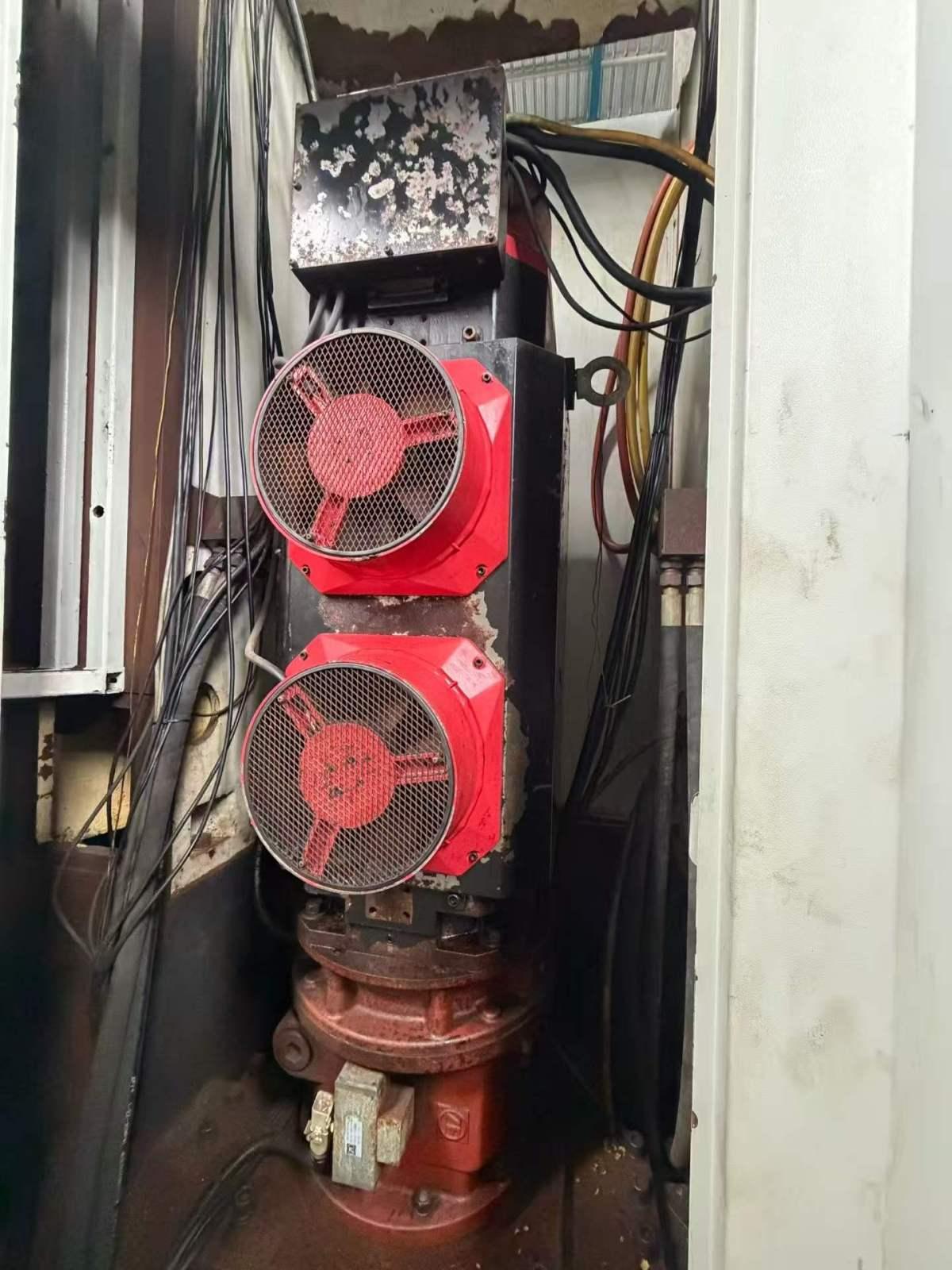

Spindle motor power: 41 kW
Worktable speed: 0-300 r/min, Stepless

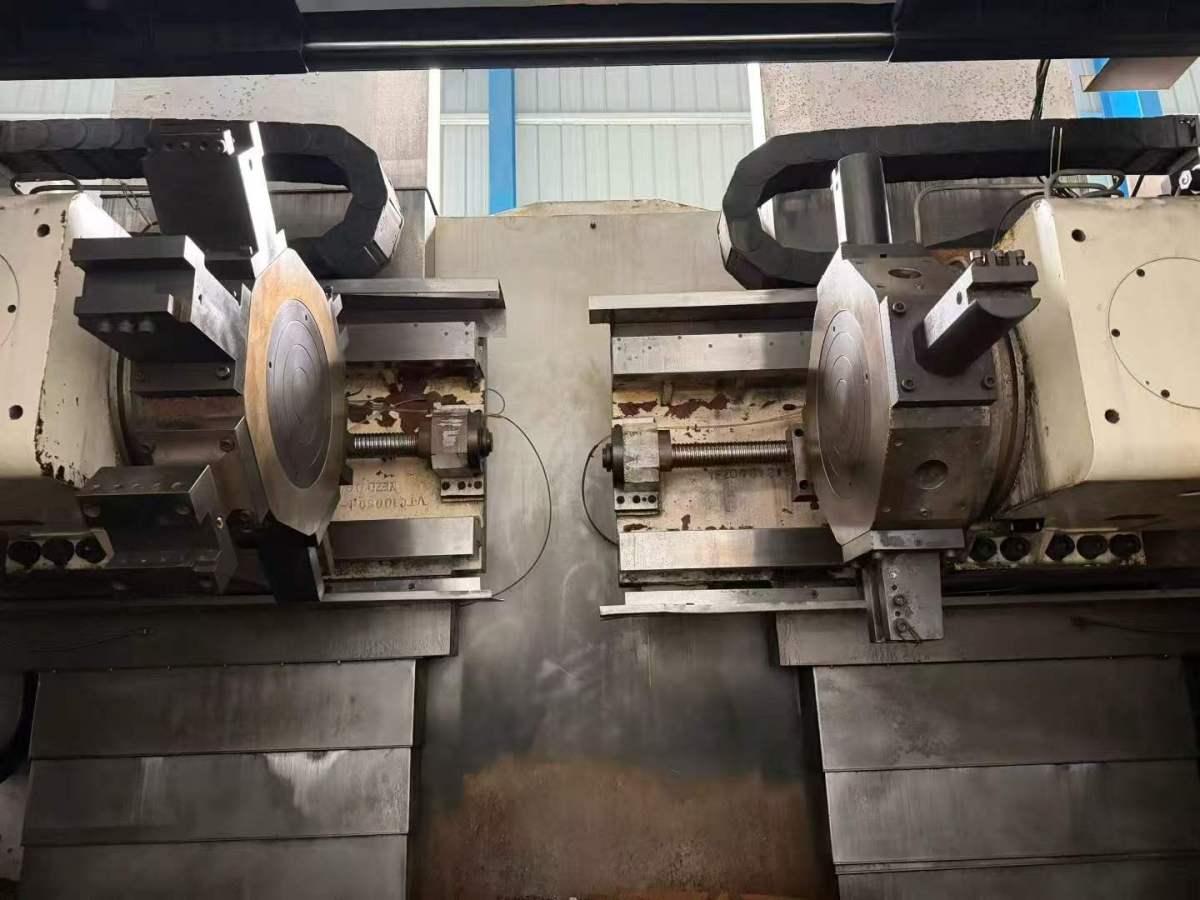

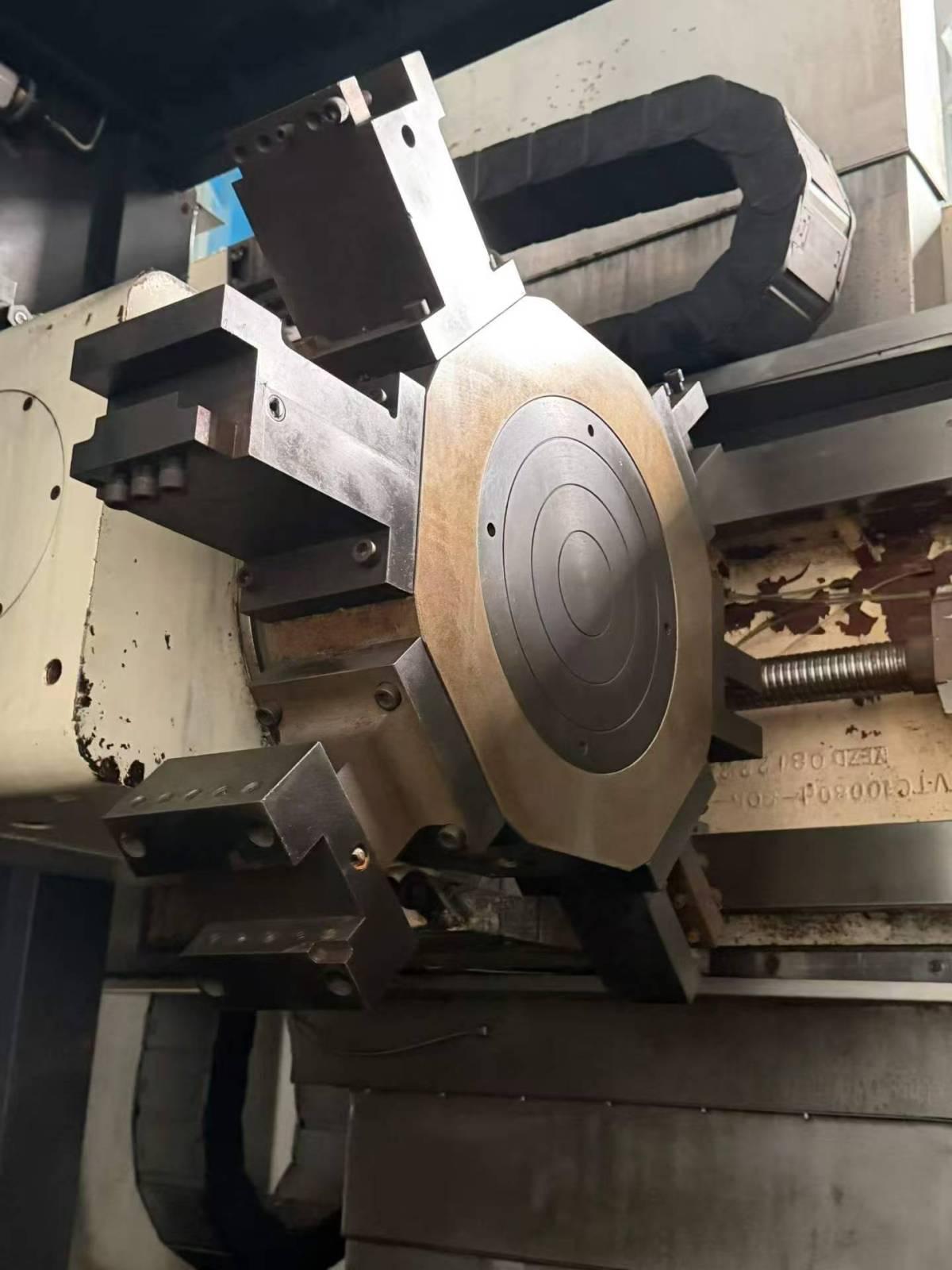

Tool holder: Twin-tool holder structure, with 8-position electric tool Turrets on each side, totaling 16 tool positions
