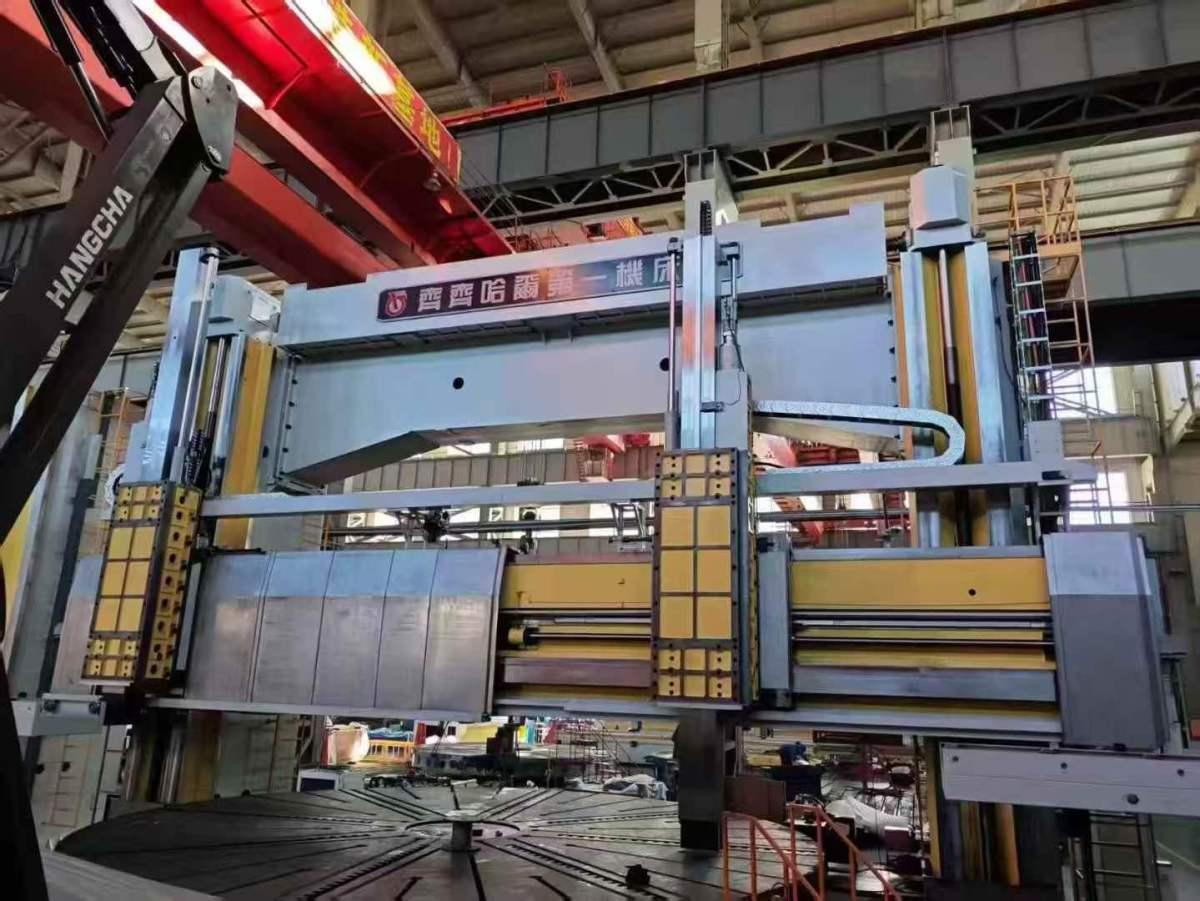

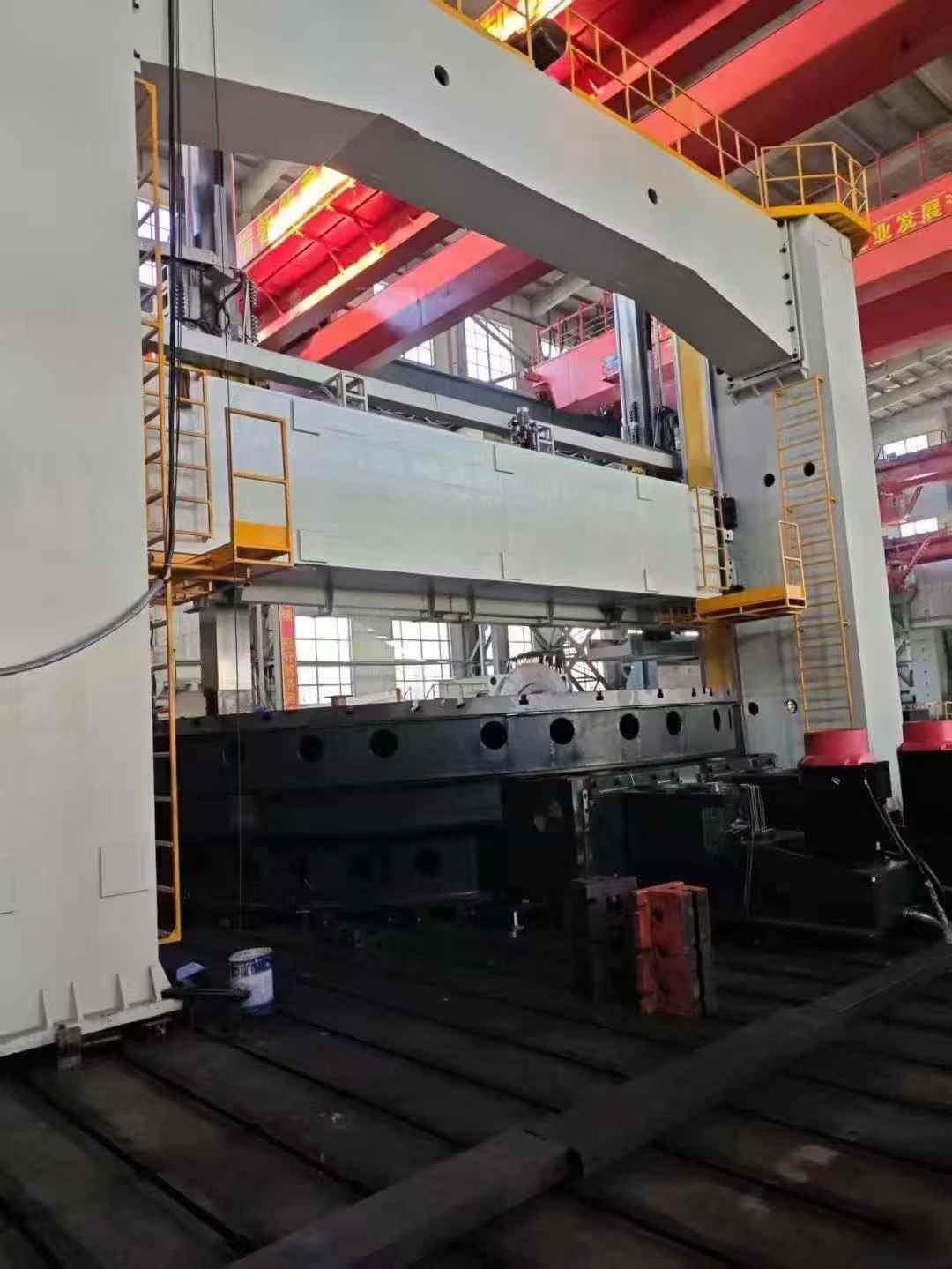

Qizhong DVT M1300×60300L-NC Vertical lathe

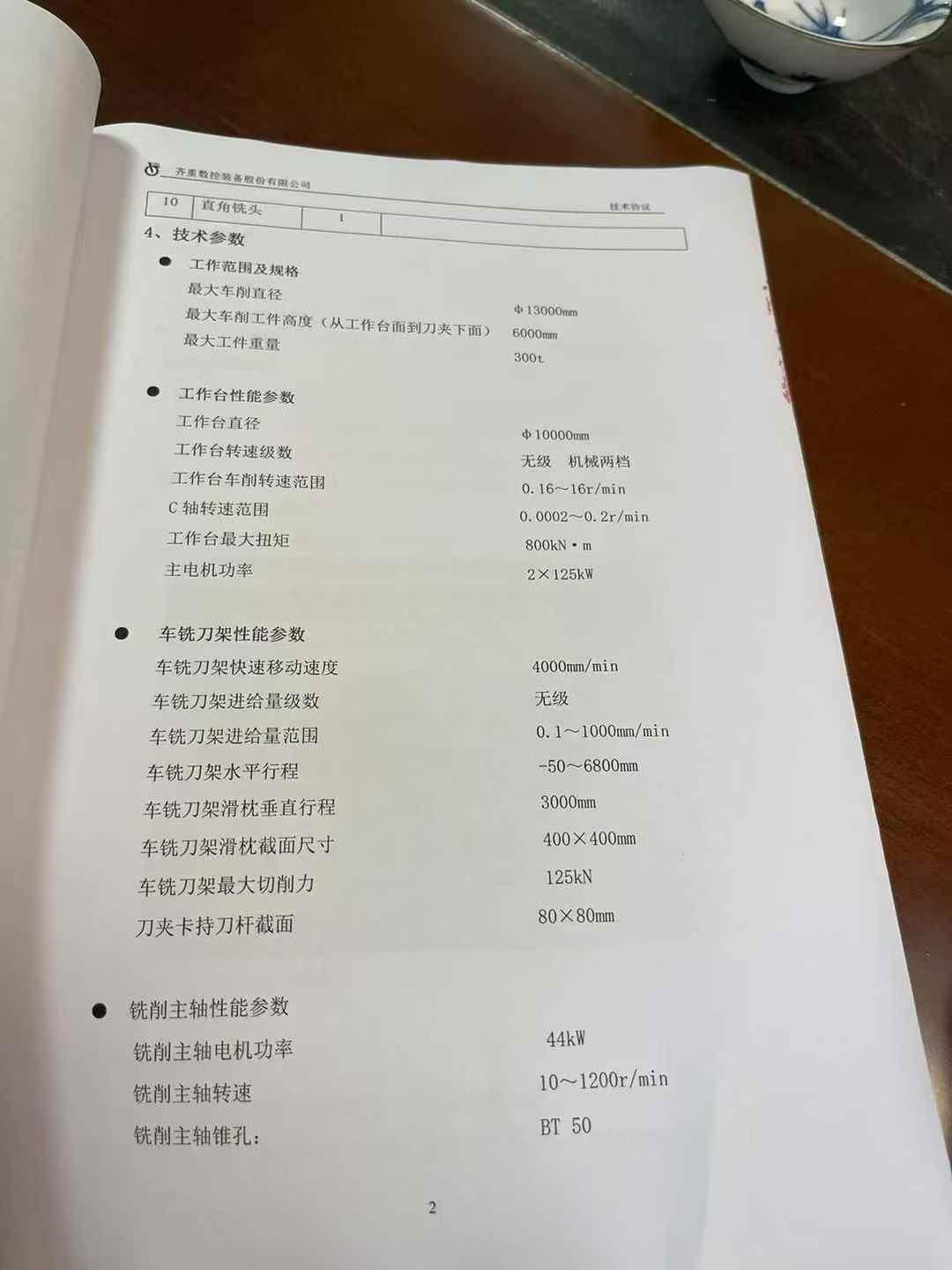

Maximum Machining diameter: 13,000 mm
Maximum workpiece weight: 300 tons
Maximum workpiece height (from table surface to underside of tool holder): 6,000 mm
Worktable diameter: 10,000 mm
Worktable speed mode: stepless + two mechanical gears
Worktable speed range: 0.16 – 16 r/min
C-axis speed range: 0.0002 – 0.2 r/min
Maximum worktable torque: 800 kN·m
Main motor power: 2 × 125 kW
Feed System
Rapid traverse speed: 4,000 mm/min
Feed mode: stepless speed regulation
Feed range: 0.1 – 1,000 mm/min
Horizontal travel: 3,000 mm
Vertical travel: 3,000 mm
Tool Slide (Ram)
Ram cross-section: 400 × 400 mm
Maximum cutting force: 125 kN
Tool holder cross-section: 80 × 80 mm
Spindle motor power: 44 kW
Spindle speed range: 10 – 1,200 r/min
Spindle taper: BT50
