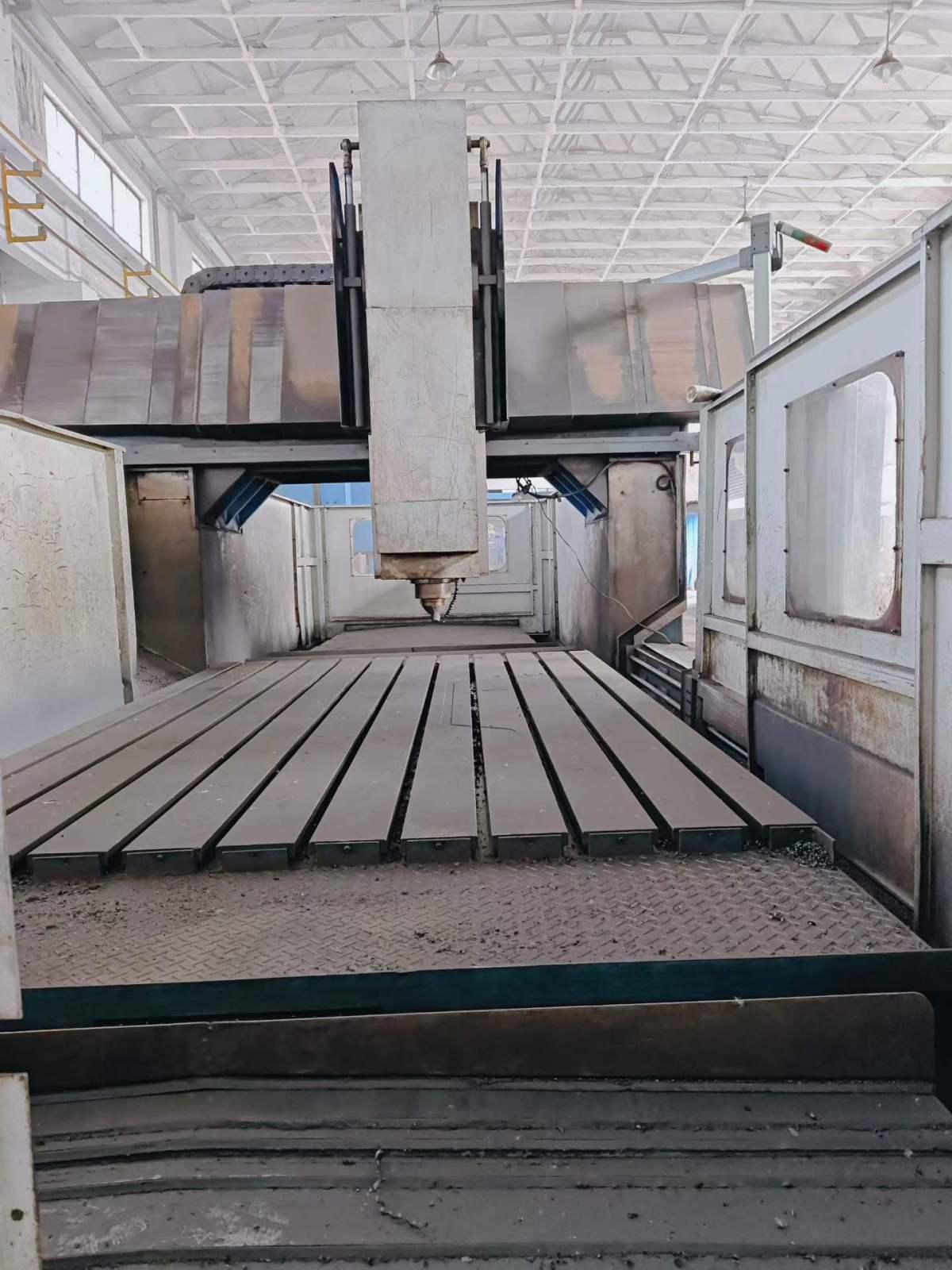

Wintec DMV-3200 Gantry machining centre

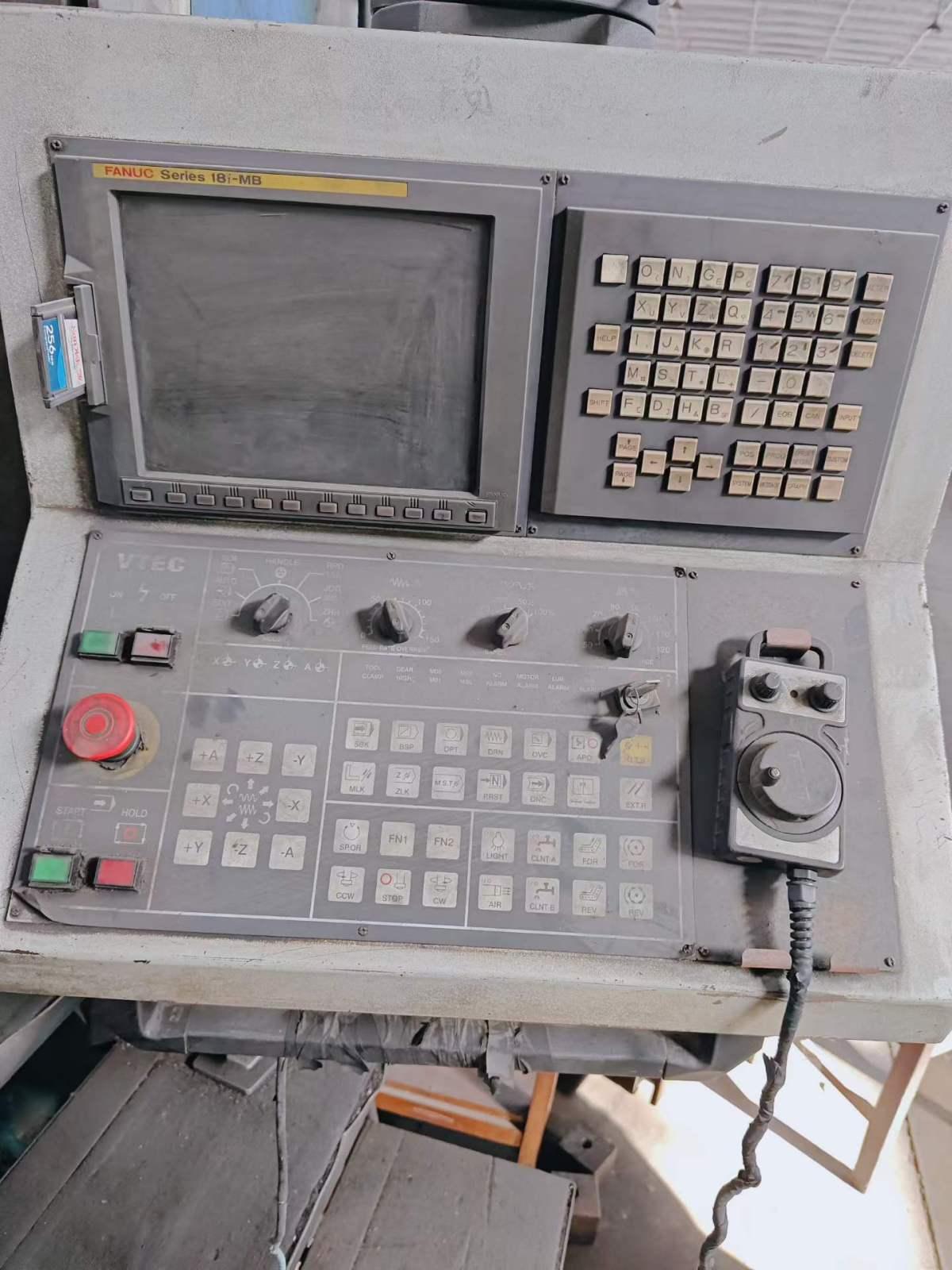

CNC System: FANUC 18i-MB
Three-axis travel (X/Y/Z): 3200 × 2700 × 900 mm

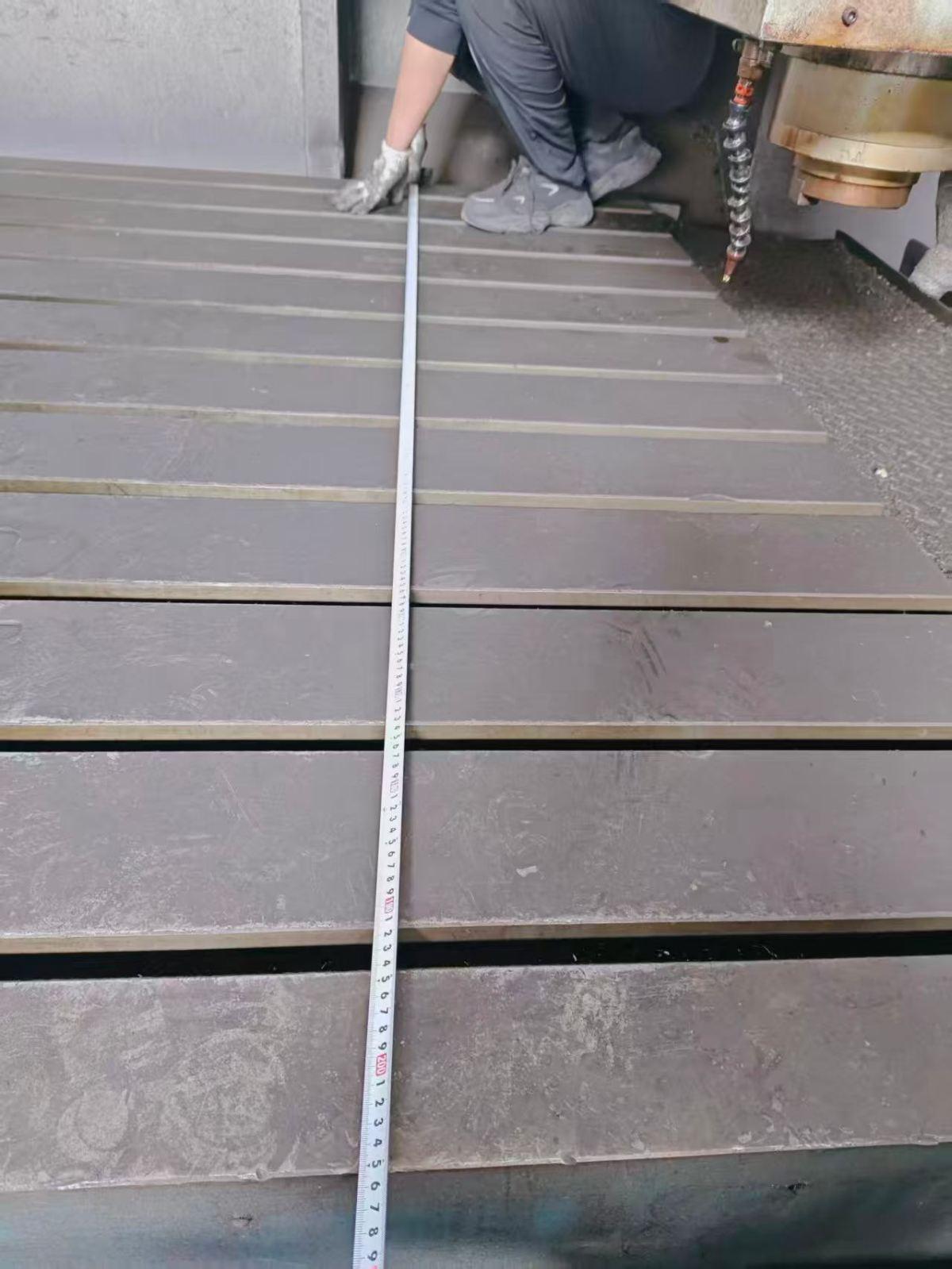

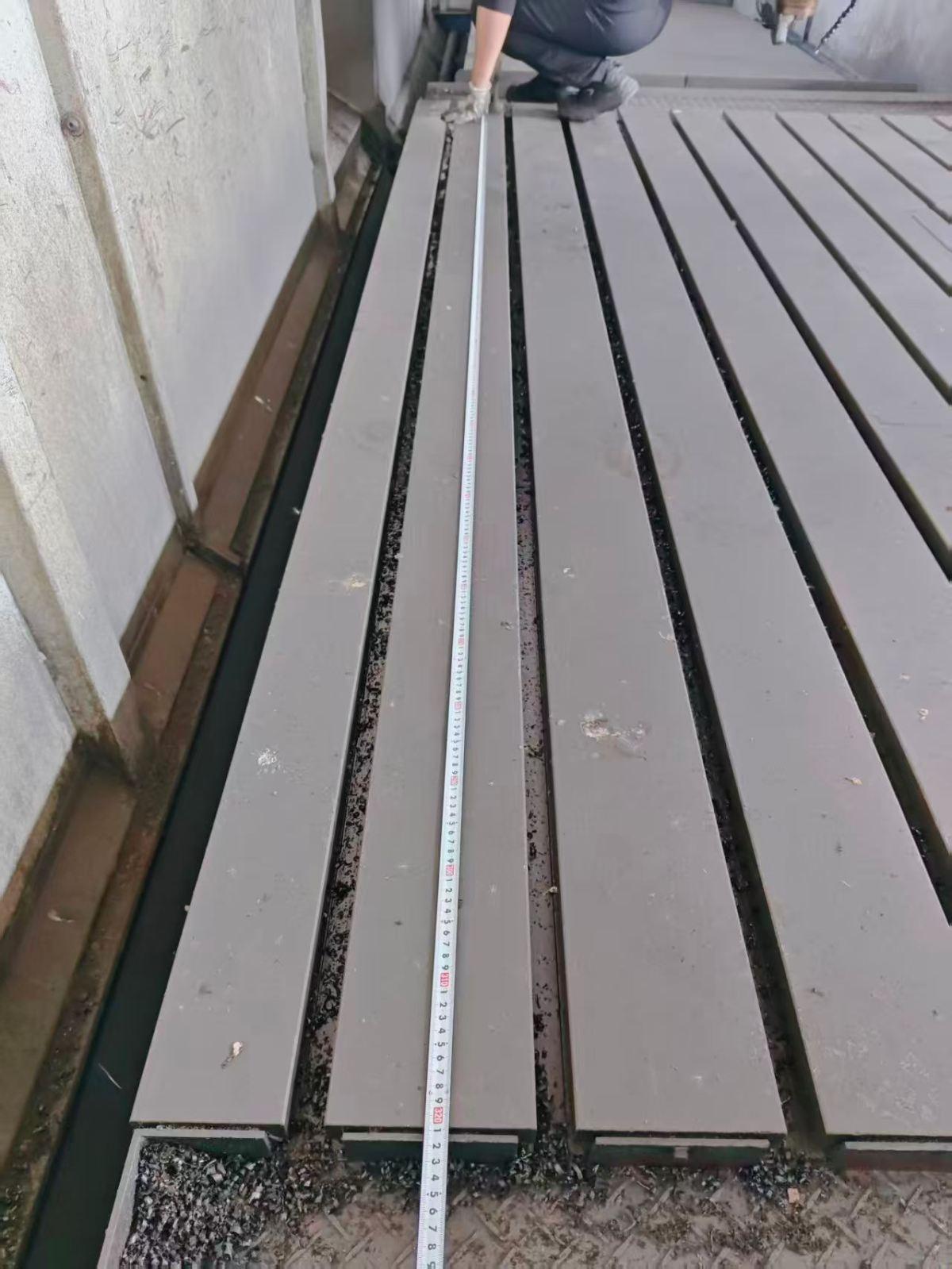

Worktable size: 3200 × 2100 mm
Maximum worktable load: 12,000 kg
Spindle type: BT50 gear-driven spindle
Spindle speed: 10–6000 rpm (two-speed stepless speed change)
Spindle power: 22/26 kW (continuous/30 min)

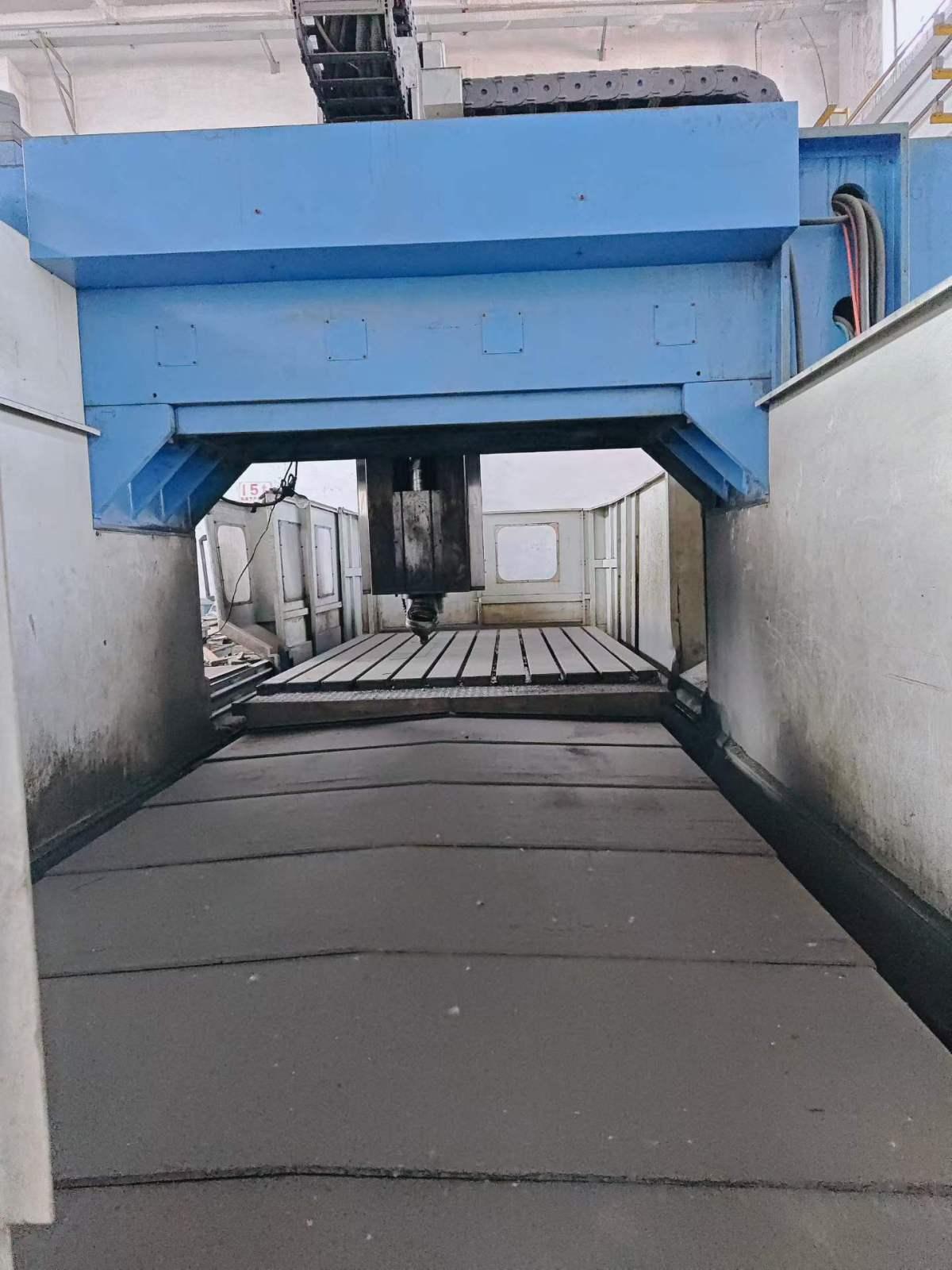

Gantry height: 1100 mm
Gantry width: 2400 mm
Configuration:
Angle milling head
