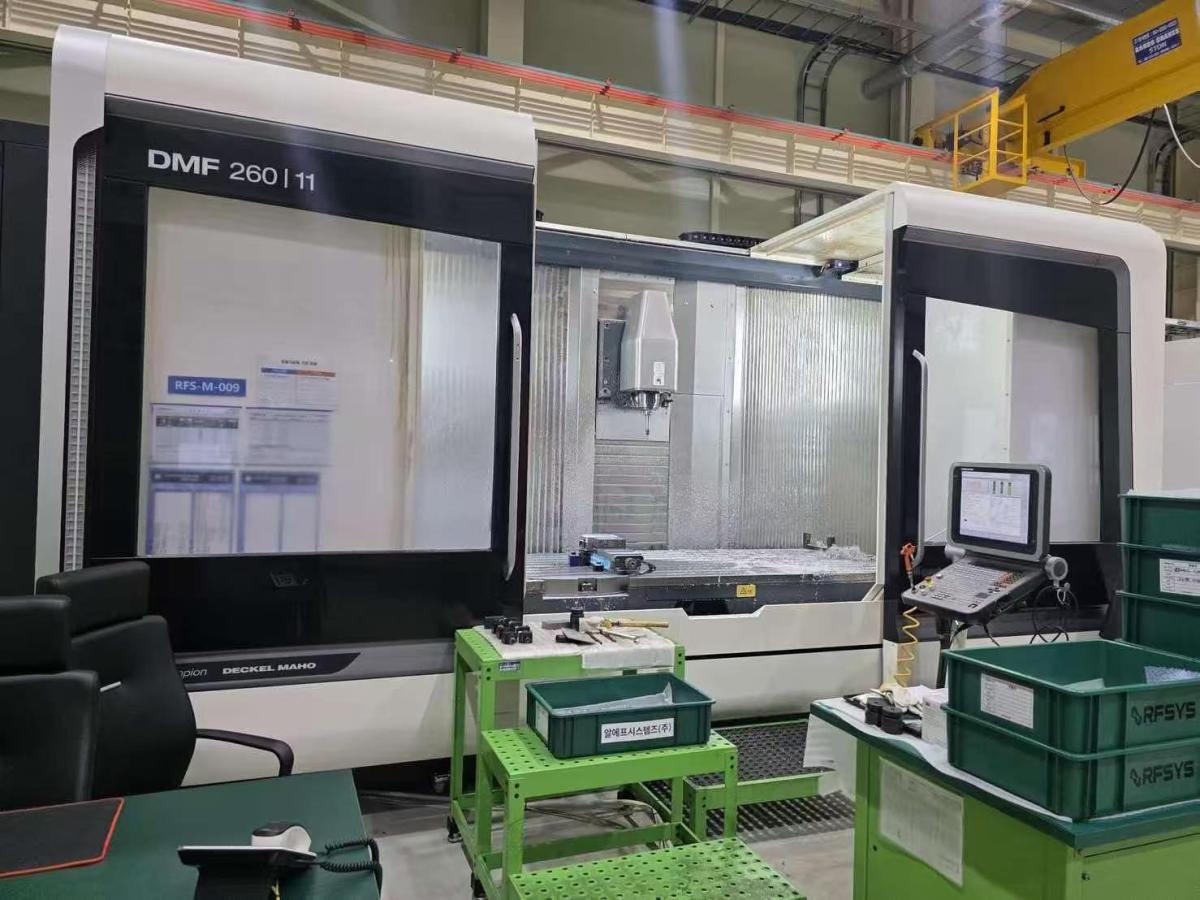

DMG MORI DMF 260-11 5 axis machining centre

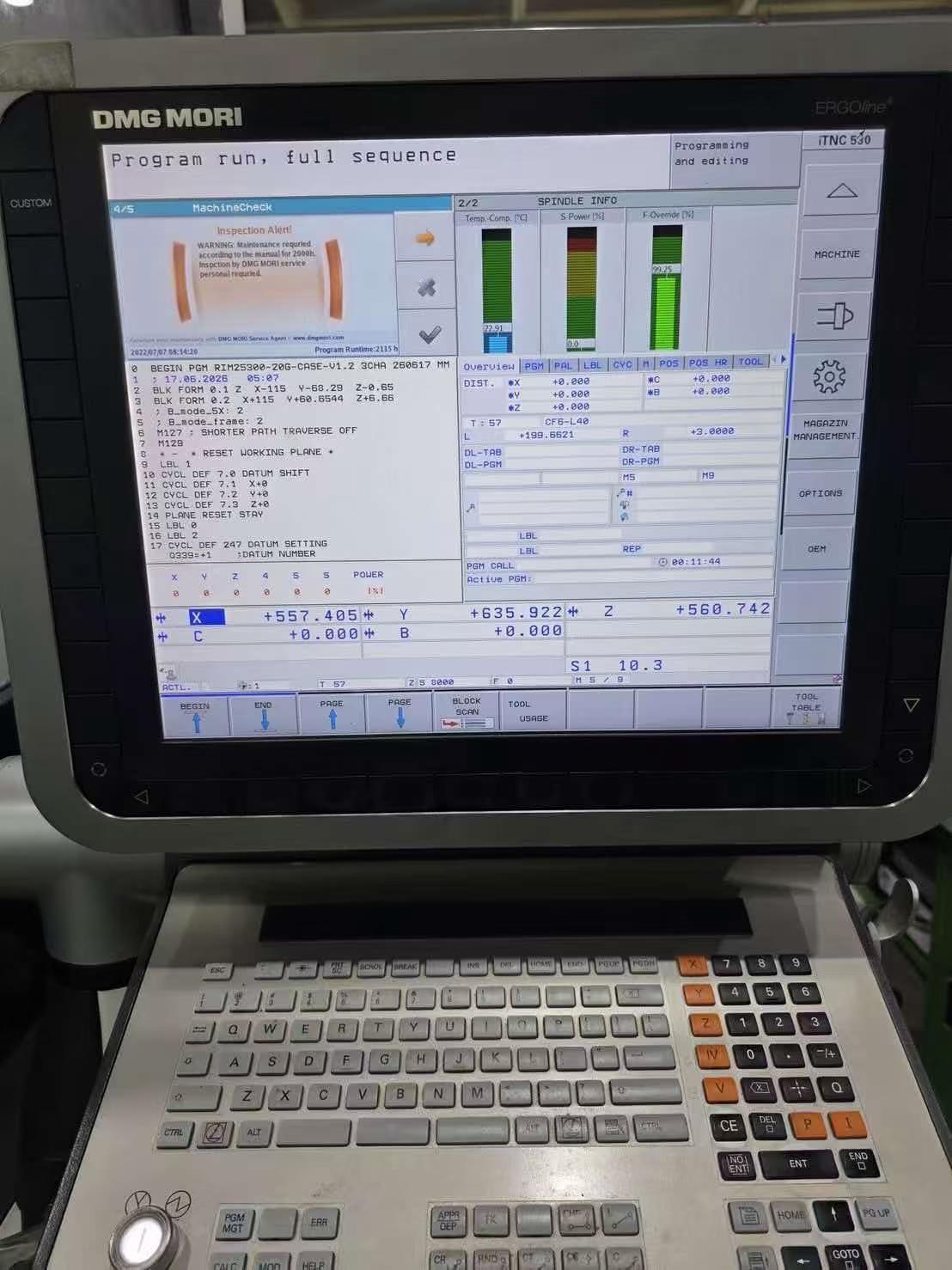

CNC System: Siemens 840D sl + CELOS 19-inch operation screen

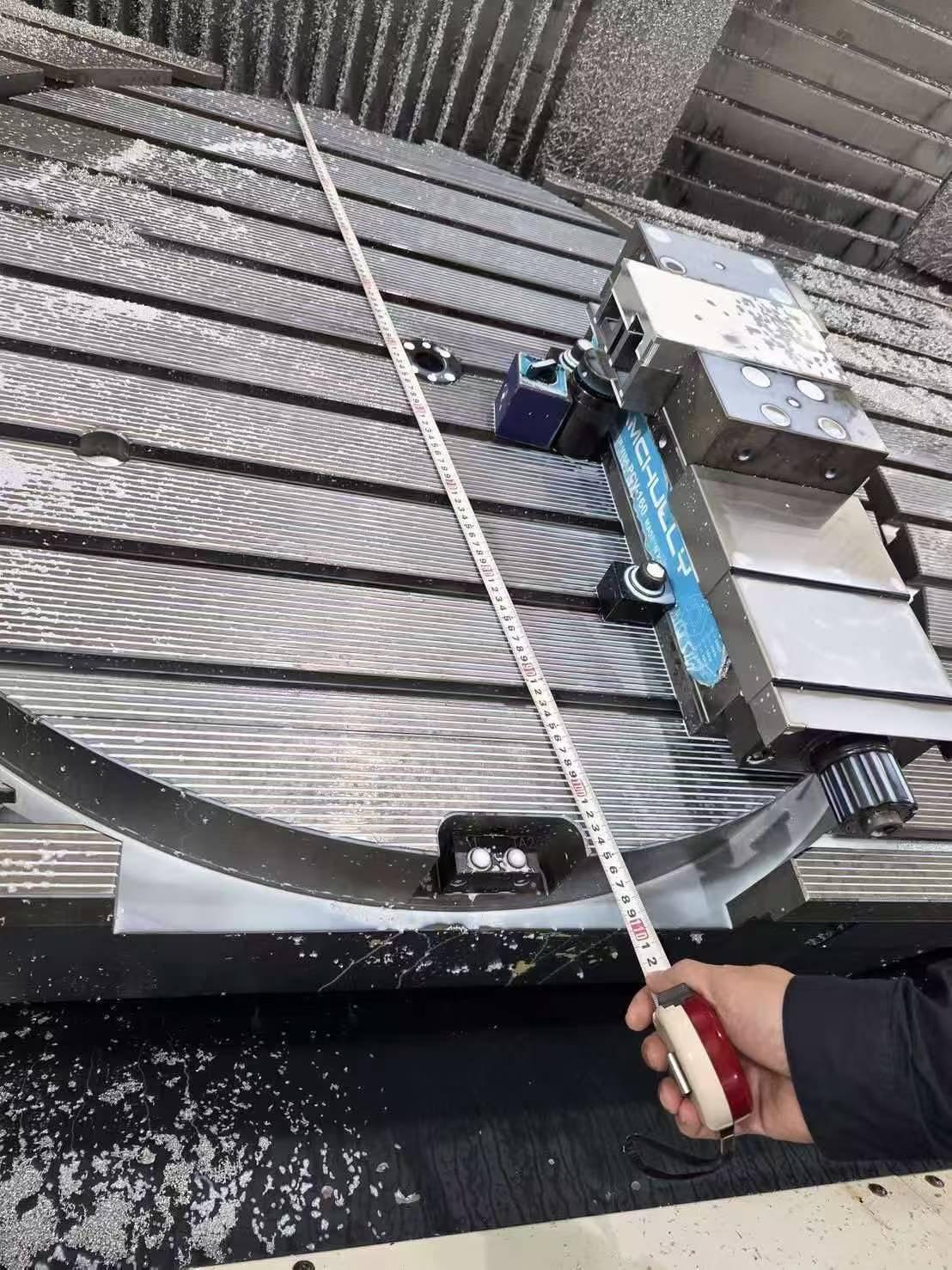

Worktable size: 3200 × 1100 mm
Three-axis travel (X/Y/Z): 2600 × 1100 × 900 mm
B-axis swing range: -100° to +100°
C-axis rotation range: 360° (Built-in C-axis rotary worktable)

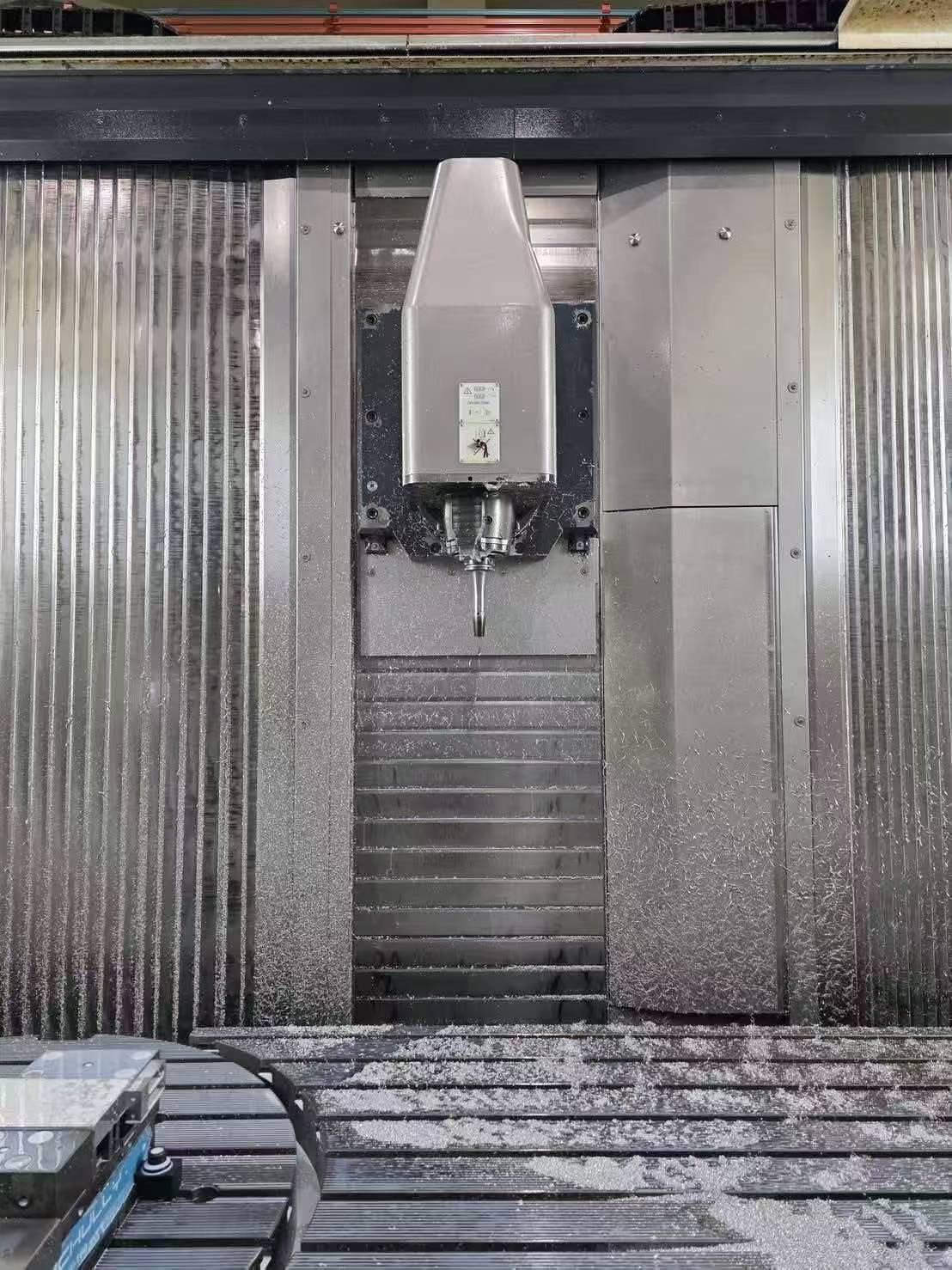

Spindle taper: HSK-A63
Maximum spindle speed: 18,000 rpm
Tools magazine capacity: 60
Machine weight: 27.75 tons
5-axis configuration:
X/Y/Z/B/C 5-axis simultaneous machining
Built-in C-axis rotary worktable
Configuration:
All axes are equipped with Heidenhain enclosed linear scales as standard
Full closed-loop CNC control system
70-bar through-spindle coolant system
Chip conveyor
Oil-water separator
Fully automatic constant temperature lubrication system
