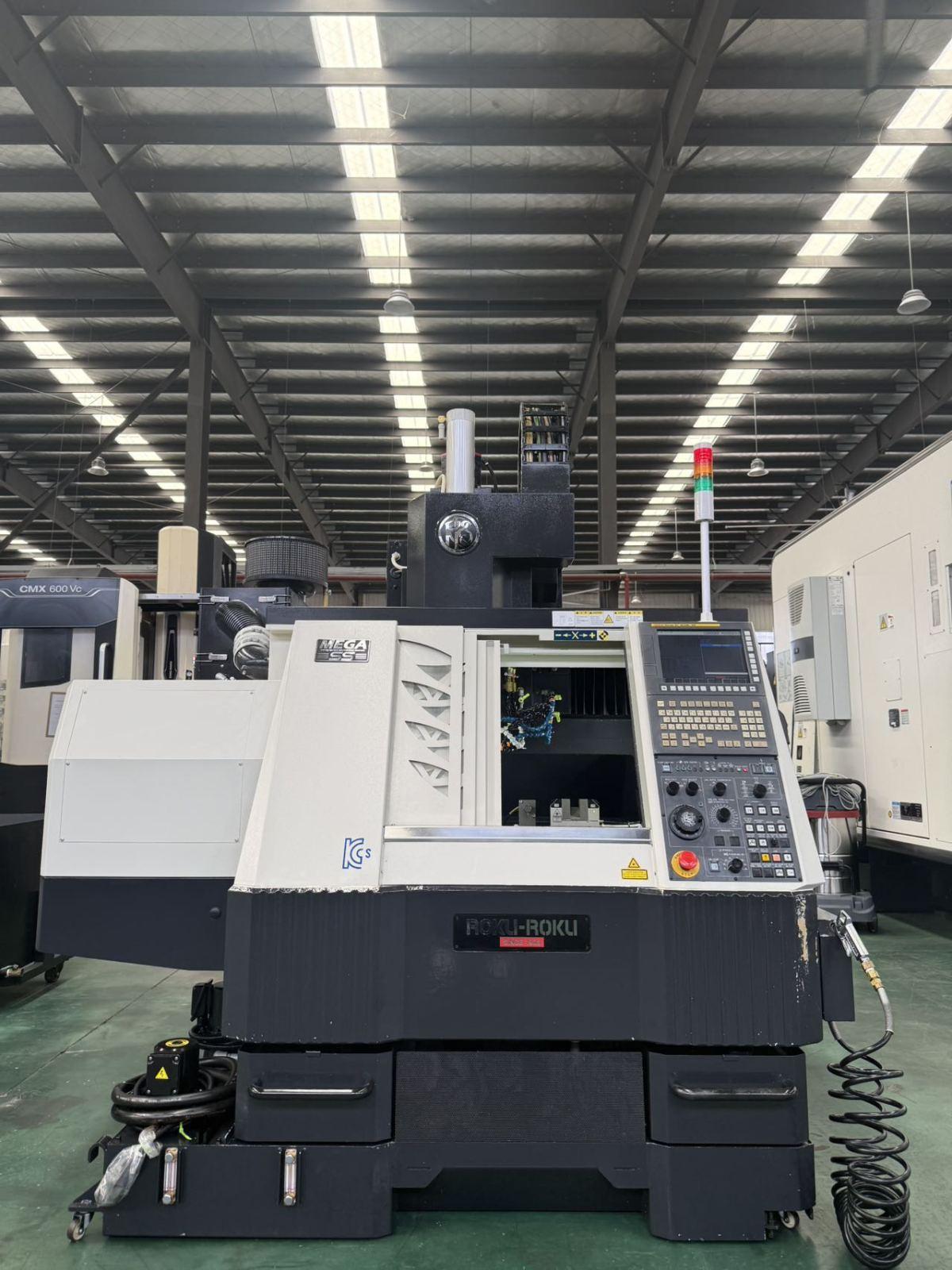

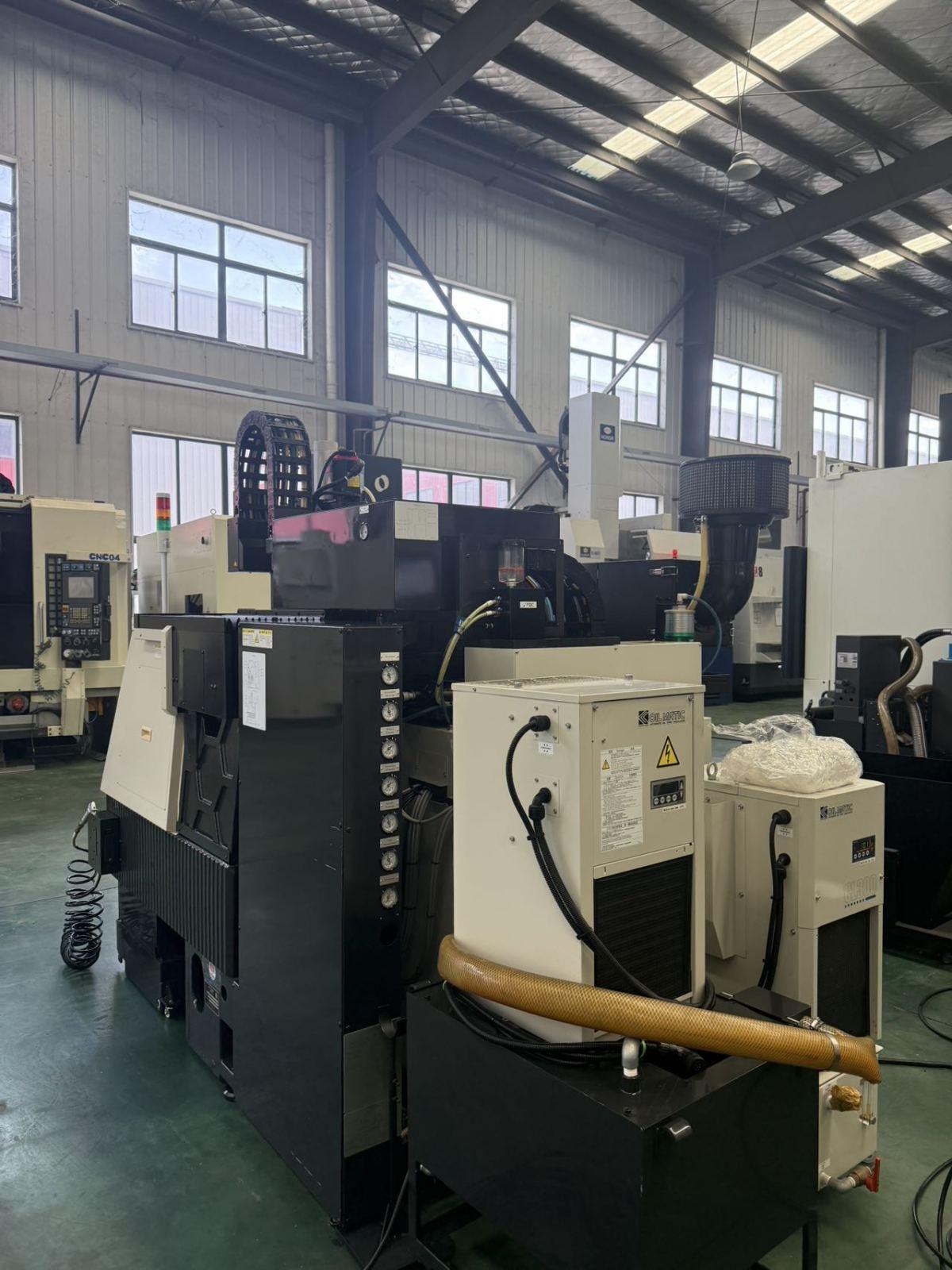

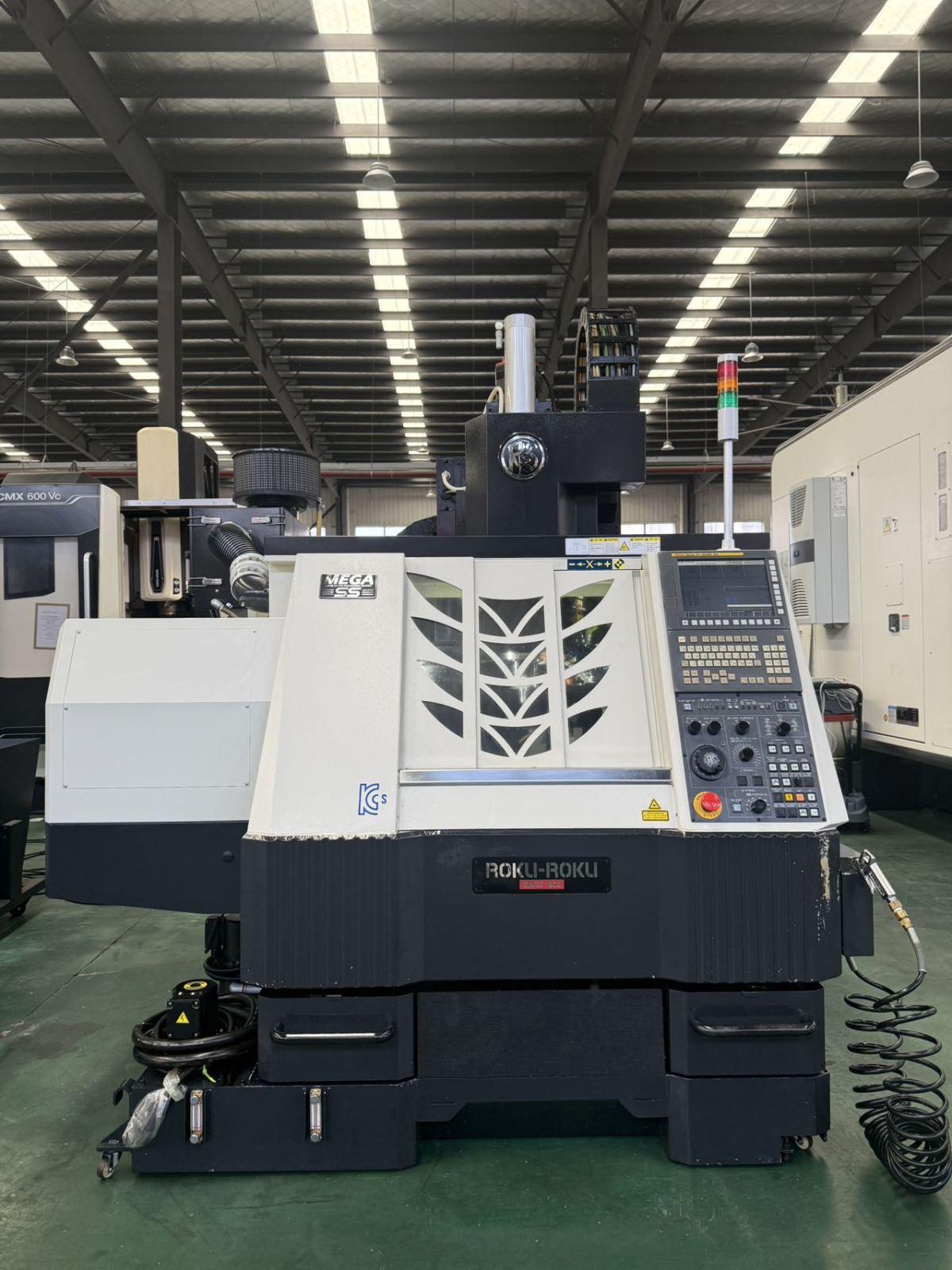

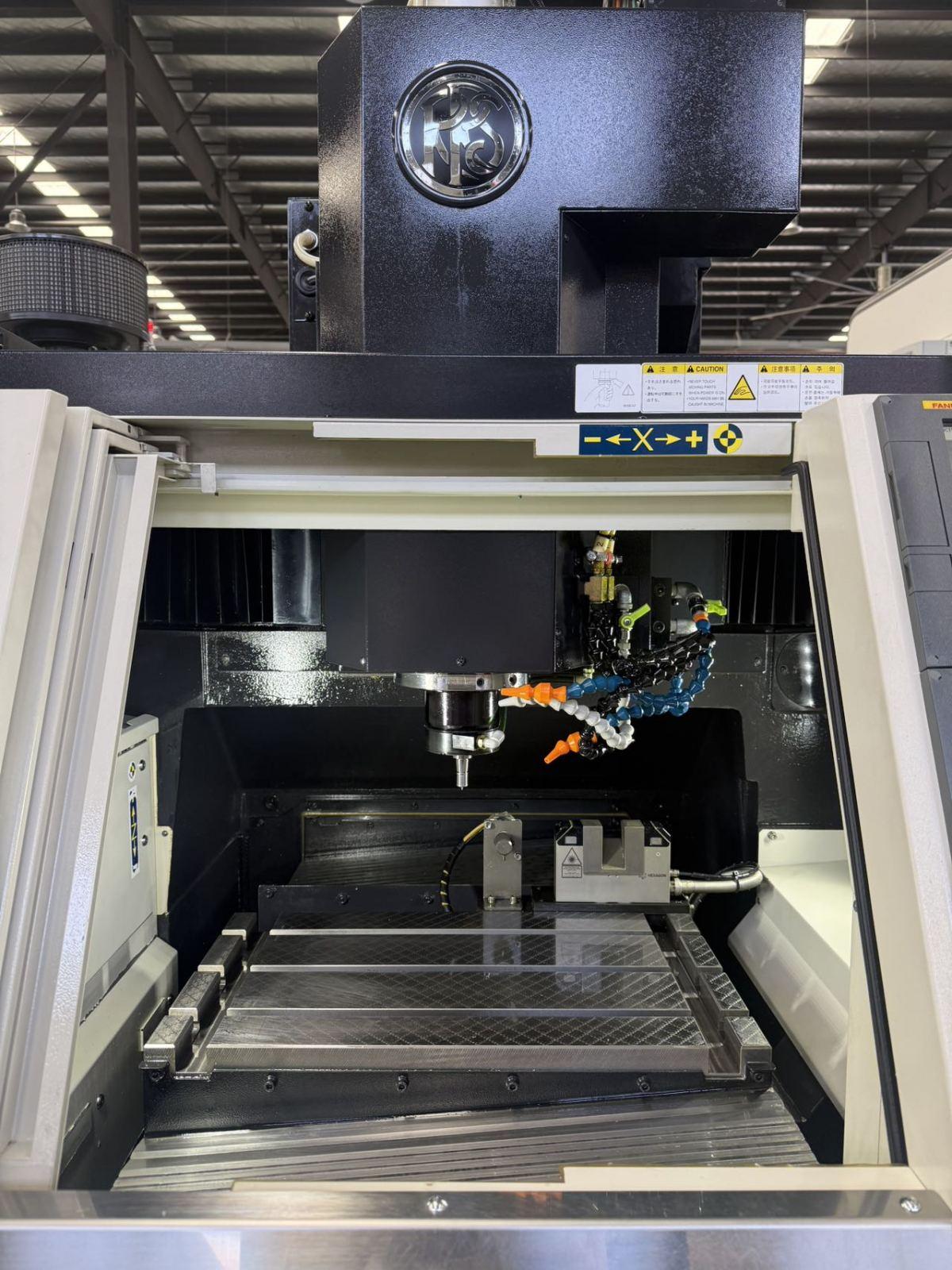

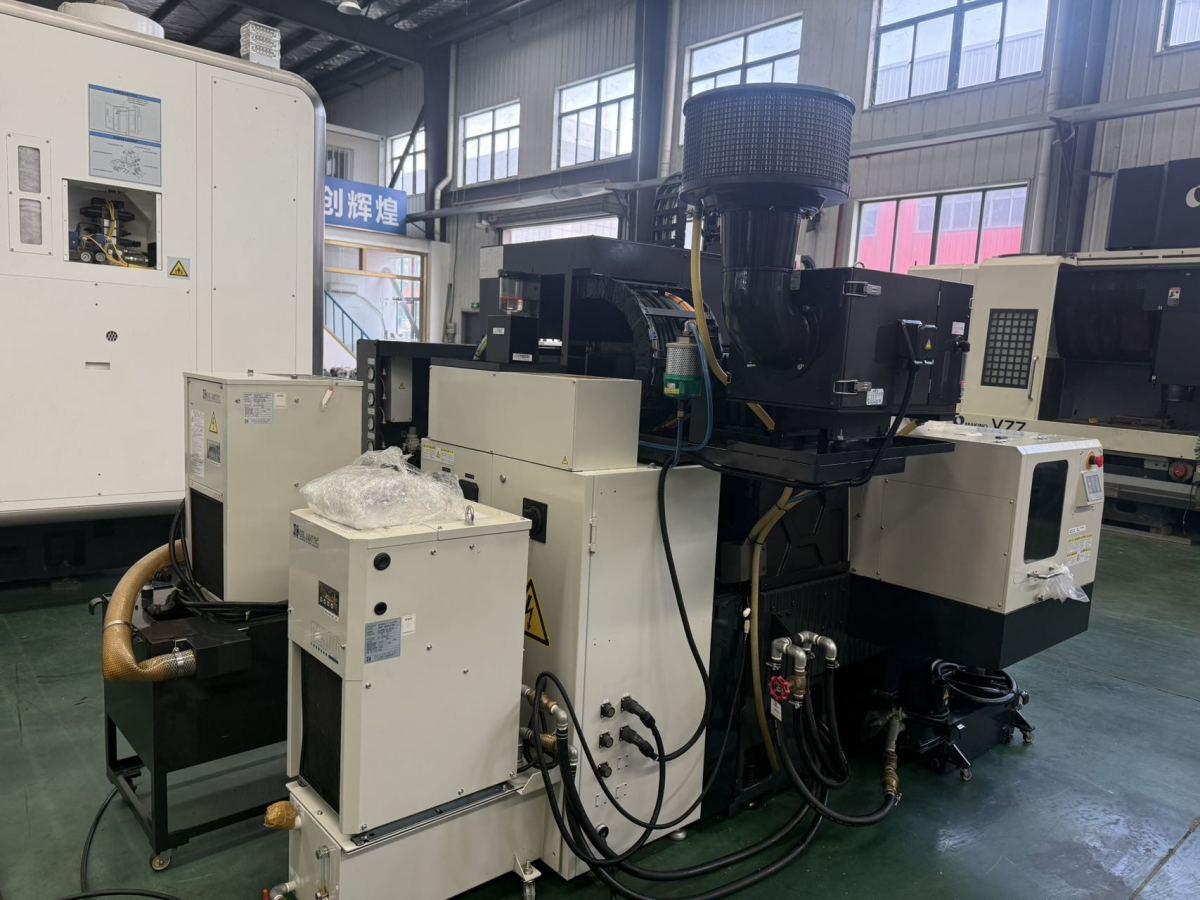

ROKU-ROKU MEGA-SS400 Machining centre

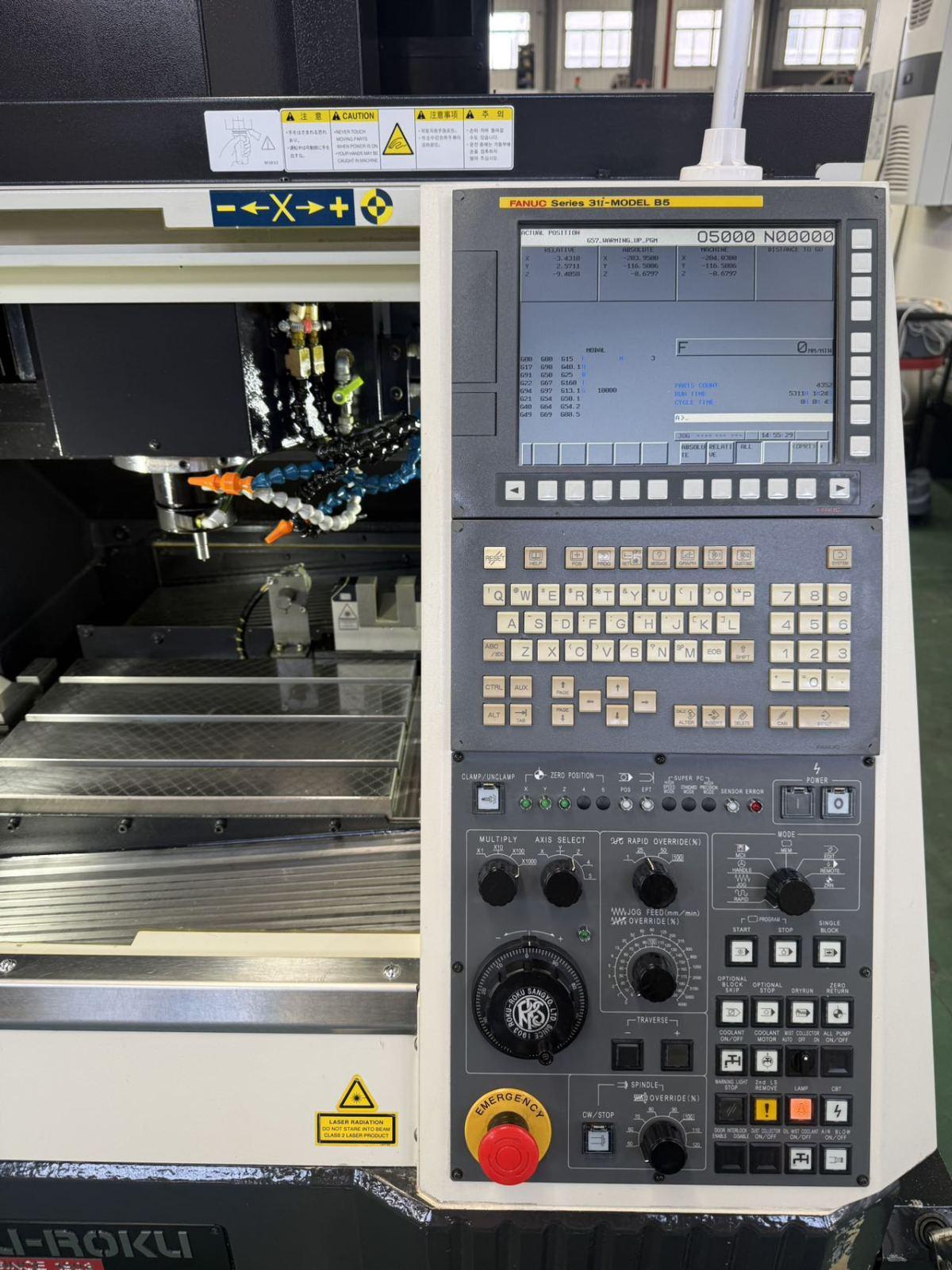

CNC System: FANUC 31i-A5
Three-axis travel: 410 x 330 x 200 mm
Worktable size: 450 × 350 mm
Maximum load: 200 kg
Tool holder specification: HSK-E25
Spindle speed: 40,000 RPM
Spindle power: 4.0 kW

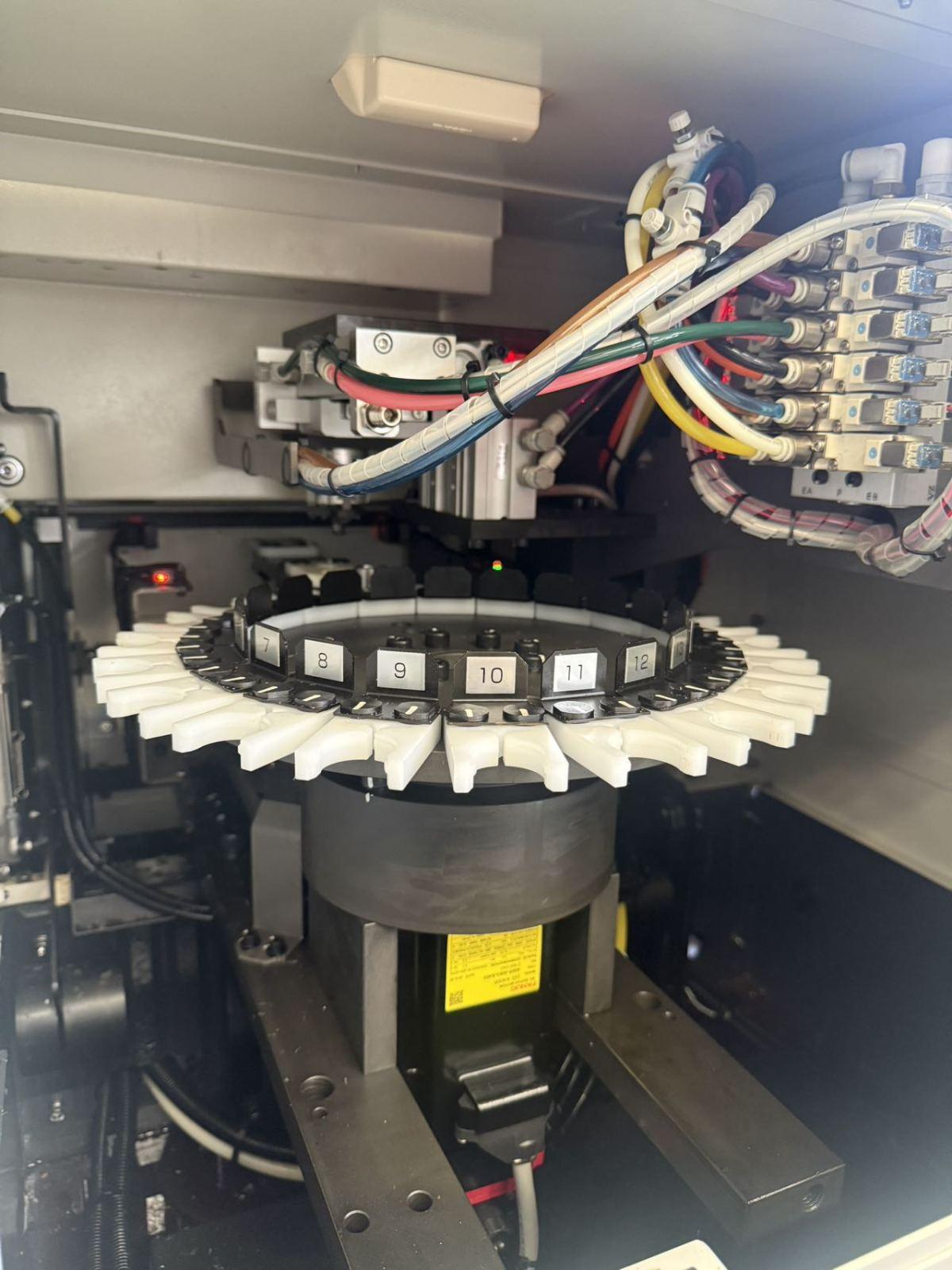

Standard tools magazine: 20
X/Y-axis Fast feed rate: 32 m/min
Zaxis Fast feed rate: 24 m/min
Cutting feed: 1 to 10,000 mm/min
The self-weight of the equipment: approximately 2,500 kg
Applicable tools: minimum φ0.01 micro-hole drill bit, R0.05 ultra-small Diameter milling Tool
Optional:

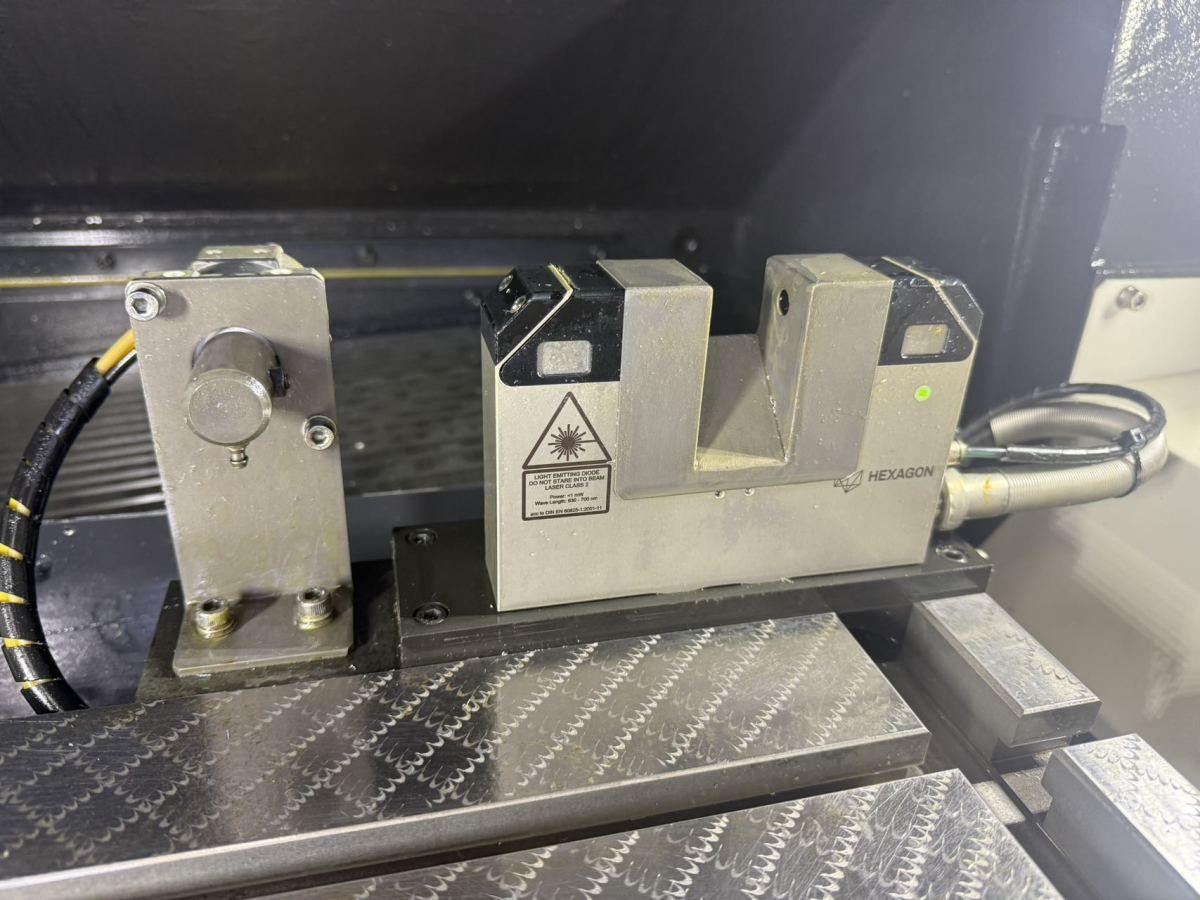

Swiss Hexicon knife guidance system
