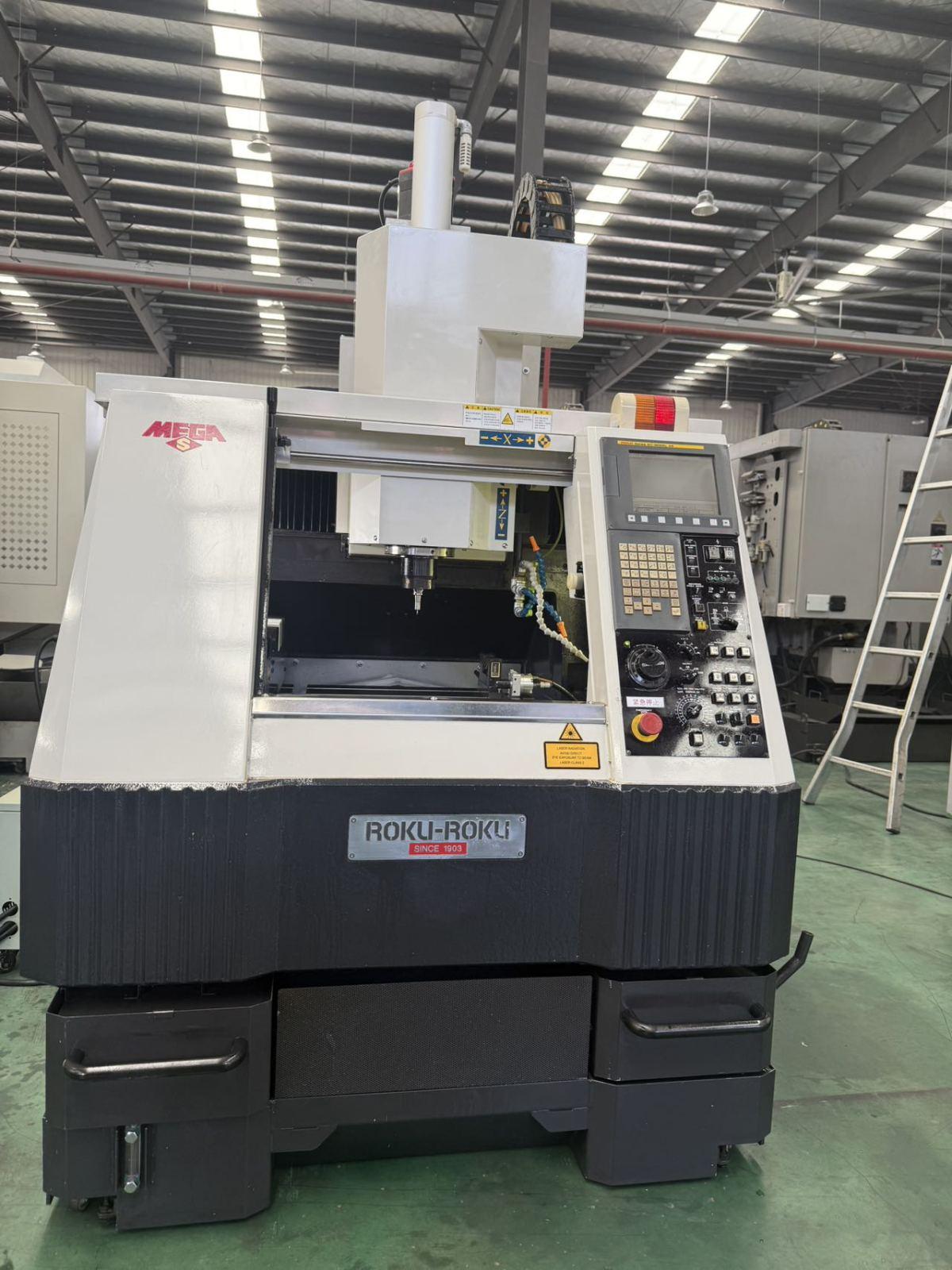

ROKU-ROKU MEGA-S400 Machining centre

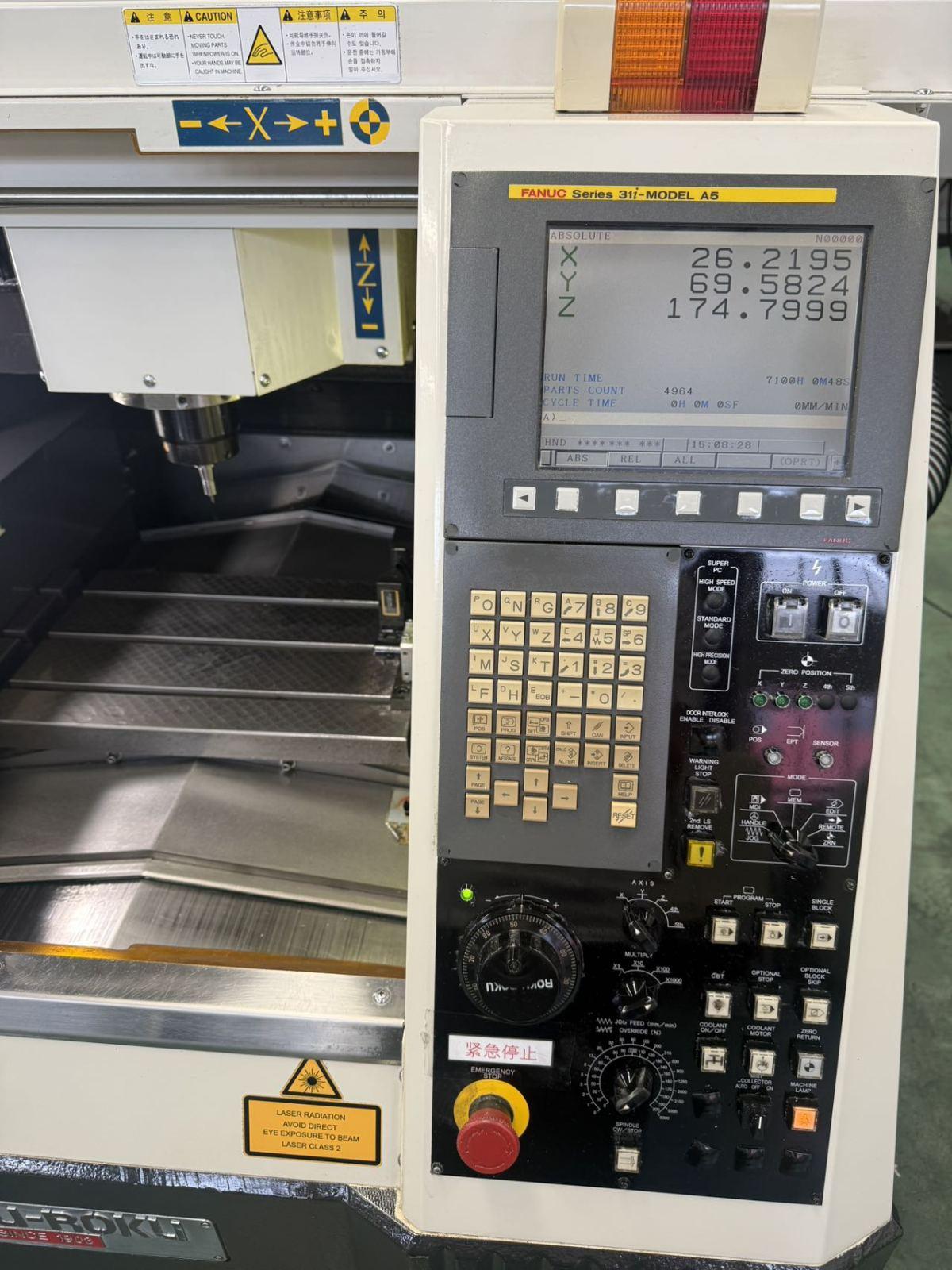

CNC System: FANUC 31i-A5
Three-axis Travel: 410 × 330 × 200 mm

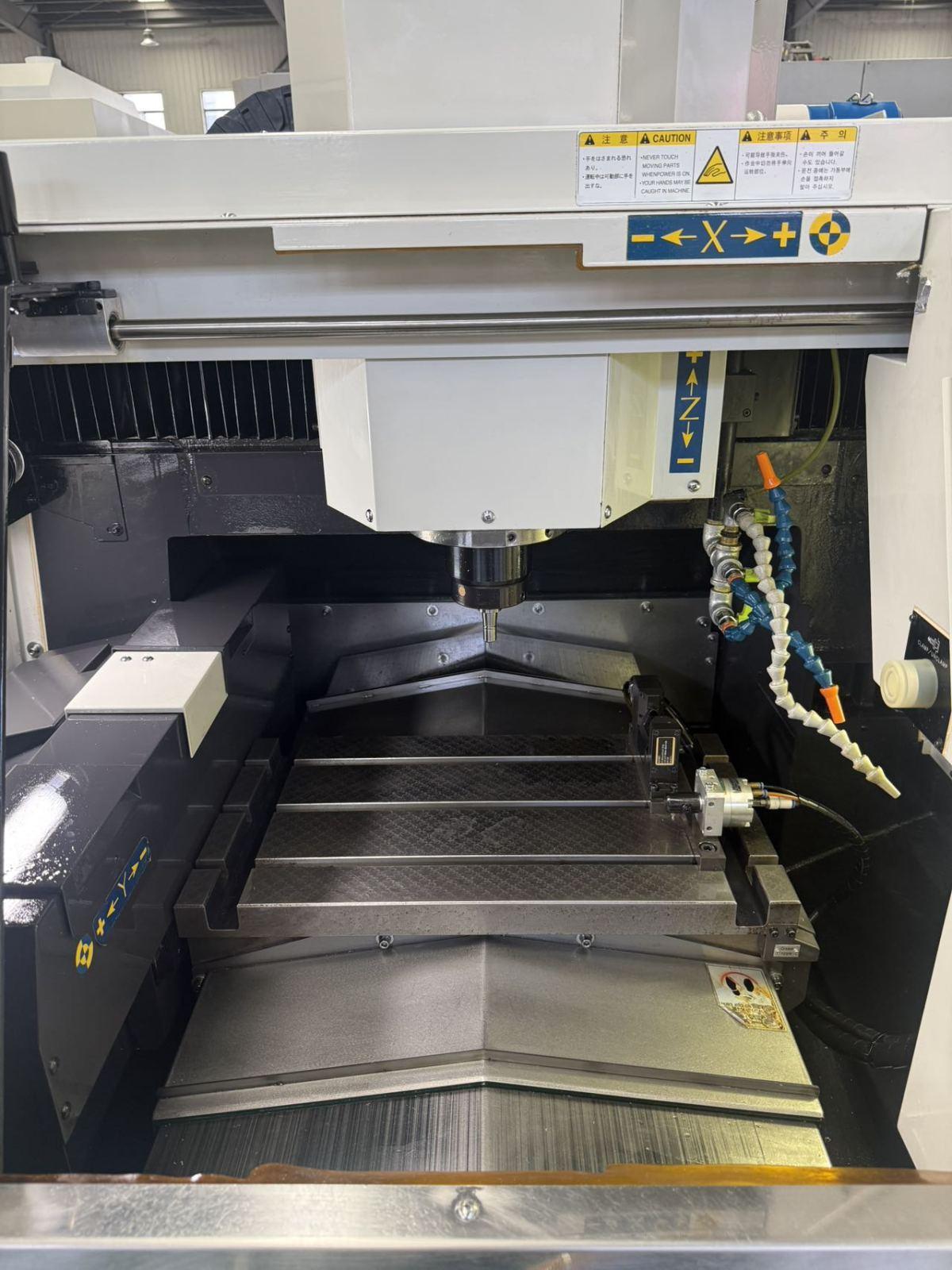

Worktable Size: 450 × 350 mm
Maximum Load: 200 kg
Spindle
Spindle Type: Oil-cooled High-speed Spindle
Spindle Speed: 40,000 rpm
Spindle Power: 4.0 kW

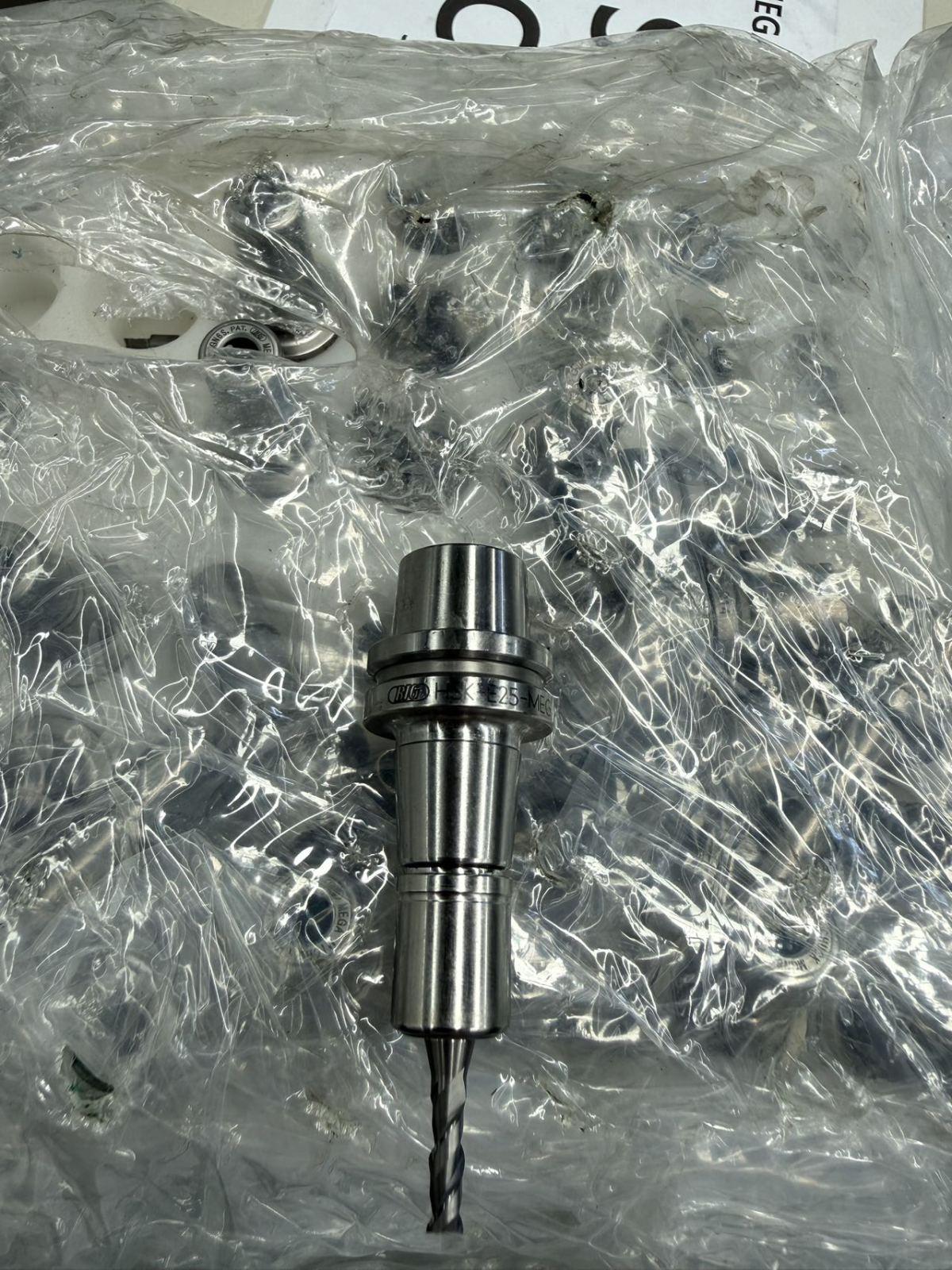

Tool Holder Specification: HSK-E25 (High-speed Precision Short Taper Tool Holder)
Magazine Capacity: 11, Straight-line Type
Fast Movement and Feed
Fast Movement Rate
X/Y Axis: 32 m/min
Z-axis: 24 m/min
Cutting Feed Rate: 1–10,000 mm/min
Precision Configuration

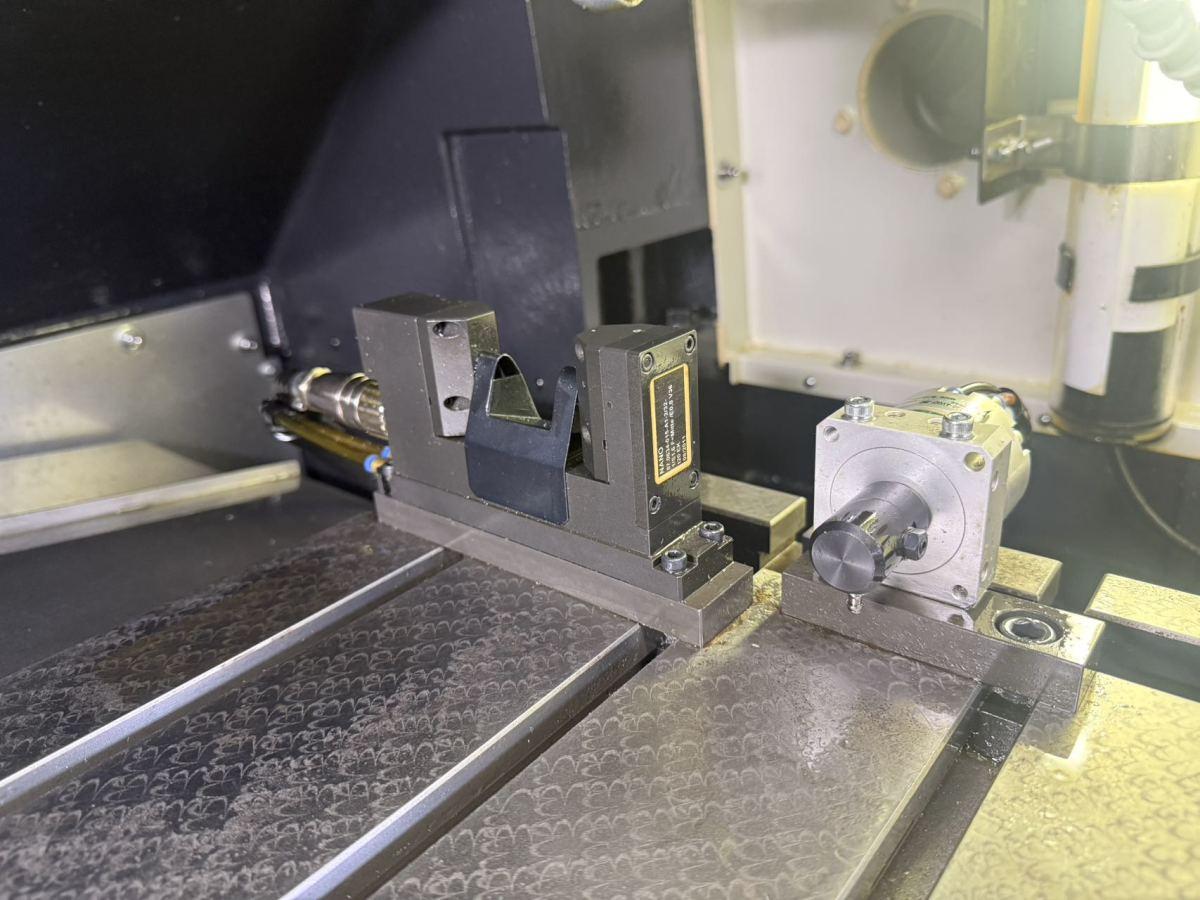

Automatic Tool Setter: NAKO (Japan) High-precision Contact-type Automatic Tool Setter

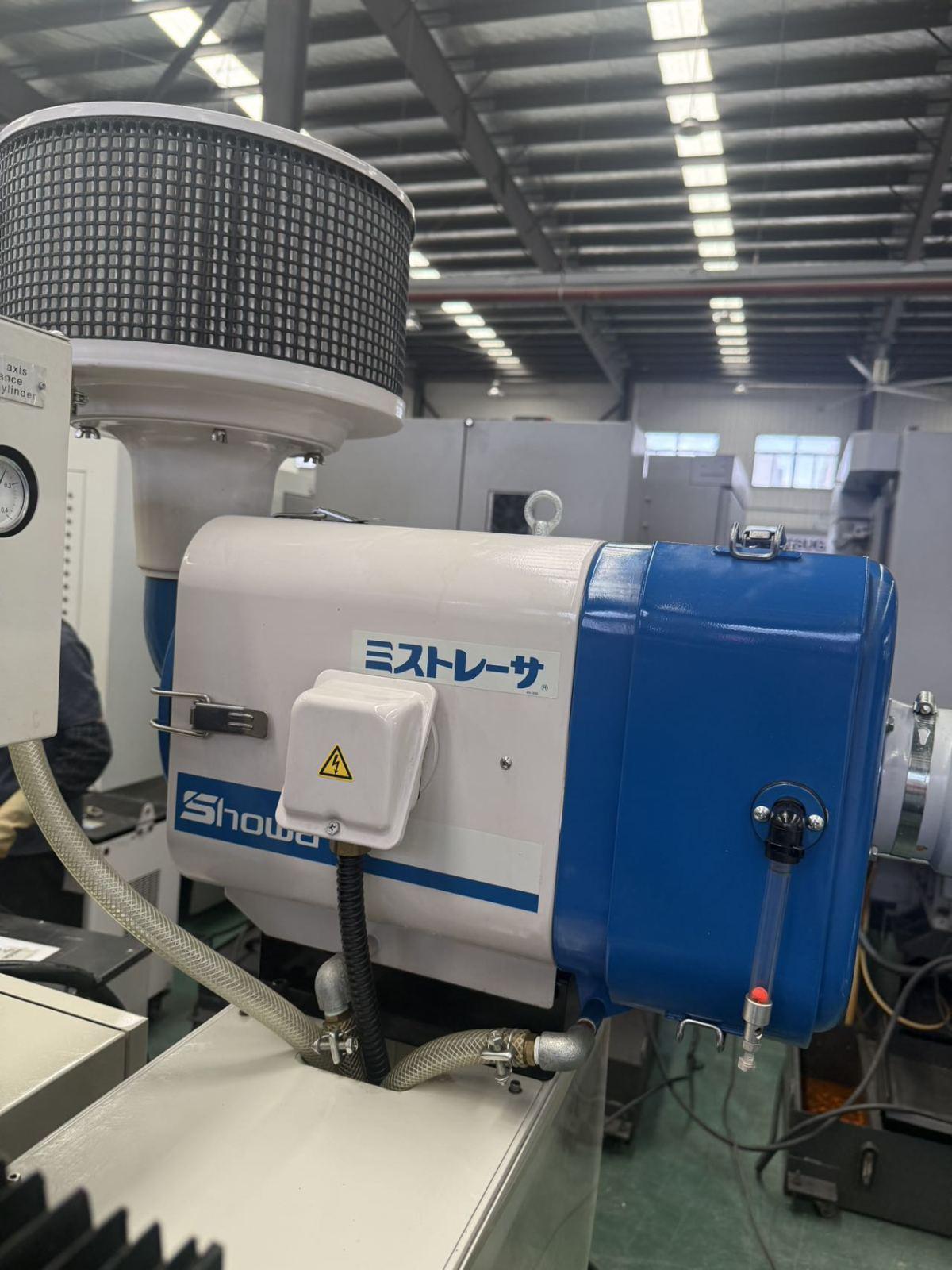

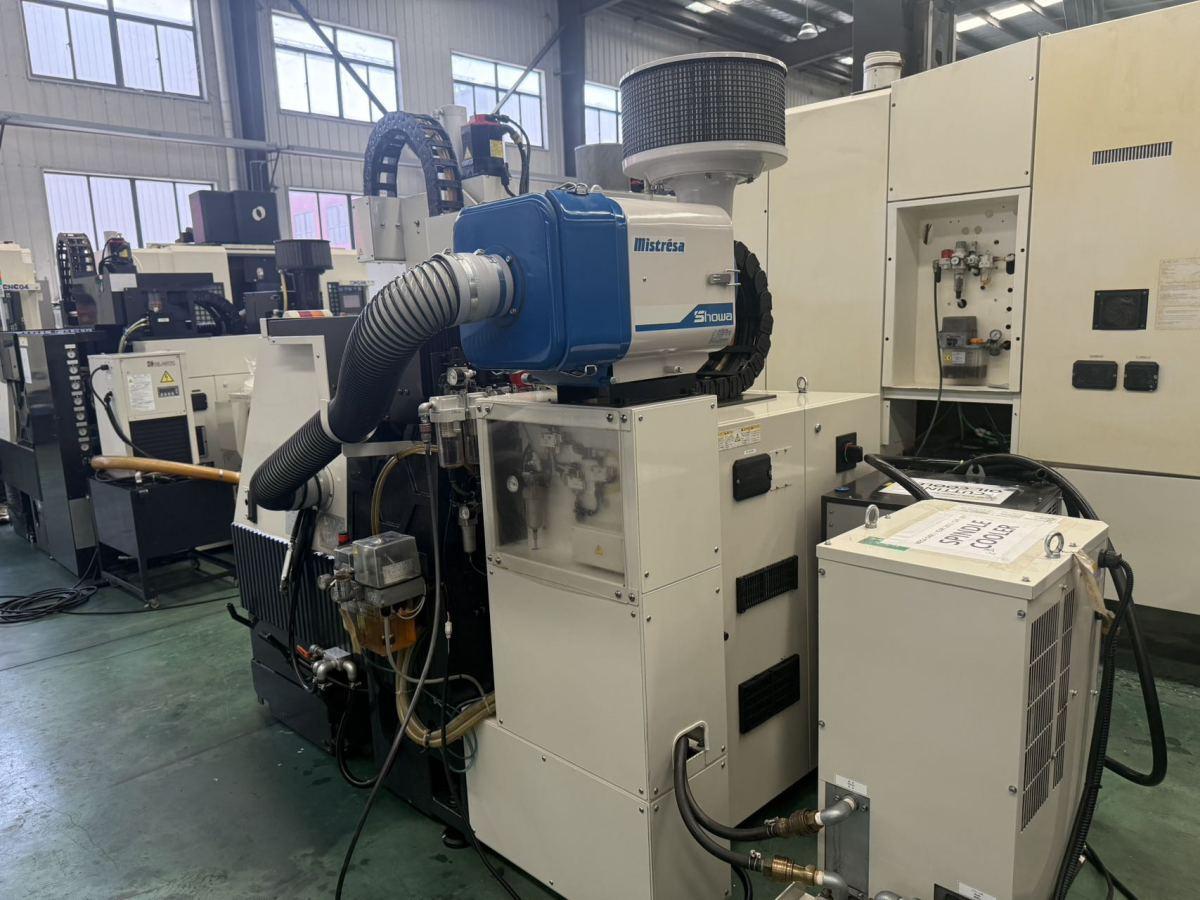

Oil Mist Treatment: Original Showa Oil Mist Collector from Japan
Machining Capacity
Applicable Tool
Minimum Φ0.01 mm Micro-hole Drill Bit
R0.05 Ultra-small Diameter Milling Tool
Equipment Weight
The Self-weight of the Equipment: Approximately 2500 kg
Applicable Industries
Machining of Semiconductor Fixtures
Precision Machining of Connectors
Precision Copper Machining
Optical Mold Machining
Machining of Medical Parts
Mirror Surface Milling Machining
Micro-hole Machining (Minimum Hole Diameter Φ0.01 mm)
Machine Tool Structure: Gantry-type High-rigidity Machine Body
Base Material: Mineral Casting Base
