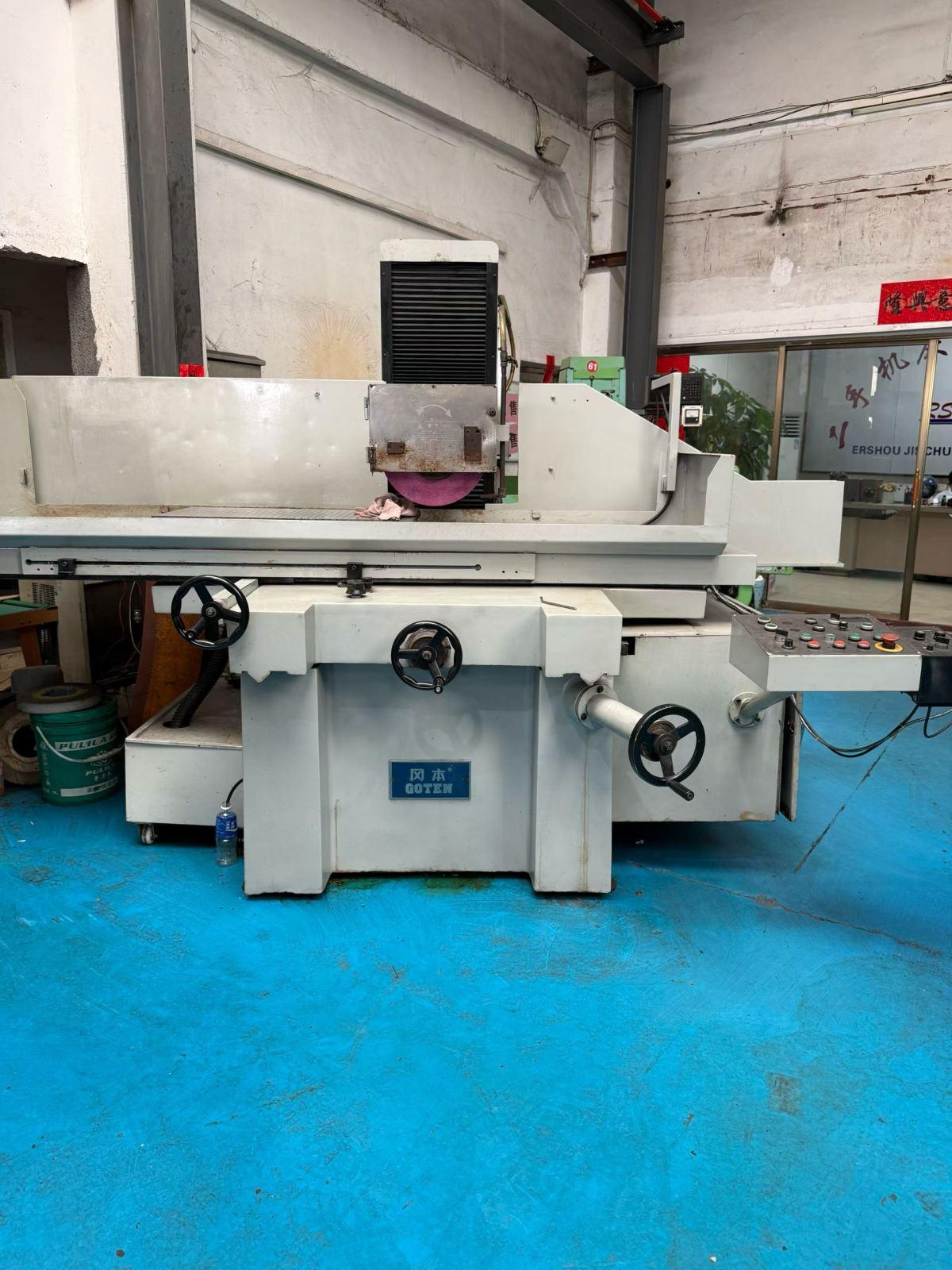

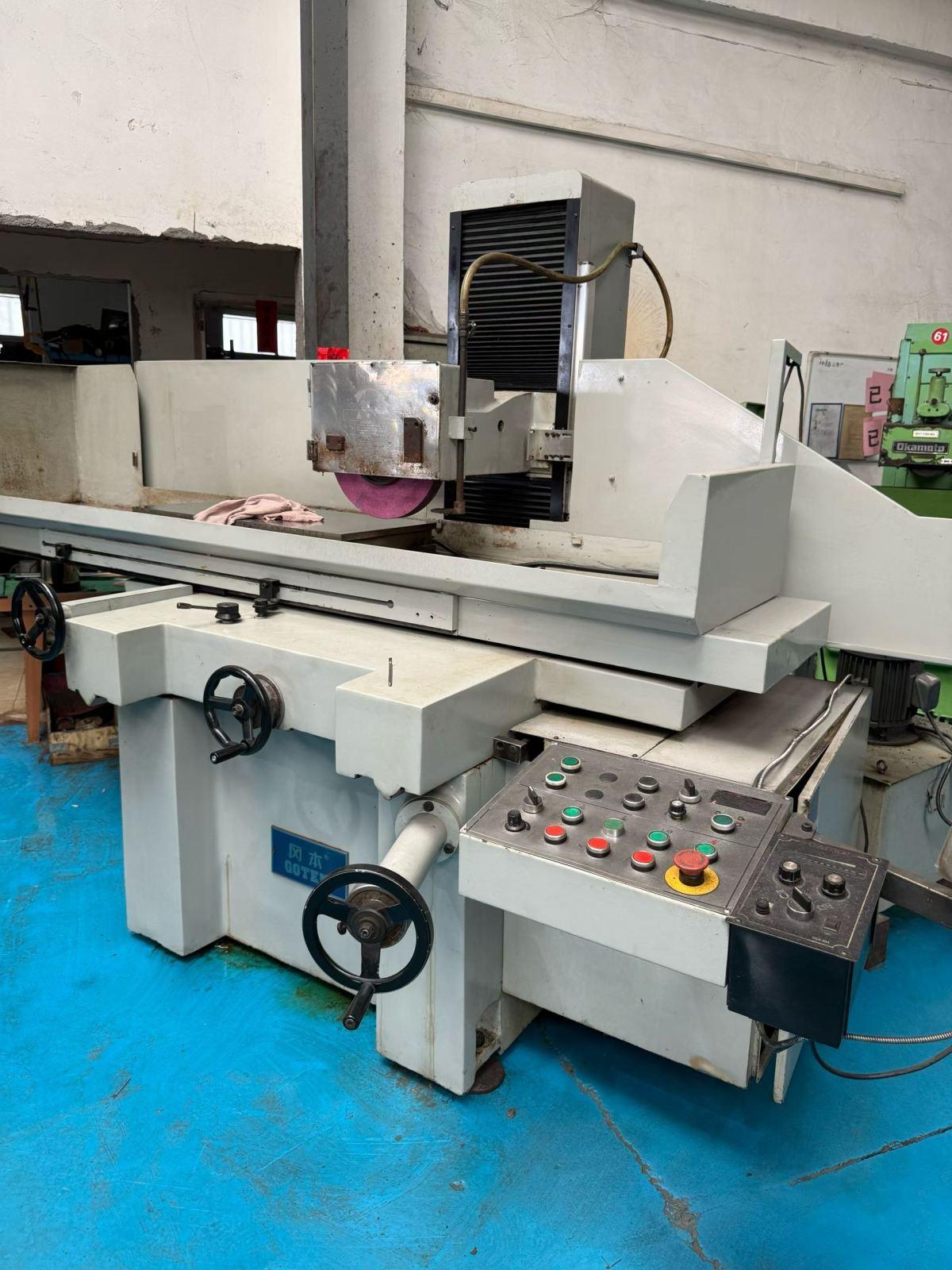

Okamoto GTS-84AHK Surface grinder

Worktable size: 400×1000mm

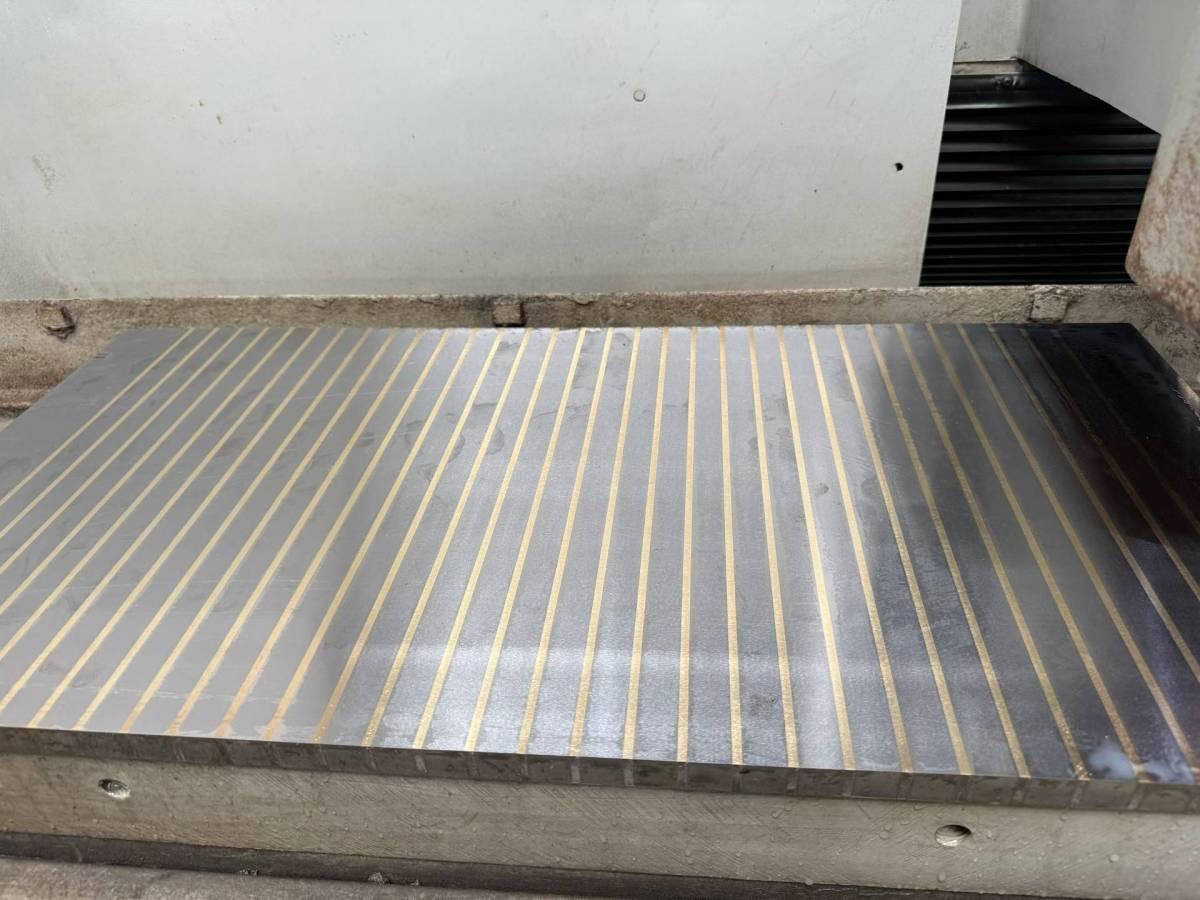

The size of the point magnetic chuck is 400x800mm
The maximum longitudinal travel of Worktable: 850mm
The maximum lateral travel of Worktable: 450mm
Maximum grinding height: 400mm
grinding wheel size: 350×40×127mm
Spindle speed: 1450rpm
spindle motor power: 7.5kW
Minimum feed of the upper and lower handwheels: 0.001mm
