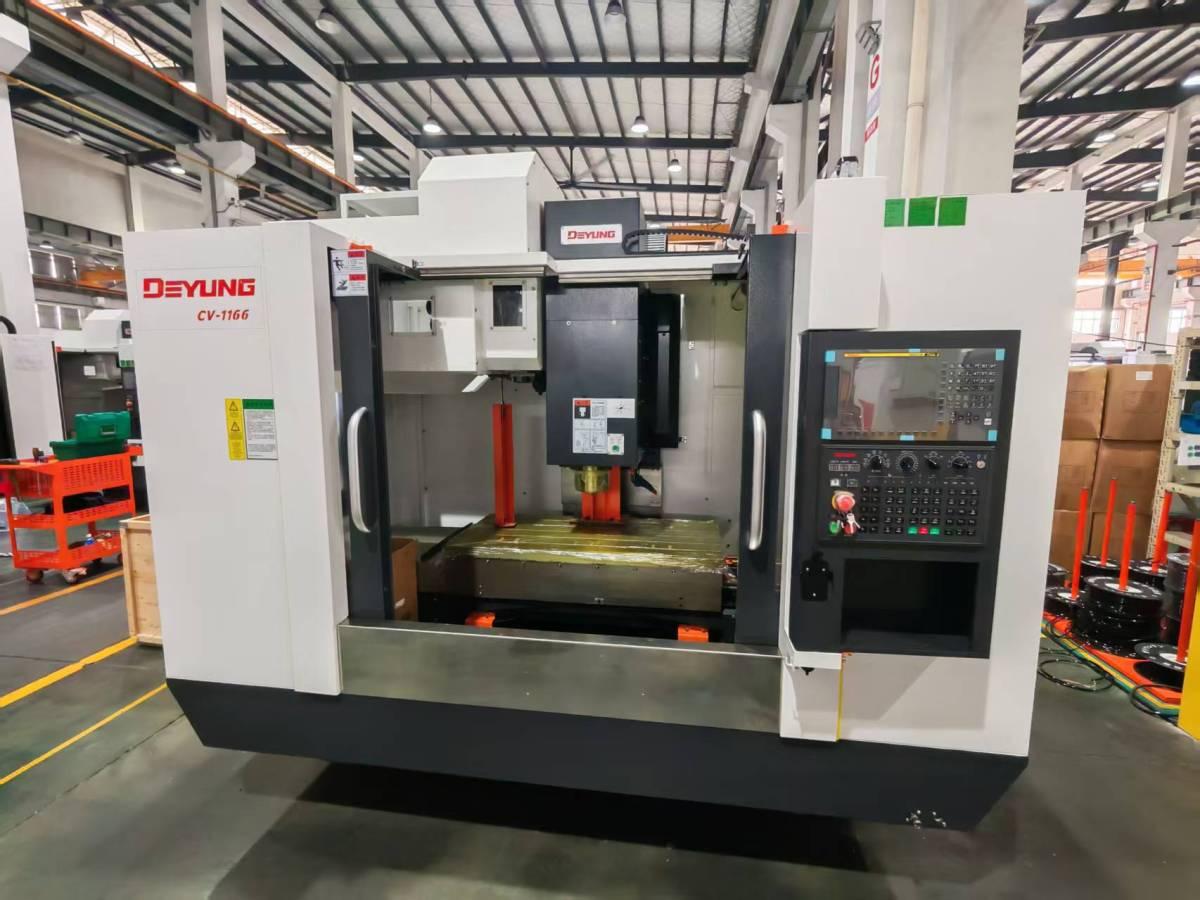

Deyung CV-1166 Vertical Machining centre

CNC System: FANUC 0i-MF / Mitsubishi M80 (Optional)

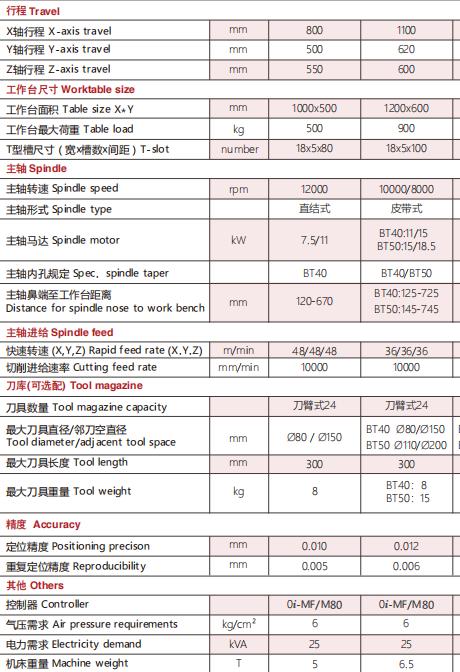

Three-axis travel: 1100 × 620 × 600 mm
Worktable size (X×Y): 1200 × 600 mm
Maximum load of worktable: 900 kg
T-slot (Width × Number of slots × Spacing): 18 × 5 × 100 mm
Spindle speed: 10,000 / 8000 rpm
Spindle type: Belt-driven
Spindle taper: BT40 / BT50
Spindle motor:
BT40: 11 / 15 kW
BT50: 15 / 18.5 kW
Distance from spindle nose to worktable:
BT40: 125–725 mm
BT50: 145–745 mm
Rapid feed (X/Y/Z): 36 / 36 / 36 m/min
Cutting feed rate: 10,000 mm/min
Tool magazine (Optional)
Magazine capacity: 24 Tools (Arm Type)
Maximum tool diameter / Adjacent tool clearance:
BT40: Ø80 / Ø150 mm
BT50: Ø110 / Ø200 mm
Maximum tool length: 300 mm
Maximum tool weight:
BT40: 8 kg
BT50: 15 kg
Positioning accuracy: 0.012 mm
Repeat positioning accuracy: 0.006 mm
Air pressure requirement: 6 kg/cm²
Power requirement: 25 kVA
Machine weight: 6.5 Tons
