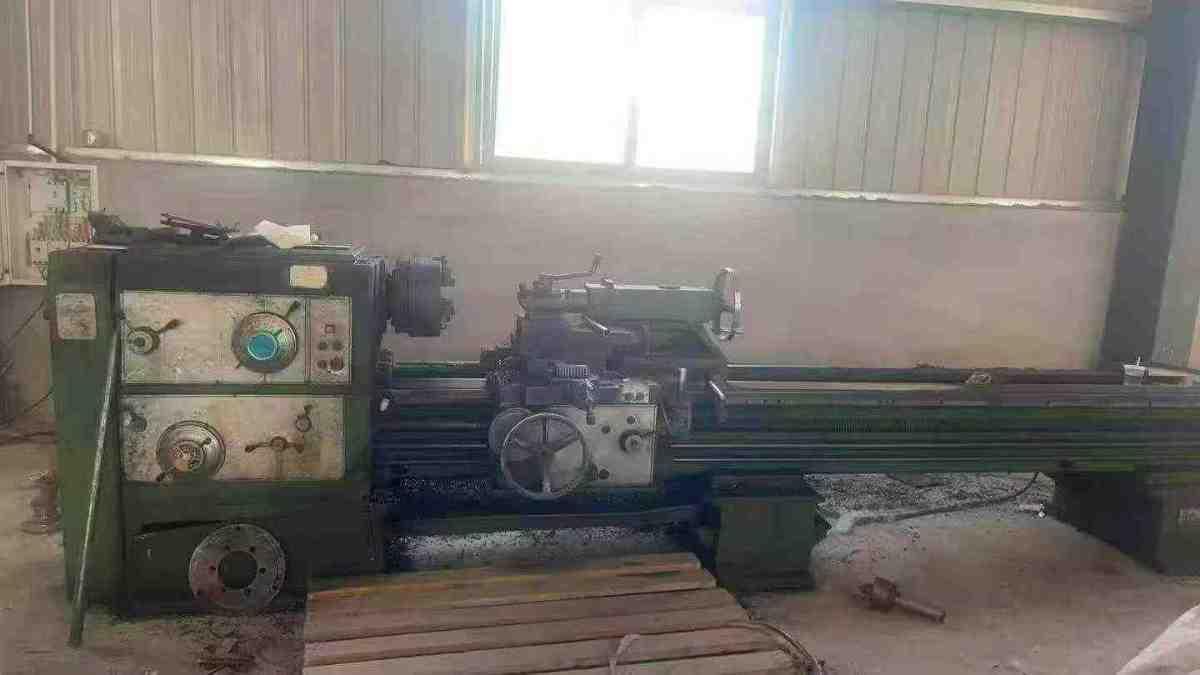

Dalian Machine CW6163x3000 Lathe
[Product Information]:
- Inventory number：468039
- Brand：Dalian Machine
- Model：CW6163x3000
- Origin：China
- Location：China
- Year：2000
- Create Time：2026-07-08
Specifications:
The maximum rotational diameter on the bed: φ630mm
The maximum rotational diameter on the tool holder: φ350mm
Maximum workpiece length: 3000mm
Width of the bed guideway: 400mm
spindle center height: 315mm
Overall weight: 3,800 kg
Main motor power: 11kW
spindle through hole diameter: φ105mm
Top taper: Mohs No. 5
Spindle speed range: 12.5-1600rpm
chuck specification: φ350mm
