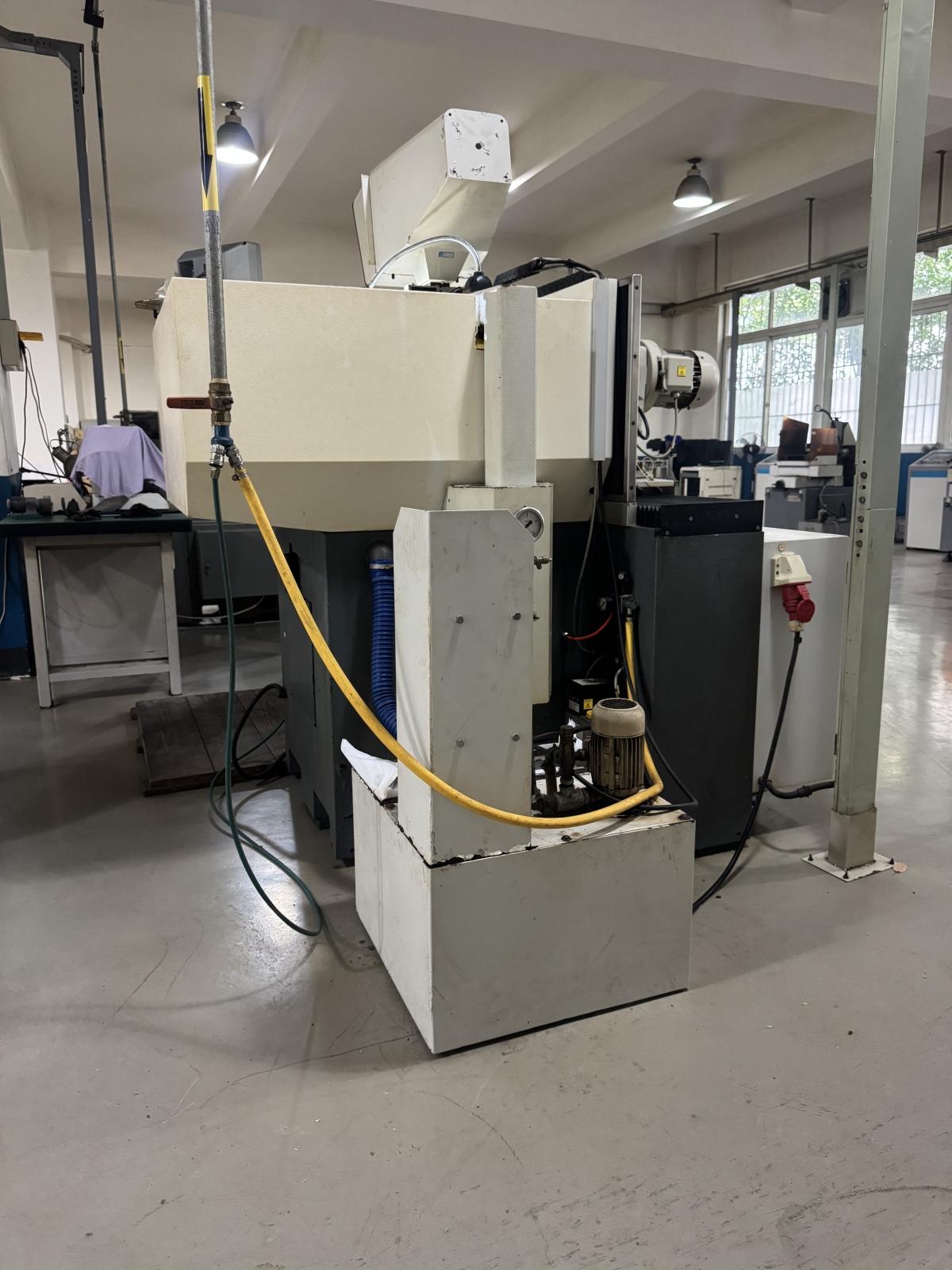

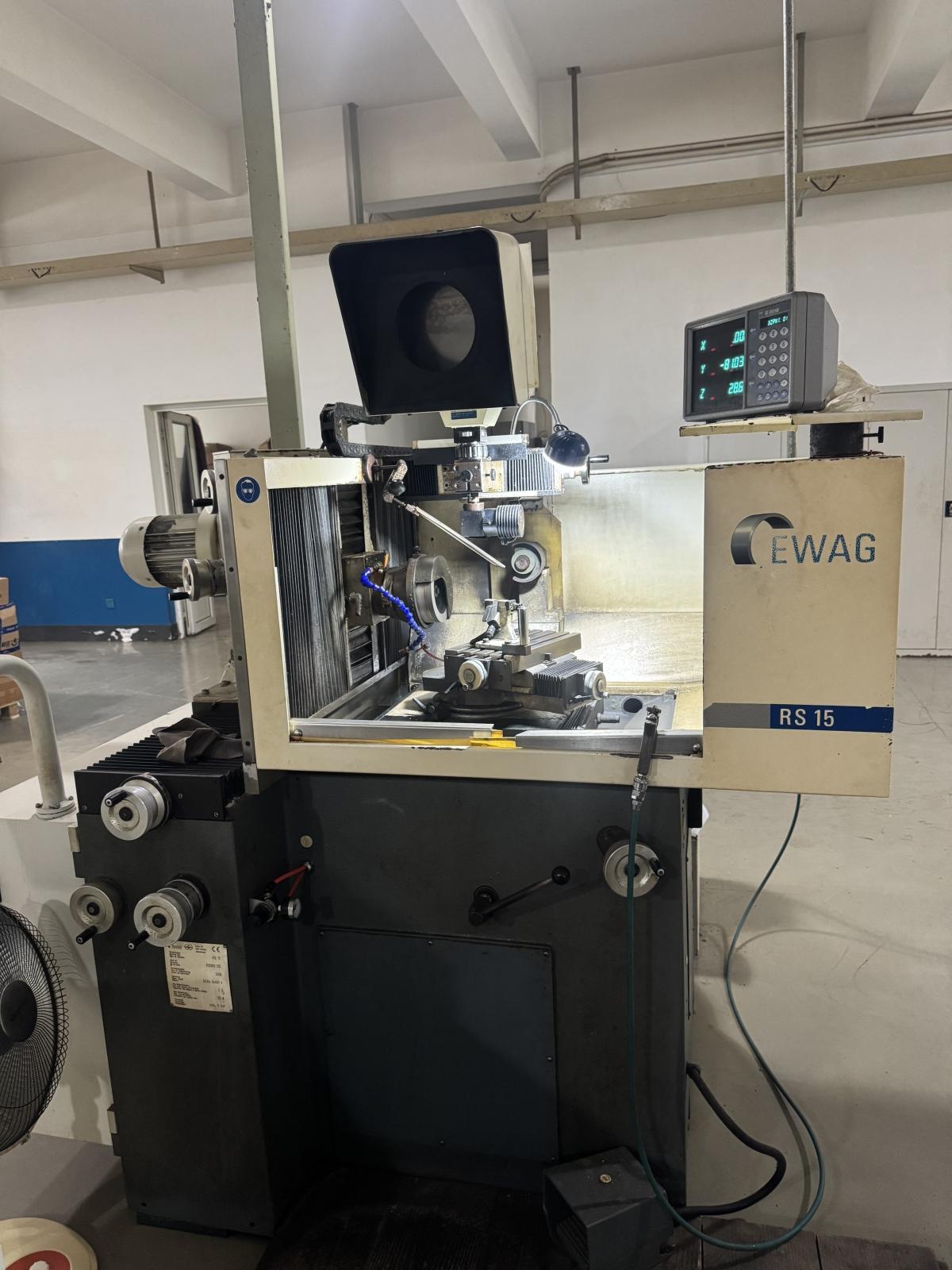

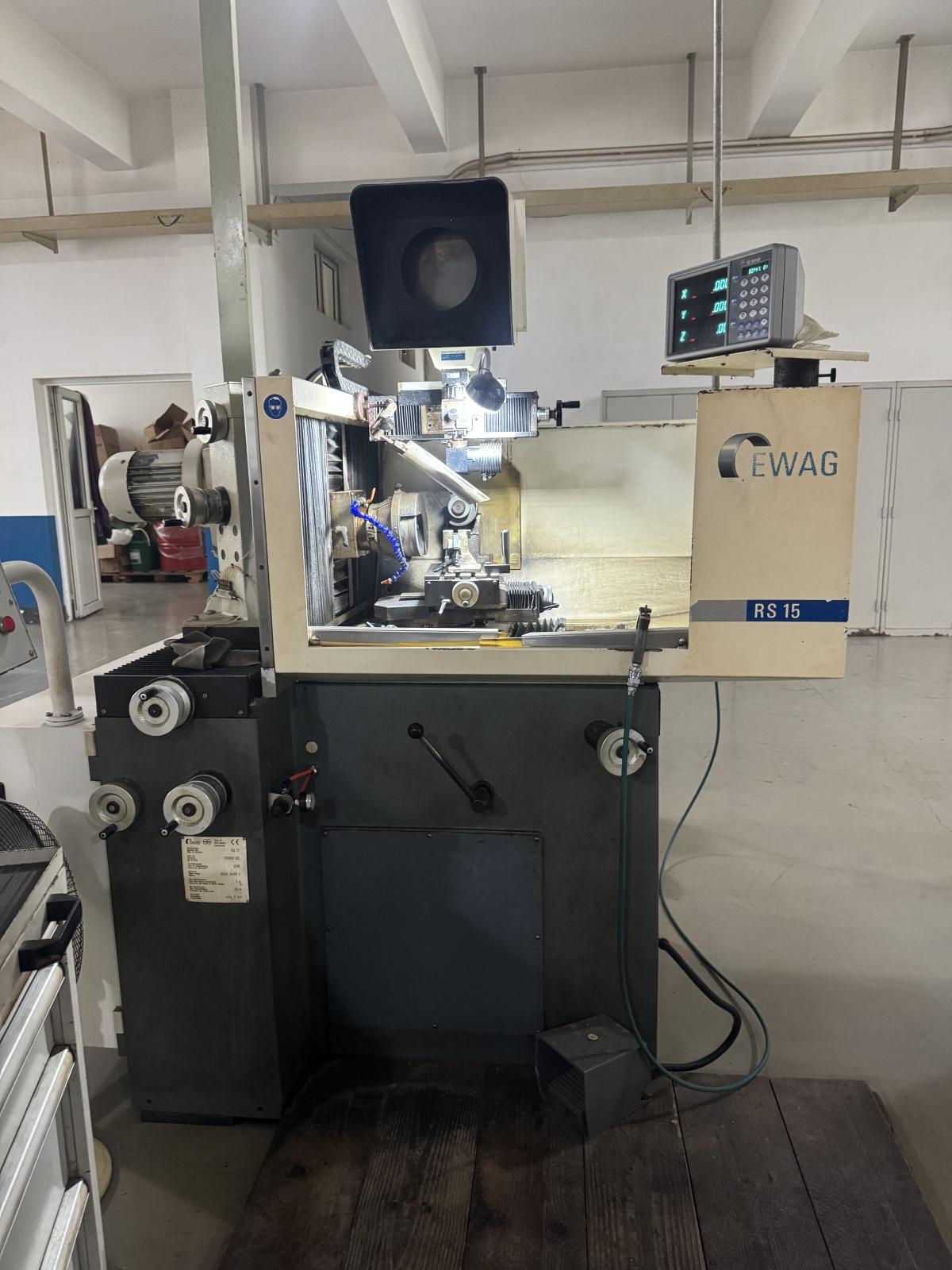

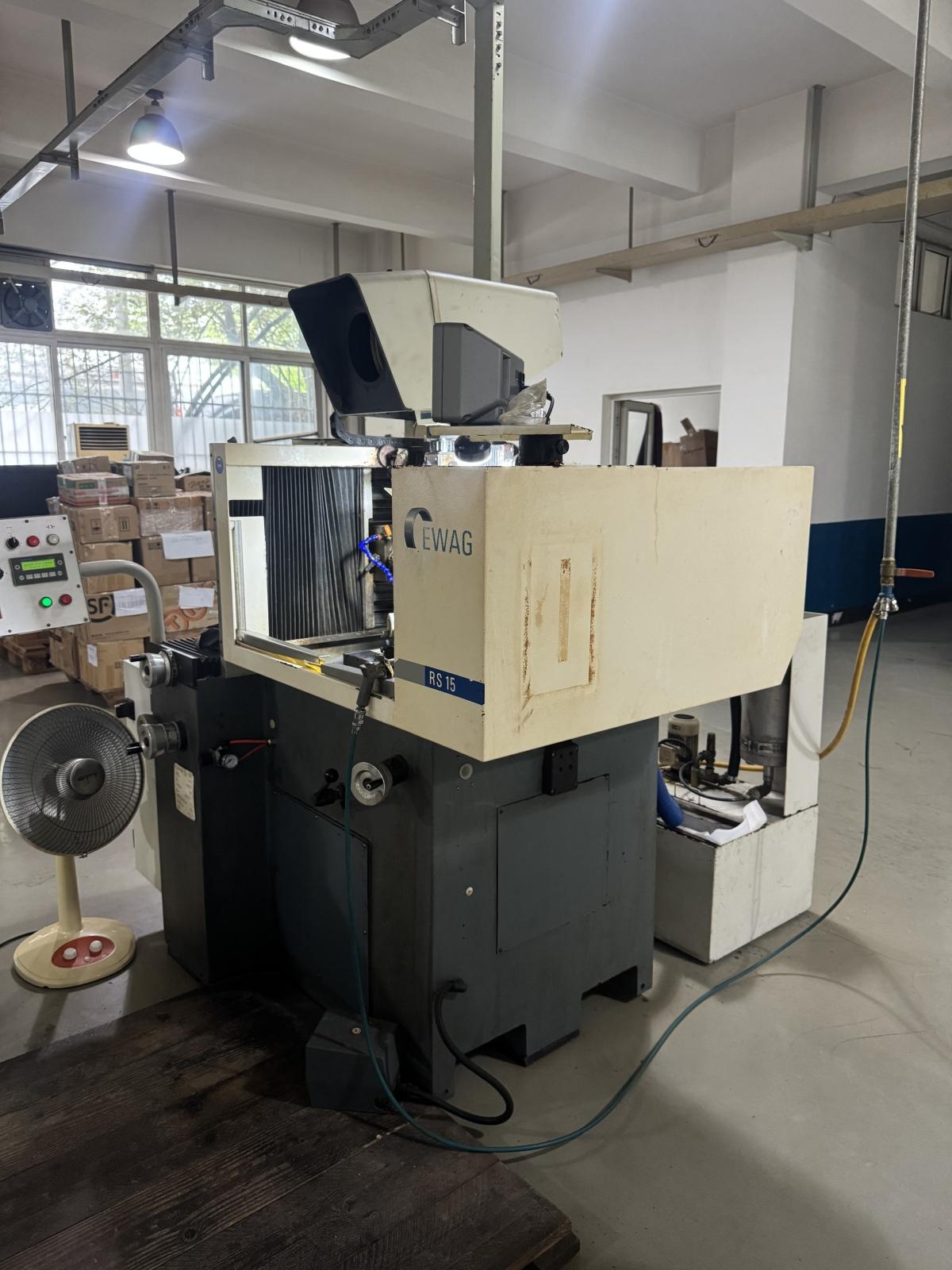

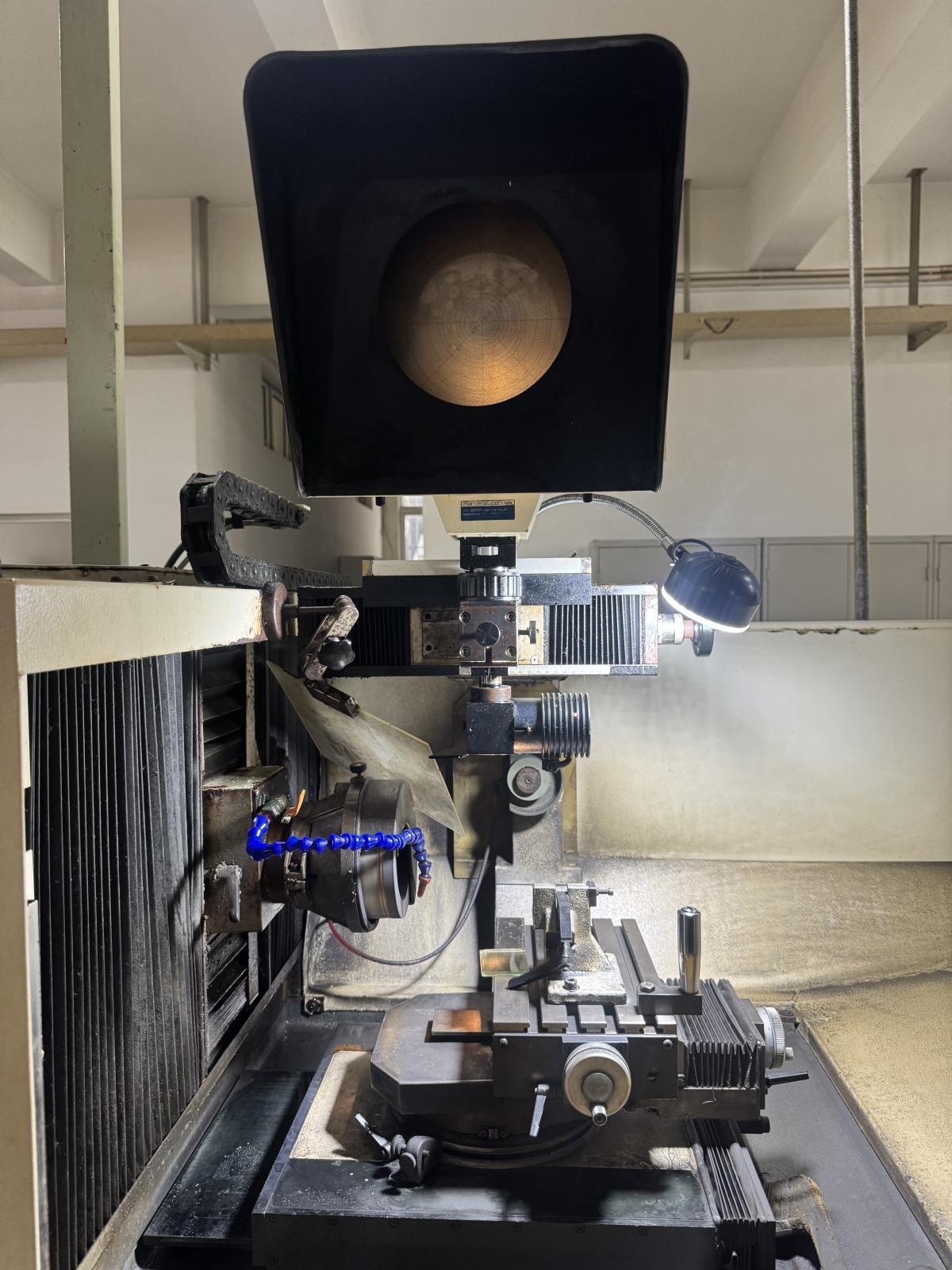

EWAG RS15 Tool grinder

Worktable Size: 205 × 155 mm
Maximum Machining Diameter: Ø200 mm
Load Capacity:
102 mm / 25 kg: 60
102 mm / 25 kg: 130
Spindle Speed: 1,000–6,000 rpm
X-Axis Lateral Adjustment: 490 mm
Y-Axis Vertical Grinding Stroke (Linear): 130 mm
Z-Axis Horizontal Feed Stroke: 120 mm
Variable Speed Range: 100–1,300 rpm
A-Axis Workpiece Tilt Angle: -10° to +27°
B-Axis Rotation Range: 240°
Cross Slide:
U-Axis Travel: 100 mm
W-Axis Travel: 100 mm
Oscillation Stroke: 0–70 mm
Grinding Spindle Motor Power: 2.2 kW (Three-Phase)
Machine Weight: 1,800 kg
Machine Dimensions: 1,630 × 1,250 × 1,900 mm
Power Supply: Three-Phase 200V
