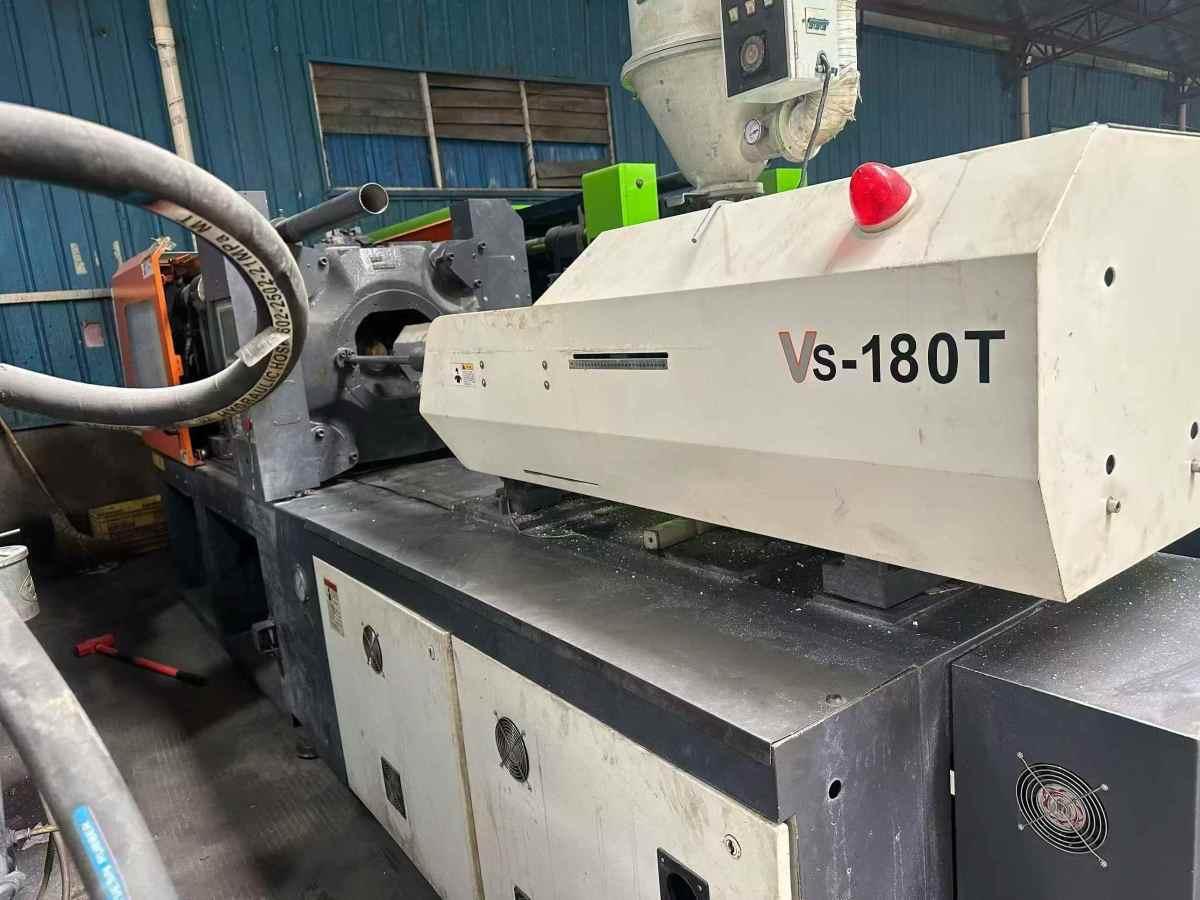

VICTOR VS-180T injection molding machine
[Product Information]:
- Inventory number：468190
- Brand：VICTOR
- Model：VS-180T
- Origin：Taiwan, China
- Location：China
- Year：2018
- Create Time：2026-07-07
Specifications:
Rated clamping force: 1800kN
Mold opening travel: 470mm
Maximum mold thickness: 520mm
Minimum mold thickness: 180mm
Template size: 710x710mm
The inner spacing of the pull rod: 460x460mm
Ejection travel: 120mm
Maximum top force: 38kN
swing diameter: 50mm
Screw length-to-diameter ratio: 22:1
Theoretical injection volume: 402cm³
Maximum injection pressure: 145MPa
Maximum injection rate: 160g/s
Screw speed range: 0 to 220rpm
