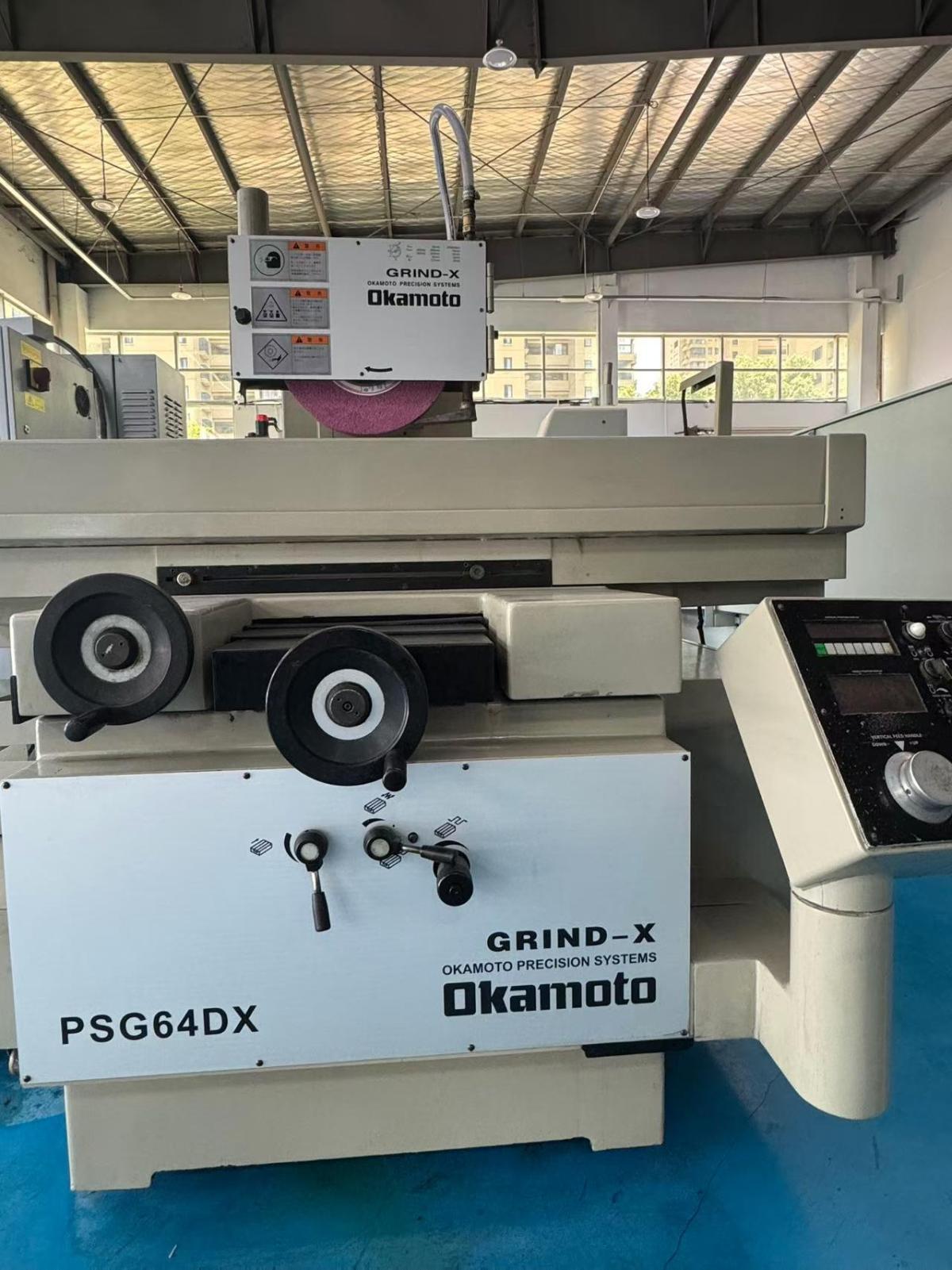

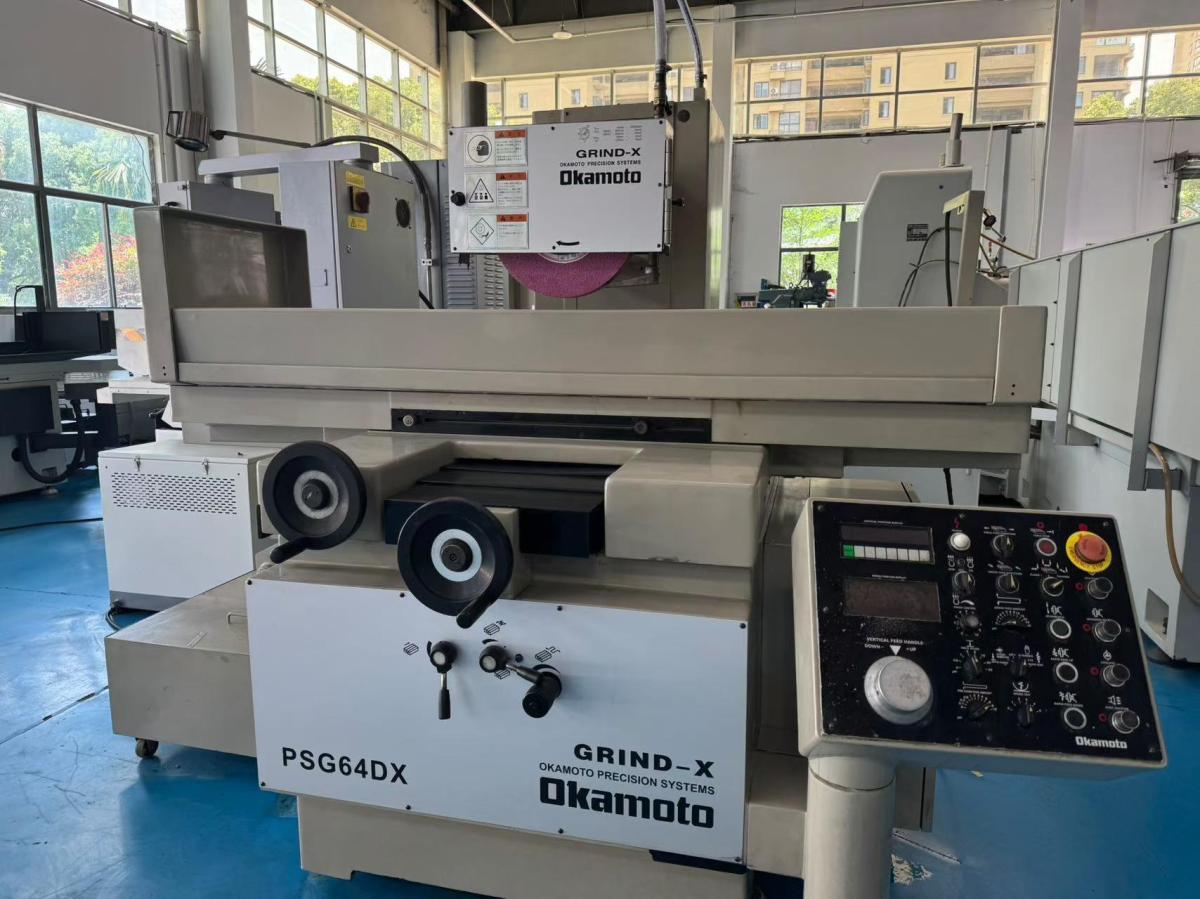

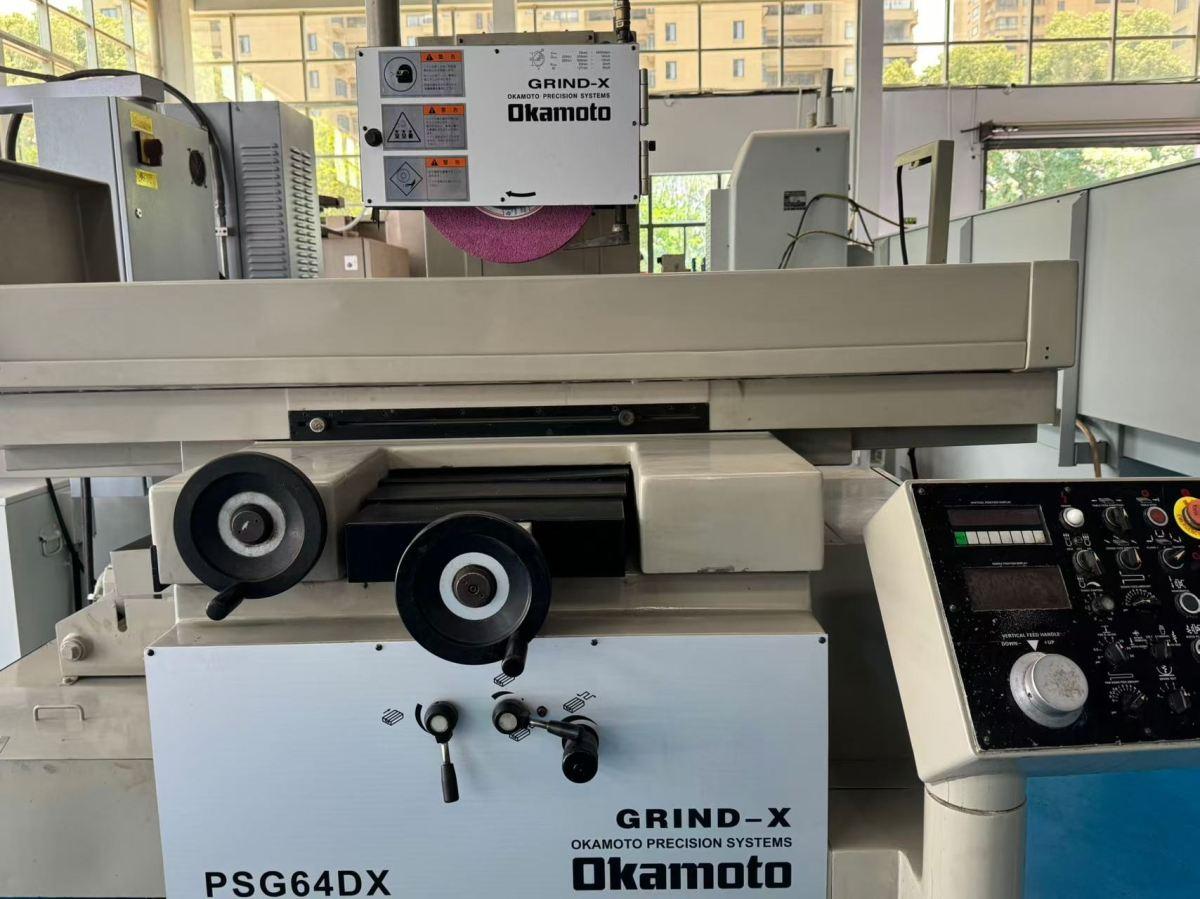

Okamoto PSG-64DX Surface grinder

Worktable Size: 605 × 400 mm
Distance from Worktable Surface to Bottom of Grinding Wheel: 347.5 mm

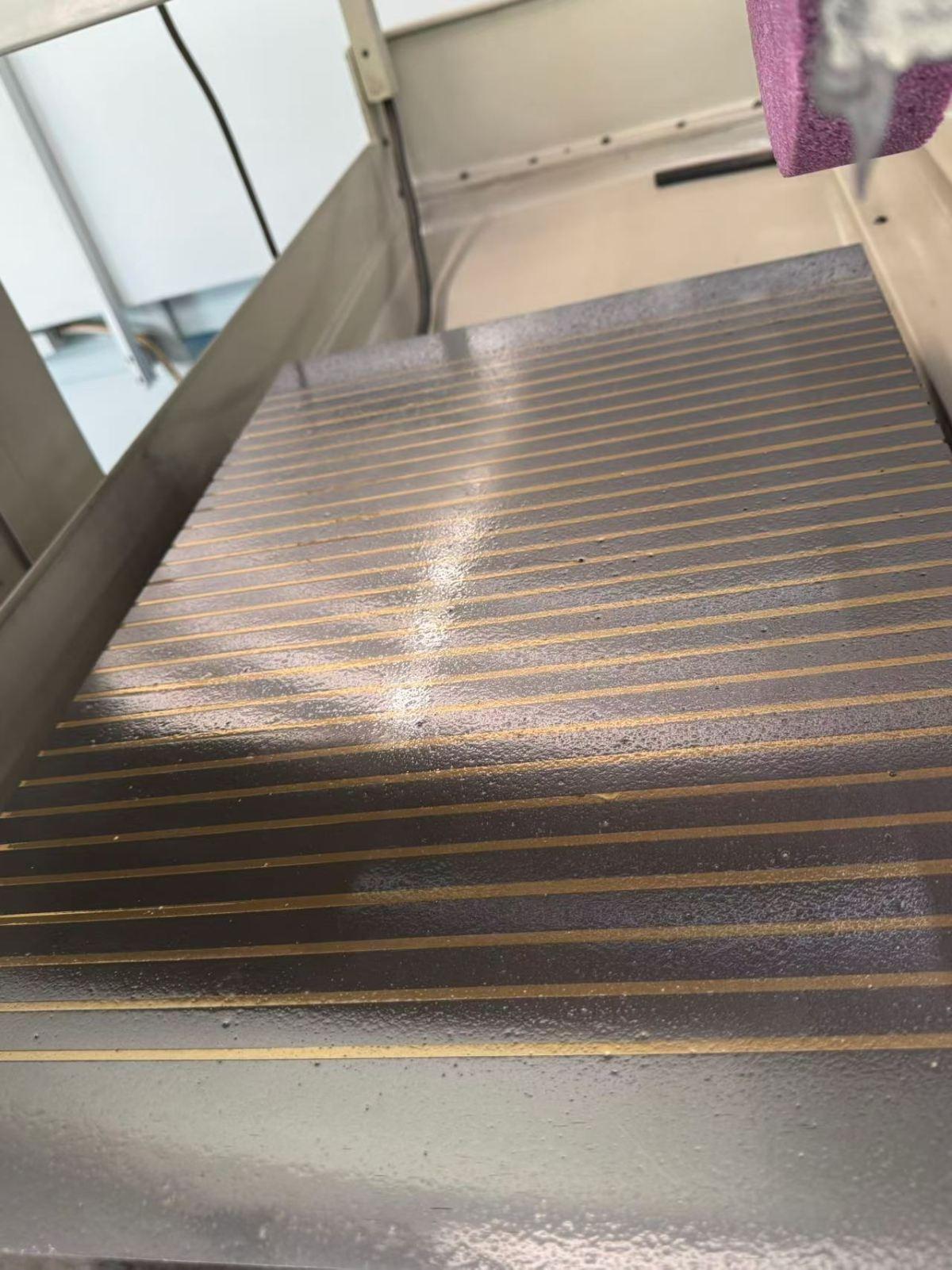

Standard Magnetic Chuck Size (L × W × H): 600 × 400 × 85 mm
Grinding Wheel Size (OD × Width × ID): Φ355 × 38 × Φ127 mm
Grinding Wheel Spindle Motor Power: 4 kW
Maximum Worktable Load (Including Magnetic Chuck): 420 kg
T-Slots (Width × Quantity): 17 × 3
Maximum Longitudinal Travel: 750 mm
Longitudinal Feed Rate: 0.3–25 m/min
