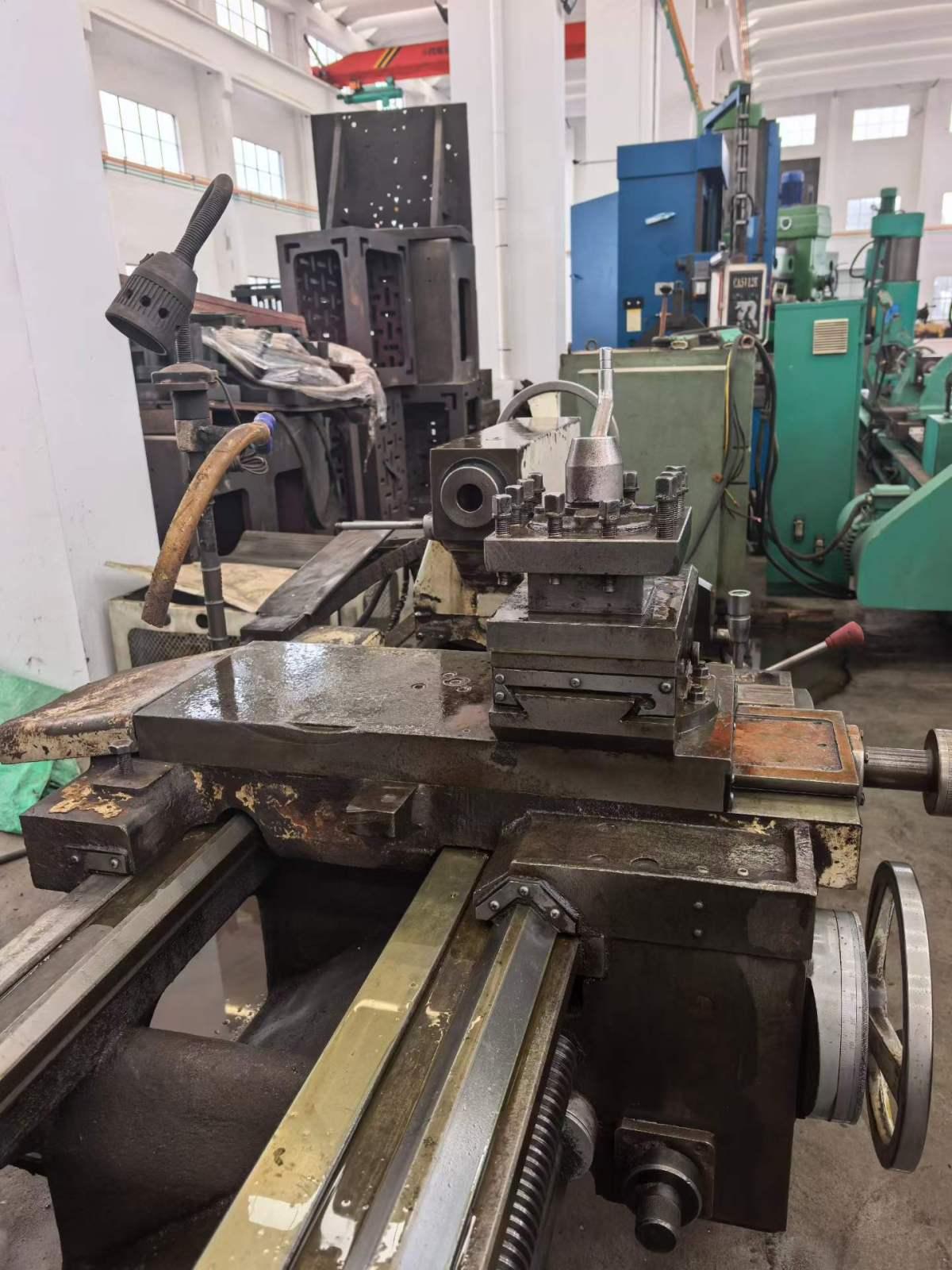

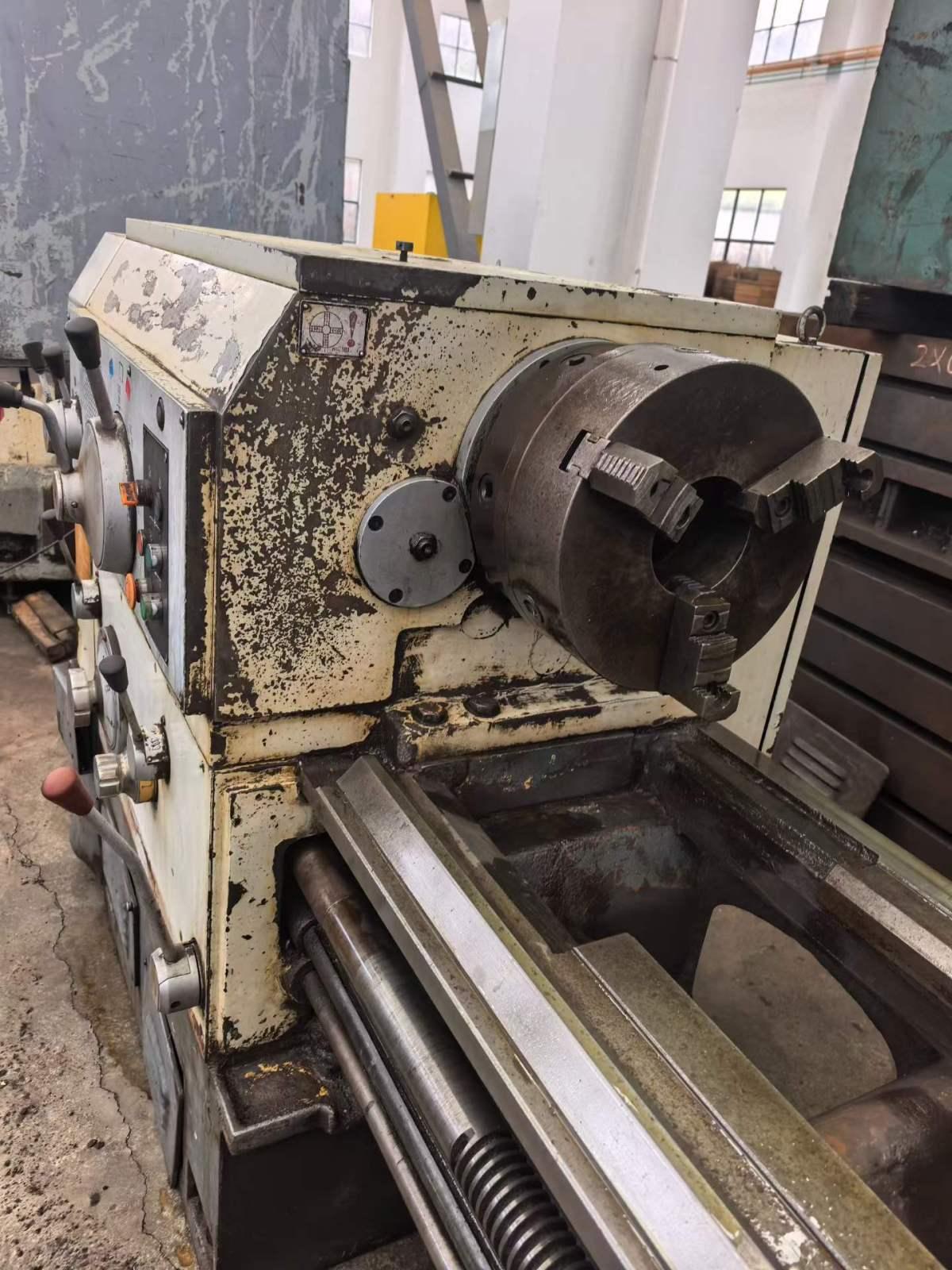

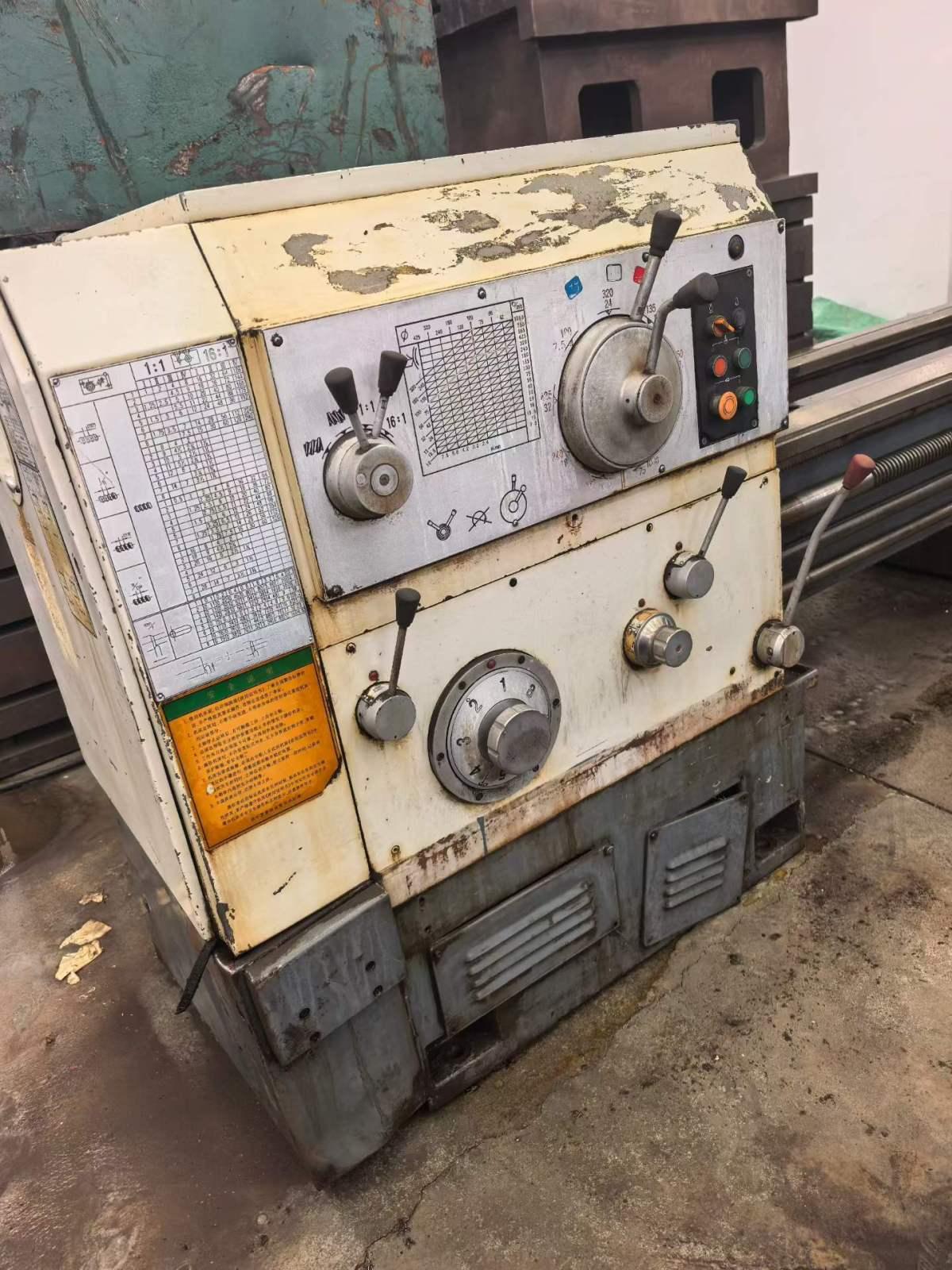

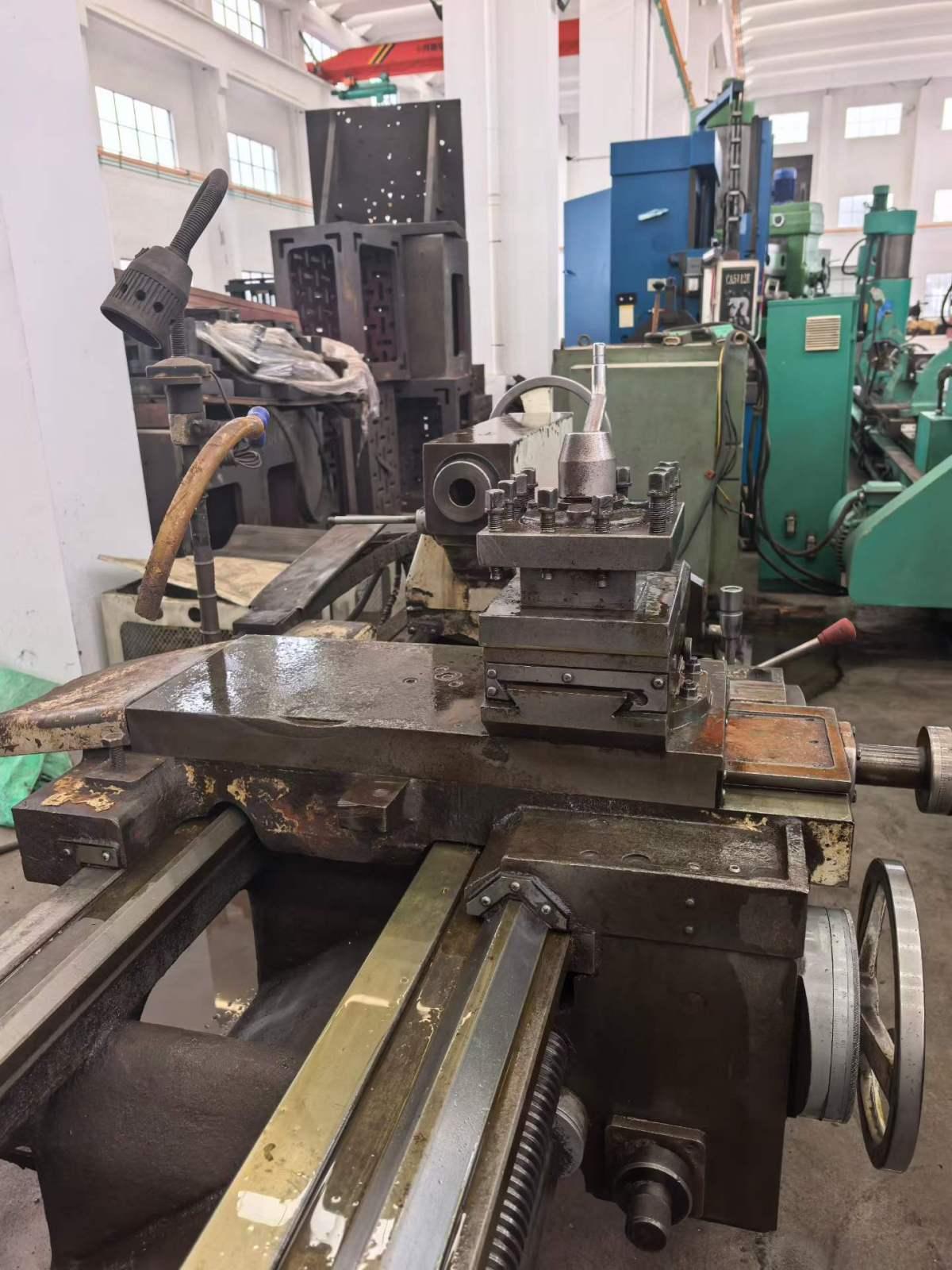

SMTCL CW6163B Lathe

Maximum swing over bed: 630 mm
Maximum swing over cross slide: 350 mm
Maximum workpiece length: 3000 mm
Swing in gap / Effective gap width: 970 / 300 mm
Longitudinal feed range: 64 steps, 0.06–24.3 mm/rev
Longitudinal feed range (1:1): 0.1–1.52 mm/rev
Longitudinal feed range (16:1): 1.6–24.3 mm/rev
Fine feed range (with change gears): 0.05–0.76 mm/rev
Cross feed to longitudinal feed ratio: —
Saddle rapid traverse speed: 4000 mm/min
Leadscrew pitch: 12 mm
Metric thread range: 50 types, 1–240 mm
