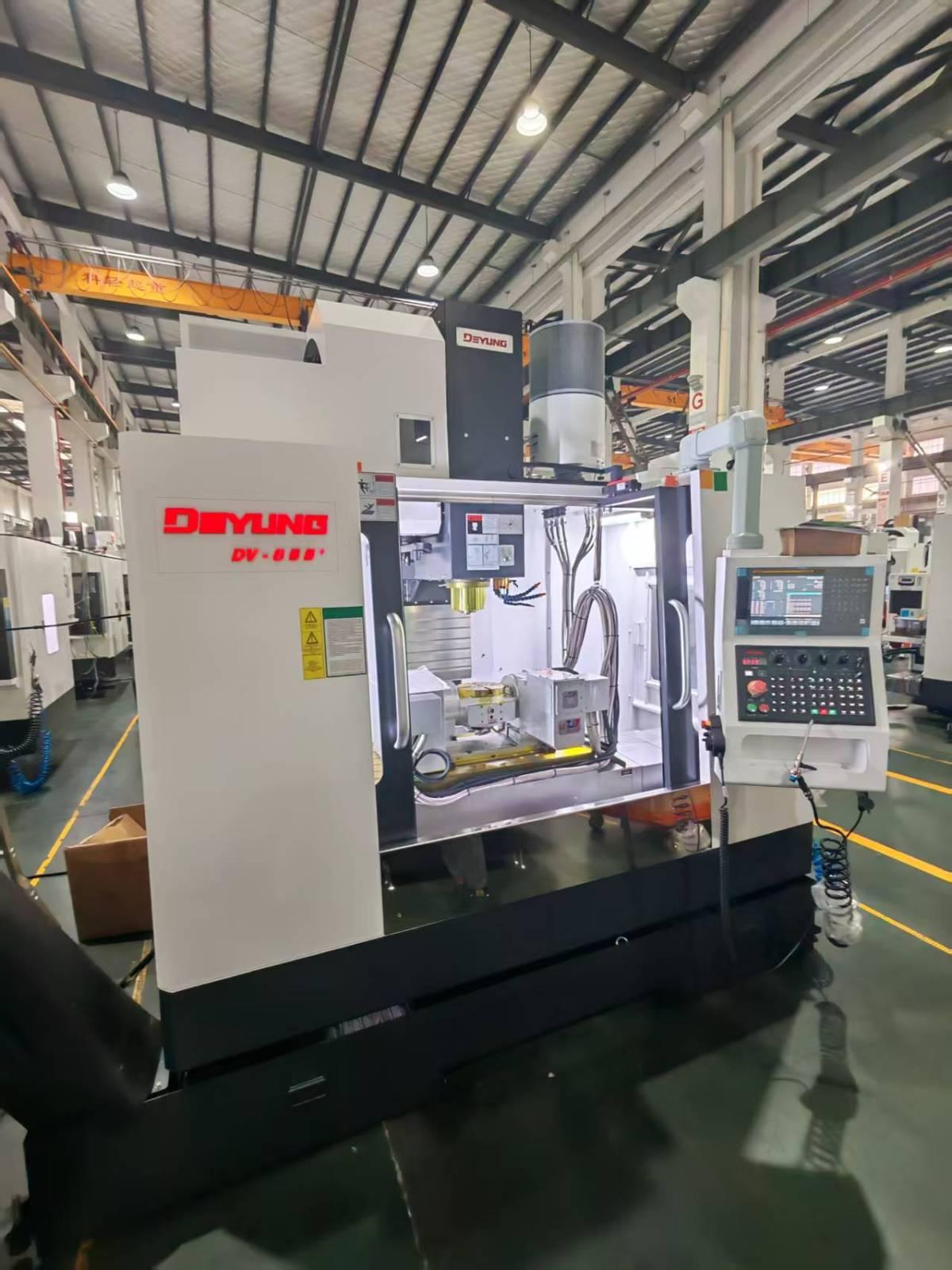

Deyung DV-855+ Vertical Machining centre

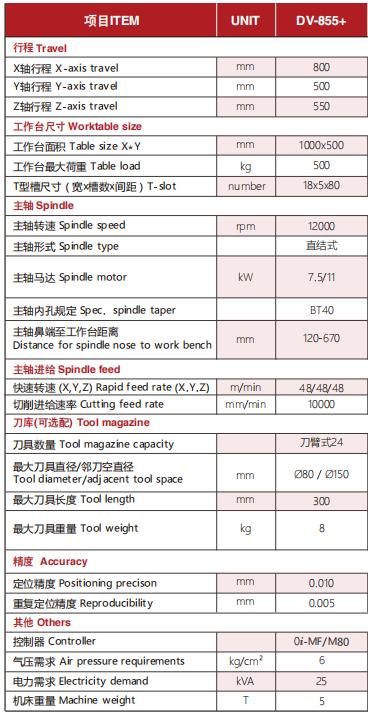

CNC System: FANUC 0i-MF / Mitsubishi M80 (Optional)
Three-axis travel: 800 × 500 × 550 mm
Worktable size (X×Y): 1000 × 500 mm
Maximum load of worktable: 500 kg
T-slot (Width × Number of slots × Spacing): 18 × 5 × 80 mm
Spindle speed: 12000 rpm
Spindle type: Direct-drive
Spindle motor: 7.5 / 11 kW
Spindle taper: BT40
Distance from spindle nose to worktable: 120–670 mm
Rapid feed (X/Y/Z): 48 / 48 / 48 m/min
Cutting feed rate: 10000 mm/min
Tool magazine (Optional):
Tool magazine: 24 Tools (Arm Type)
Maximum tool diameter / Adjacent tool clearance: Ø80 / Ø150 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Positioning accuracy: 0.010 mm
Repeat positioning accuracy: 0.005 mm
Air pressure requirement: 6 kg/cm²
Power requirement: 25 kVA
Machine weight: 5 Tons
Standard Configuration
Rigid tapping
Machine cleaning water gun
Handheld chip blow air gun
21 clamp-type tool magazine (TV Series)
24-disc tool magazine (DV Series)
M30 automatic power-off system (DV Series)
Full enclosure guard
Spindle air curtain dust-proof system
Anchor bolts and leveling pads
Electrical cabinet heat exchanger
Work light
Mechanical, electrical and operation manuals
Toolbox
Transformer
Working status light
Automatic lubrication system
Chip tray and coolant tank
Optional Accessories
Screw chip conveyor (DV Series)
Hinge-type chip conveyor (DV Series)
Through spindle coolant system (CTS) (DV Series)
Spindle ring spray system (DV Series)
10,000 rpm belt-driven spindle (DV Series)
15,000 rpm electric spindle (DV Series)
20,000 rpm electric spindle (DV Series)
30-disc tool magazine (DV Series)
Spindle oil chiller
NC rotary table (4th axis)
Automatic door
Oil mist collector
Disc-type oil-water separator
Automatic tool length measurement system
