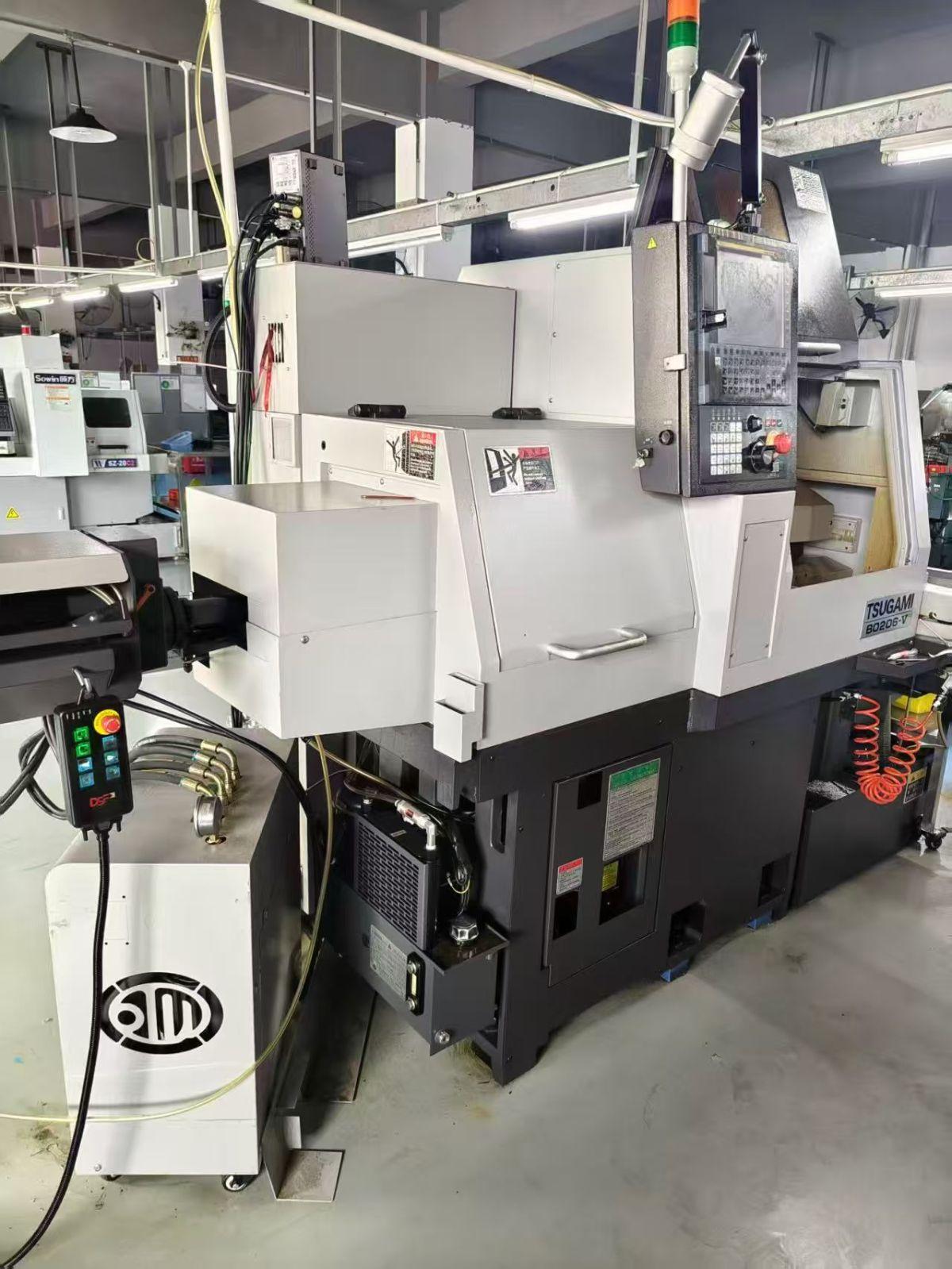

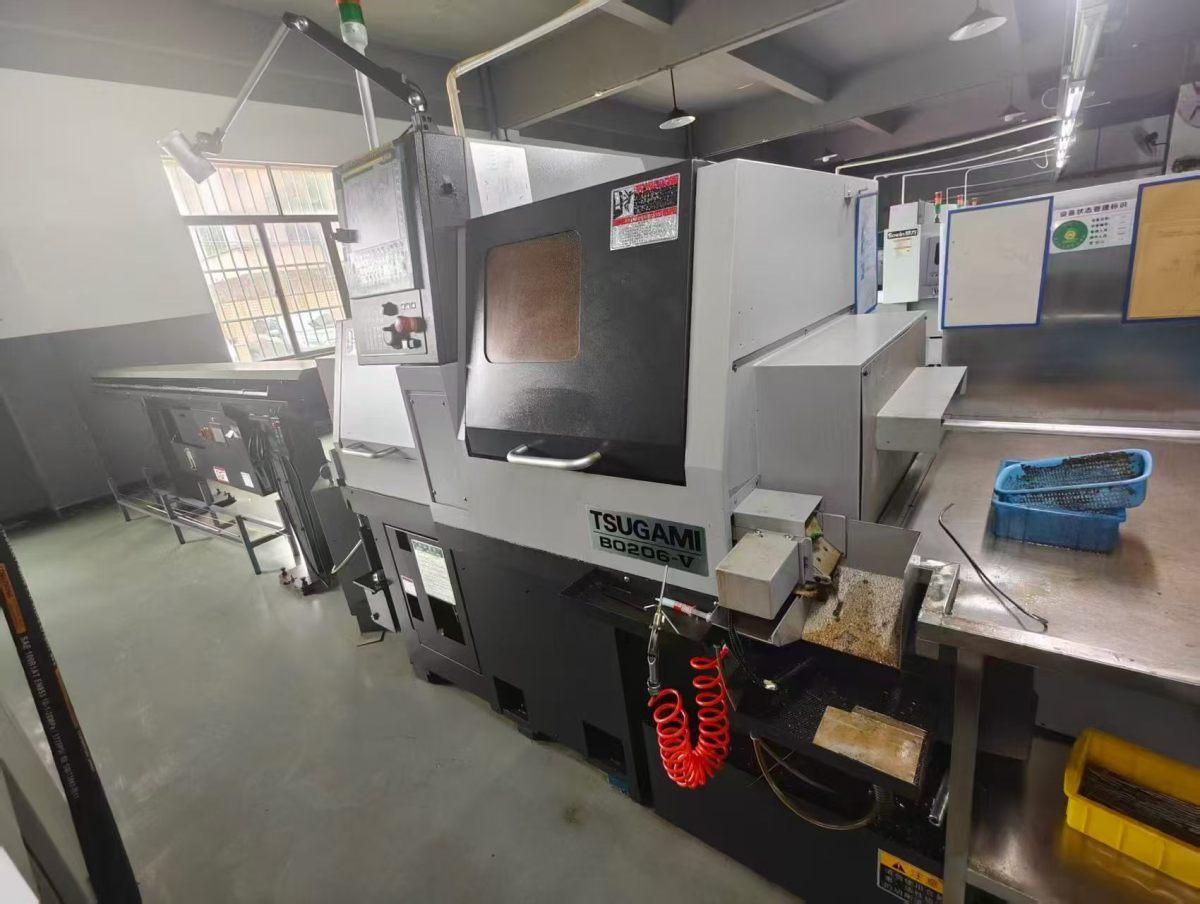

Tsugami B0206-V Multi-spindle lathe

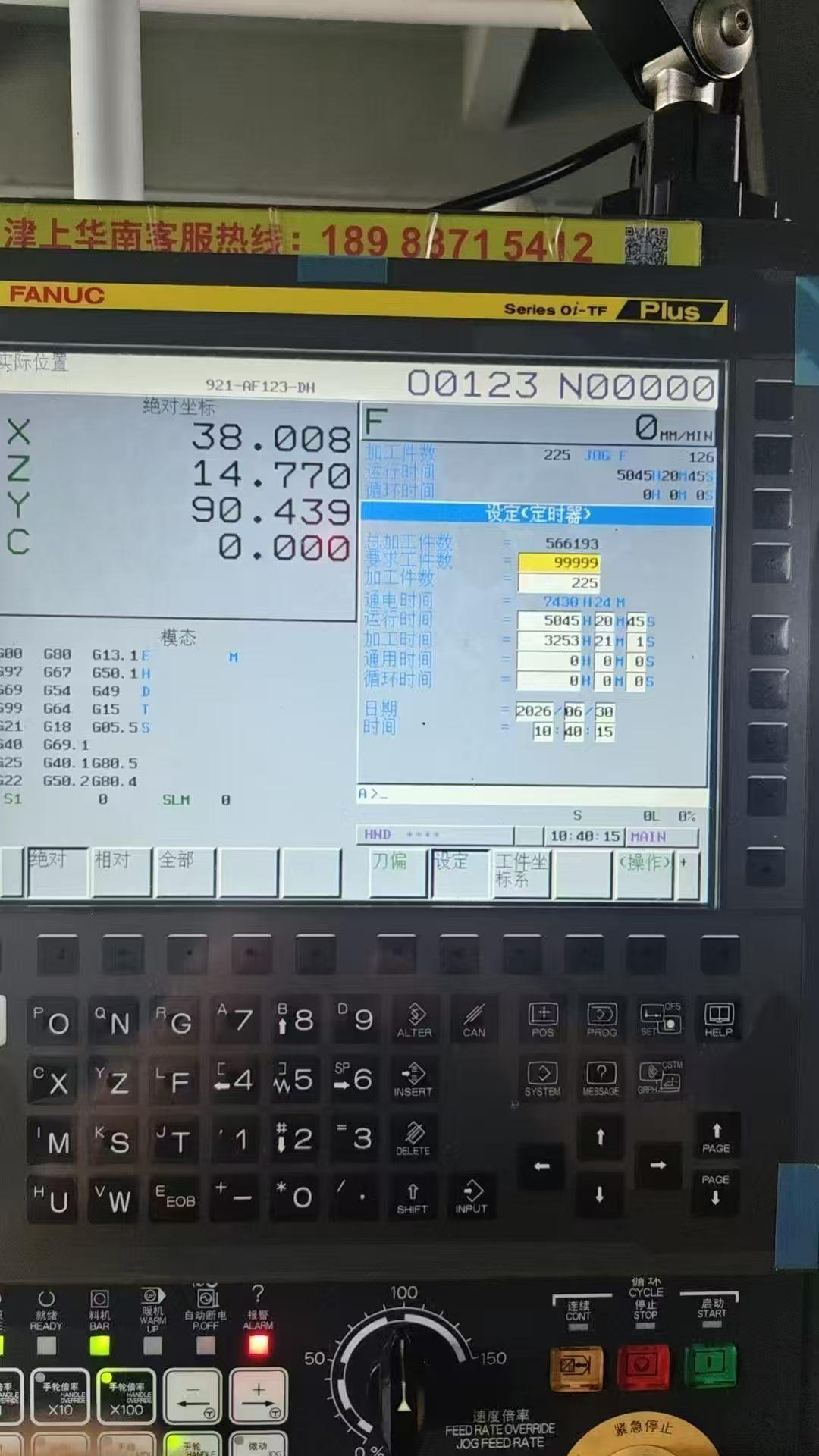

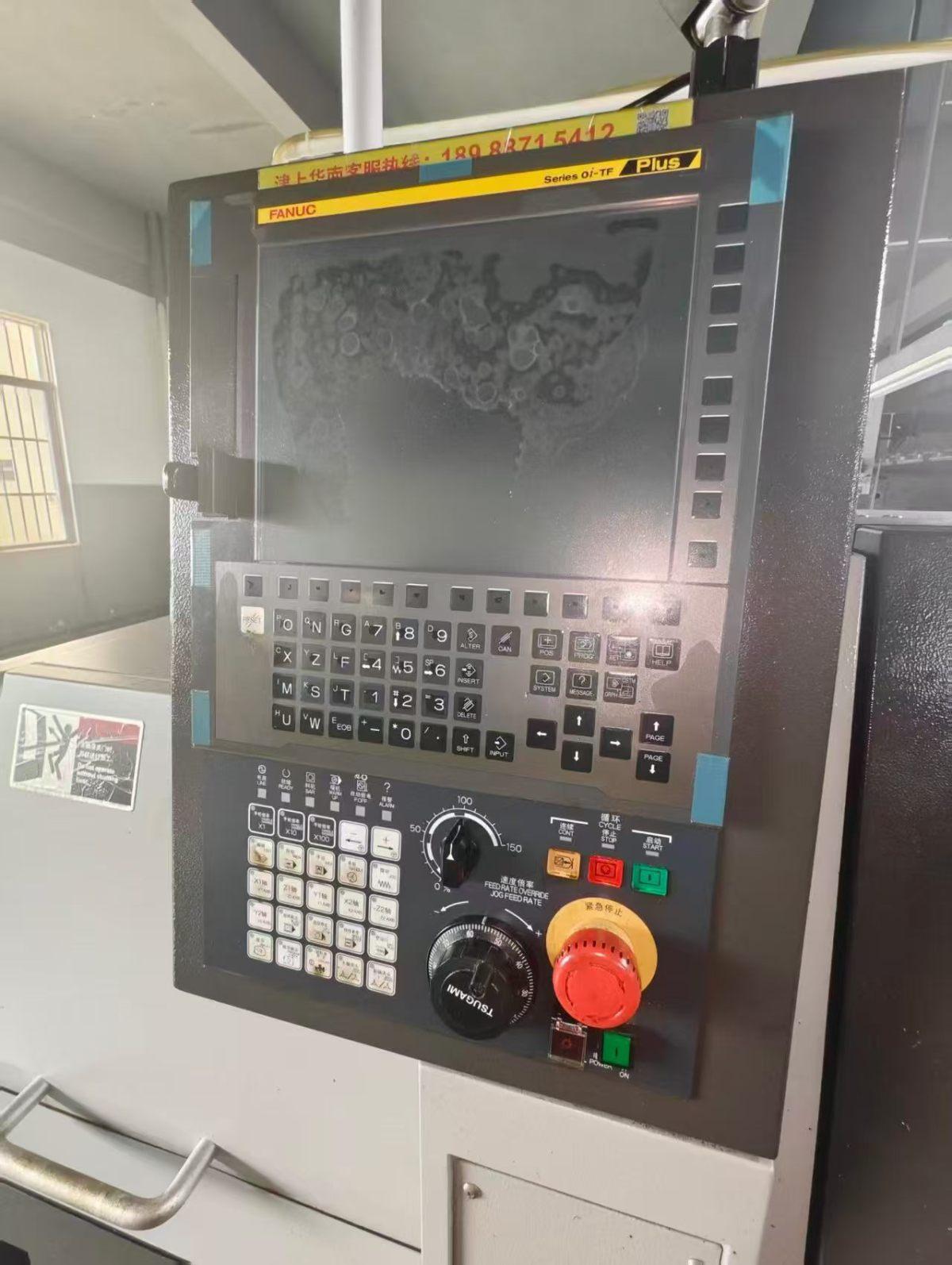

CNC system: FANUC
Machining capacity:
Bar stock diameter: Ø3–20 mm
Max machining length: 45 / 80 / 170 / 210 mm (depending on guide bushing type)
Machining capability
Drilling capacity: Ø10 mm
Tapping capacity: M10
Sub spindle
Chucking barstock diameter: Ø20 mm
Drilling capacity: Ø10 mm
Tapping capacity: M10
Spindle system
Main spindle speed: 10,000 rpm
Sub spindle speed: 12,000 rpm
Live tools
Front turret: 10,000 rpm
Rear turret: 8,000 rpm
Tool system
Tool positions: 27
Machine data
Rapid traverse: 15–36 m/min
Main spindle power: 3.7 / 5.5 kW
Coolant tank: 180 L
Power supply: 13.1 kVA
Machine weight: 1850 kg
Dimensions: 1750 × 1055 × 1700 mm
