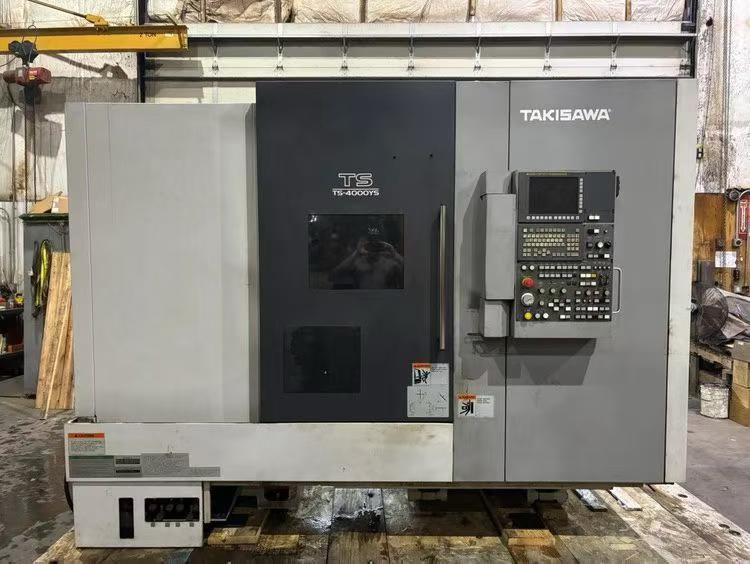

Takisawa TS-4000YS Turn Mill Machining Centre

Maximum rotational diameter: 600 mm
Maximum machining diameter: 370 mm
Maximum processing length: 750 mm
Billet throughput capacity: 82 mm

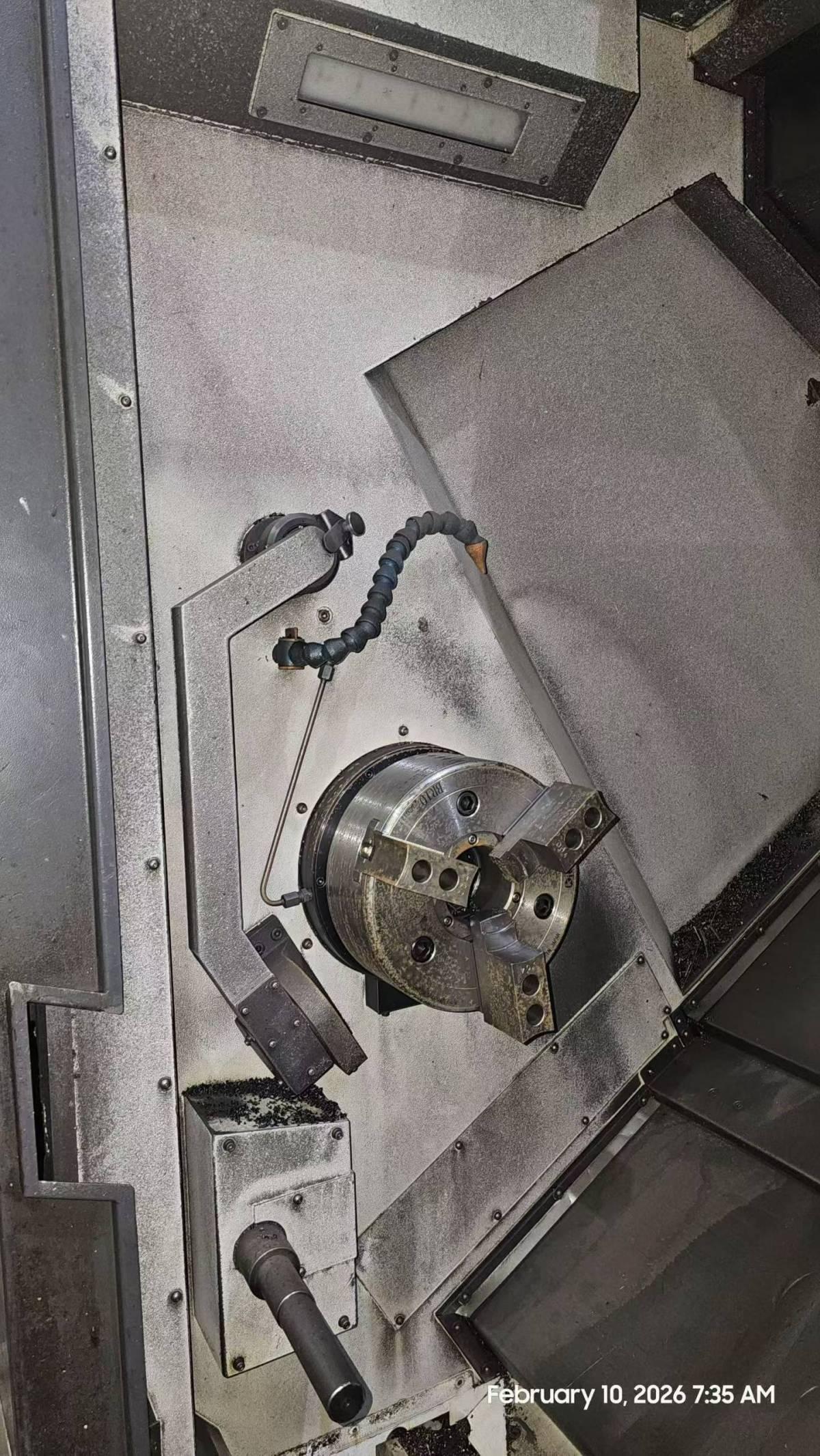

Chuck size: 10”
X-axis: 267 mm
Z-axis: 840 mm
Y-axis: –50 to +70 mm
A-axis: 780 mm
Spindle speed: 4200 rpm
Auxiliary spindle speed: 6000 rpm
Spindle motor: 22/15 kW
Auxiliary main shaft motor: 11/7.5 kW
Maximum rotational speed of the power tool: 6000 rpm.
Power tool motor: 7.5/3.7 kW
All workstations can be equipped with power tools.
Dimensions: 3000 × 2140 mm
Machine height: 2300 mm
Machine weight: 6200 to 6700 kg
