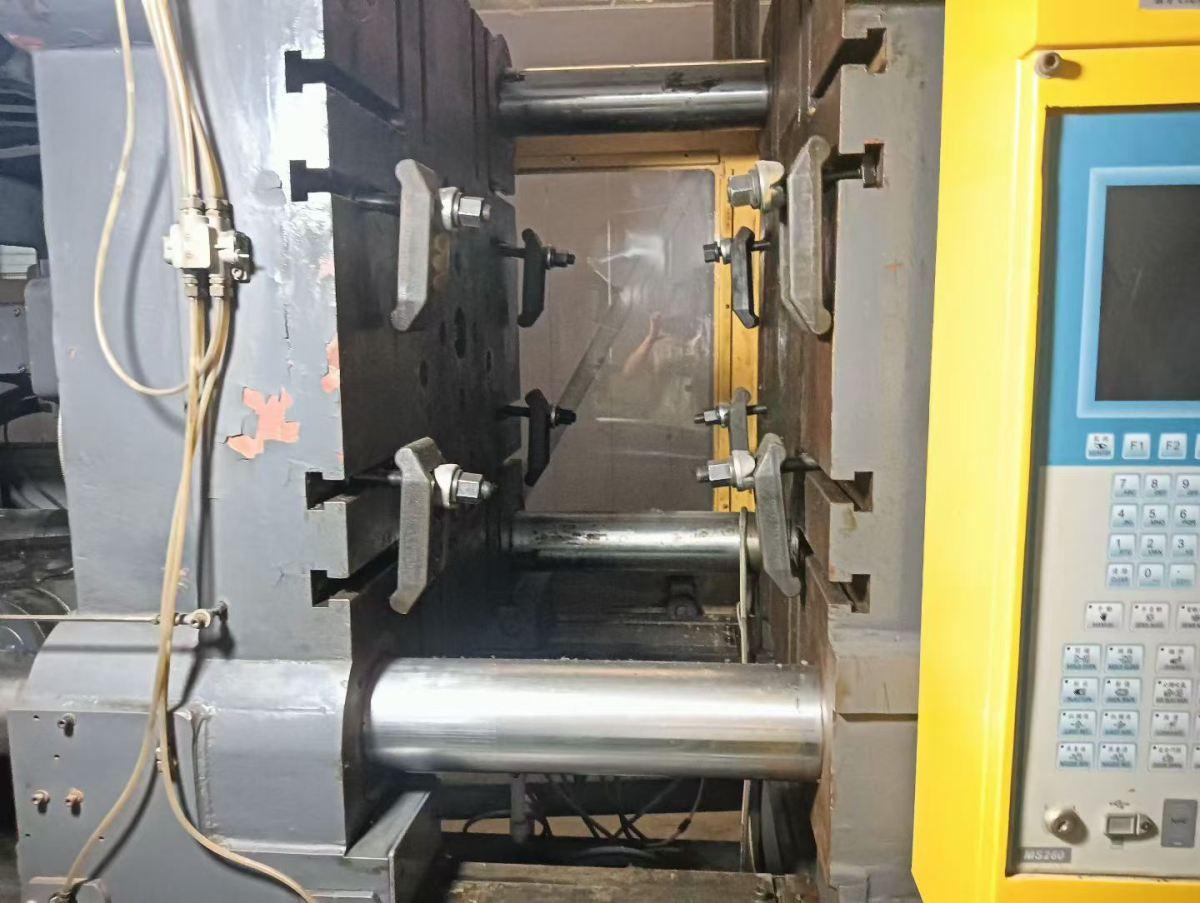

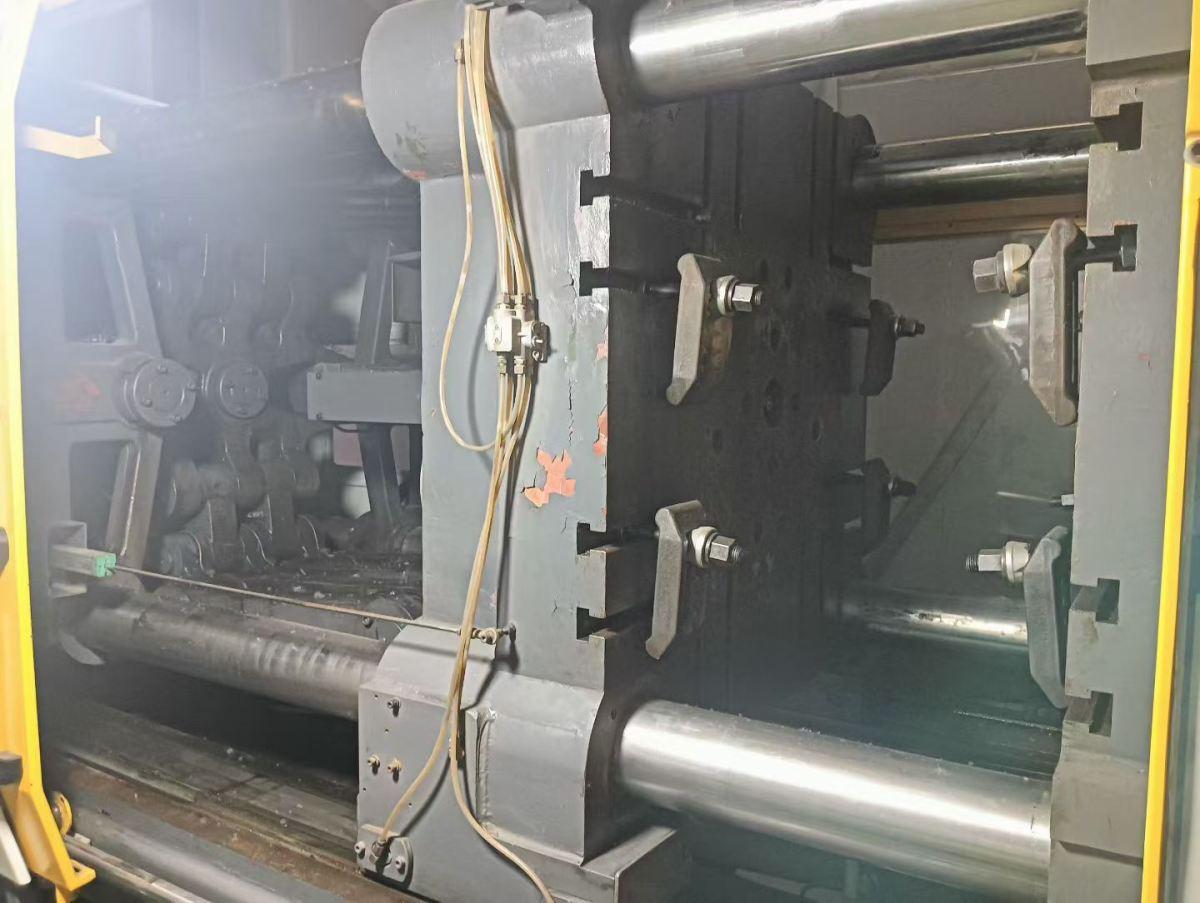

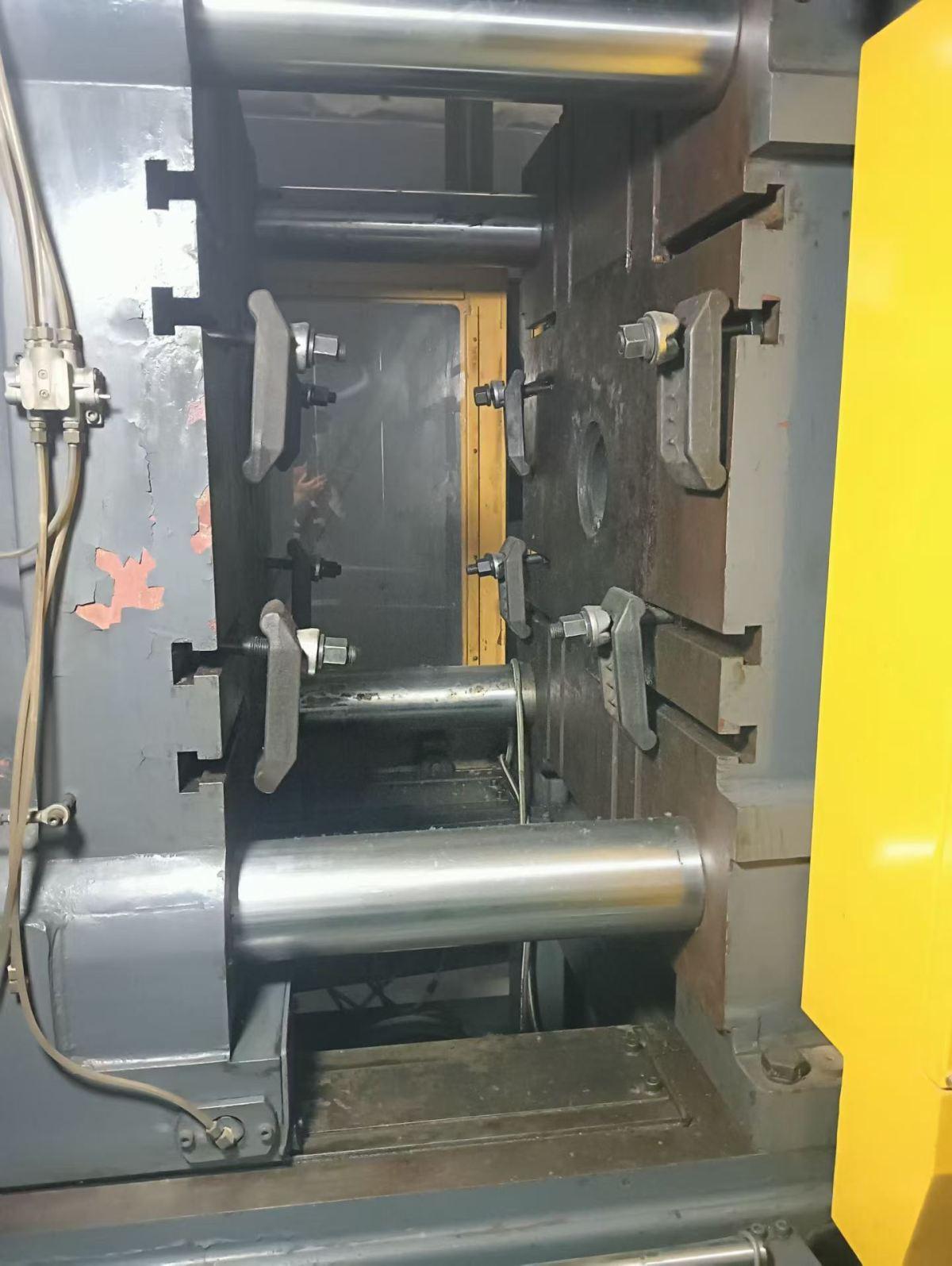

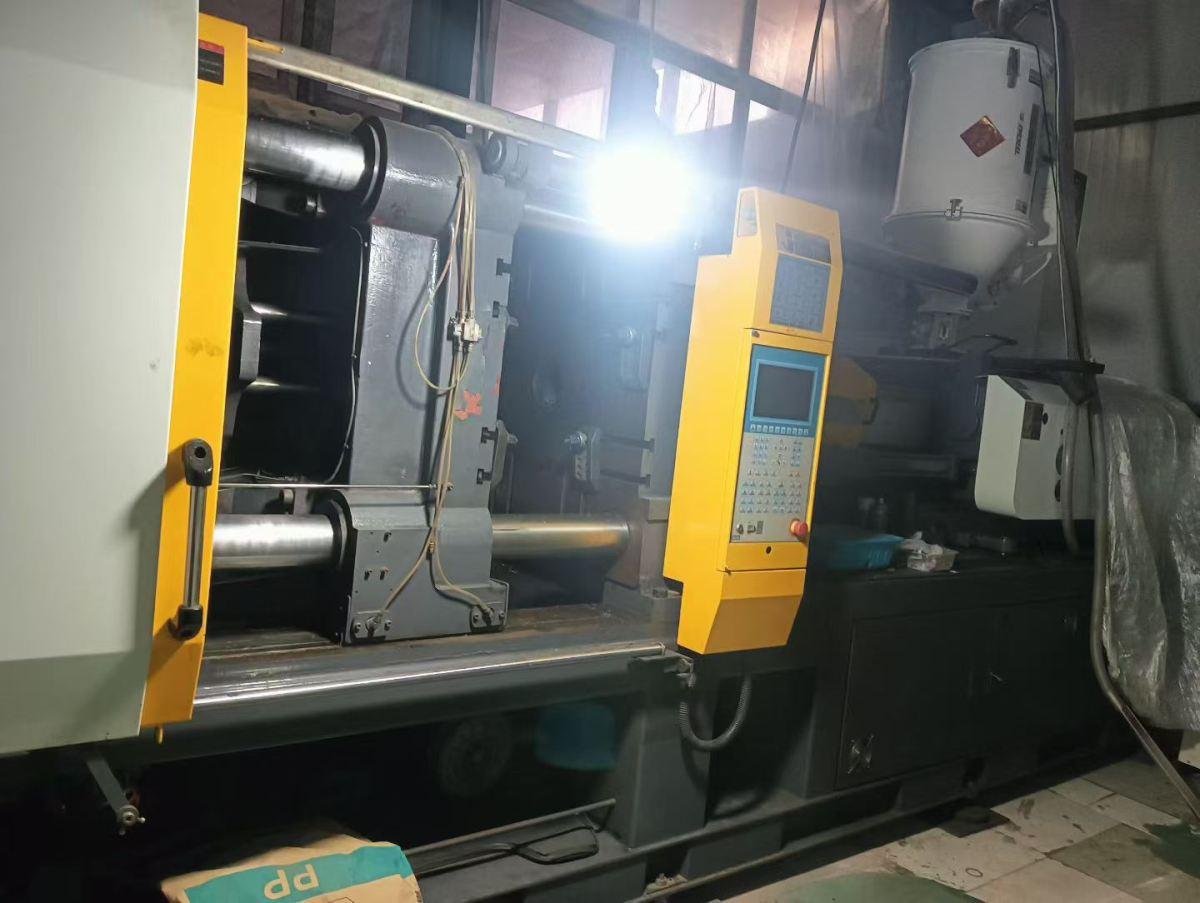

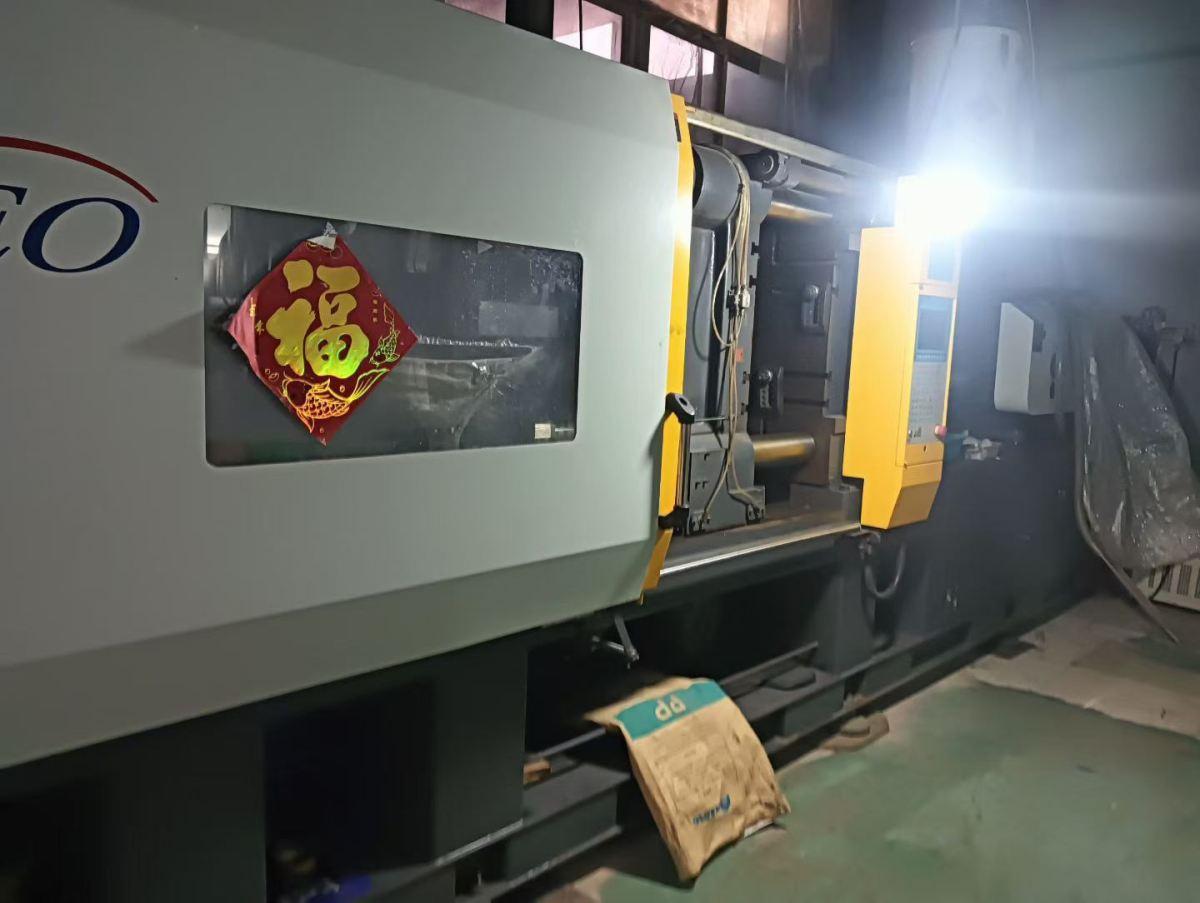

WOOJIN SELEX-NFG-380 injection molding machine
[Product Information]:
- Inventory number：468198
- Brand：WOOJIN
- Model：SELEX-NFG-380
- Origin：South Korea
- Location：China
- Year：2015
- Create Time：2026-07-03
Specifications:
Theoretical clamping force: 3800kN
Mold opening travel: 550mm
Maximum mold thickness: 600mm
Minimum mold thickness: 200mm
Template size: 850x800mm
The inner spacing of the pull rod: 560x560mm
Clamping method: Hyperbolic elbow mechanical clamping
Ejection travel: 150mm
Maximum top force: 60kN
The swing diameter:55mm
Screw length-to-diameter ratio: 22:1
Theoretical injection volume: 815cm³
Injection pressure: 155MPa
Injection rate: 260g/s
Screw speed: 0 to 220rpm
