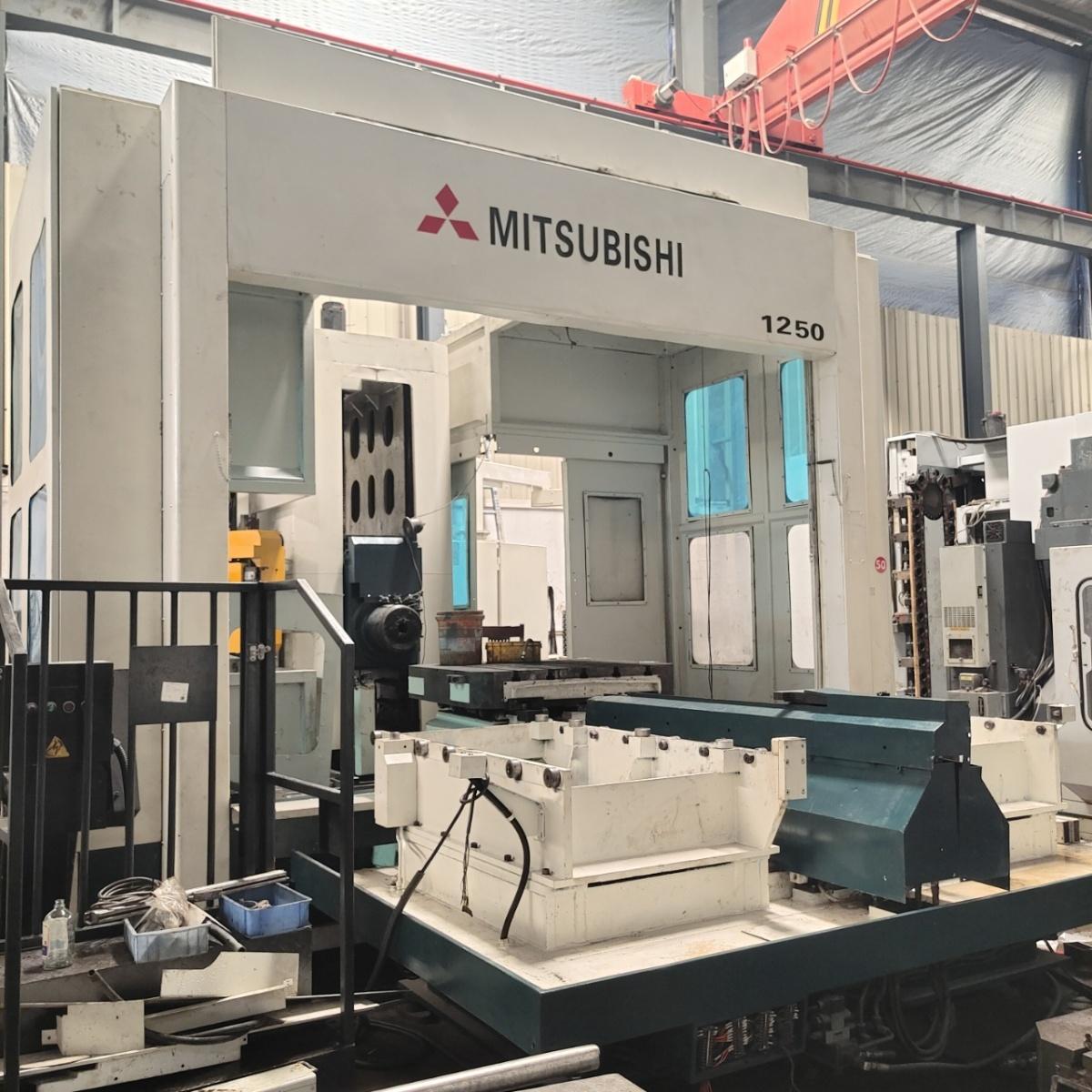

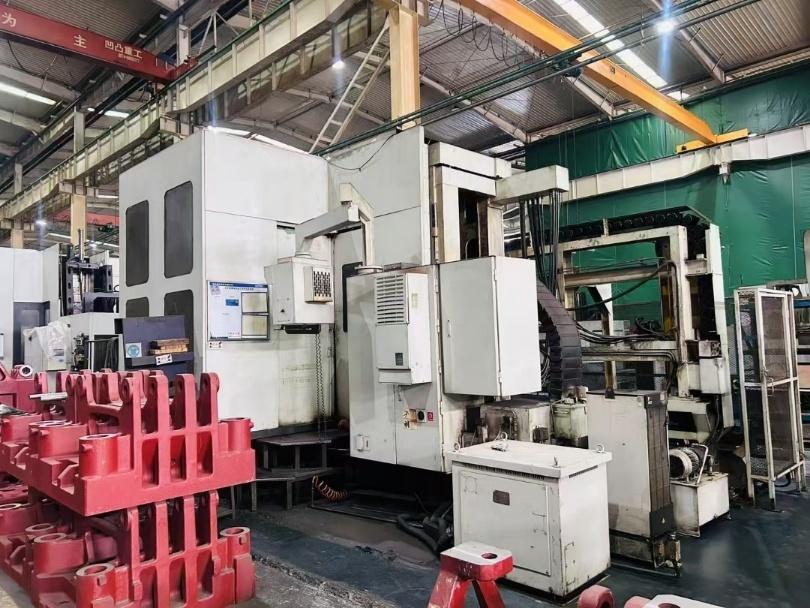

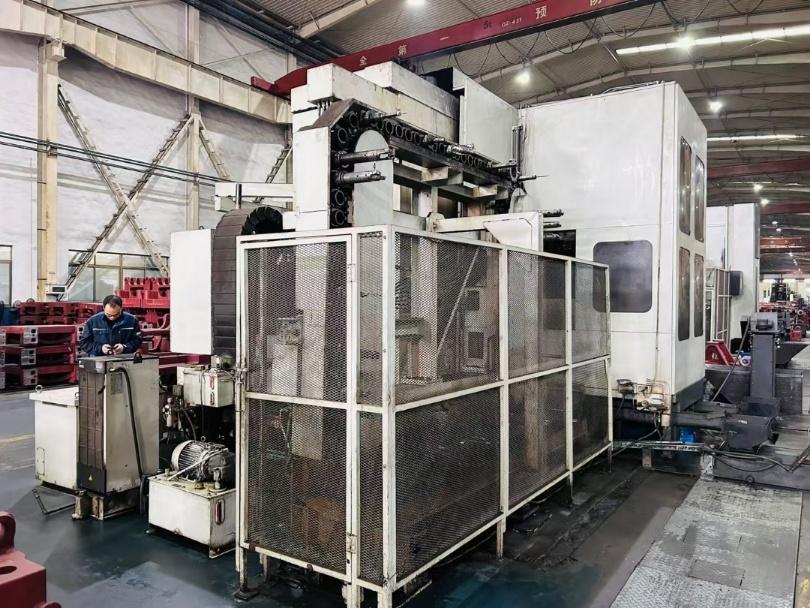

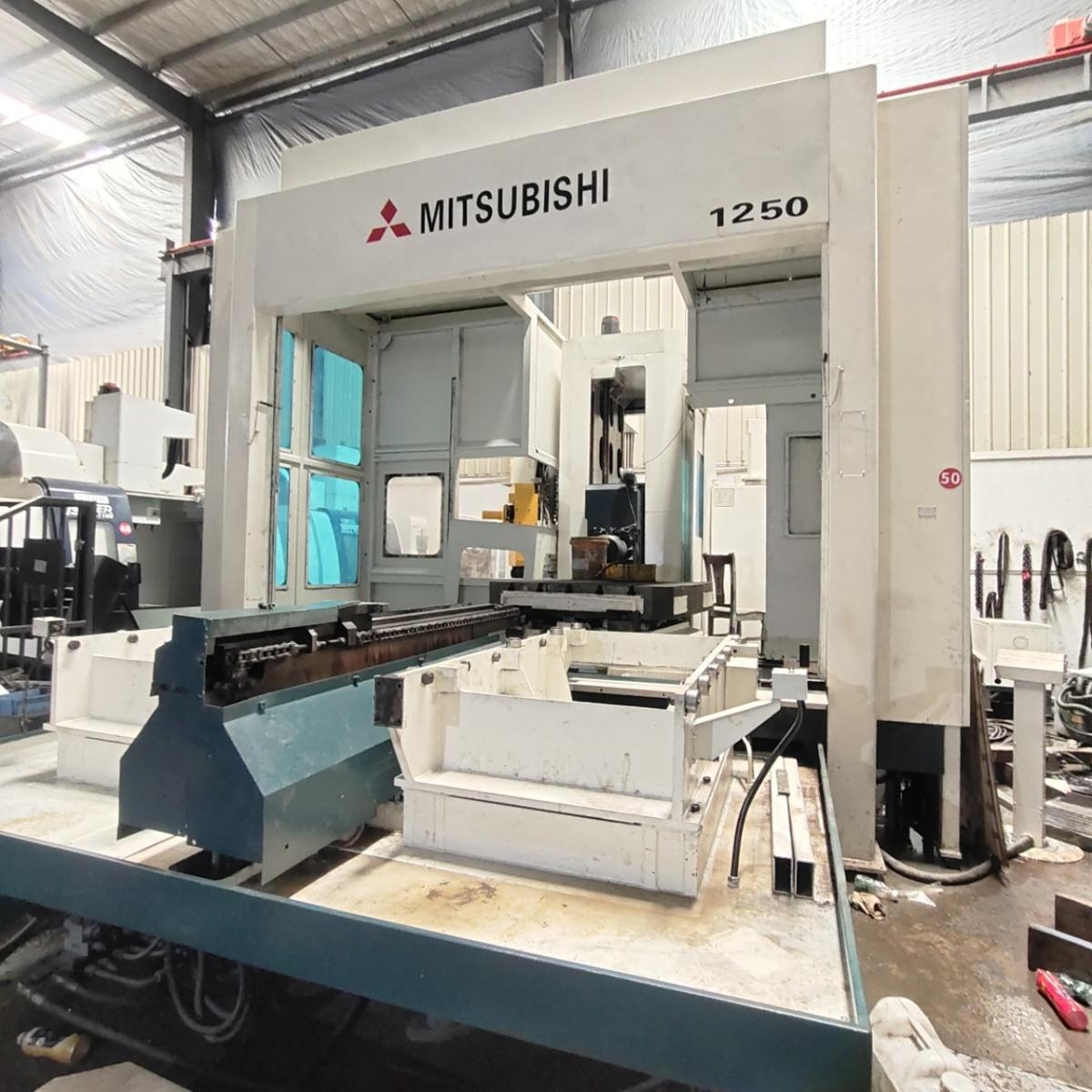

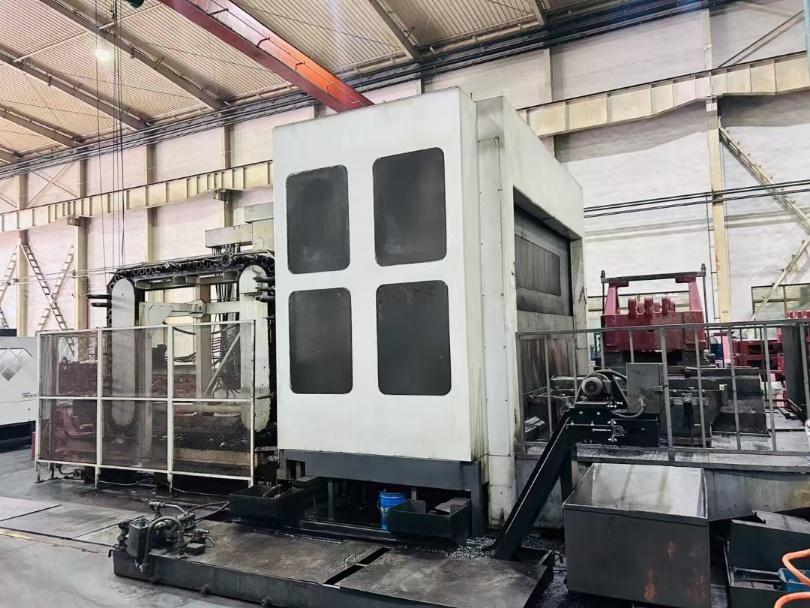

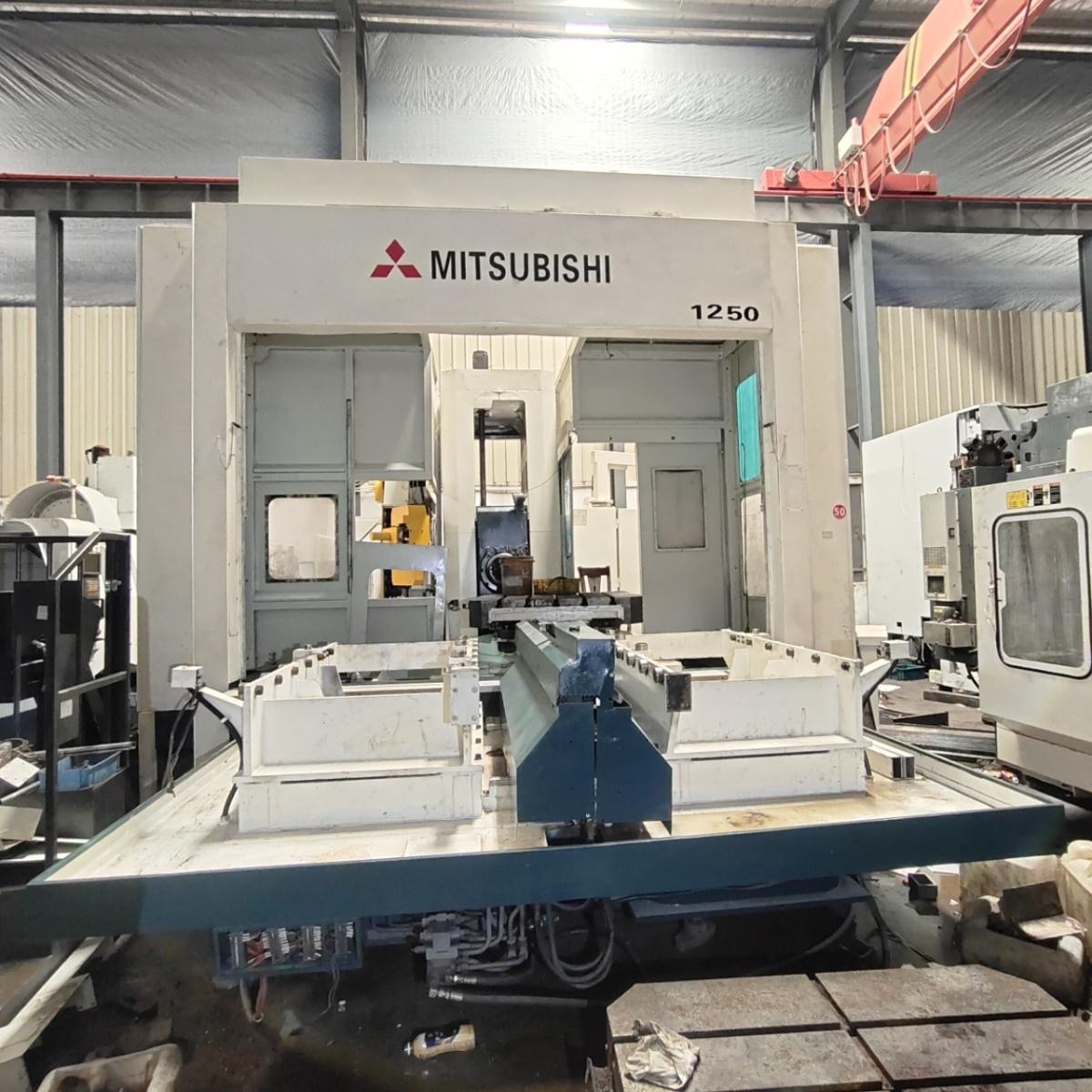

Mitsubishi M-HT13/1250 Boring and milling machine

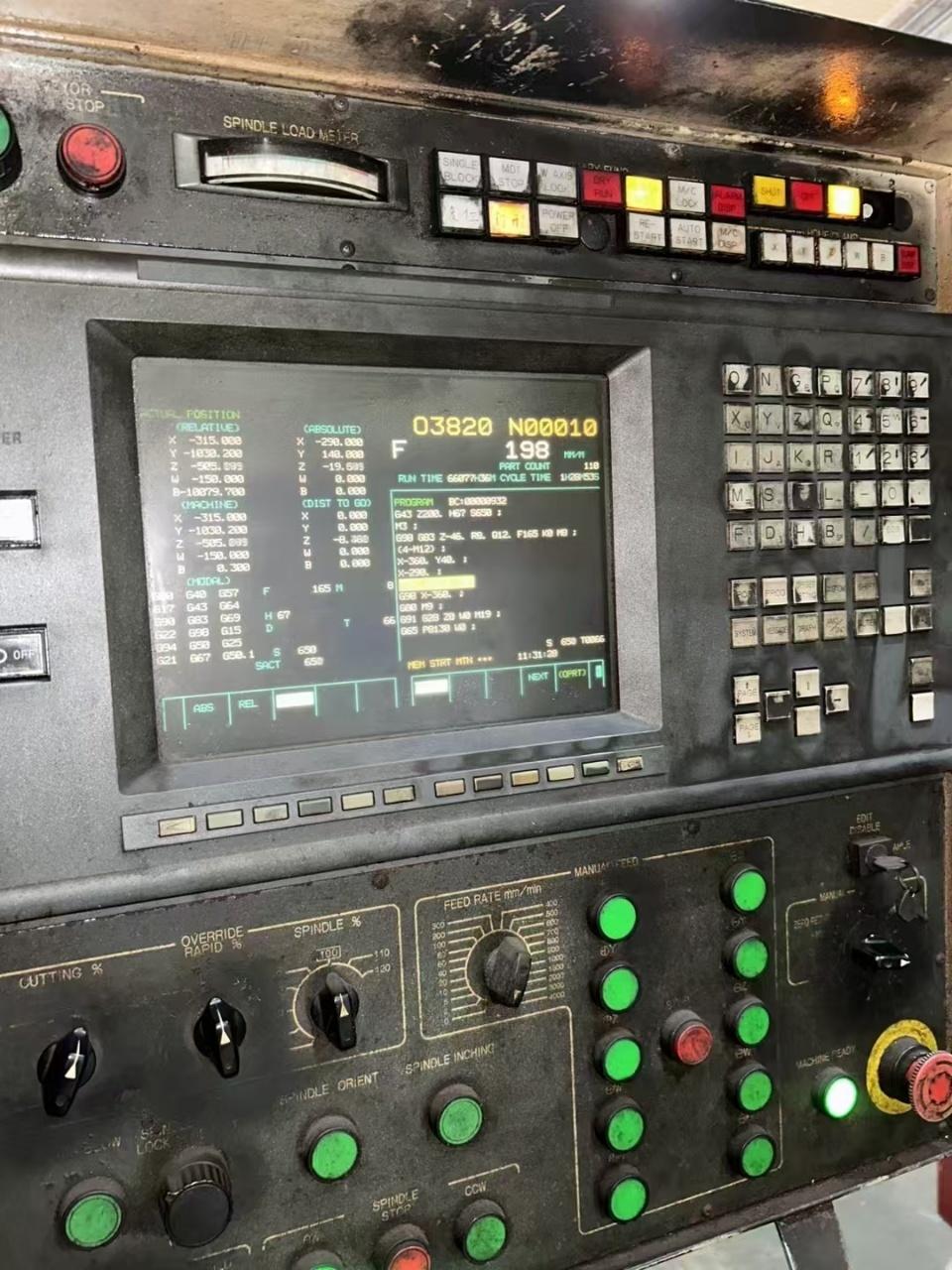

CNC System: FANUC 160i-MA
Worktable size: 1250 × 1250 mm
Maximum Swing diameter: Ø2500 mm
Three-axis travel: 1650 × 1400 × 1100 mm
W-axis travel: 500 mm
B-axis rotation: 360°
B-axis indexing accuracy: 0.001°
Guideway: Linear guideways (3-axis)
Spindle taper: BT50
Spindle speed: 6000 rpm
Spindle type: Gear-driven spindle
Boring bar diameter: Ø130 mm

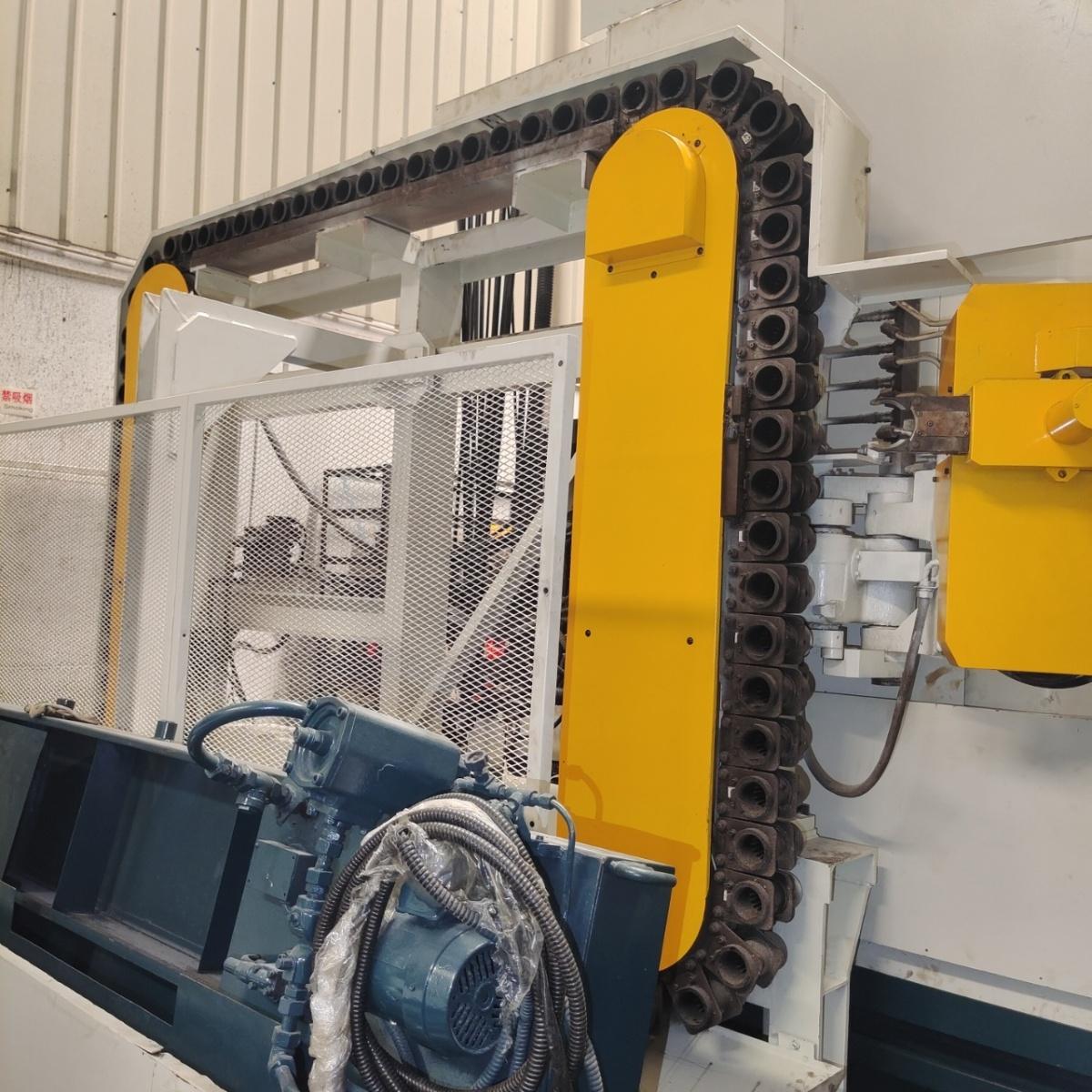

Tool magazine capacity: 80 tools, chain-type ATC
Communication: Ethernet
Drive system: FANUC α (Alpha) series servo drives
Linear scales: Full closed-loop control
Chip removal system: Screw-type chip conveyor + external chain-type chip conveyor
